TRU COMPONENTS T25C048 Butt joint + heatshrink 0.3 mm² 6.0 mm² Insulated White, Red, Blue, Black, Yellow 350 pc(s)
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Butt joint
Insulation type
Insulated
Content
350 pc(s)
max. cross section
6.0 mm²
Datasheet (PDF)
Number (Package size 350 pc(s))
Total (€ 36.13 / piece)
€ 36.13
plus VAT.
14-day return policy included
Highlights & Details
Heat-shrink crimp connector assortment 350 pieces 3:1
- Density connection by hot-melting inner adhesive
- Easy-to-read set with 350 parts contents
- Problem-free use with hot air gun and crimping pliers
- Sizes available individually as refill packs
Technical specifications
- Packaging type
Package
- Product type
Butt joint
- Factory colour
White
Red
Blue
Black
Yellow
- Insulation type
Insulated
- Content
350 pc(s)
- Manufacturer part #
T25C048
- Type
T25C048
- max. cross section
6.0 mm²
- Min. cross section
0.3 mm²
- Insulation material
Full PVC insulation
- Cross-section range
0.3 - 6.0 mm²
- Features
+ heatshrink
- Shrink temperature (max.)
130 °C
- Shrink temperature (min.)
80 °C
- Max. temperature
125 °C
- Min. temperature
-55 °C
Documents & Downloads
Datasheet
Datasheet 3450036 TRU COMPONENTS T25C048 Butt joint + heatshrink 0.3 mm² 6.0 mm² Insulated White, Red, Blue, Black, Yellow 350 pc(s)
User & Safety Instructions
User & Safety Instructions 3450036 TRU COMPONENTS T25C048 Butt joint + heatshrink 0.3 mm² 6.0 mm² Insulated White, Red, Blue, Black, Yellow 350 pc(s)
Description
This butt connector set is particularly suitable for hobbyists, professionals, field teams, service workshops, electronics and laboratories. The inner hot-melt adhesive provides water-proof sealing if it overlaps correctly. Ideal for repairing or connecting cables and wires (lawnmower cable, signal cable, etc.), service, manufacturing or hobby. The application is very simple: Strip the cable and insert it on both sides until the stripped cable ends overlap. Crimp on both sides with a crimp pliers and then activate the heat-shrink tubing in the appropriate temperature range - preferably with a hot air gun. The different sizes are available individually as packs of 10 for refilling.
This text is machine translated.
This text is machine translated.

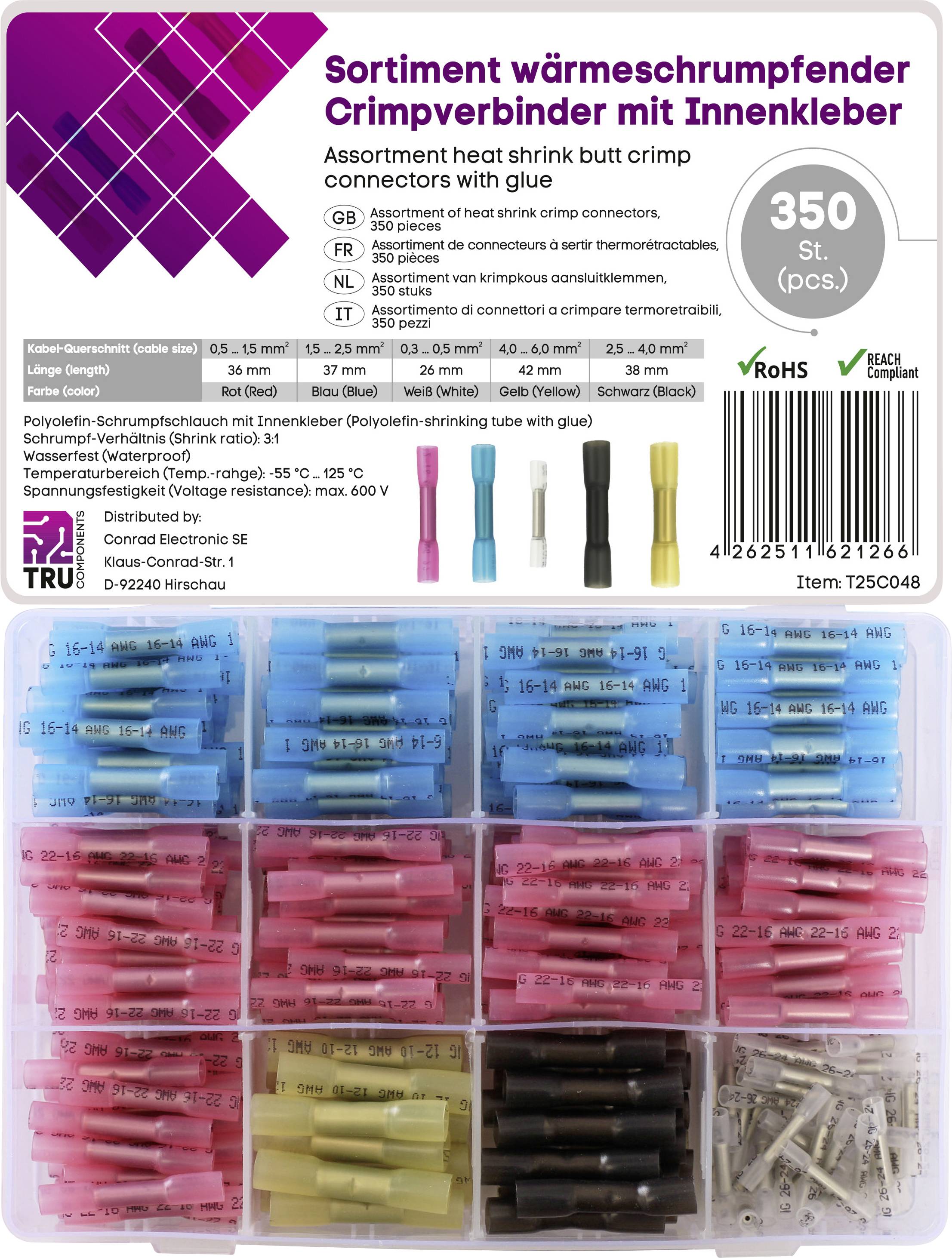

Scope of delivery
- 60 x Crimp-butt connector with shrink hose / inner adhesive 4 mm white
- 150 x Crimp-butt connector with shrink hose/inner adhesive 4.7 mm red
- 100 x Crimp-butt connector with shrink hose / inner adhesive 5.7 mm blue
- 20 x Crimp-butt connector with shrink hose / inner adhesive 6 mm black
- 20 x Crimp-butt connector with shrink hose/inner adhesive 6.9 mm yellow
