TRU COMPONENTS TC-10343996 S3KF-2FS Key switch head Key Silver 1 x 90 ° 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Highlights & Details

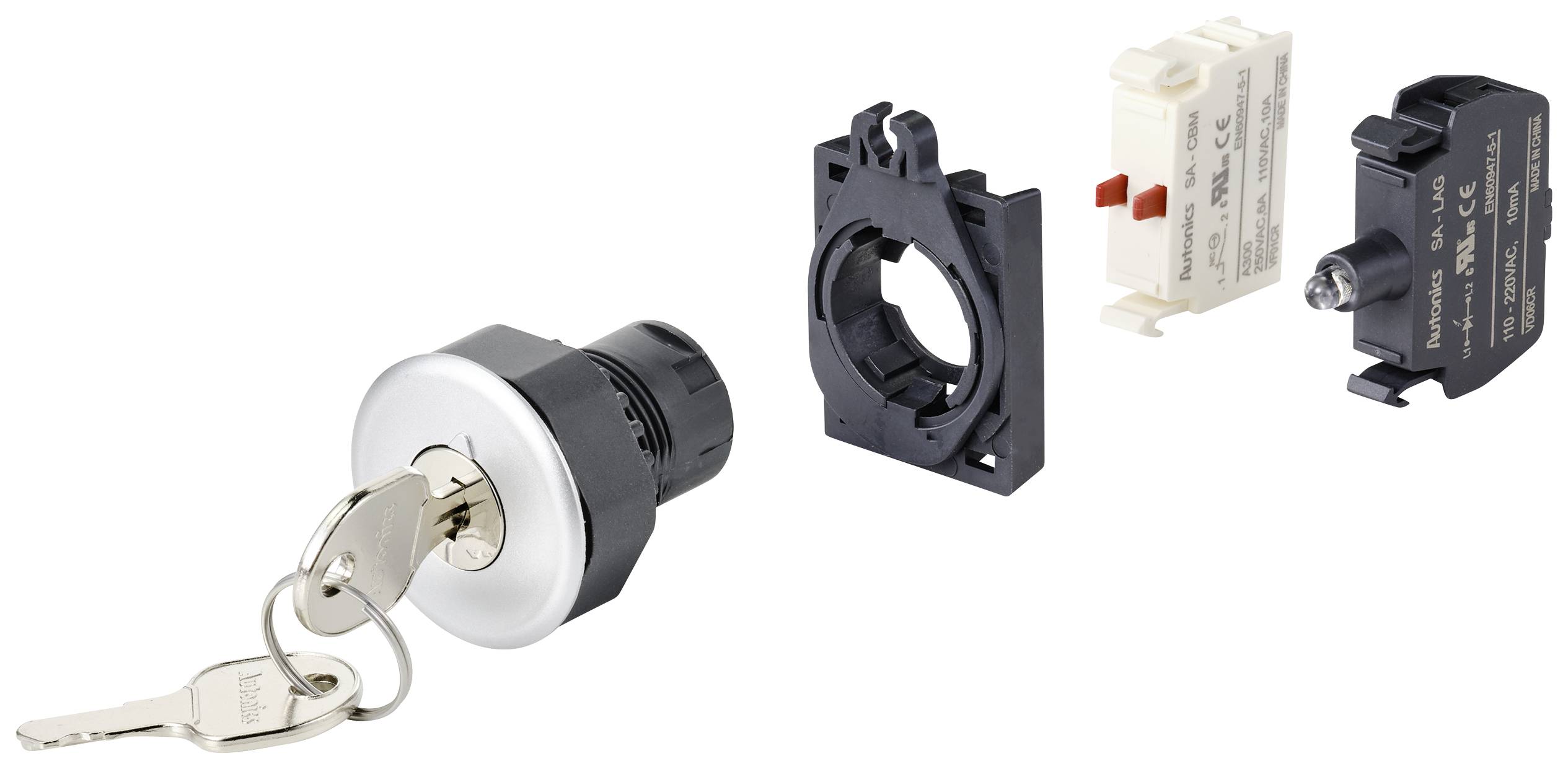

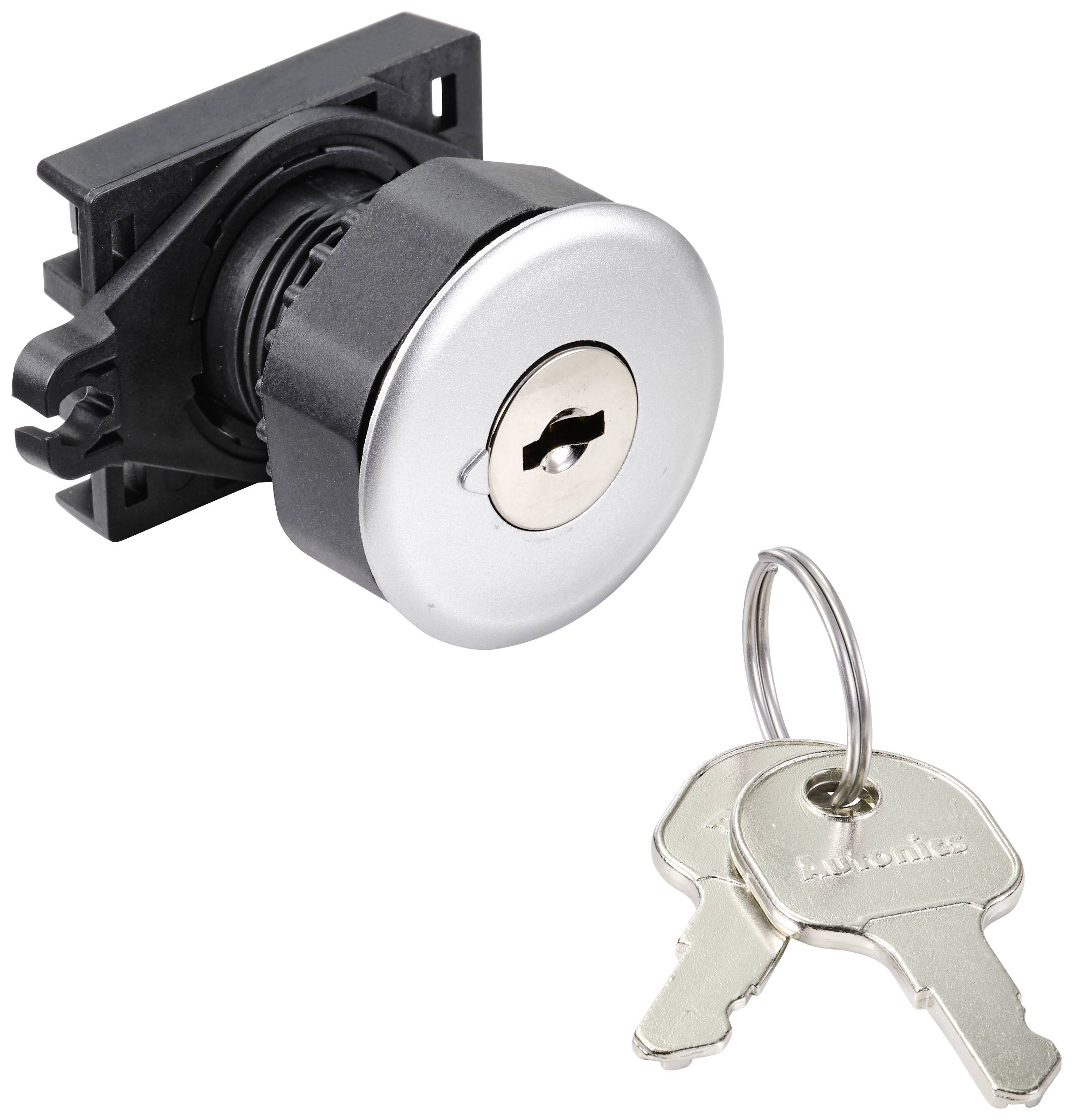

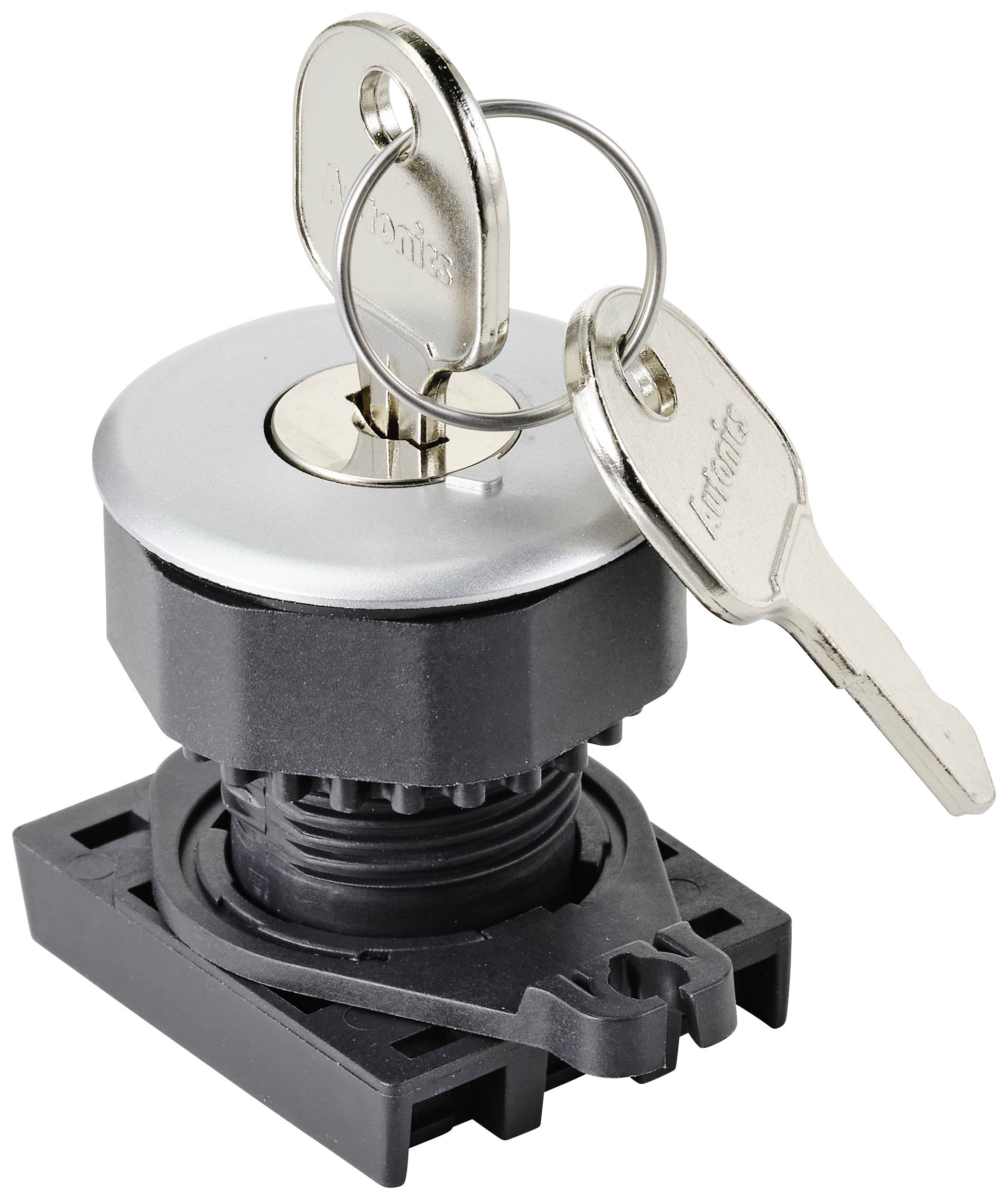

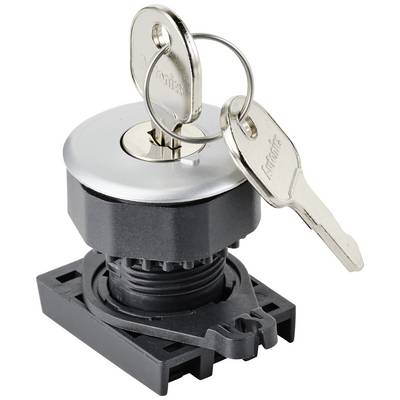

Tru Components Key switch S3KF-2FS
Technical specifications

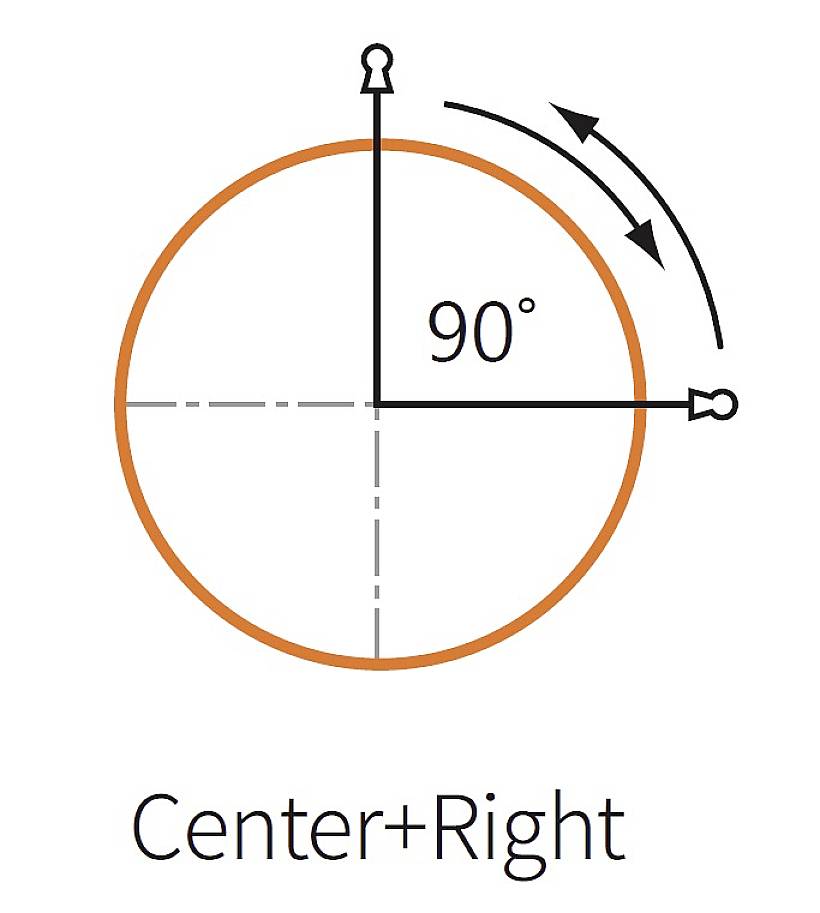

- Key removal: 0° and Right 90°
- Product type
Key switch head
- Operation type
Key
- Factory colour
Silver
- Connection
External contact
- Front panel cut-out
30.5 mm
- Functions
latch
- Recess diameter
30 mm
- Min. temperature
-15 °C
- Max. temperature
55 °C
- Switching angle
1 x 90 °
- Switch position
1 x Off/On
- Length
36 mm
- Width
48.1 mm
- Height
60 mm
- Content
1 pc(s)
- Dim
(L x W x H) 36 x 48.1 x 60 mm
- Weight
41 g
- Type
S3KF-2FS
