Single-phase power supply DPS-24120 from TRU Components, input AC 100-240V, output DC 24V/5A, suitable for industrial applications.

Single-phase power supply DPS-24120 from TRU Components, input AC 100-240V, output DC 24V/5A, suitable for industrial applications.

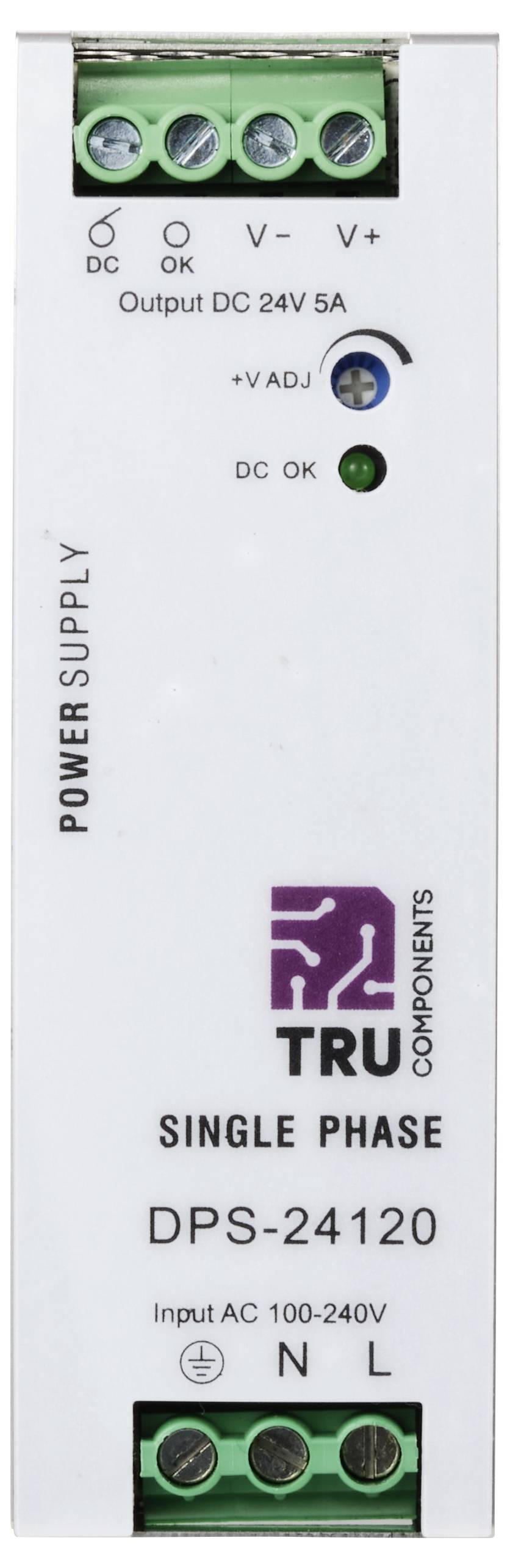

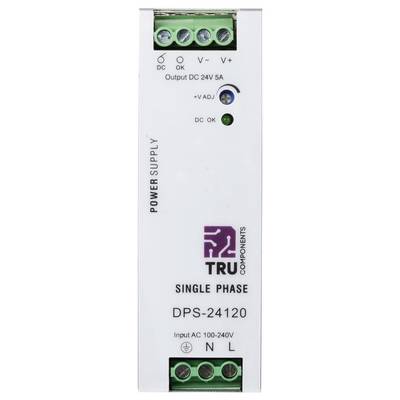

TRU DPS-24120 single-phase power supply unit, AC input 100-240V, DC output 24V 5A. Includes LEDs for DC-OK and DC-OK.

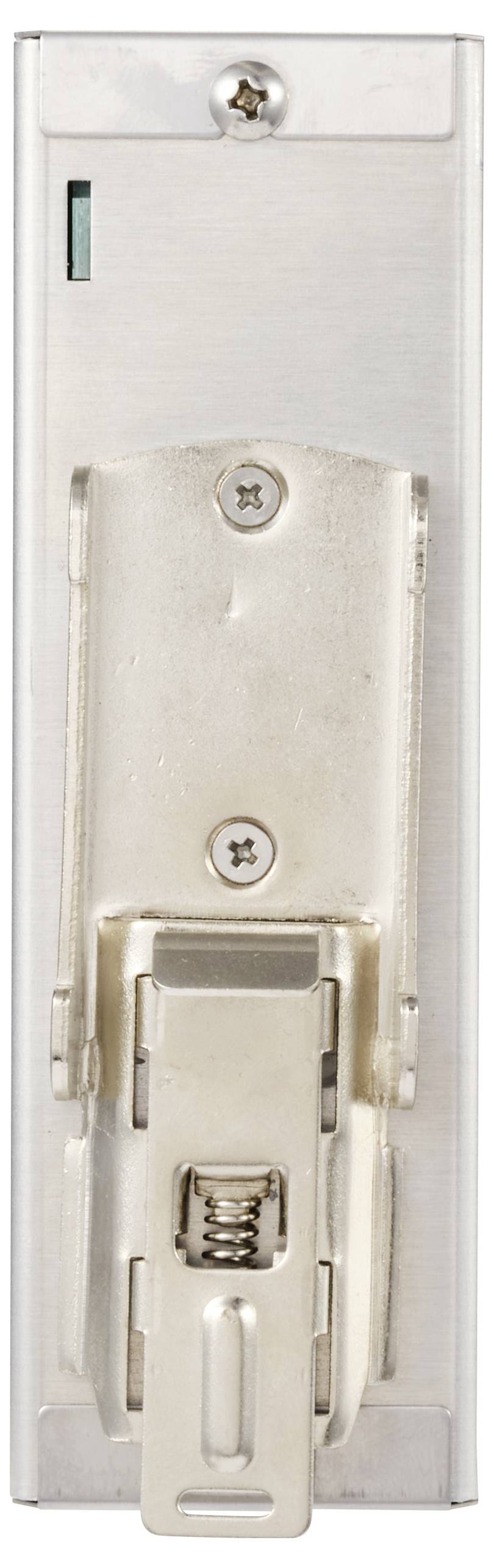

A silver metal mounting bracket with screws, likely designed for securing to a surface.

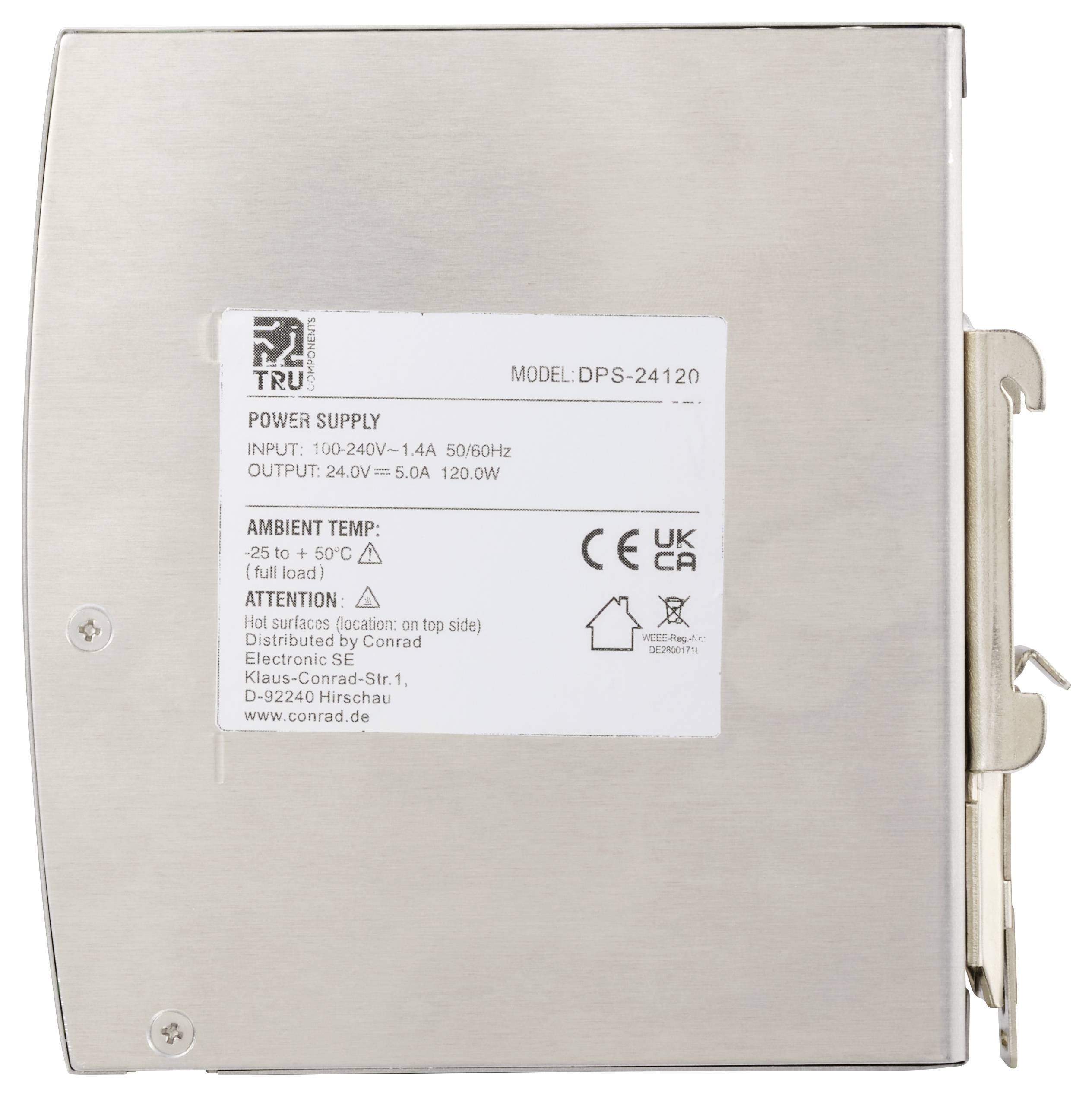

Metallic power supply with label: Model DPS-24120, Input 100-240V, Output 24V-5A, 120W. Ambient temperature -25 to 50°C.

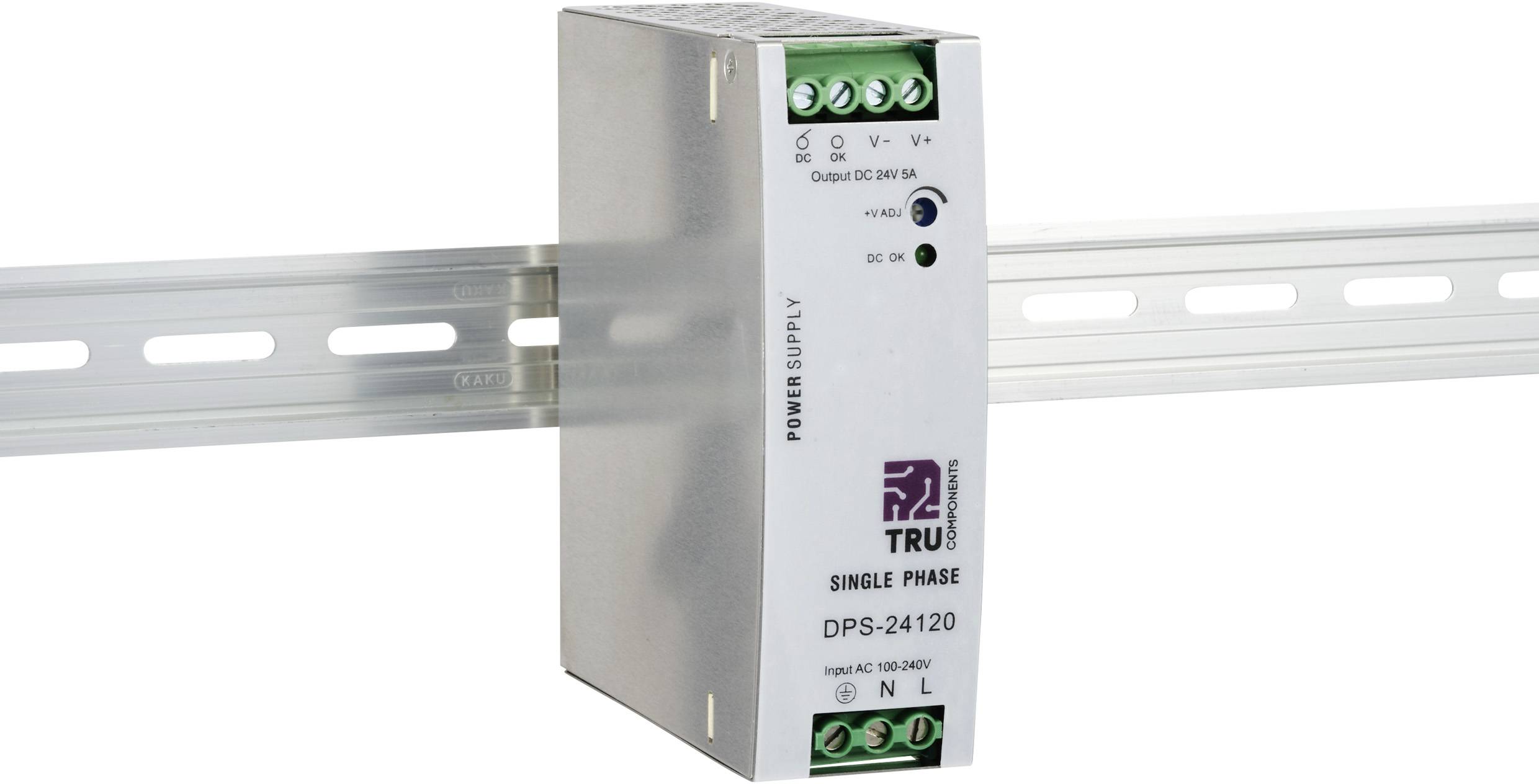

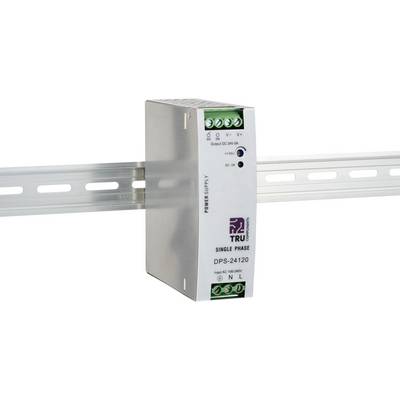

Housing of a single-phase power supply 'DPS-24120' by TRU Components, mounted on a DIN rail. Input: 100-240V, Output: DC 24V 5A.

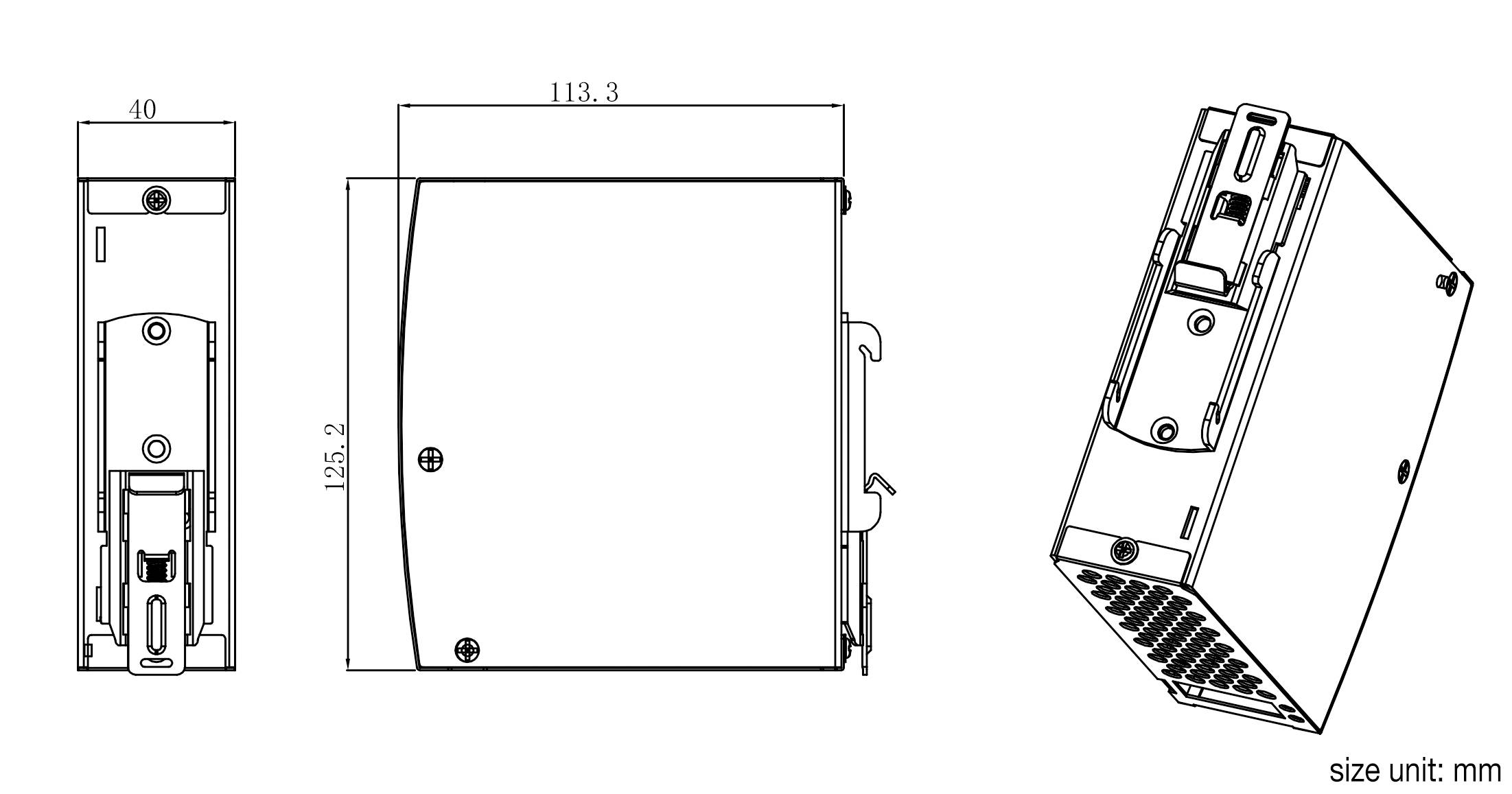

'Technical drawing of an electronic device with three views: front view, side view, and isometric view. Dimensions are specified in millimetres.'

1/6

TRU COMPONENTS

Datasheet (PDF)

English

Fast track dispatch on Tue, 6 Oct

261 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Din Rail Power Supply 24 V DC 5 A 120 W

Input voltage range: 100 - 240 V AC
Output voltage (nominal): 24 V DC
Max. output current: 5 A
Power: 120 W
Can be installed on TS-35/7.5 or TS-35/15 DIN rail

Technical specifications

Fuse: T3.15A/L250V
Max. number of connected products per circuit breaker: 24x Type C16, 48x Type D16
MTBF: 280 K hrs min, MIL-HDBK-217F (25 °C)
I/P: 3 poles, O/P: 4 poles
Output type (power supplies): Shut down O/P voltage, re-power on to recover
Withstand voltage: I/P-O/P: 3 kV AC, I/P-FG: 2 kV AC, O/P-FG: 0.5 kV AC

Nominal input voltage: 100 - 240 V/AC

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Input voltage: 100 - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 40 x 114 x 125 mm

Weight: 670 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: TC-10580796

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 114 mm

Height: 125 mm

Length: 40 mm

Type: DPS-24120

Efficiency: 91 %

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 2645199 TRU COMPONENTS TC-10580796 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

European union

User & Safety Instructions 2645199 TRU COMPONENTS TC-10580796 Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Description

Features

High peak power
Universal AC input/full range
Built- in active PFC function
Built-in DC Okay relay contact
Protection function: Short circuit/Overload/Overvoltage/Over-temperature
Cools by free air convection
Adjustable DC output voltage
100% full load burn-in test

Scope of delivery

Main unit
