Buy TRU COMPONENTS TC-10860372 Flanged box 44.80 x 44.80 x 40.10 Polycarbonate (PC) Light grey 1 pc(s)

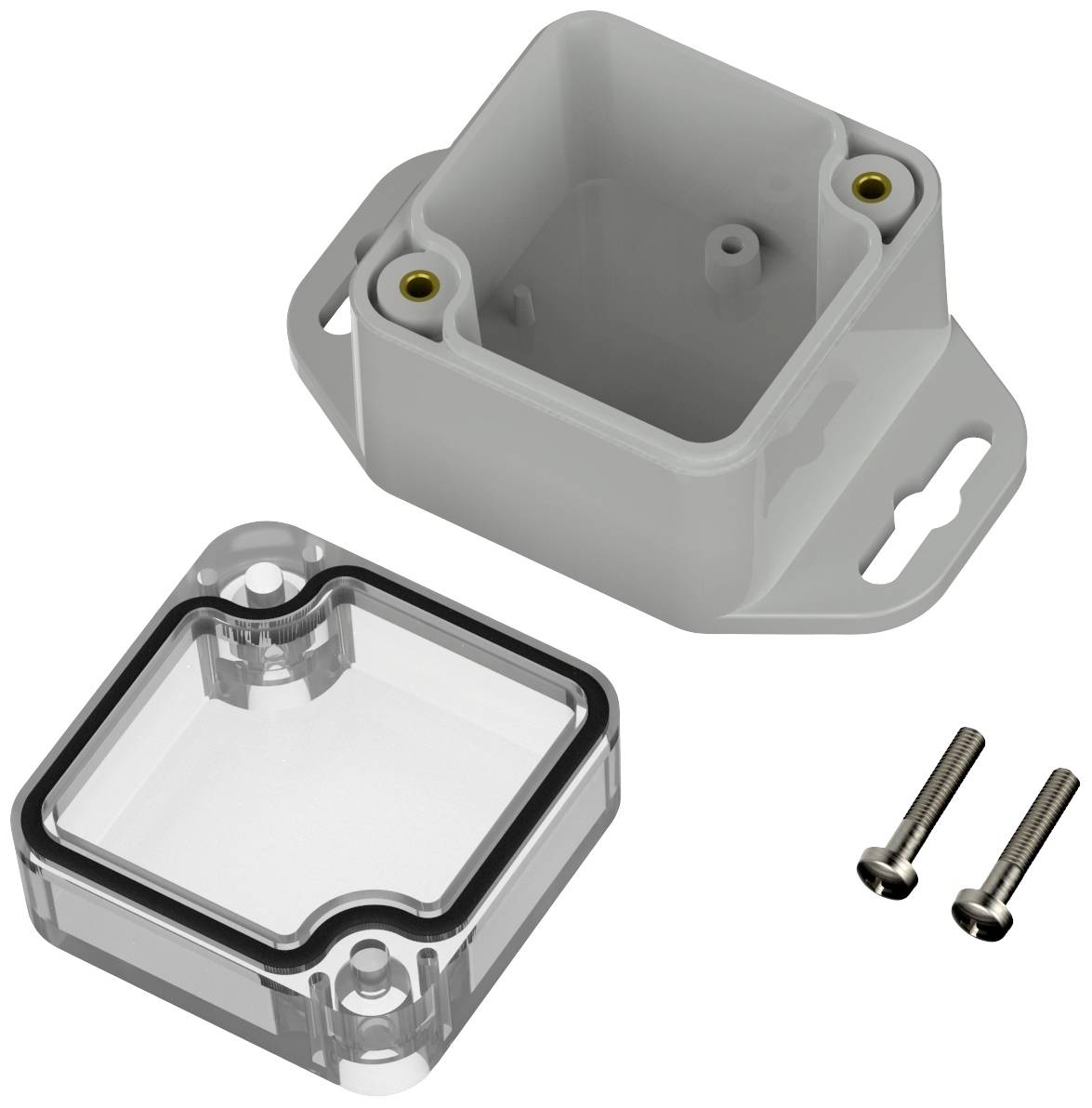

A transparent, rectangular plastic container with two side mounting holes and a removable lid on top.

Plastic enclosure with a transparent lid and two mounting screws. Primarily used for housing electronic components.

1/2

Product type

Flanged box

Material

Polycarbonate (PC)

IP rating

IP66

IP68

IK07

Width

44.80 mm

Height

40.10 mm

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

40 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Universal housing with or without wall brackets, protection class up to IP68

Our service for you

Technical specifications

Product type: Flanged box

Features: Mounting flange
Cover (clear)

Material: Polycarbonate (PC)

: IP66
IP68
IK07

Factory colour: Light grey

Length: 44.80 mm

Width: 44.80 mm

Height: 40.10 mm

Inside width: 38.6 mm

Inside height: 34.3 mm

Internal depth: 29.1 mm

Content: 1 pc(s)

Dim: (L x W x H) 44.80 x 44.80 x 40.10 mm

RoHS-compliant: Yes

Type: TC-10860372

Documents & Downloads

Datasheet

Datasheet 2715093 TRU COMPONENTS TC-10860372 Flanged box 44.80 x 44.80 x 40.10 Polycarbonate (PC) Light grey 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2715093 TRU COMPONENTS TC-10860372 Flanged box 44.80 x 44.80 x 40.10 Polycarbonate (PC) Light grey 1 pc(s)

Download

Download 2715093 TRU COMPONENTS TC-10860372 Flanged box 44.80 x 44.80 x 40.10 Polycarbonate (PC) Light grey 1 pc(s)

Description

New industrial housing in various sizes and variants.2 materials ABS or polycarbonate.Numerous designs with or without wall bracket, transparent lid and film/display recess.

This text is machine translated.

Features

The housing is equipped with directly shaped wall bracketsThe cover screws secured against falling out are screwed into high-quality threaded sockets.Circuit boards can be securely fastened in the base using screw domes.Expanded high-quality seal (PU)Hue light gray similar RAL 7035IK07 impact strength according to IEC 62262Protection class IP66 / IP68 (1.2m-2 h) DIN 60529
