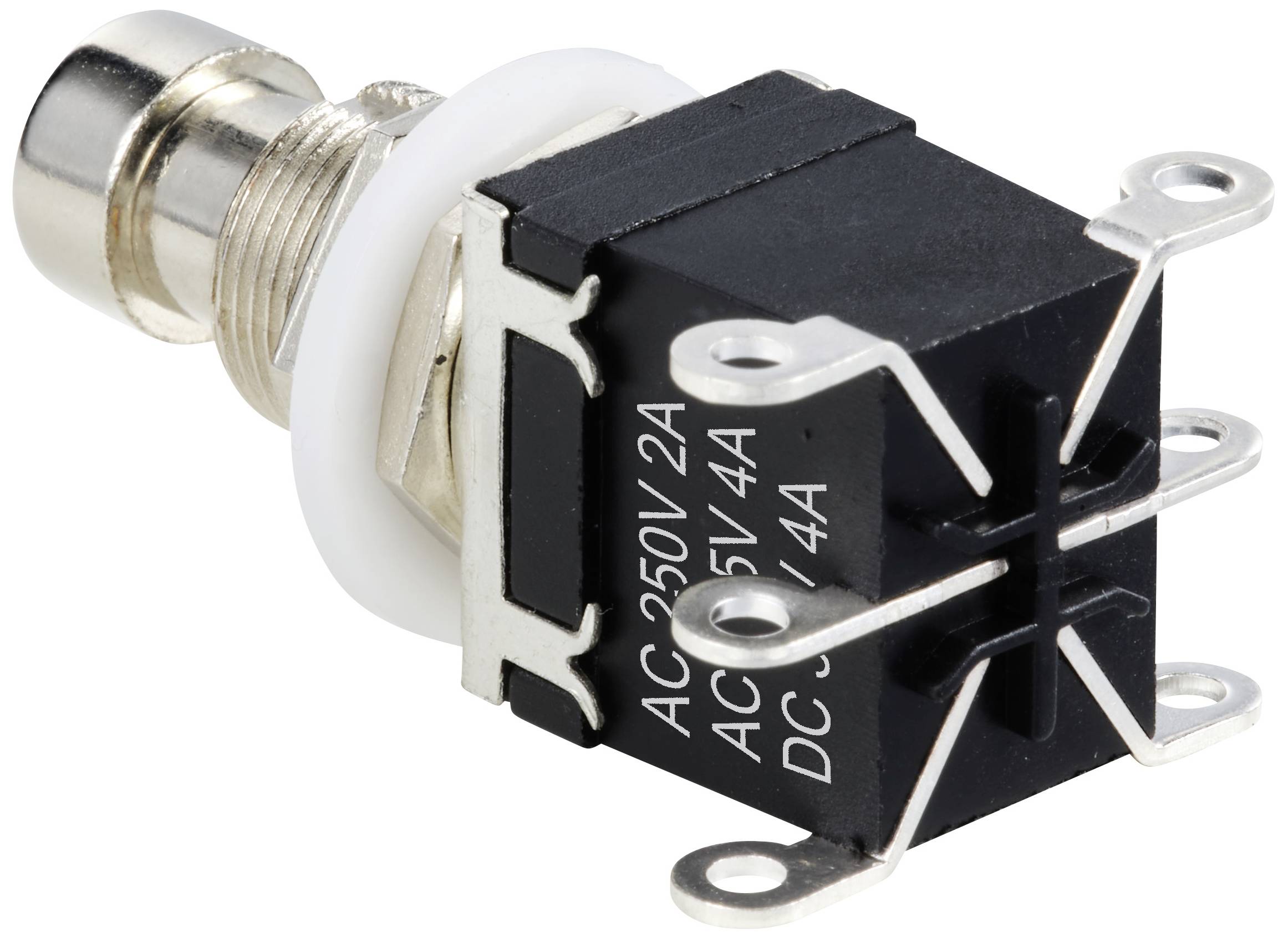

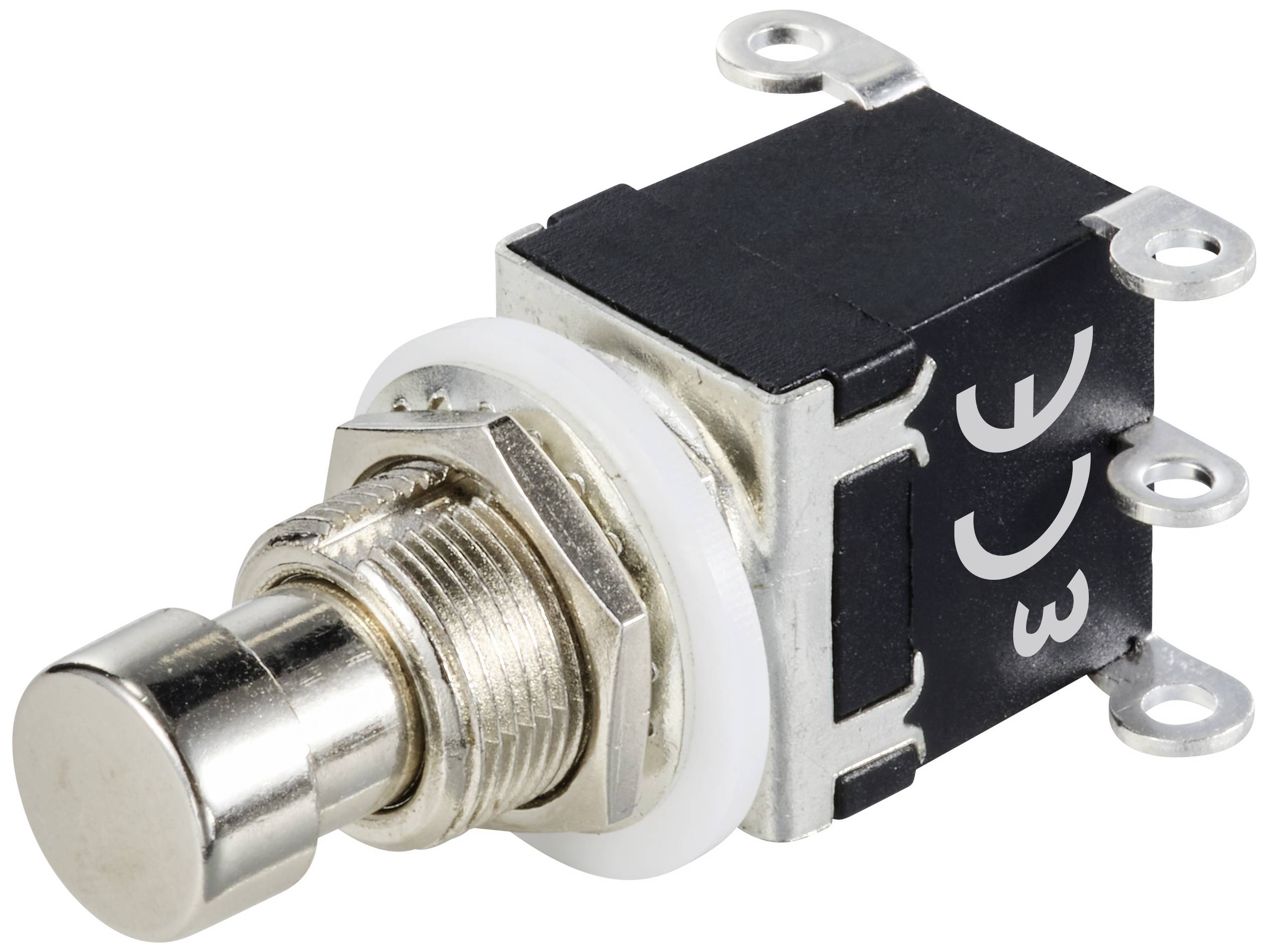

TRU COMPONENTS TC-12193720 Rotary switch DPDT with soldering Switching current (max.): 4 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pushbutton switch
Switch position
1 x On/On
Switching current (max.)
4 A
Connection
Solder tag
Contact resistance
≤50 mΩ
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.36
10
8% = € 0.18
€ 2.18
25
11% = € 0.25
€ 2.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.36 / piece)
€ 2.36
plus VAT.
14-day return policy included
Highlights & Details
Rotary switch DPDT with soldering

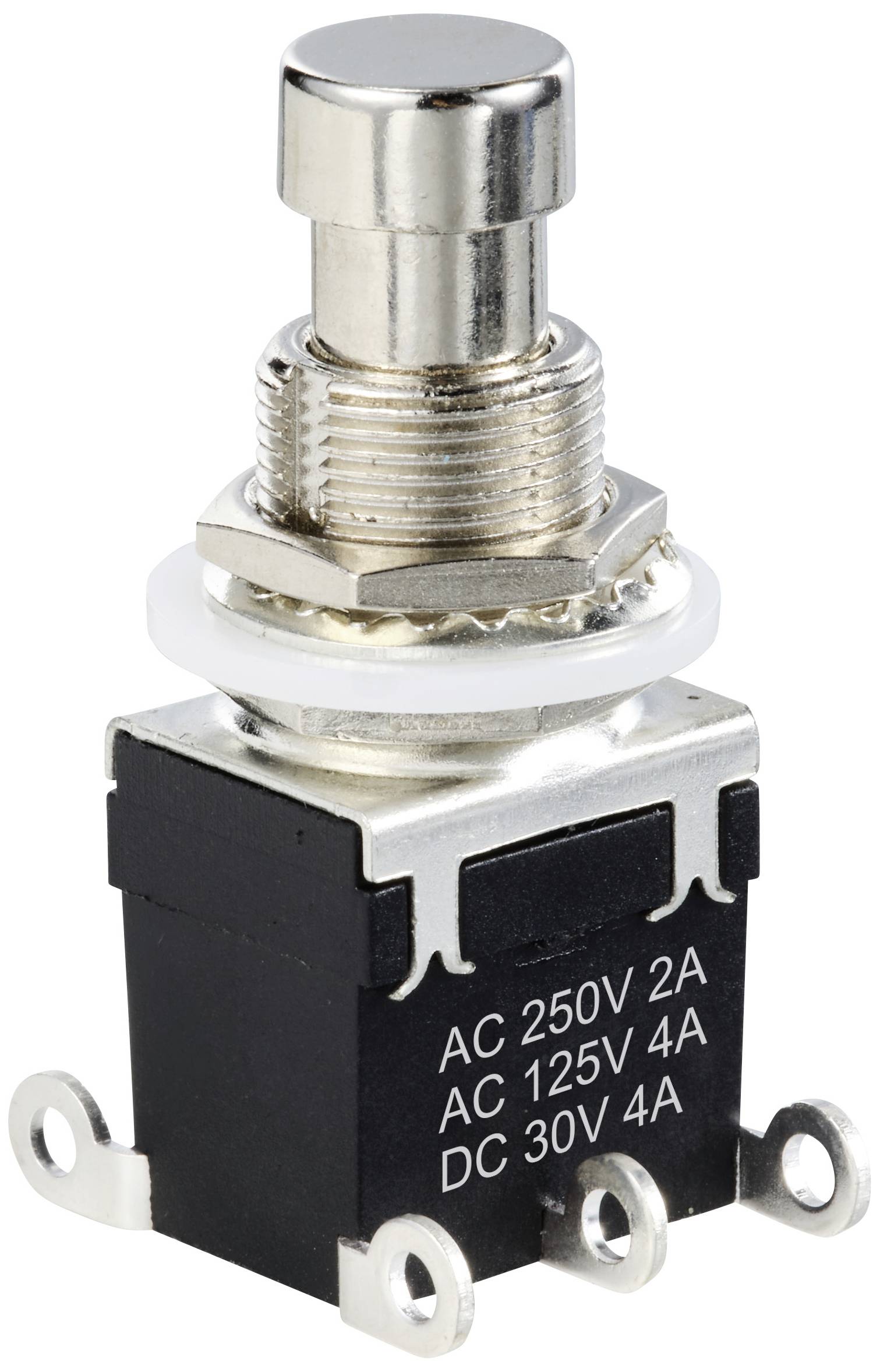

- Rated Voltage & Current:
- 250 V AC, 2 A
- 125 V AC, 4 A
- 30 V DC, 4 A
Our service for you
Technical specifications
- Insulated resistance: ≥100 MΩ, 500 V DC
- Withstand voltage: 1000 V AC/min.
- Press force: 2.8± 0.8 kgf
- Dielectric strength: 250 V AC
- Panel thickness: 1.4 mm
- Atmospheric pressure: 86 Kpa-106 Kpa
- Product type
Pushbutton switch
- Switch position
1 x On/On
- Connection
Solder tag
- Contact resistance
≤50 mΩ
- Switching current (max.)
4 A
- Min. temperature
-10 °C
- Max. temperature
-70 °C
- Electrical lifespan
≥10,000 cycles
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
TC-12193720
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3048430 TRU COMPONENTS TC-12193720 Rotary switch DPDT with soldering Switching current (max.): 4 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3048430 TRU COMPONENTS TC-12193720 Rotary switch DPDT with soldering Switching current (max.): 4 A 1 pc(s)
Description
Suitable for a variety of applications, such as, for example, as a signal selector in electronic devices (electric guitar effect devices, etc.).
This text is machine translated.
This text is machine translated.
Features
- For electric guitars
Scope of delivery
- Rotary switch
- 2x nuts (M12 x 0.75)
- Washer (inner Ø 13.2 mm)
- Washer (inner Ø 12.4 mm)
