Square magnet with a central hole, smooth and made of silvery metal.

Square magnet with a central hole, smooth and made of silvery metal.

Product type

Permanent magnet

Enclosure type

Rectangular

Material

N35M

Length

20 mm

Width

19 mm

Datasheet (PDF)

TRU COMPONENTS

Fast track dispatch on Wed 14 Oct

722 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

NdFeB-Magnet Rectangular N35M

N35M

Our service for you

Technical specifications

Grade: N35M
Remanence Br: 11.8 to 12.4 kGs
Coercivity bHc: ≥10.9 kOe
Intrinsic coercivity iHc: ≥14 kOe
Max. energy product (BH)max: 33 to 37 MGOe
Tolerance: ±0.1 mm
Finishing: NiCuNi

Product type: Permanent magnet

Type: TC-12260084

Enclosure type: Rectangular

Material: N35M

Temperature limit (max.): 100 °C

Length: 20 mm

Width: 19 mm

Height: 4 mm

Dim: (L x W x H) 20 x 19 x 4 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 3065021 TRU COMPONENTS TC-12260084 Permanent magnet Rectangular (L x W x H) 20 x 19 x 4 mm Temperature limit (max.): 100 °C

User & Safety Instructions

User & Safety Instructions 3065021 TRU COMPONENTS TC-12260084 Permanent magnet Rectangular (L x W x H) 20 x 19 x 4 mm Temperature limit (max.): 100 °C

Features

Operating temperature: max. 100 °C

Description

Features

Operating temperature: max. 100 °C

What kind of Permanent Magnets are you looking for?

Ring magnets

More interesting products

(^*All information is plus legal VAT)

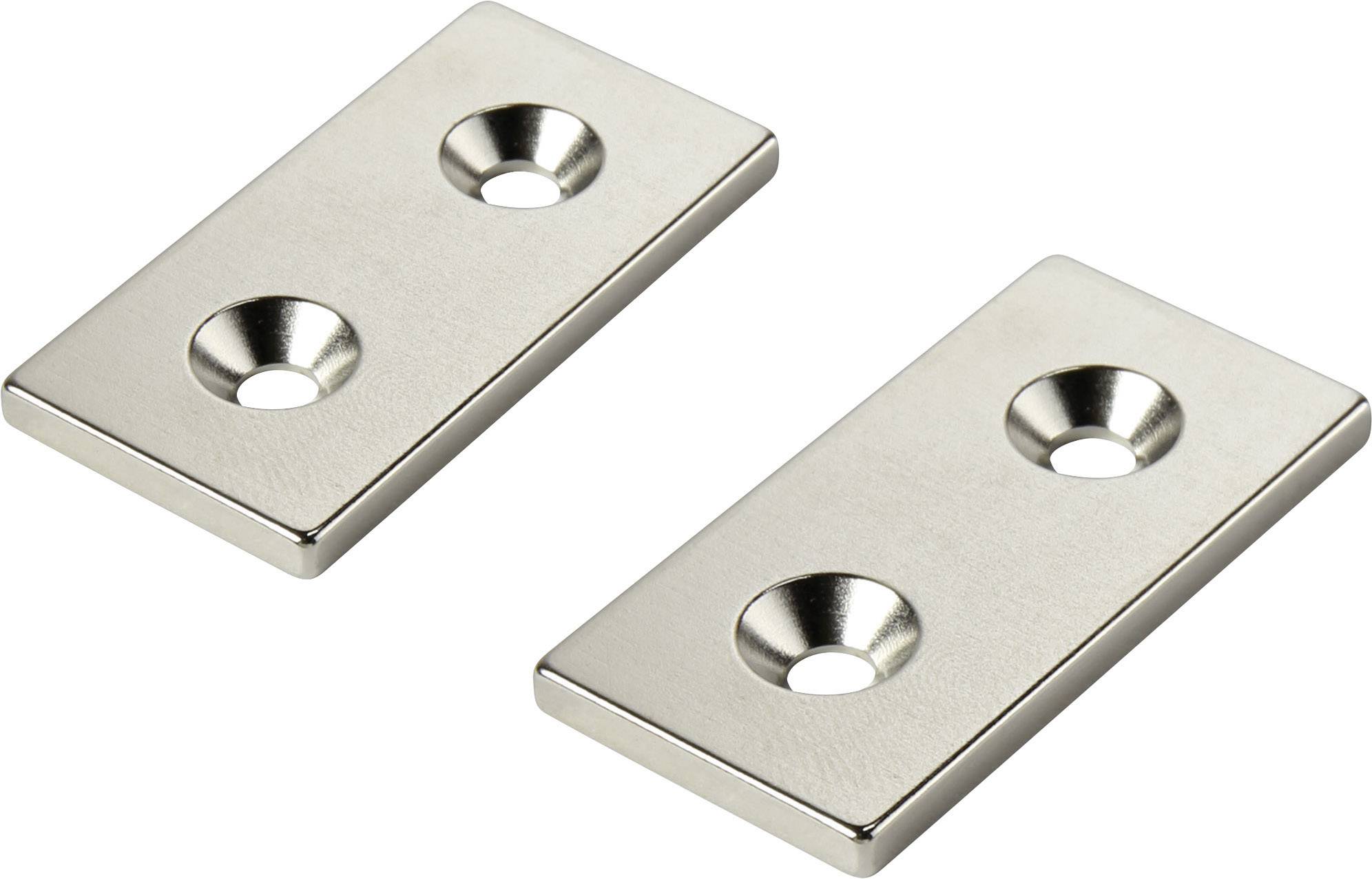

TRU COMPONENTS TC-12250652 Permanent magnet Rectangular (L x W x H) 40 x 20 x 5 mm M4 Temperature limit (max.): 150 °C 2

TRU COMPONENTS TC-12250652 Permanent magnet Rectangular (L x W x H) 40 x 20 x 5 mm M4 Temperature limit (max.): 150 °C 2

Conrad Electronic

€ 22.99^*

-51%

TRU COMPONENTS 1572112 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

TRU COMPONENTS 1572112 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 1.69

€ 0.83^*

-31%

TRU COMPONENTS D15T3-M4 Permanent magnet Ring (Ø x H) 15 mm x 3 mm N35 Temperature limit (max.): 80 °C

TRU COMPONENTS D15T3-M4 Permanent magnet Ring (Ø x H) 15 mm x 3 mm N35 Temperature limit (max.): 80 °C

Conrad Electronic

€ 6.99

€ 4.79^*

-28%

TRU COMPONENTS D10T5-M3 Permanent magnet Ring (Ø x H) 10 mm x 5 mm N35 Temperature limit (max.): 80 °C

TRU COMPONENTS D10T5-M3 Permanent magnet Ring (Ø x H) 10 mm x 5 mm N35 Temperature limit (max.): 80 °C

Conrad Electronic

€ 5.99

€ 4.29^*

-29%

TRU COMPONENTS 505789 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505789 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 3.49

€ 2.49^*

-20%

TRU COMPONENTS 505895 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

TRU COMPONENTS 505895 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

Conrad Electronic

€ 3.49

€ 2.79^*

TRU COMPONENTS 505891 Permanent magnet Circular (Ø x H) 5 mm x 5 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

TRU COMPONENTS 505891 Permanent magnet Circular (Ø x H) 5 mm x 5 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

Conrad Electronic

€ 1.29^*

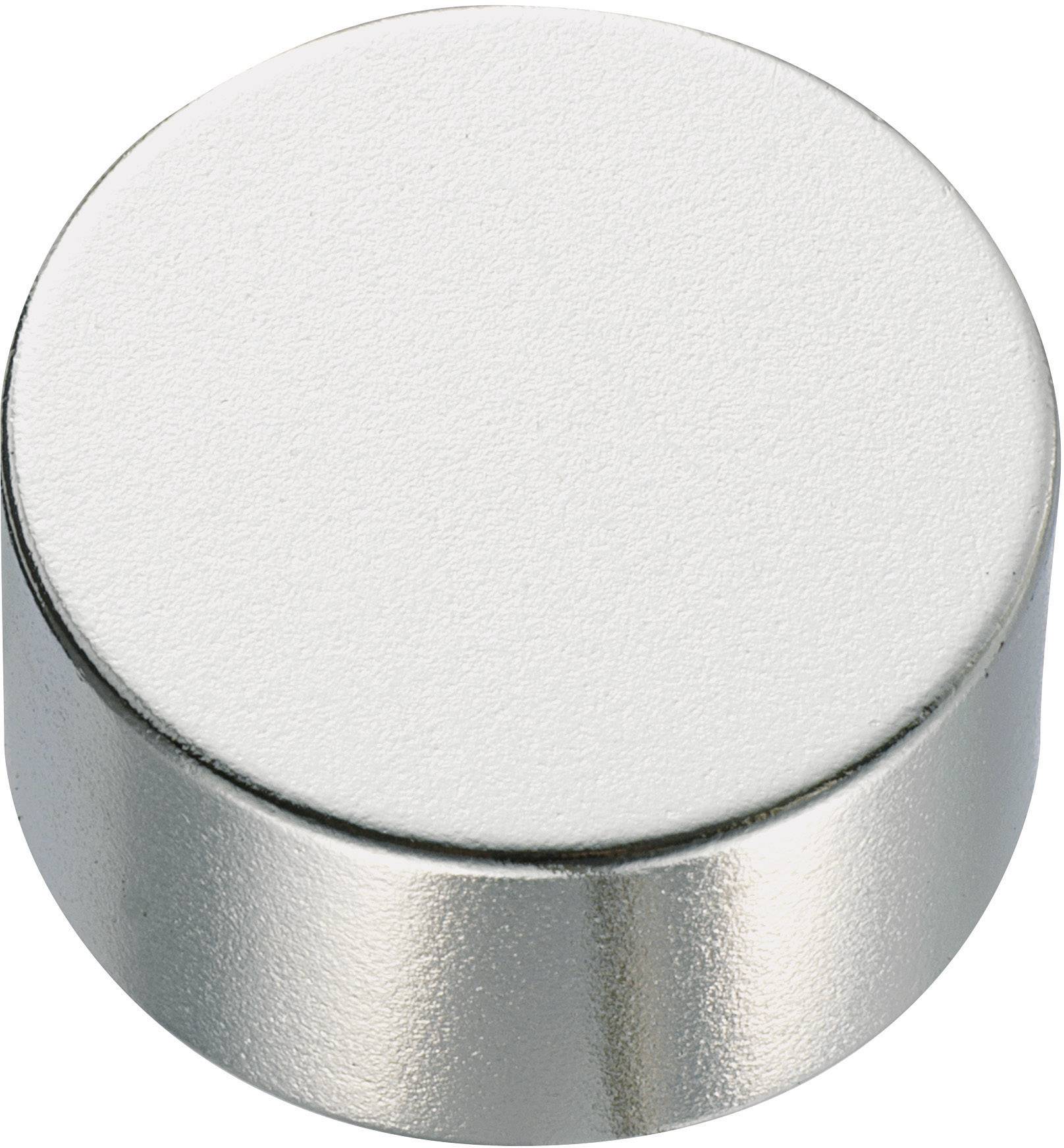

TRU COMPONENTS 505892 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

TRU COMPONENTS 505892 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35M 1.18 - 1.24 T Temperature limit (max.): 100 °C

Conrad Electronic

€ 0.83^*

-31%

TRU COMPONENTS 505877 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505877 Permanent magnet Circular (Ø x H) 10 mm x 5 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 3.59

€ 2.49^*

TRU COMPONENTS 505874 Permanent magnet Circular (Ø x H) 5 mm x 5 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505874 Permanent magnet Circular (Ø x H) 5 mm x 5 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 1.29^*

TRU COMPONENTS 1572118 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35EH 1.18 - 1.2 T Temperature limit (max.): 200 °C

TRU COMPONENTS 1572118 Permanent magnet Circular (Ø x H) 5 mm x 2 mm N35EH 1.18 - 1.2 T Temperature limit (max.): 200 °C

Conrad Electronic

€ 1.49^*

TRU COMPONENTS 505878 Permanent magnet Circular (Ø x H) 10 mm x 2 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505878 Permanent magnet Circular (Ø x H) 10 mm x 2 mm N45 1.33 - 1.37 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 1.99^*

-27%

TRU COMPONENTS D20T5-M4 Permanent magnet Ring (Ø x H) 20 mm x 5 mm N35 Temperature limit (max.): 80 °C

TRU COMPONENTS D20T5-M4 Permanent magnet Ring (Ø x H) 20 mm x 5 mm N35 Temperature limit (max.): 80 °C

Conrad Electronic

€ 14.99

€ 10.99^*

TRU COMPONENTS 505797 Permanent magnet Circular (Ø x H) 20 mm x 5 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505797 Permanent magnet Circular (Ø x H) 20 mm x 5 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 7.49^*

TRU COMPONENTS 505791 Permanent magnet Circular (Ø x H) 10 mm x 2 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

TRU COMPONENTS 505791 Permanent magnet Circular (Ø x H) 10 mm x 2 mm N35 1.18 - 1.24 T Temperature limit (max.): 80 °C

Conrad Electronic

€ 2.29^*

TRU COMPONENTS TC-12250608 Permanent magnet Ring (Ø x H) 15 mm x 3 mm M4 Temperature limit (max.): 150 °C

TRU COMPONENTS TC-12250608 Permanent magnet Ring (Ø x H) 15 mm x 3 mm M4 Temperature limit (max.): 150 °C

Conrad Electronic

€ 5.99^*

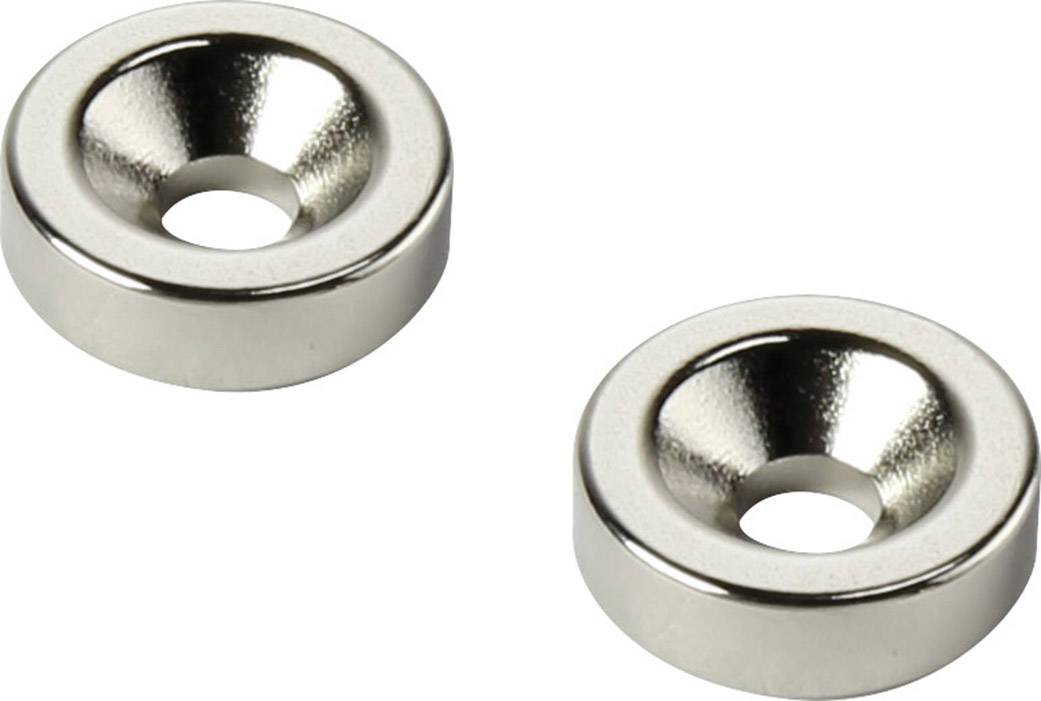

TRU COMPONENTS D10T3-M3 Permanent magnet Ring (Ø x H) 10 mm x 3 mm N35 Temperature limit (max.): 80 °C
