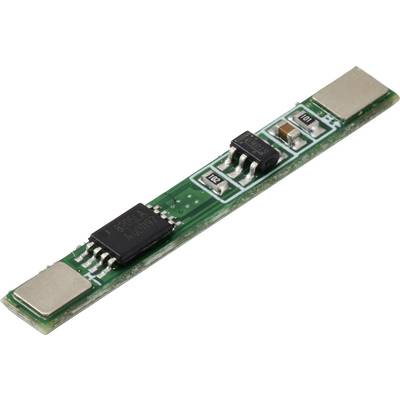

TRU COMPONENTS TC-13125652 Battery management system
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
5
7% = € 0.21
€ 2.97
10
9% = € 0.30
€ 2.88
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
14-day return policy included
Technical specifications
- Maximum working current: 3 A
- Overcharge detection voltage: 4.25 ±0.05 V
- Overcharge release voltage: 4.23 ±0.05 V
- Over-discharge detection voltage: 2.54 +0.1 V
- Wiring instructions
- B+ Connects to the positive battery terminal
- B- Connects to the negative battery terminal
- P+ indicates the positive terminal of the battery output and input
- P- indicates the negative terminal of the battery output and input
- Product type
Battery management system
- Length
30 mm
- Width
3 mm
- Height
1 mm
- Material
FR4
- Type
1S 3 A
- Dim
(L x W x H) 30 x 3 x 1 mm
- Factory colour
Green
Documents & Downloads
Datasheet
Datasheet 3281413 TRU COMPONENTS TC-13125652 Battery management system
User & Safety Instructions
User & Safety Instructions 3281413 TRU COMPONENTS TC-13125652 Battery management system
Description
Features
- Protection function: Overcharge/Overdischarge/Short circuit/Overcurrent
Scope of delivery
- Main unit
