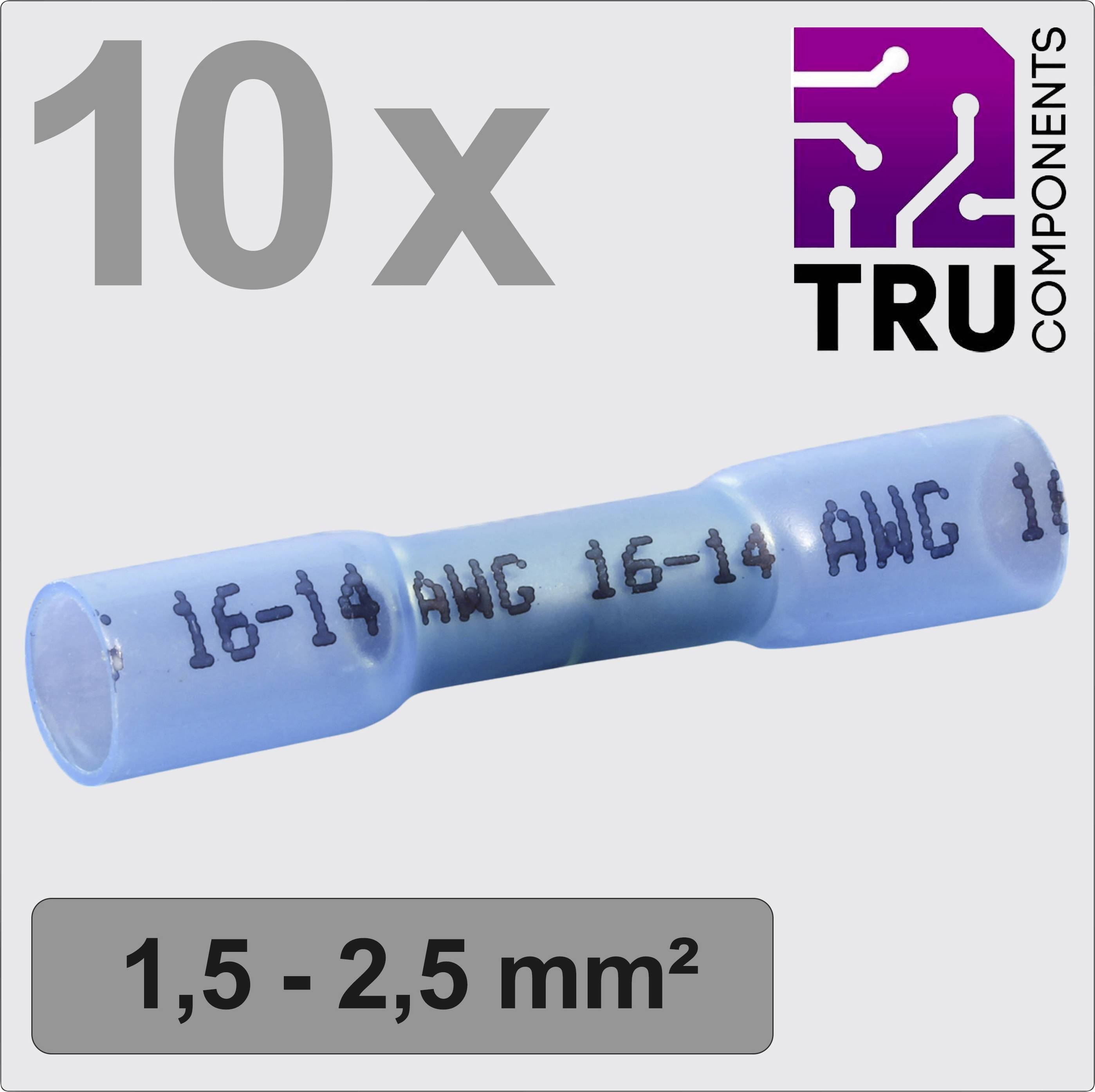

TRU COMPONENTS TC-13448496 Butt joint + heatshrink 1.5 mm² 2.5 mm² Insulated Blue 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Length
37 mm
Content
10 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Crimp-butt connector 5.7 mm blue 10 PCs
- Density connection by hot-melting inner adhesive
- Shrink ratio of insulation: 3:1
Our service for you
Technical specifications
- Manufacturer color: Blue
- Min. Temperature: -55°C.
- Max. Temperature 125°C.
- Product dimension, length 37 mm
- Special features: With shrink hose
- Insulation type: Fully insulated
- Cross-section range: 1.5 - 2.5 mm²
- Cross-section (min.): 1.5 mm²
- Cross-section (max.): 2.5 mm²
- Max. voltage 600 V
- Current 27 A
- Shrink temperature 80 - 130 °C.
- 3:1 shrink rate
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
Blue
- Insulation type
Insulated
- Length
37 mm
- Content
10 pc(s)
- Manufacturer part #
TC-13448496
- Type
T24C038
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Outside Ø
5.7 mm
- Cross-section range
1.5 - 2.5 mm²
- RoHS-compliant
Yes
- Shrink temperature
80 - 130 °C
- Features
+ heatshrink
- Max. temperature
125 °C
- Min. temperature
-55 °C
Documents & Downloads
Datasheet
Datasheet 3362124 TRU COMPONENTS TC-13448496 Butt joint + heatshrink 1.5 mm² 2.5 mm² Insulated Blue 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3362124 TRU COMPONENTS TC-13448496 Butt joint + heatshrink 1.5 mm² 2.5 mm² Insulated Blue 10 pc(s)
Description
This butt connector set is particularly suitable for hobbyists, professionals, field teams, service workshops, electronics and laboratories. The inner hot-melt adhesive provides water-proof sealing if it overlaps correctly. Ideal for repairing or connecting cables and wires (lawnmower cable, signal cable, etc.), service, manufacturing or hobby. The application is very simple: Strip the cable and insert it on both sides until the stripped cable ends overlap. Crimp on both sides with a crimp pliers and then activate the heat-shrink tubing in the appropriate temperature range - preferably with a hot air gun.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 x crimp butt connector 5.7 mm blue
