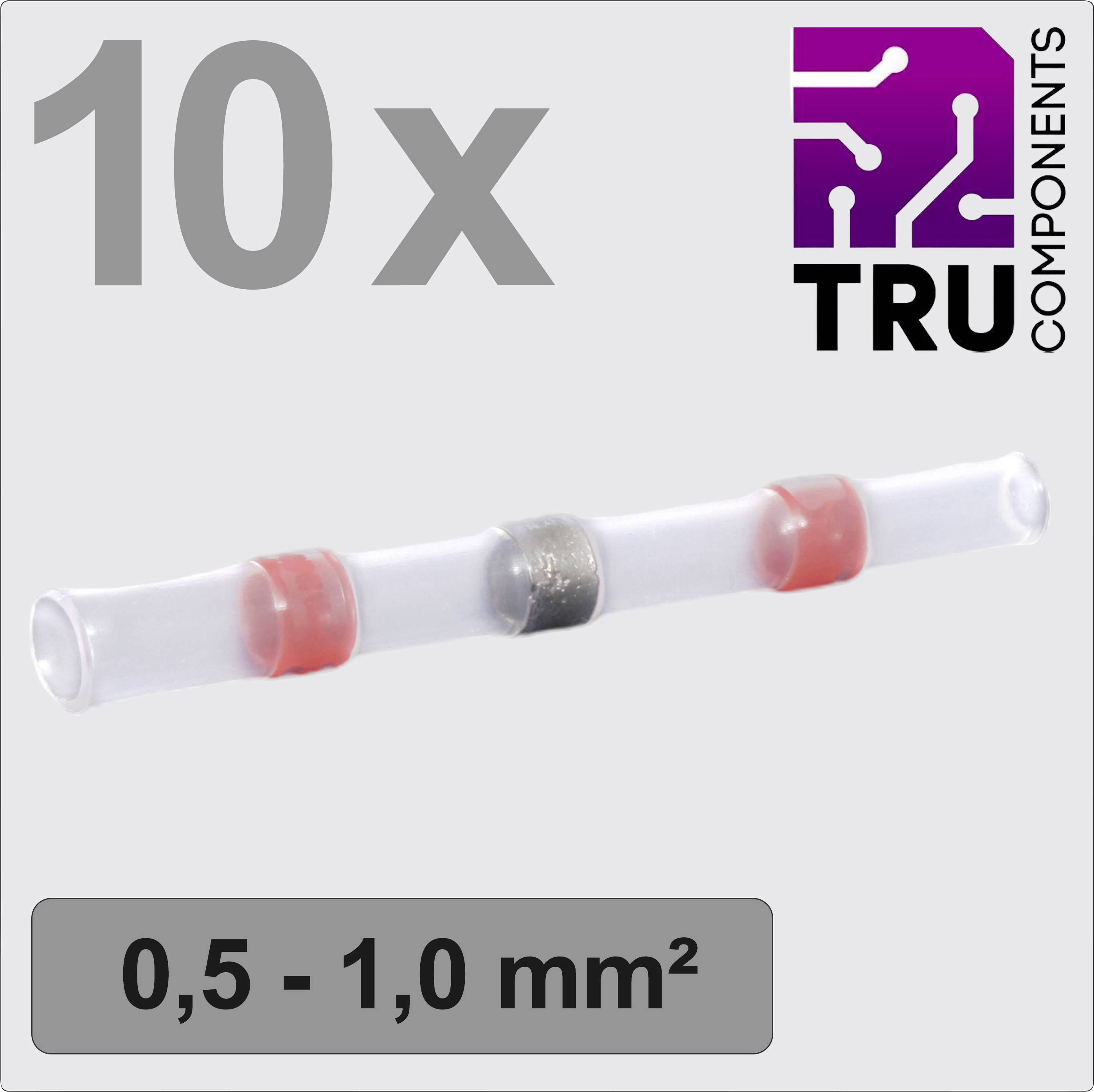

TRU COMPONENTS TC-13448512 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 10 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Length
40 mm
Content
10 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details
Solder butt connector 0.5 ... 1 mm² Red 10 pcs
- Density connection by hot-melting inner adhesive
- Shrink ratio of insulation: 2:1
- Set with 10 pieces
Our service for you
Technical specifications
- Colour: Red
- Min. Temperature: -55°C.
- Max. Temperature 125°C.
- Product dimension, length 40 mm
- Special features: With shrink hose
- Insulation type: Fully insulated
- Cross-section range: 0.5 - 1.0 mm²
- Cross-section (min.): 0.5 mm²
- Cross-section (max.): 1.0 mm²
- Max. voltage 600 V
- Shrink ratio 2:1
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
Red
- Insulation type
Insulated
- Length
40 mm
- Content
10 pc(s)
- Manufacturer part #
TC-13448512
- Type
T24C042
- max. cross section
1.0 mm²
- Min. cross section
0.5 mm²
- Dim
40
- Outside Ø
2.7 mm
- Insulation material
Full PVC insulation
- Dimensions
40 mm
- Cross-section range
0.5 - 1.0 mm²
- RoHS-compliant
Yes
- Features
+ heatshrink
- Max. temperature
125 °C
- Min. temperature
-55 °C
Documents & Downloads
Datasheet
Datasheet 3362128 TRU COMPONENTS TC-13448512 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3362128 TRU COMPONENTS TC-13448512 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 10 pc(s)
Description
This butt connector set is particularly suitable for hobbyists, professionals, field teams, service workshops, electronics and laboratories. The inner hot-melt adhesive provides for a sealing if it overlaps correctly, because the hot-melt inner adhesive seals off water proof if it overlaps correctly and is used correctly. At the same time, the soldering ring connects the two conductors during the shrinking and melting process. The advantage of the transparent design is that you can see the wrapped object.
The application is very simple: Strip cable and insert it into the plug on both sides until the stripped cable ends overlap (or rotate) under the soldering ring. Even heat in the heat shrink or melting point of the solder until it has melted - preferably with a hot air gun or hot air blower - and that's it. Maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality of the solder joint.
Melt-temperature Solder: Approx. 160 °C, operating temperature range: -55 - +125 °C.
This text is machine translated.
The application is very simple: Strip cable and insert it into the plug on both sides until the stripped cable ends overlap (or rotate) under the soldering ring. Even heat in the heat shrink or melting point of the solder until it has melted - preferably with a hot air gun or hot air blower - and that's it. Maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality of the solder joint.
Melt-temperature Solder: Approx. 160 °C, operating temperature range: -55 - +125 °C.
This text is machine translated.
Scope of delivery
- 10 x solder butt connector 0.5 ... 1 mm² Red
