Buy TRU COMPONENTS TC-13845728 Filter regulator G 1/4

Pressure gauge showing readings in psi and bar, with a blue knob. The gauge needle points to 90 psi, indicating system pressure.

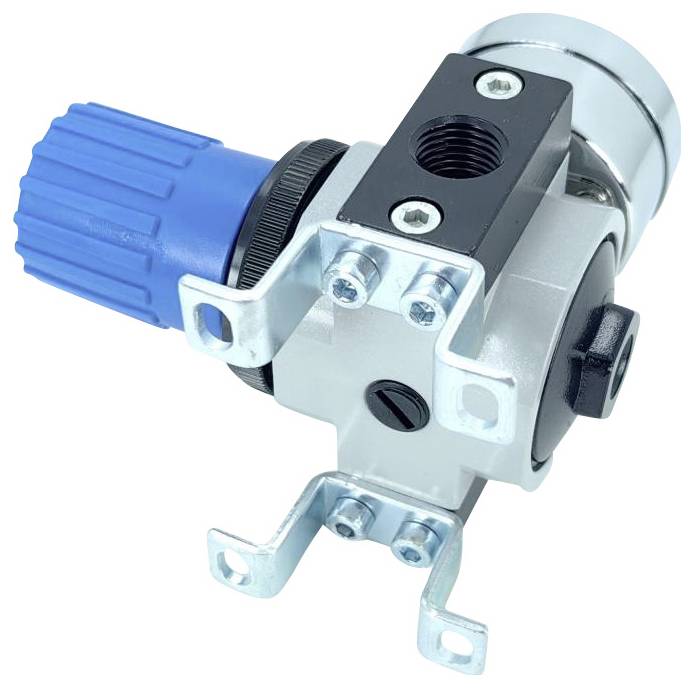

Pneumatic pressure regulator with blue adjustment knob, metallic housing, and mounting brackets, used for controlling air pressure in systems.

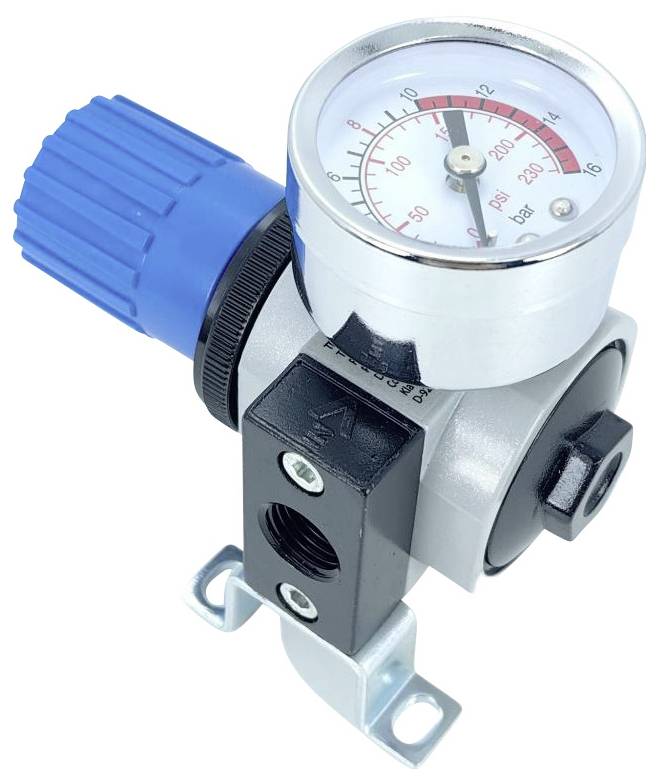

'Air pressure regulator with gauge showing pressure range from 0 to 250 psi, featuring a blue control knob and mounting bracket.'

1/3

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.00 / piece)

€ 21.00

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Pressure regulator, 12 bar, G1/4” (13.157 mm)

Port size: G1/4"
Gauge thread: G1/8"
Max. flowrate: 1700 l/min
Max. input pressure: 16 Bar
Regulating pressure range: 0.5 - 12 bar

Technical specifications

Guage thread: G1/8

Operating medium: Compressed Air

Type: TC-13845728

Product type: Filter regulator

Connection: G 1/4

Max. flow: 1700 L/min

Max. operating pressure: 12 bar

Manufacturer part #: TC-13845728

Operating pressure (min.): 1.5 bar

Features: P port connector (G1/4)

QNn value: 1700 l/min

Control pressure (max.): 12 bar

Control pressure (min.): 1.5 bar

Max. ambient temperature: 60 °C

Min. ambient temperature: -10 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3461432 TRU COMPONENTS TC-13845728 Filter regulator G 1/4

User & Safety Instructions

User & Safety Instructions 3461432 TRU COMPONENTS TC-13845728 Filter regulator G 1/4

Description

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
