TRU COMPONENTS TC-14131088 LED indicator light Red Round 12 V
EAN:
Part number:
Item no:
Product type
LED indicator light
Operating voltage
12 V
Operating current
11 mA
Recess diameter
18.8 mm
IP rating
IP65
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
10
7% = € 0.14
€ 1.78
25
10% = € 0.20
€ 1.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details

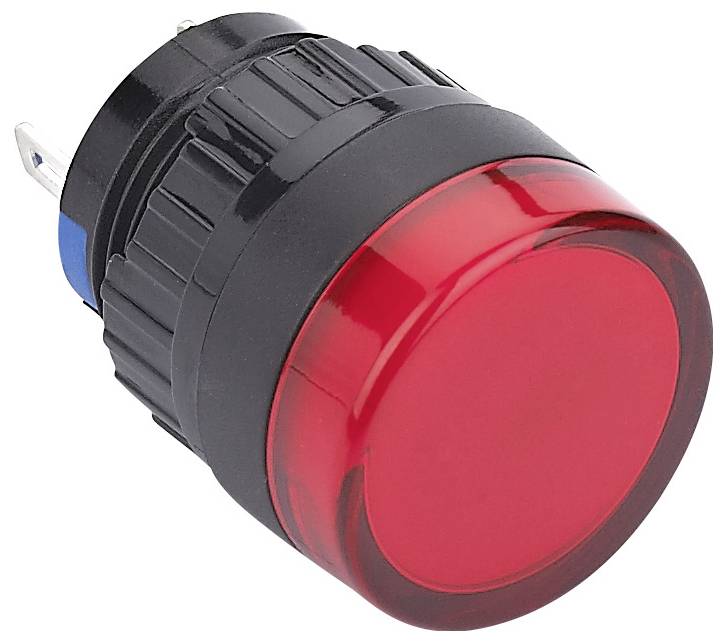

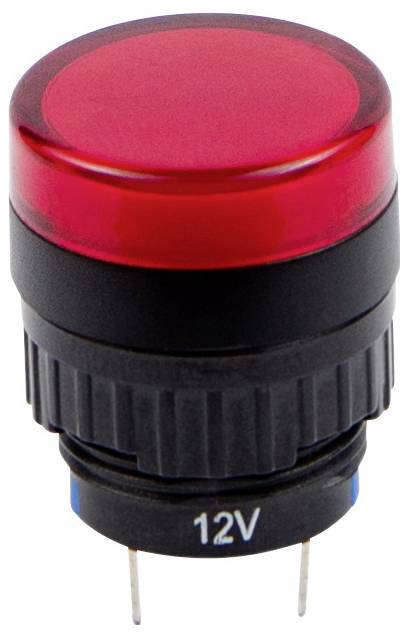

Short body LED indicator, red, installation Ø 16 mm, IP65
- 16 mm diameter

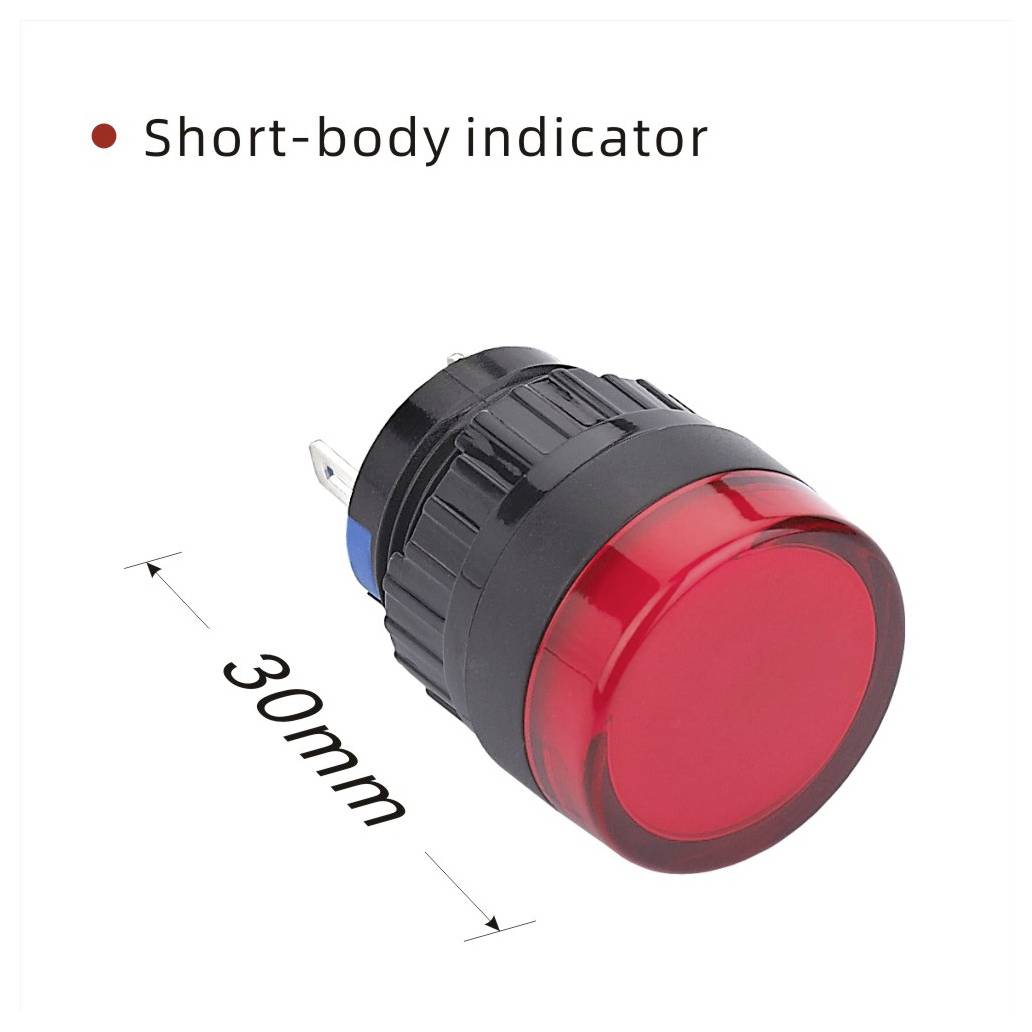

- Short body indicator
- Operating voltage: 12 V/DC
- Light: Red
- Insulation resistance: ≥1000 M Ω (500 V/DC)
Technical specifications
- Cap material: PC
- Body material: PC
- Base material: PBT
- Product type
LED indicator light
- Type
Indicator
- Factory colour
Red
- Operating voltage
12 V
- Operating current
11 mA

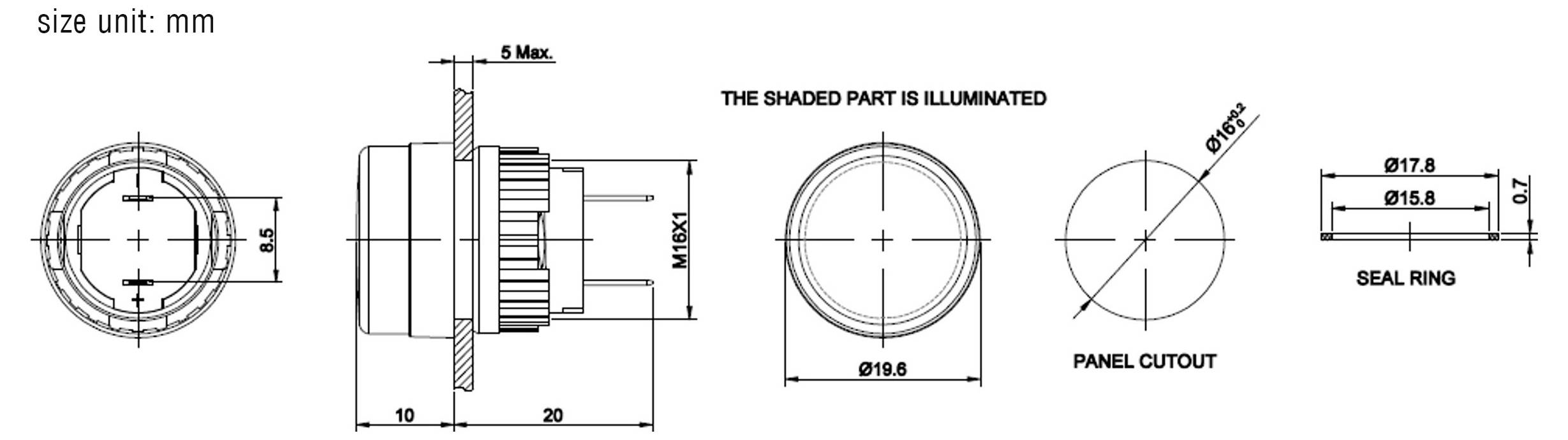

- Recess diameter
18.8 mm
- Mounting depth
20 mm
- Head Ø
19.6 mm
- Head height
10 mm
- Shape
Round
- Front panel thickness
5 mm
- Case colour
Black
- Material
PC
IP65

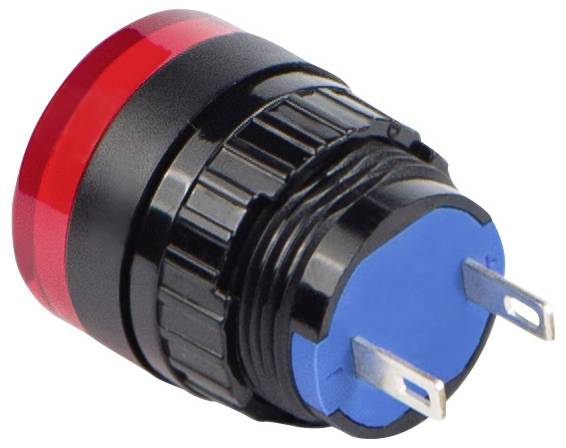

- Connection
Pins
- Dim
(Ø x L) 16 mm x 30 mm
- Length
30 mm
- Width
16 mm
- (Ø)
16 mm
40,000 hours
- RoHS-compliant
Yes
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3532772 TRU COMPONENTS TC-14131088 LED indicator light Red Round 12 V
User & Safety Instructions
User & Safety Instructions 3532772 TRU COMPONENTS TC-14131088 LED indicator light Red Round 12 V
