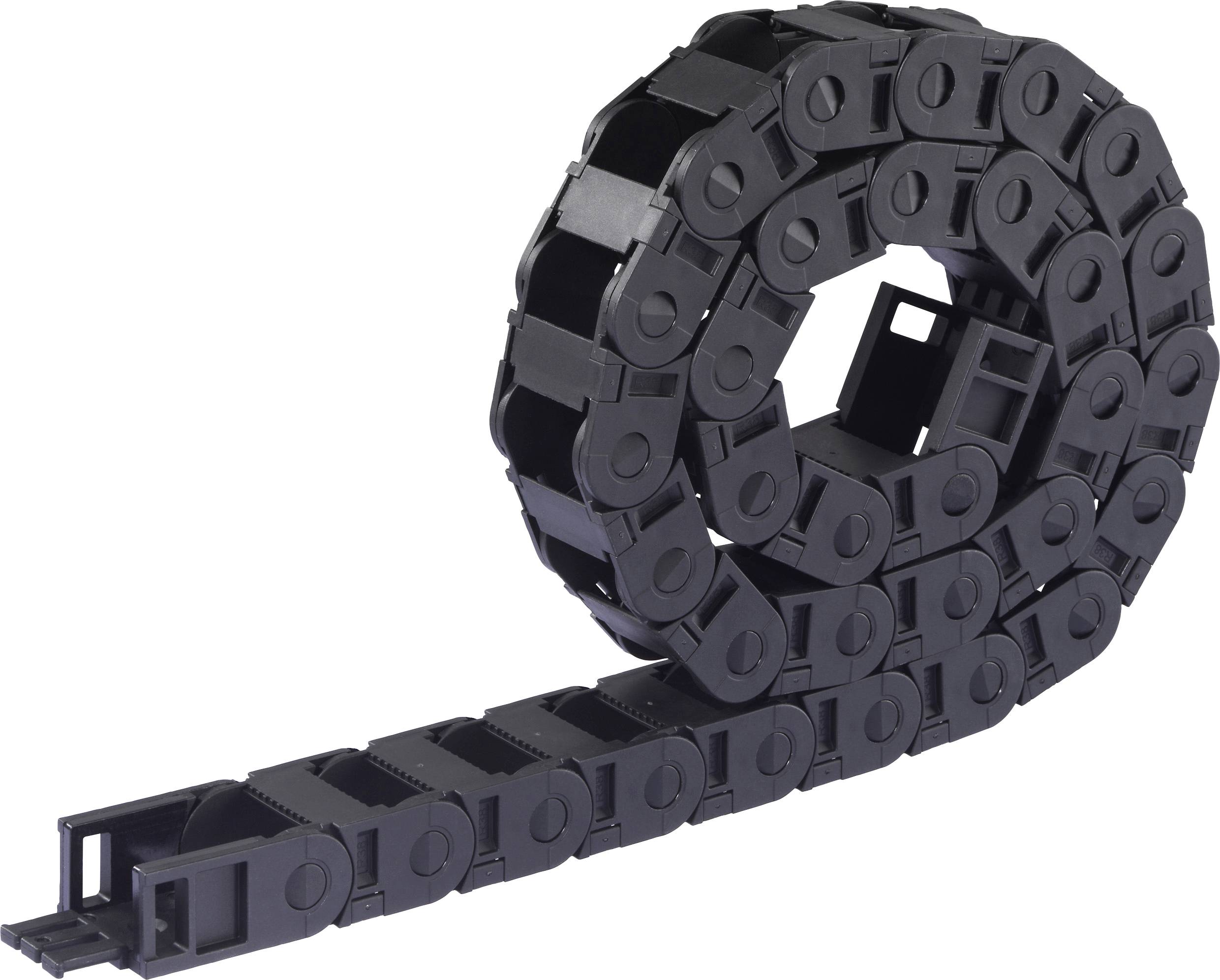

TRU COMPONENTS TC-14376392 Drag chain 1020 mm
EAN:
Part number:
Item no:
Product type
Drag chain
Inside width
25 mm
Length
1020 mm
Outside width
35.8 mm
Bend radius
38 mm
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 18.48
€ 18.48
3
1 M = € 17.56
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 18.48)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
Energy chain, inner dimensions 25 x 18 mm, bending radius 38 mm, 1020 mm
- No. of chain links: 33
- Chain link pitch: 30.5 mm
- Material: PA6
- Length: 1020 mm

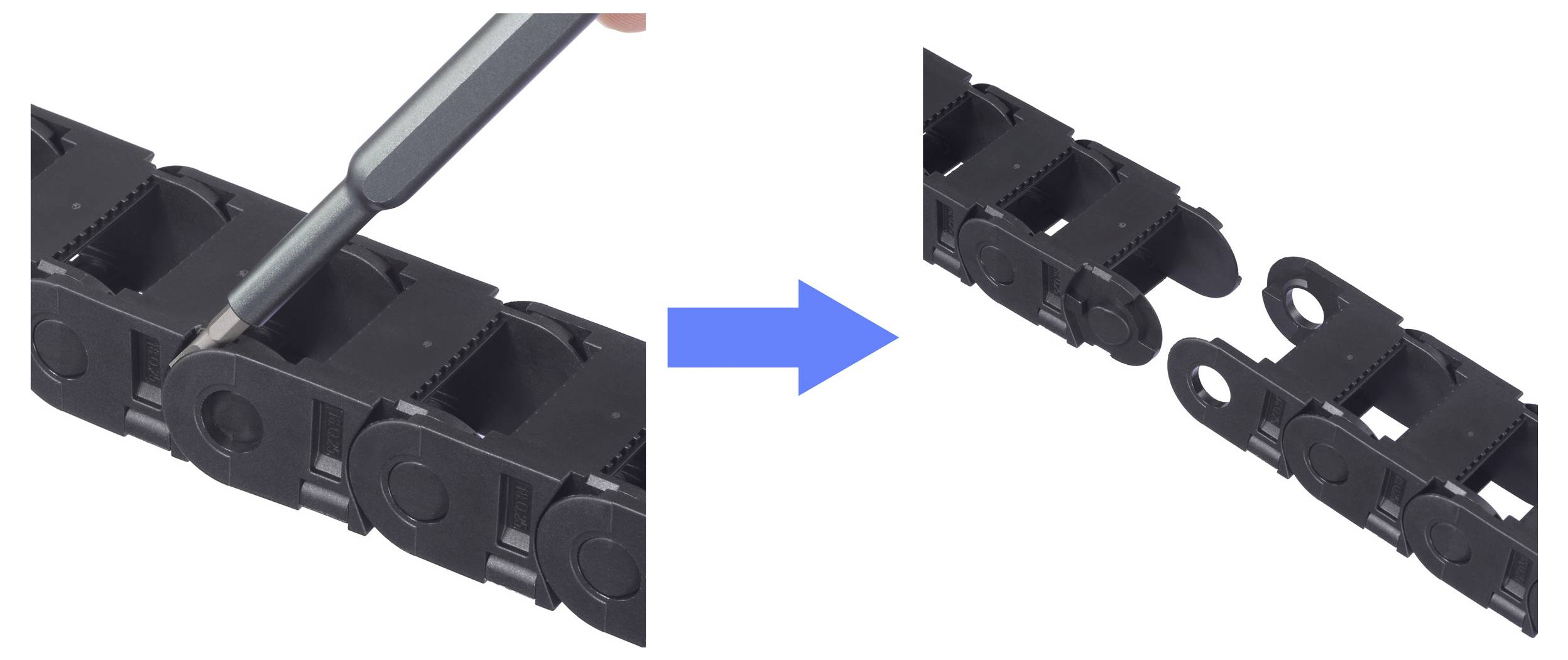

- Simply press the cable
Our service for you
Technical specifications
- Speed unsupported straight: max. 20 m/s
- Speed unsupported with arc: max. 3 m/s
- Speed floating: max. 3 m/s
- Product type
Drag chain
- Inside width
25 mm
- Outside width
35.8 mm
- Bend radius
38 mm
- No. of chain links
33
- Factory colour
Black
- Outside height
23 mm
- Inside height
18 mm
- Material (details)
PA6
- Length
1020 mm
- Min. temperature
-20 °C
- Max. temperature
100 °C
- Chain link pitch
30.5 mm
- Manufacturer part #
TC-14376392
- Content
1 pc(s)
- Radius (in m)
38 mm
- Type
TC-14376392
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3594098 TRU COMPONENTS TC-14376392 Drag chain 1020 mm
User & Safety Instructions
User & Safety Instructions 3594098 TRU COMPONENTS TC-14376392 Drag chain 1020 mm
Description
Features
- Inner dimensions (W x H): 25 mm x 18 mm
- Outer dimensions (W x H): 35.8 mm x 23 mm
- Bend radius: 38 mm
- Colour: Black
