Buy TRU COMPONENTS TC-14376408 TC-DNC40X50S Square section cylinder Enclosure material: Aluminium Stroke length: 50 mm 1 pc(

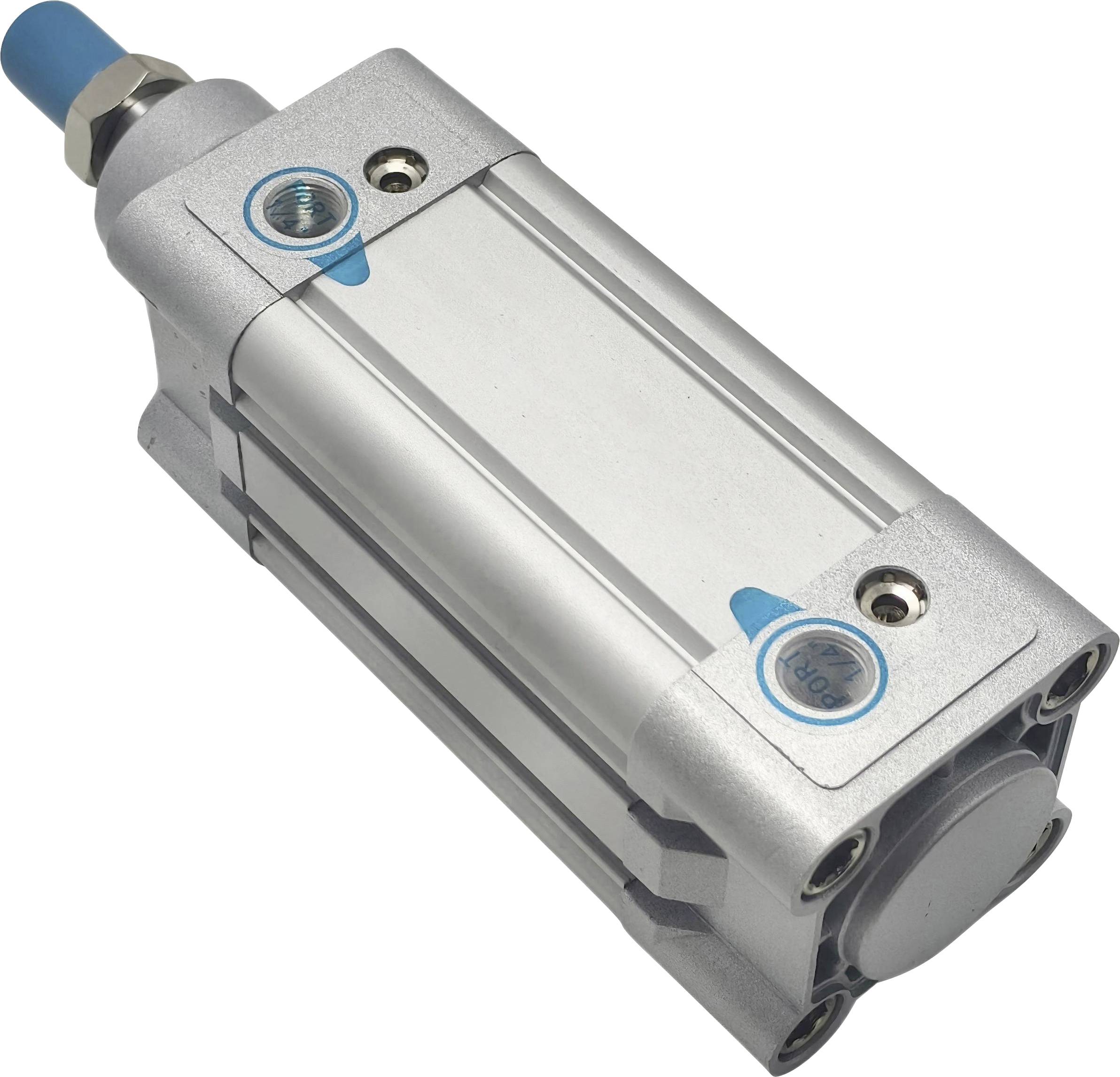

'A silver pneumatic cylinder, featuring two blue ports and a round end cap, used for industrial applications.'

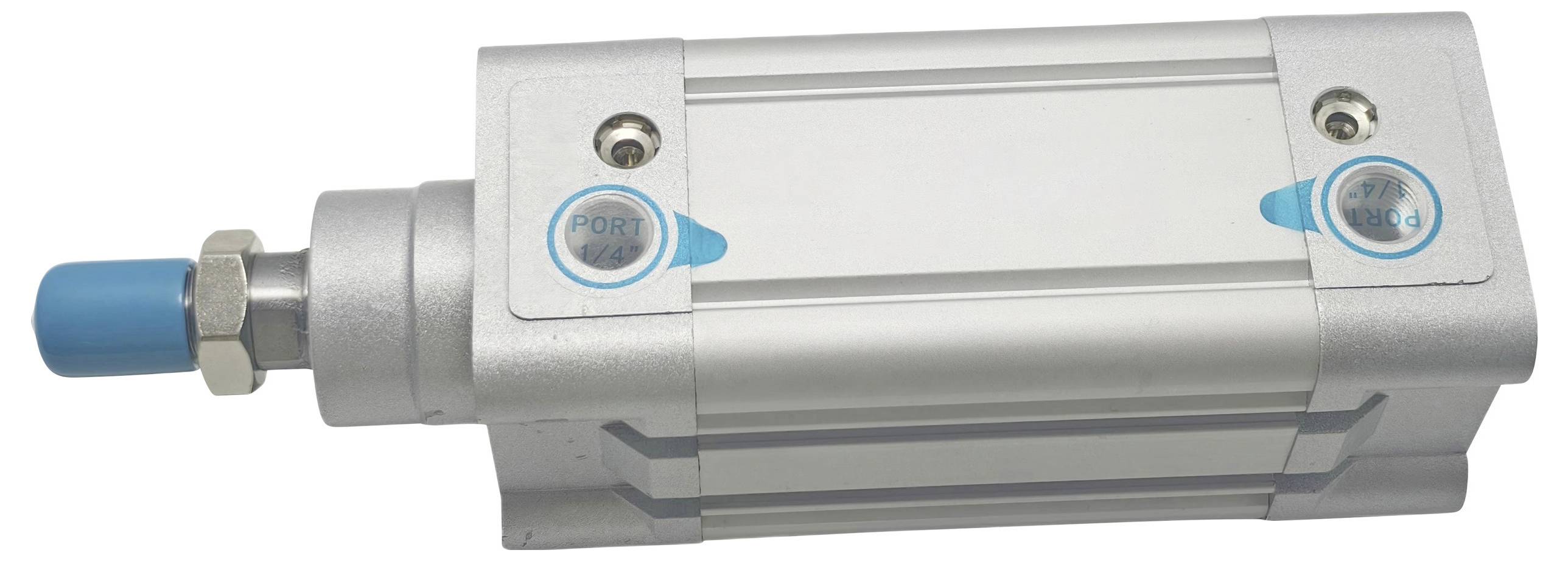

A compact, silver pneumatic cylinder with a blue cap at one end, labeled 'PORD' and 'PORD' next to its ports, used for mechanical motion.

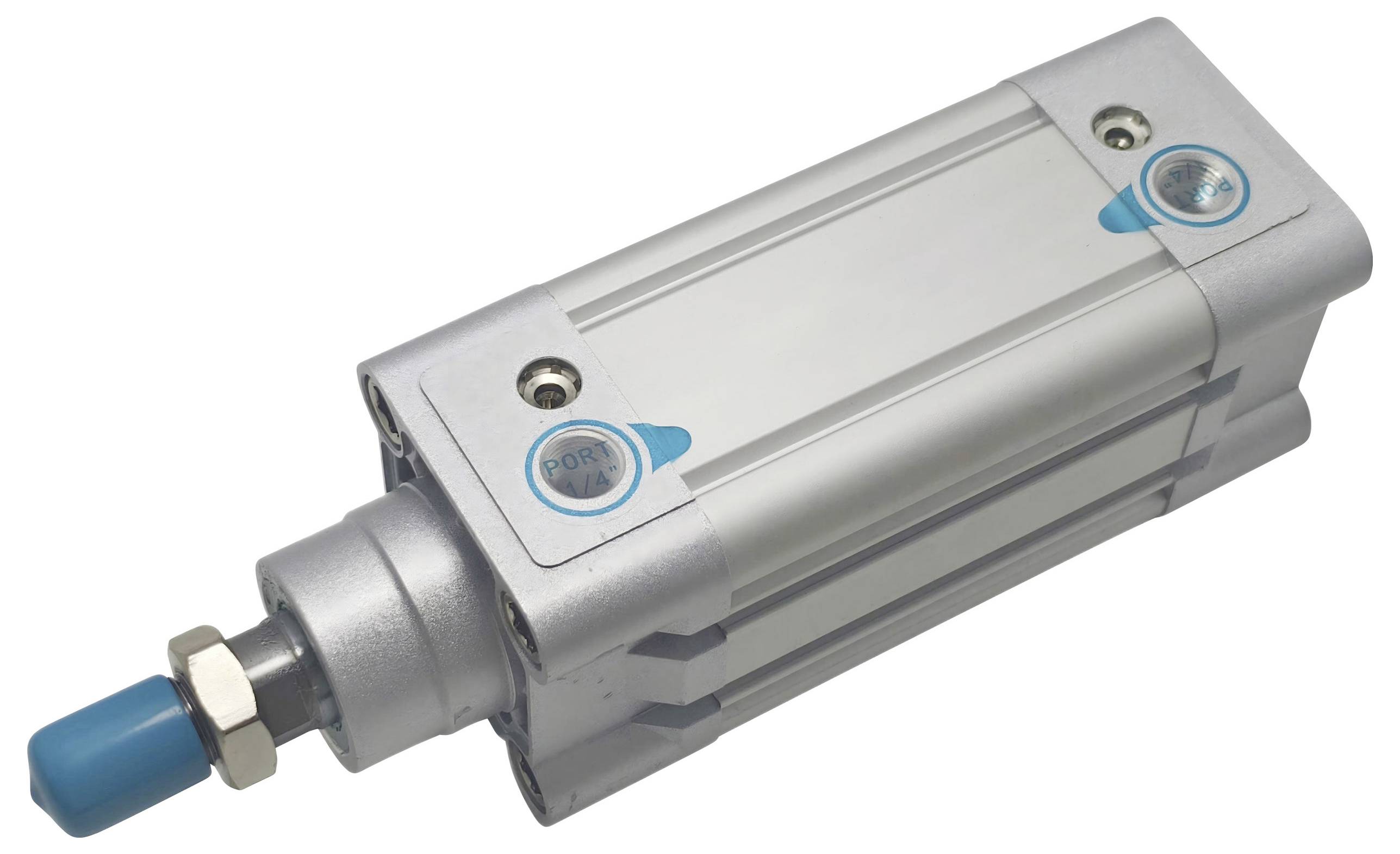

Pneumatic cylinder with silver body and blue end cap, labeled 'port'. Used in machinery for linear motion control.

1/3

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Profile cylinder ISO15552 (VDMA24562) Ø40mm, stroke: 50mm, with piston magnet, double-acting

Bore diameter: Ø 40 mm
Stroke length: 50 mm
ISO15552, VDMA24652
With magnet ring

Technical specifications

Motion: Double action
Operating speed: 50 - 500 mm/s
Cushion: Adjustable cussion at both ends

Product type: Square section cylinder

Stroke length: 50 mm

Min. operating pressure: 1 bar

Max. operating pressure: 10 bar

(Ø): 40 mm

Manufacturer part #: TC-14376408

Type: Bore diameter: 40 mm, Stroke length: 50 mm

Size: 40

Thread mount: G1/4"

Operating medium: Compressed air

Enclosure material: Aluminium

Material: Aluminium

Standard: ISO 15552

Max. ambient temperature: 70 °C

Min. ambient temperature: -10 °C

Operating principle: Double-acting

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3594102 TRU COMPONENTS TC-14376408 TC-DNC40X50S Square section cylinder Enclosure material: Aluminium Stroke length: 50 mm 1 pc(

User & Safety Instructions

User & Safety Instructions 3594102 TRU COMPONENTS TC-14376408 TC-DNC40X50S Square section cylinder Enclosure material: Aluminium Stroke length: 50 mm 1 pc(
