Buy TRU COMPONENTS TC-14376436 TC-DNC50X75S Square section cylinder Enclosure material: Aluminium Stroke length: 75 mm 1 pc(

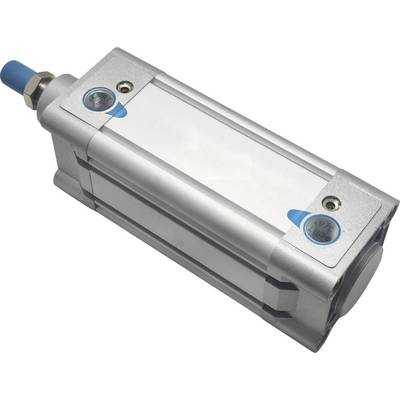

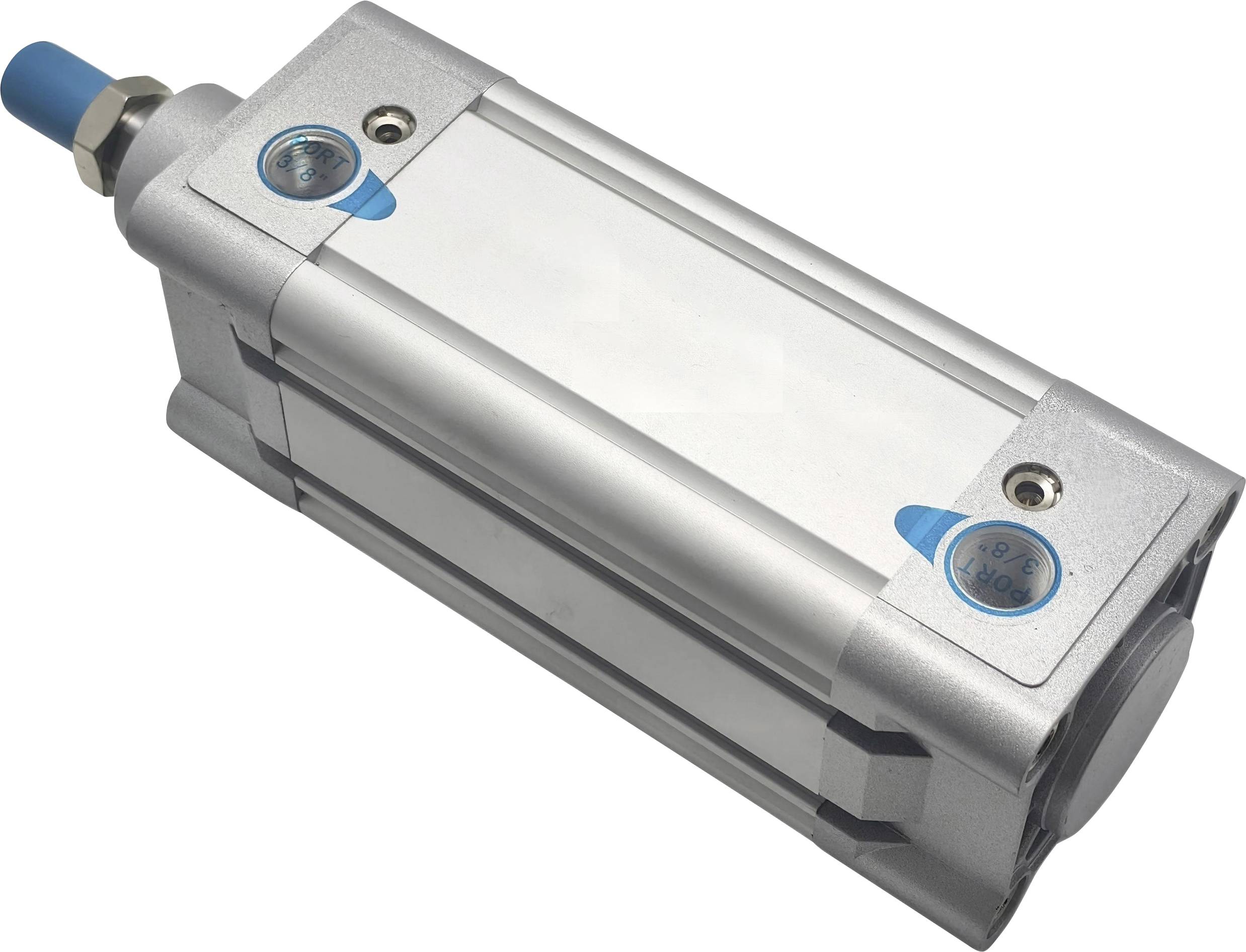

A silver pneumatic actuator with blue accents, featuring a cylindrical design and visible valves, used in industrial machinery.

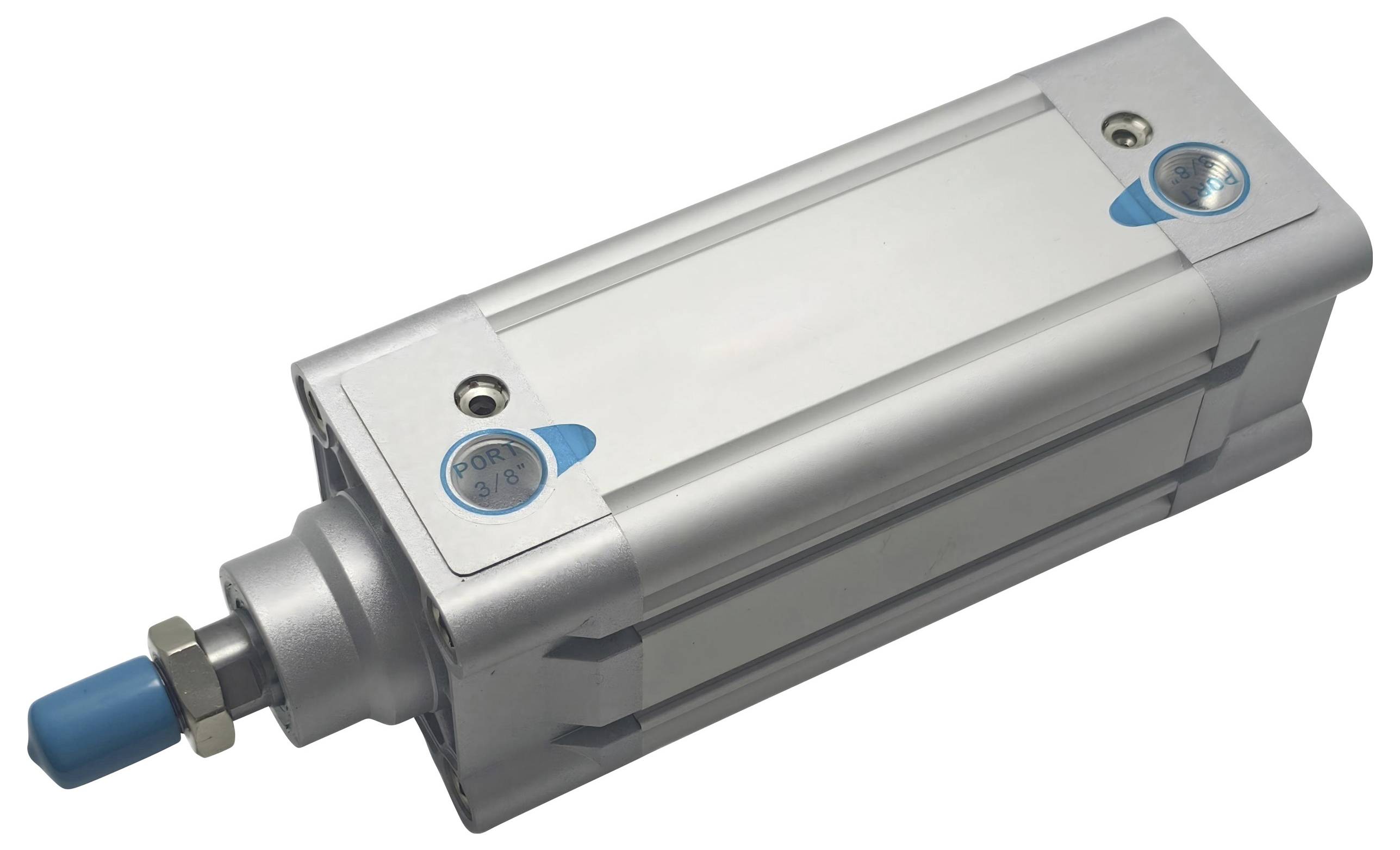

A silver pneumatic cylinder with a blue-tipped piston and mounting holes, used in machinery for mechanical motion control.

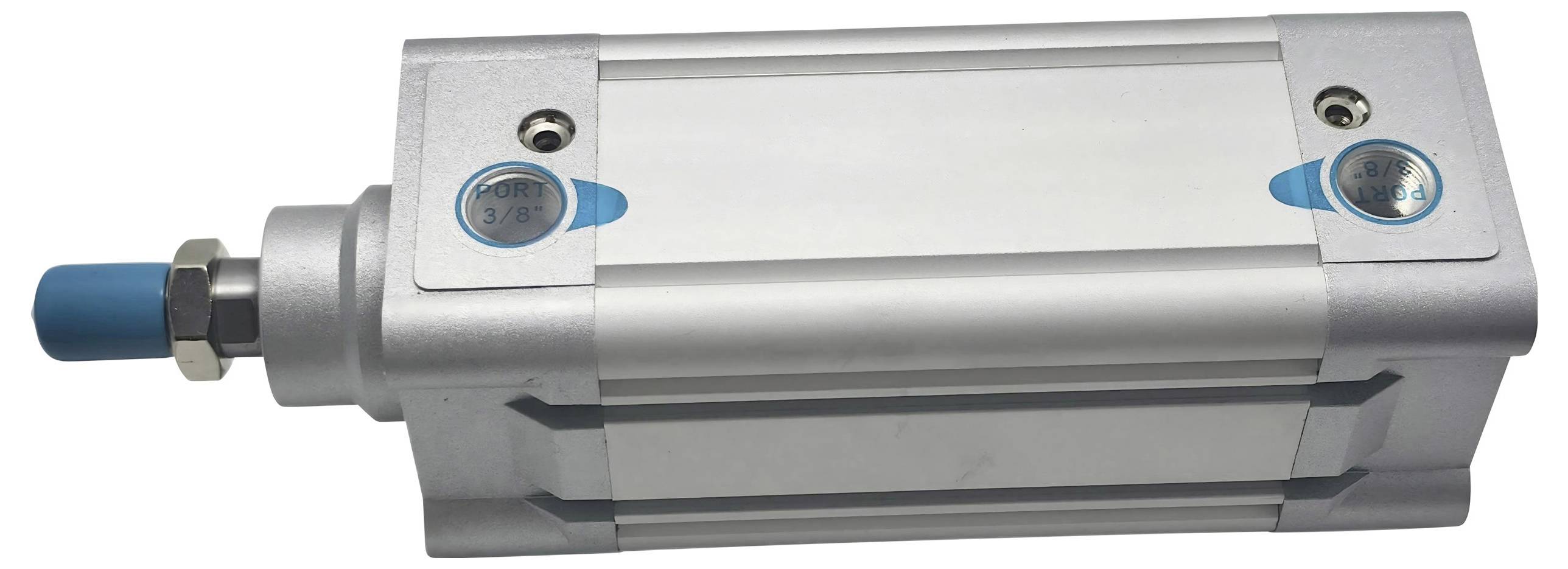

A metallic pneumatic cylinder with a blue-capped piston rod, used in industrial machinery for producing linear motion.

1/3

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

10 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 53.77 / piece)

€ 53.77

plus VAT.

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Profile cylinder ISO15552 (VDMA24562) Ø50mm, stroke: 75mm, with piston magnet, double-acting

Bore diameter: Ø 50 mm
Stroke length: 75 mm
ISO15552, VDMA24652
With magnet ring

Technical specifications

Motion: Double action
Operating speed: 50 - 500 mm/s
Cushion: Adjustable cussion at both ends

Product type: Square section cylinder

Stroke length: 75 mm

Min. operating pressure: 1 bar

Max. operating pressure: 10 bar

Manufacturer part #: TC-14376436

Type: Bore diameter: 50 mm, Stroke length: 75 mm

Thread mount: G1/4"

Operating medium: Compressed air

Enclosure material: Aluminium

Material: Aluminium

Medium: Compressed air

Standard: ISO 15552

Max. ambient temperature: 70 °C

Min. ambient temperature: -10 °C

Operating principle: Double-acting

Plastic free packaging: Plastic-free packaging
