TRU COMPONENTS TC-14914180 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Black 100 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Datasheet (PDF)
Number
Total (1 m = € 0.92)
€ 92.43
plus VAT.
14-day return policy included
Highlights & Details
CAT 7 outdoor network cable, 10 Gigabit, UV stable, 100 metres, 1000 MHz, -40 to +75 °C
- Category 7 rated for high-speed Gigabit Ethernet performance
- Future-proof your network with support for 10 Gigabit Ethernet
- Backward compatible with 10/100/1000 Ethernet standards
Technical specifications
- Conductor Dimension: 1/0.55±0.005 mm
- Insulation Dimension: 1.35±0.05 mm
- Inner Jacket Material: PVC
- Outer Jacket Material: PE
- Jacket Total Thickness: 1.0±0.1 mm
- Overall Nominal Dimension: 8.00±0.30 mm
- Product type
Network cable
CAT 7
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.24 mm²
- Cross section (each core) (part 2)
0.24 mm²
- Cross section
4 x 2 x 0.24 mm² + 0 2 x 0.24 mm²
- Cable features
UV-resistant
- Outside Ø
8 mm
- Factory colour
Black
- Max. frequency
1000 MHz
- Content
100 m
- AWG max.
23
- Sold per metre
Yes
- Manufacturer part #
TC-14914180
- Type
TC-14914180
- Insulation material
Foam Skin PE
- RoHS-compliant
Yes
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+50 °C
- Min. temperature range (fixed installation)
-40 °C
- Max. temperature range (fixed installation)
+75 °C
- Halogen-free
No
- Max. length sold by the metre
100 m
- Twisted pair cabling (part 1)
Yes (1)
- Twisted pair cabling (yes/no)
Yes (1)
Documents & Downloads
Datasheet
Datasheet 3728545 TRU COMPONENTS TC-14914180 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3728545 TRU COMPONENTS TC-14914180 Network cable CAT 7 S/FTP 4 x 2 x 0.24 mm² Black 100 m
Description
Features
- UV and water resistant
- Designed for outdoor use

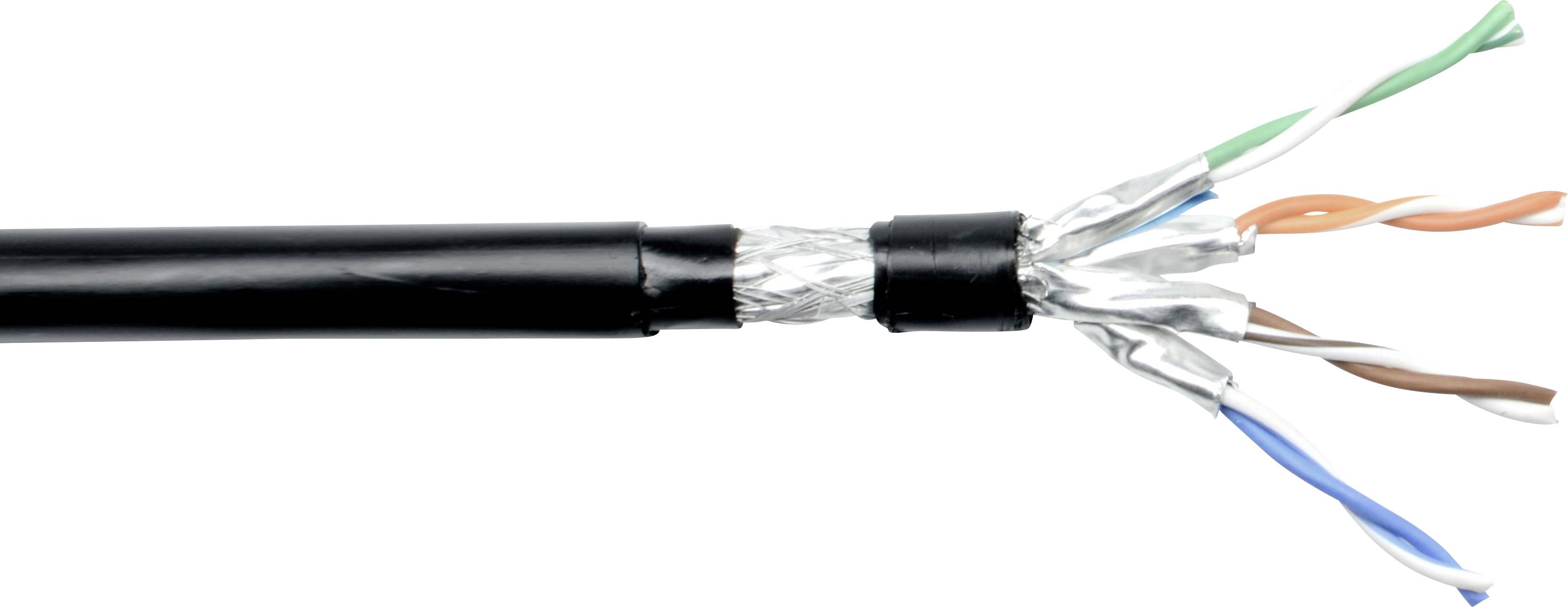

- Double-jacket construction (Inner PVC, Outer PE) for extreme weather
- Supports IEEE 802.3af, 802.3at, and 802.3bt (Type 3 & Type 4)
- PiMF (Pairs in Metal Foil) shielding on every twisted pair
Scope of delivery
- Network cable
