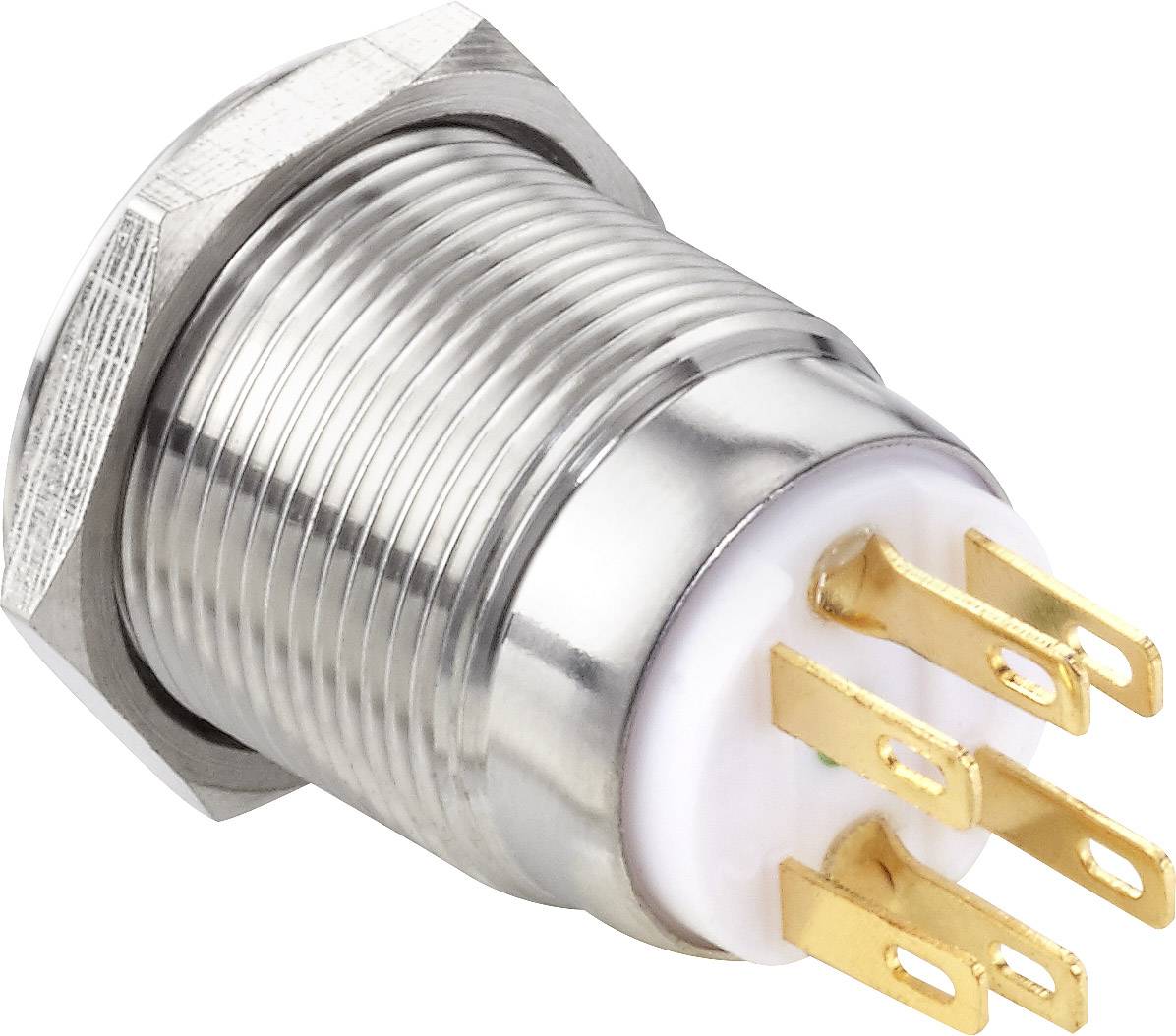

TRU COMPONENTS TC-7494472 TC-LAS1GQ-11ET/B/12V/S Tamper-proof pushbutton 250 V AC 3 A 1 x Off/(On) momentary Blue IP65 1
EAN:
Part number:
Item no:
Product type
Tamper-proof pushbutton
Lighting type
Circular lighting
Power symbol
Switch position
1 x Off/(On)
Contact type
1 breaker
1 maker
Connection
Soldering
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Tamper-proof pushbutton
- Switch/button features
tamperproof
for pushbutton
- Casing/button colour
Stainless steel
- Functions
momentary
- Lighting type
Circular lighting
Power symbol
- Colour
Blue
- Bulb type
LED (monochrome)
- Switch position
1 x Off/(On)
- Contact type
1 breaker
1 maker
- Material
Stainless steel
- Contact material
Gold plated silver alloy
- Connection
Soldering
- Contact resistance
≤ 50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Dielectric strength
2000 V
- Min. temperature
-25 °C
- Max. temperature
+55 °C

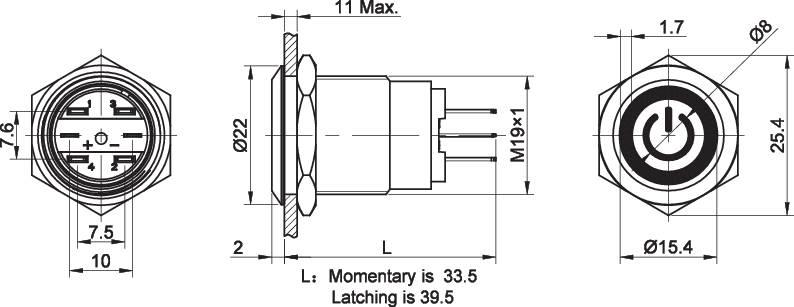

- Button diameter
15.4 mm
- Durability
1000000
- Recess diameter
19 mm
- Recess depth
32.6 mm
- Electrical lifespan
50000
IP65
- Actuating force
5 N
- Content
1 pc(s)
- Insulation resistance
≥ 1000 MΩ
- Board thickness (max.)
10 mm
- Type
TC-LAS1GQ-11ET/B/12V/S
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
