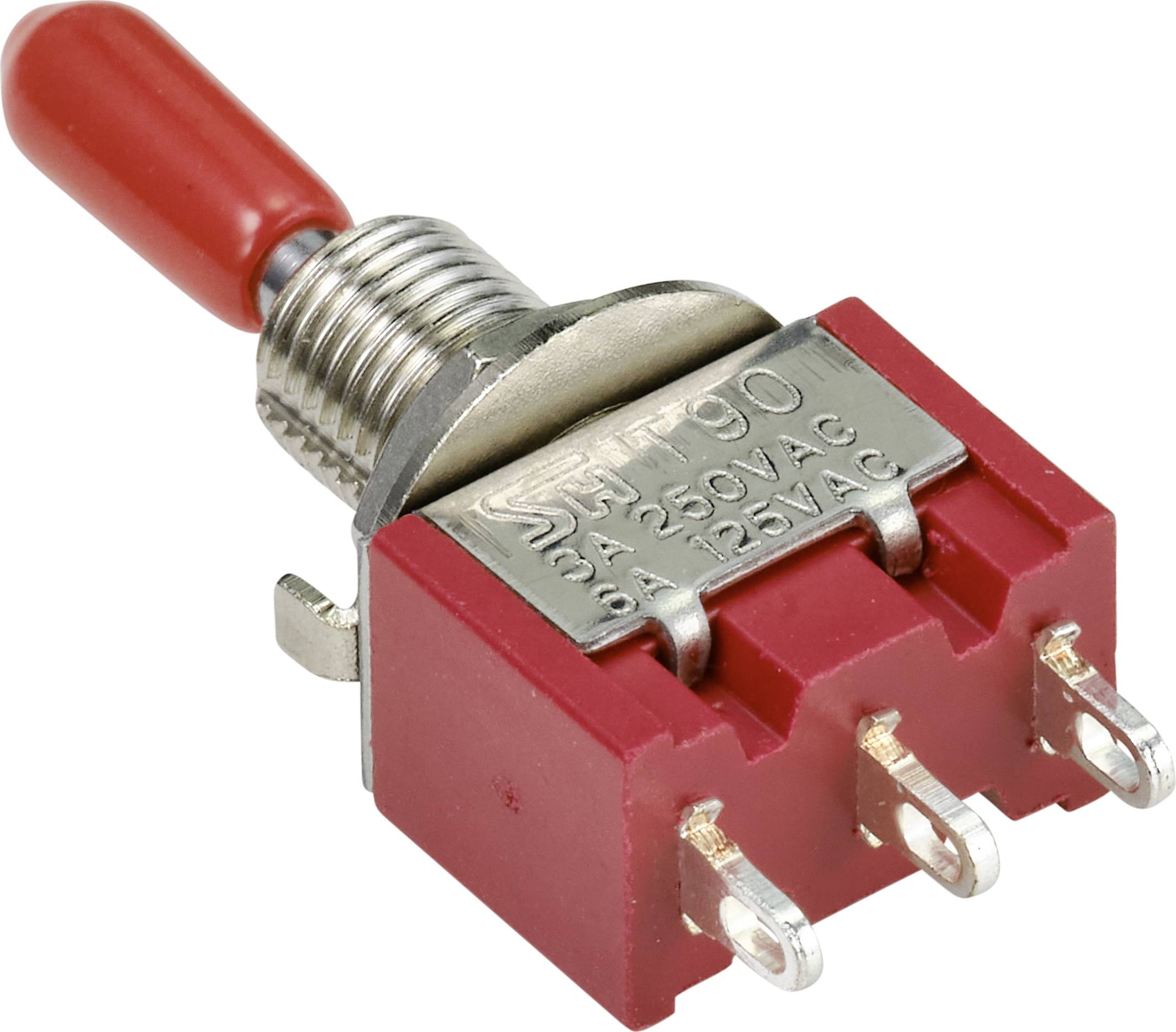

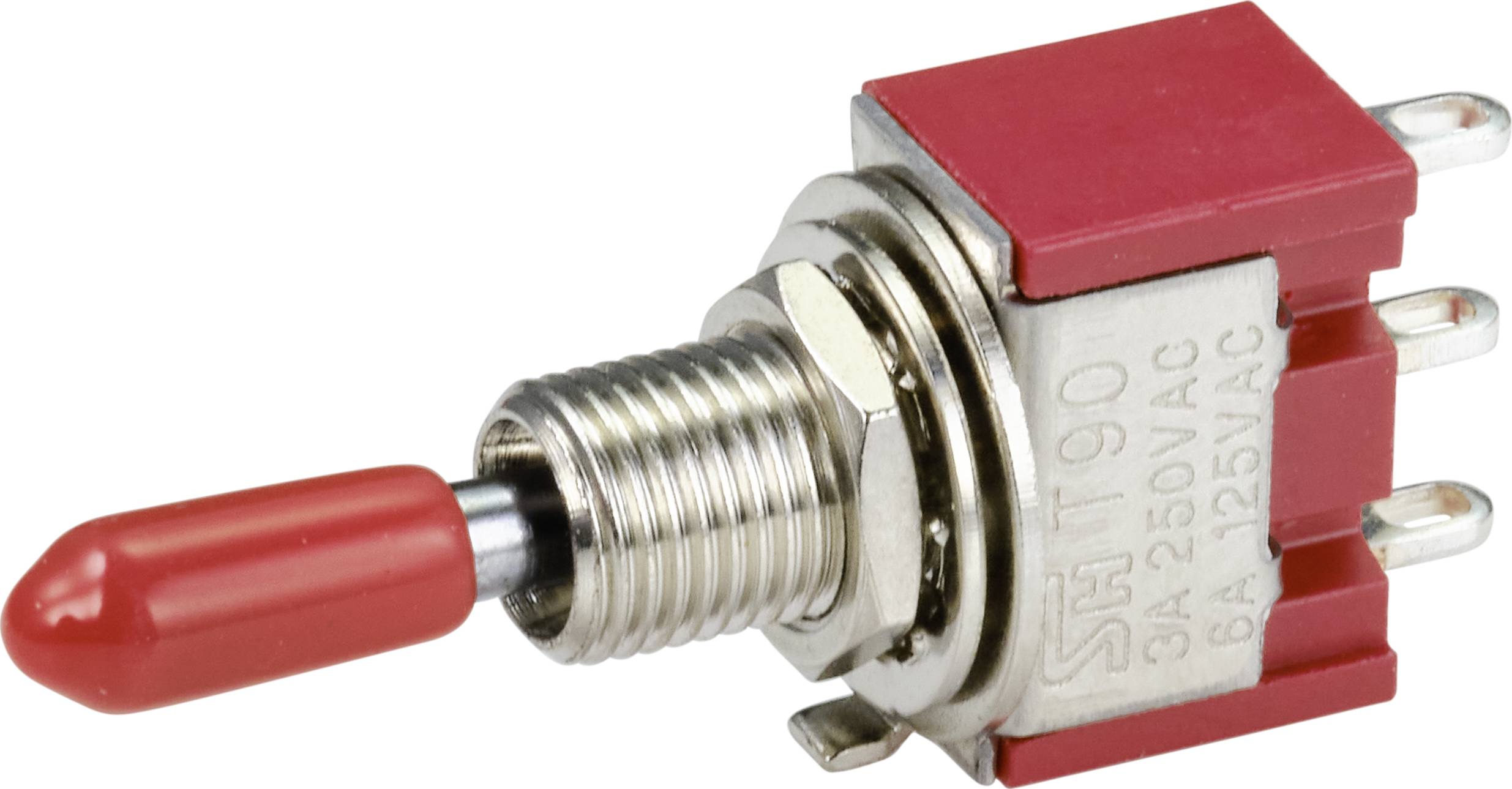

TRU COMPONENTS TC-9353992 Flip switch 250 V AC 3 A 1 x (On)/Off/(On) momentary/0/momentary 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flip switch
Casing/button colour
Red
Functions
momentary/0/momentary
Lighting type
None
Switch position
1 x (On)/Off/(On)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.38
10
7% = € 0.25
€ 3.13
25
10% = € 0.35
€ 3.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.38 / piece)
€ 3.38
plus VAT.
14-day return policy included
Highlights & Details
Miniature toggle switch 1-pole momentary
- ()
Technical specifications
- Switching voltage and current: 125 VAC, 6A / 250 VAC, 3 A
- Product type
Flip switch
- Casing/button colour
Red
- Functions
momentary/0/momentary
- Lighting type
None
- Switch position
1 x (On)/Off/(On)
- Connection
Solder tag
- Number of pins
3
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-10 °C
- Max. temperature
80 °C
- Length
13 mm
- Width
7.9 mm
- Height
32.85 mm
- Recess diameter
6.35 mm
- Recess depth
13.46 mm
- CS
4.7 mm
- Dim
(L x W x H) 13 x 7.9 x 32.85 mm
- Industrial packaging
Compatible with
- Type
TC-9353992
Documents & Downloads
Datasheet
Datasheet 2338498 TRU COMPONENTS TC-9353992 Flip switch 250 V AC 3 A 1 x (On)/Off/(On) momentary/0/momentary 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2338498 TRU COMPONENTS TC-9353992 Flip switch 250 V AC 3 A 1 x (On)/Off/(On) momentary/0/momentary 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
