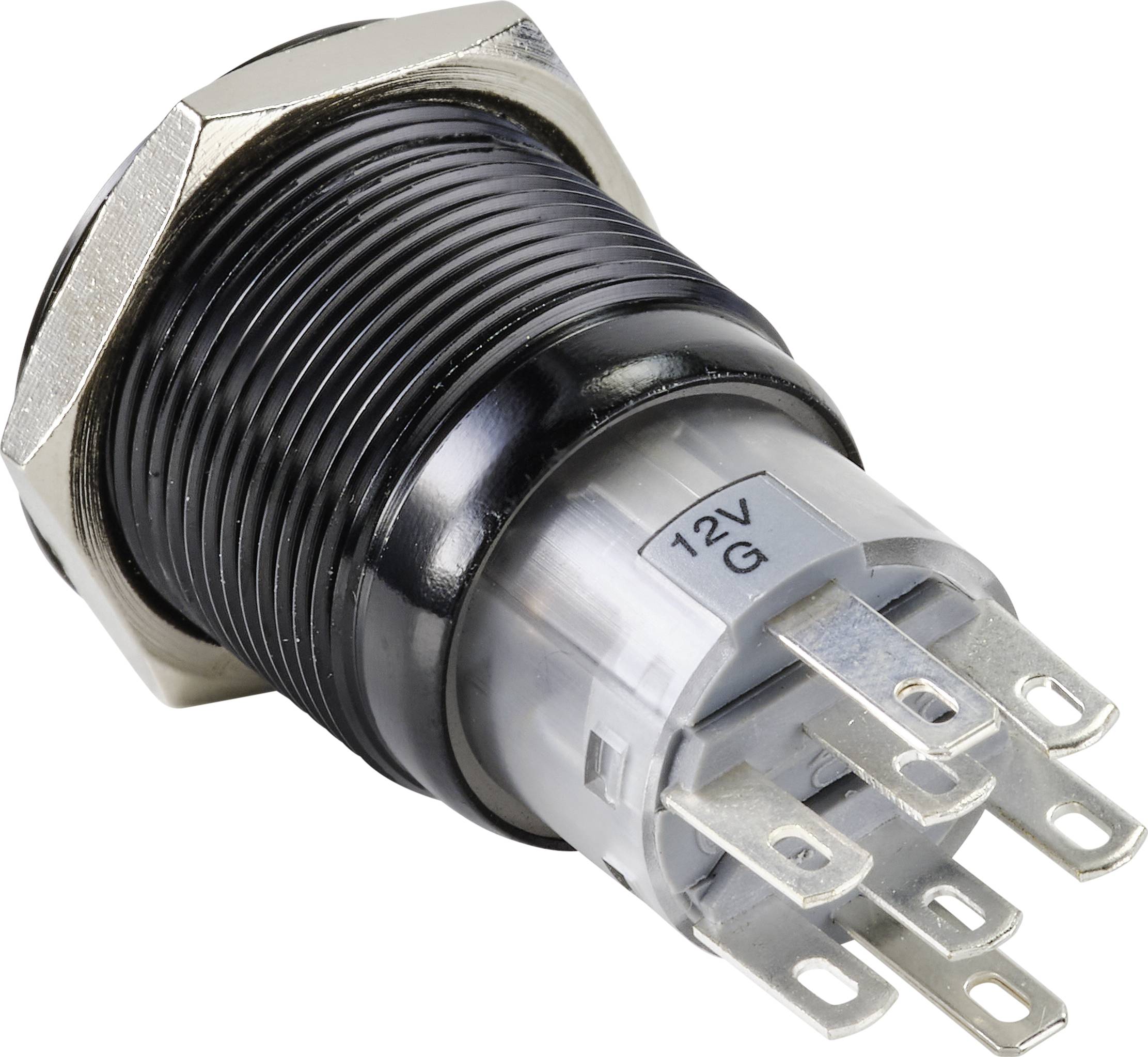

TRU COMPONENTS TC-9428176 LAS1-AGQ-22E/B/12V/A Pushbutton 250 V AC 3 A 2 x Off/(On) momentary Blue (Ø) 19 mm IP65 1 pc(s
EAN:
Part number:
Item no:
Product type
Pushbutton
Lighting type
Circular lighting
Switch position
2 x Off/(On)
Contact type
2 change-overs
Connection
Type C CEE 7/16 plug 2.8 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.71
3
6% = € 0.71
€ 12.00
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.71 / piece)
€ 12.71
plus VAT.
14-day return policy included
Technical specifications
- Product type
Pushbutton
- Switch/button features
Planar
- Casing/button colour
Steel
- Functions
momentary
- Lighting type
Circular lighting
- Colour
Blue
- Bulb type
LED (monochrome)
- Switch position
2 x Off/(On)
- Print motif
None
- Contact type
2 change-overs
- Material
Steel
- Contact material
Silver alloy
- Connection
Type C CEE 7/16 plug 2.8 mm
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-25 °C
- Shape
Round
- Max. temperature
+55 °C
- (Ø)
19 mm
- Button diameter
15.8 mm
- Durability
1000000
- Recess diameter
19 mm
- Recess depth
38.2 mm
- Electrical lifespan
50000
IP65
- Content
1 pc(s)
- Dim
(Ø) 19 mm
- Board thickness (max.)
10 mm
- Type
LAS1-AGQ-22E/B/12V/A
Documents & Downloads
Datasheet
Datasheet 2357044 TRU COMPONENTS TC-9428176 LAS1-AGQ-22E/B/12V/A Pushbutton 250 V AC 3 A 2 x Off/(On) momentary Blue (Ø) 19 mm IP65 1 pc(s
User & Safety Instructions
User & Safety Instructions 2357044 TRU COMPONENTS TC-9428176 LAS1-AGQ-22E/B/12V/A Pushbutton 250 V AC 3 A 2 x Off/(On) momentary Blue (Ø) 19 mm IP65 1 pc(s
Description
Pressure switch LAS1-AGQ-22 series
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
