TRU COMPONENTS TC-9860120 S2SRN-S3BR Selector switch Toggle Red 2 x 45 ° 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS Selector switch S2SRN-S3BR

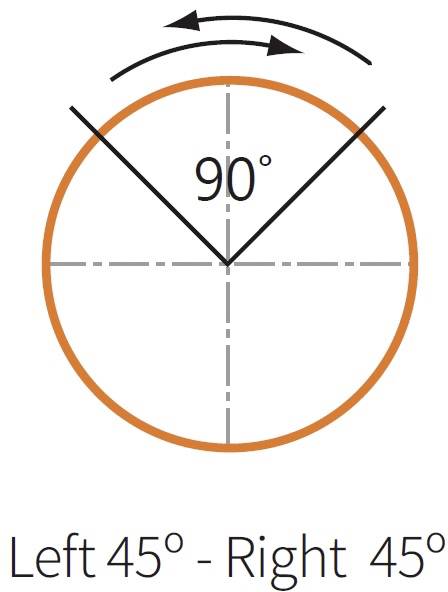

- 2-position Selector switch With short leverRemains in its positionOperating angle: Left 45°, right 45ºRed illuminatedInstallation diameter Ø22/25 mmProtection class: IP52
Technical specifications
- Operating humidity 35 - 85% RH
- Product type
Selector switch
- Switch/button features
+ lever
- Lighting type
incl. lighting
- Operation type
Toggle
- Colour
Red
- Factory colour
Red
- Case colour
Red
- Print motif
Arrow symbol
- Connection
External contact
- Front panel cut-out
Ø22/25 mm mm
- Functions
latch
- Electrical lifespan
≧100,000 operations (20 operations/min)
- Recess diameter
25 mm
- Type
Off/On
IP52
- Min. temperature
-15 °C
- Max. temperature
55 °C
- Switching voltage
250 V
- Switching angle
2 x 45 °
- Height
25.3 mm
- (Ø)
22 mm
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 25.3 mm
- Type
S2SRN-S3BR
Documents & Downloads
Datasheet
Datasheet 2465030 TRU COMPONENTS TC-9860120 S2SRN-S3BR Selector switch Toggle Red 2 x 45 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2465030 TRU COMPONENTS TC-9860120 S2SRN-S3BR Selector switch Toggle Red 2 x 45 ° 1 pc(s)
Description
When it comes to enabling human interaction with devices and cuffs, selecting the appropriate switch/button is critical to the specific requirement. TRU COMPONENTS offers professional solutions for different requirements with the S2SRN series, which is specially designed for the industrial sector. The models of the IP65 degree of protection are designed for a temperature range of -15 to 55°C and are available in different switching angles and switching positions. The mechanical selector switches/buttons with robust and innovative design offer increased reliability in every respect.
