TRU COMPONENTS TC-9860136 S2SRN-S5W Selector button Toggle White 2 x 60 ° 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS Selector button S2SRN-S5W

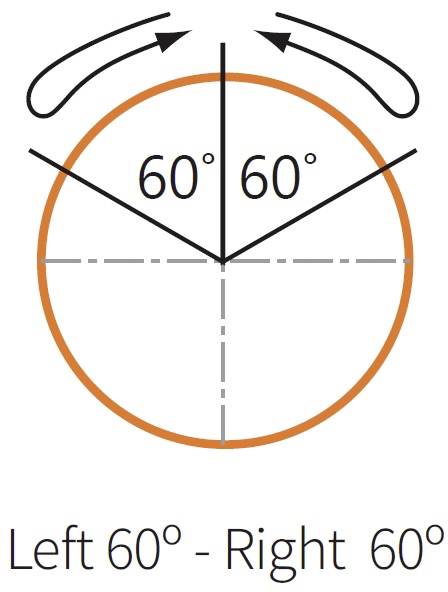

- 3-position Selector button With short leverJumps back to its starting positionOperating angle: Left 60°, right 60ºWhite illuminatedInstallation diameter Ø22/25 mmProtection class: IP52
Technical specifications
- Operating humidity 35 - 85% RH
- Packaging type
Piece
- Product type
Selector button
- Switch/button features
reset function
- Lighting type
incl. lighting
- Operation type
Toggle
- Colour
White
- Factory colour
White
- Case colour
White
- Print motif
Arrow symbol
- Connection
External contact
- Front panel cut-out
Ø22/25 mm
- Functions
momentary/0/momentary
- Electrical lifespan
≧100,000 operations (20 operations/min)
- Recess diameter
25 mm
- Type
Off/On
IP52
- Min. temperature
-15 °C
- Max. temperature
55 °C
- Switching voltage
250 V
- Switching angle
2 x 60 °
- Height
25.3 mm
- (Ø)
22 mm
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 25.3 mm
- Type
S2SRN-S5W
Documents & Downloads
Datasheet
Datasheet 2465034 TRU COMPONENTS TC-9860136 S2SRN-S5W Selector button Toggle White 2 x 60 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2465034 TRU COMPONENTS TC-9860136 S2SRN-S5W Selector button Toggle White 2 x 60 ° 1 pc(s)
Description
When it comes to enabling human interaction with devices and cuffs, selecting the appropriate switch/button is critical to the specific requirement. TRU COMPONENTS offers professional solutions for different requirements with the S2SRN series, which is specially designed for the industrial sector. The models of the IP65 degree of protection are designed for a temperature range of -15 to 55°C and are available in different switching angles and switching positions. The mechanical selector switches/buttons with robust and innovative design offer increased reliability in every respect.
This text is machine translated.
