Buy TRU COMPONENTS TC-9962740 TC-GRB8-01+PLS-02-0.2m Photo sensor 1 pc(s) 240 V AC 1 maker (L x W x H) 90 x 64 x 18 mm

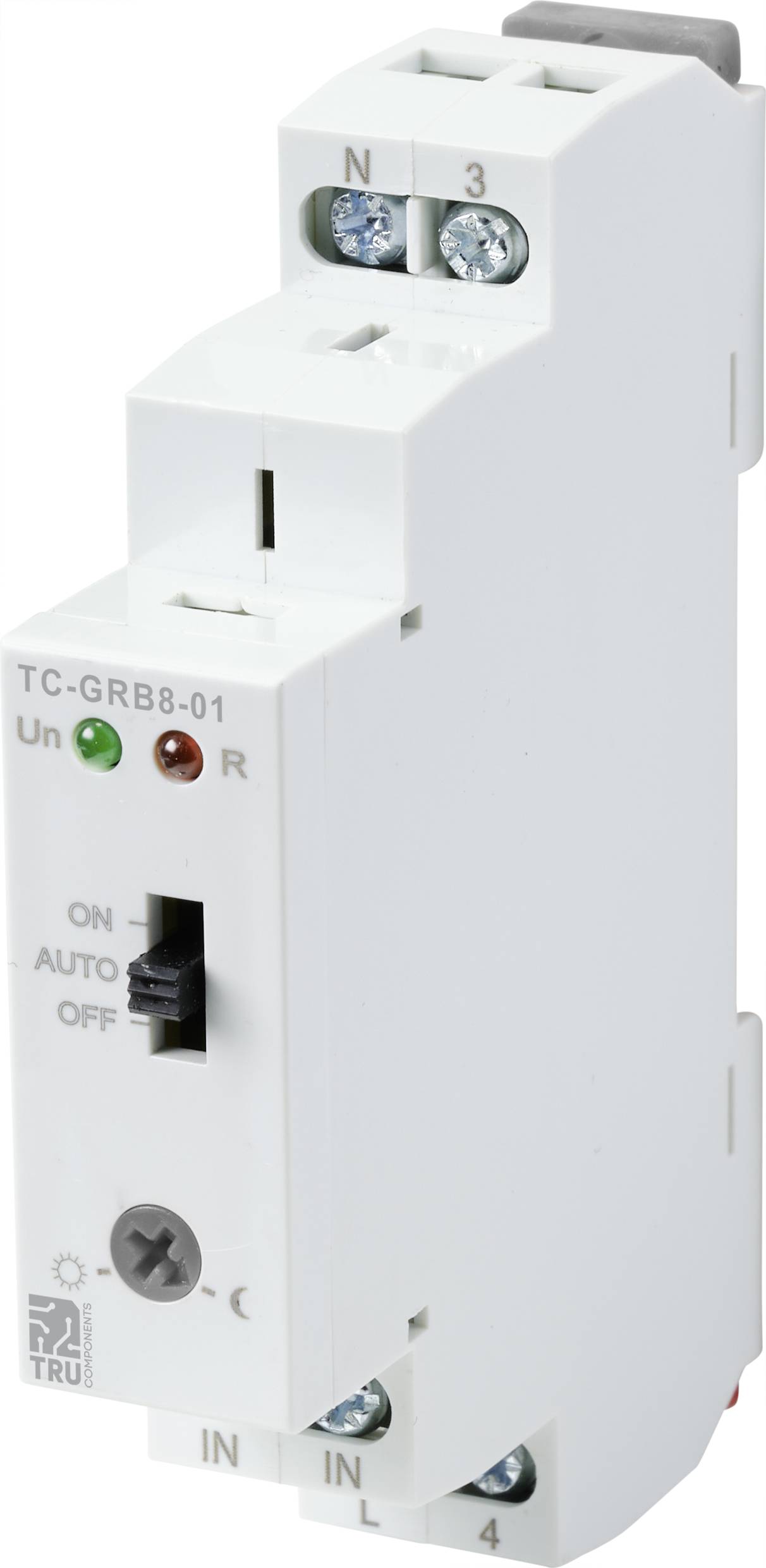

Figure of a feedable relay with label 'TC-GRB8-01'. It has three switch positions: 'ON', 'AUTO', 'OFF'.

Mechanical device with a toggle switch, two terminal screws at the top and bottom. Green and red indicator lights show the status.

A white and grey plastic component, vertically oriented, with movable parts, likely a connecting element or mounting bracket.

'TC-GRB-01' Relay with Circuit Diagram and Technical Specifications. Labels for Voltage, Current and Function.

A white relay module with multiple cable connections and technical specifications. Beside it, a cylindrical device with a yellow cable.

1/5

Packaging type

Piece

Product type

Photo sensor

Min. operating voltage

110 V AC

Max. operating voltage

240 V AC

Type

TC-9962740

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

78 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Twilight switch with separate sensor

For switching street and garden lights, illumination of advertisements, shop windows, etc.

Technical specifications

Function: Twilight switch
Output contact data: SPT
Function: ON-AUTO-OFF (adjustable)
Max. cable size(mm 2); torque: 1×2.5mm²or 2×1.5mm²; 0.8Nm
Photosensitive sensor PLS-02-0.2m:
Built in sensor type: Photodiode
Spectral application range: 320nm-1100nm
Operating voltage range: 2.2-5VDC
Light current (10 Lux): ≥4uA (VDD=5V, R=1kÙ)
Max. power consumption: 100mW
Operating temperature: -20°C to +60°C
Storage temperature: -35°C to +75°C
Cable length: 200 mm

Packaging type: Piece

Product type: Photo sensor

Type: TC-9962740

Content: 1 pc(s)

Features: Incl. twilight switch

Operating voltage: 240 V AC

Min. operating voltage: 110 V AC

Max. operating voltage: 240 V AC

Operating voltage: 110 - 240 V AC

Contact type: 1 maker

Switching voltage (max.): 250 V AC

Switching current (max.): 16 A

Max. switching capacity: 4000 W

Activation threshold (min.): 1 lx

Activation threshold (max.): 1000 lx

Connection: Screw terminal

Mounting type: DIN rail

: IP20

Min. temperature: -20 °C

Max. temperature: 55 °C

Length: 90 mm

Width: 64 mm

Height: 18 mm

Dim: (L x W x H) 90 x 64 x 18 mm

Plastic free packaging: Plastic-free packaging
