Red battery switch with arrow indicator on white symbol. Switch is set to 'ON', surrounded by green and red circle, mounted on black housing.

Red battery switch with arrow indicator on white symbol. Switch is set to 'ON', surrounded by green and red circle, mounted on black housing.

Red battery switch with a car battery symbol. 'ON' is written at the top on a green background, 'OFF' at the bottom on a red background.

Black battery isolator switch with red rotary knob indicating 'Off' position. Clearly marked switch positions for 'On' and 'Off'.

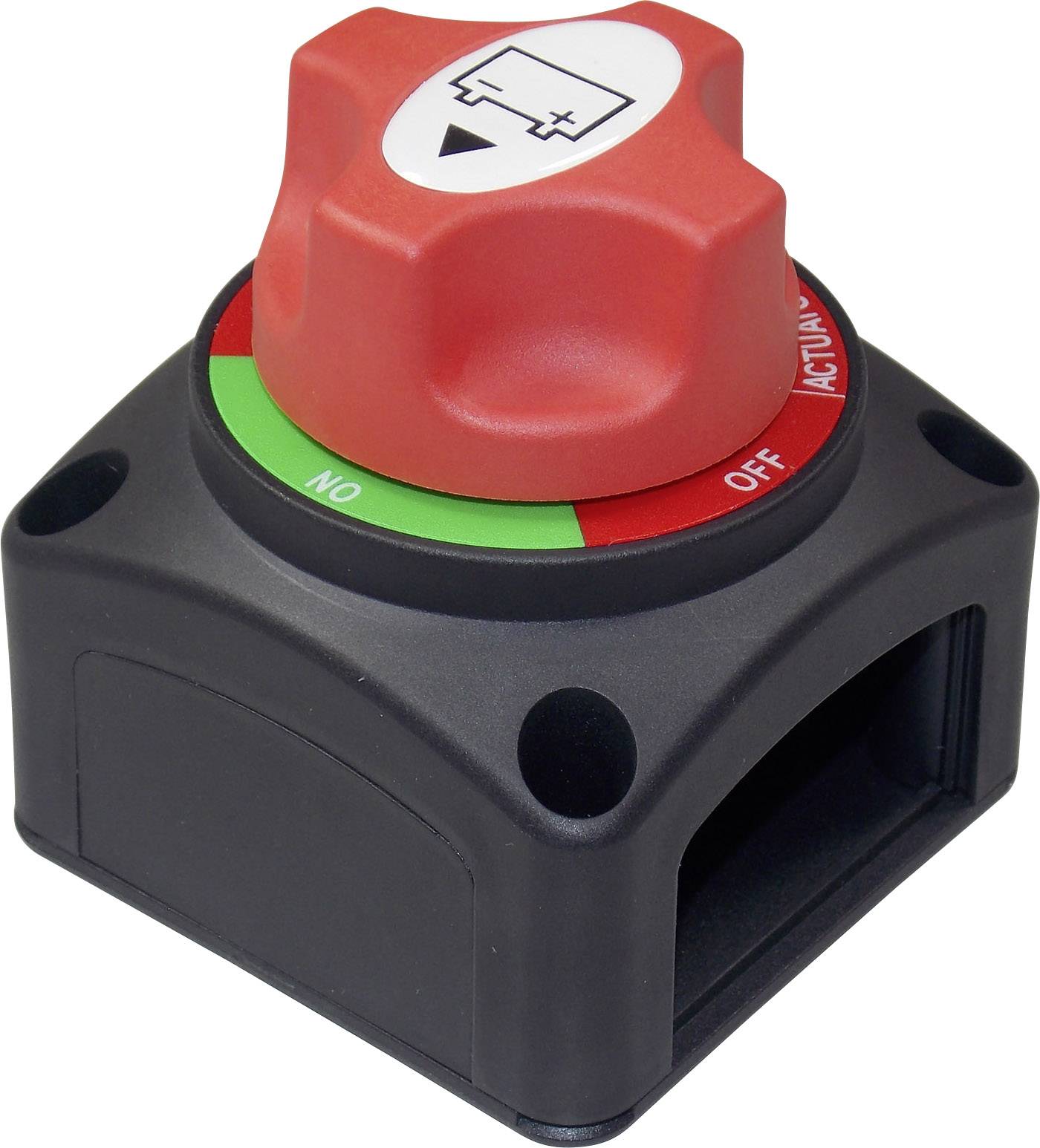

Red battery switch with black base and labelling 'No' in green, 'Off' in red on the top surface.

Red battery switch in the "Off" position, with a battery symbol at the top. Used to disconnect the power supply.

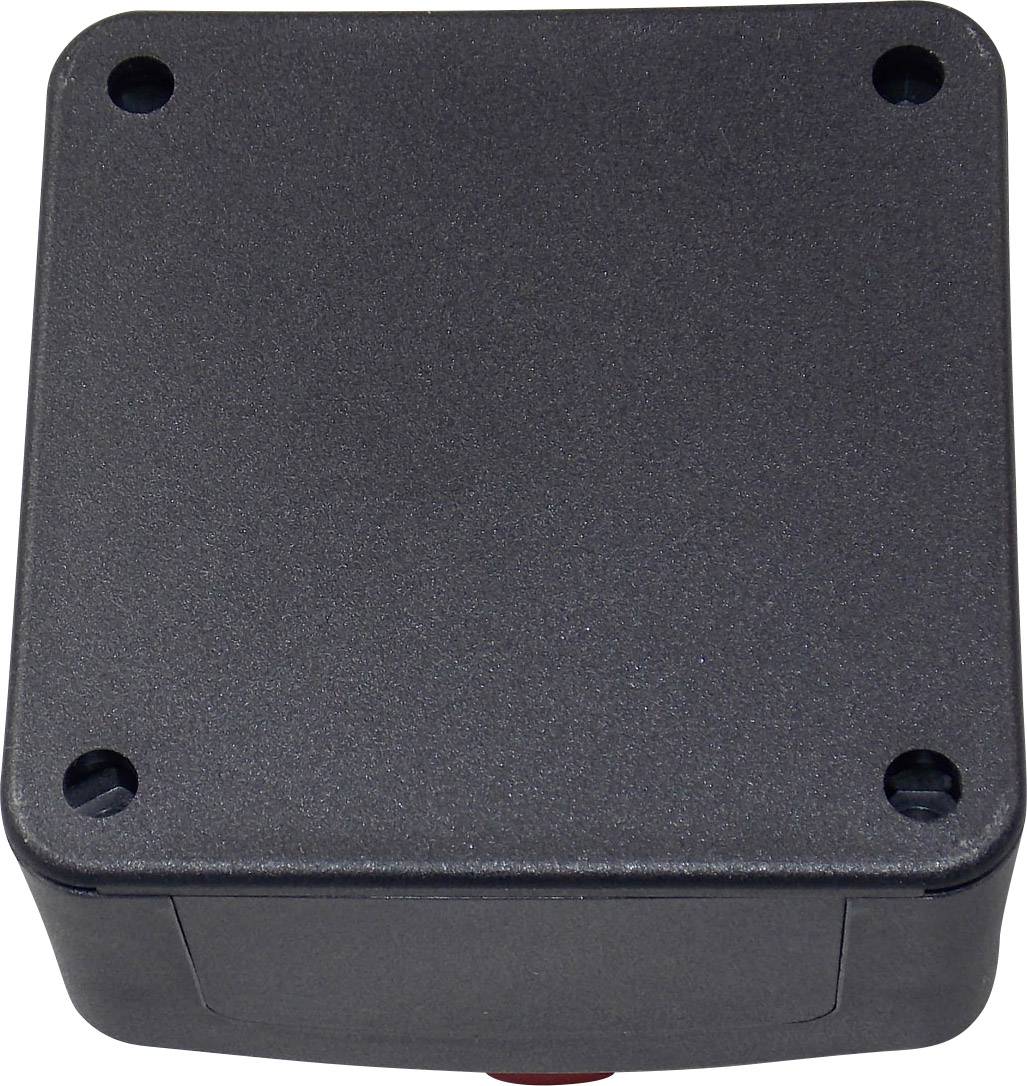

A black square box with four screw holes, presumably an enclosure for electronic devices or circuits.

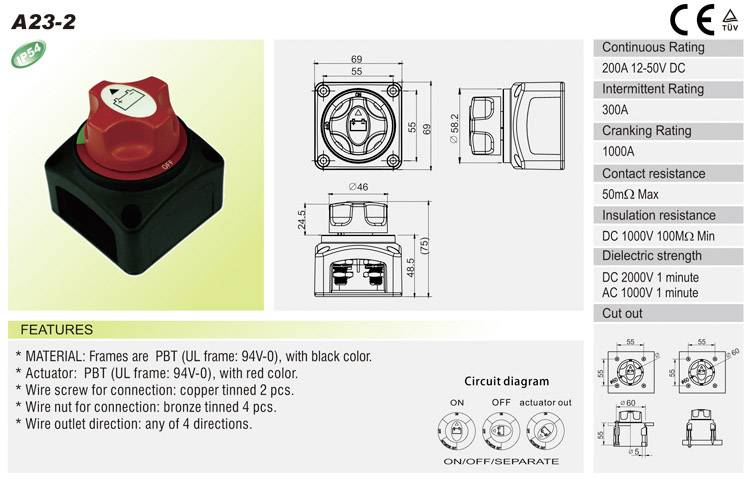

A red switch with technical specifications, such as rated voltage and resistance. Diagrams and features are also shown.

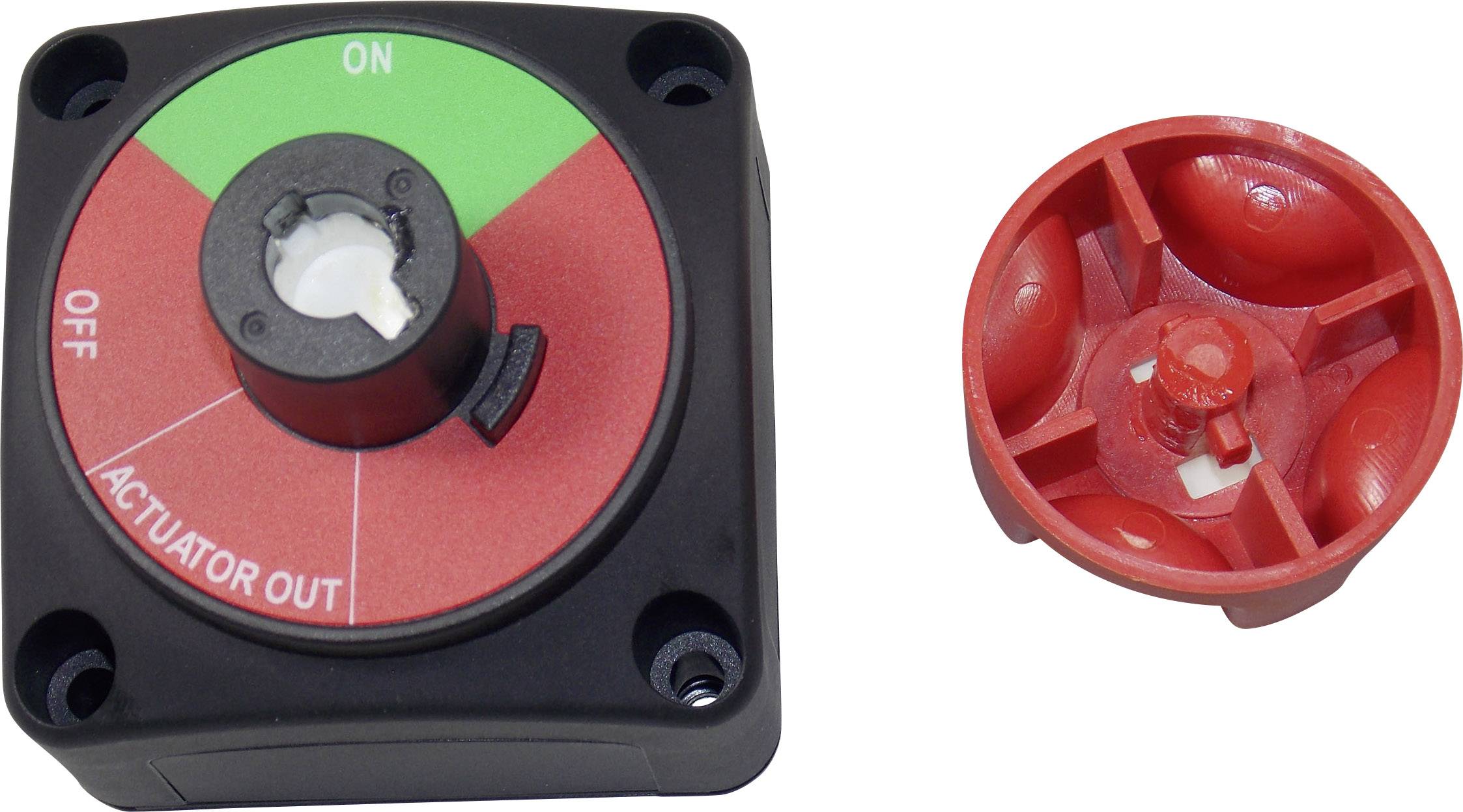

'Rotary isolator switch in red and green position with removable red handle. Shows status: 'OFF' and 'ACTUATOR OUT'.'

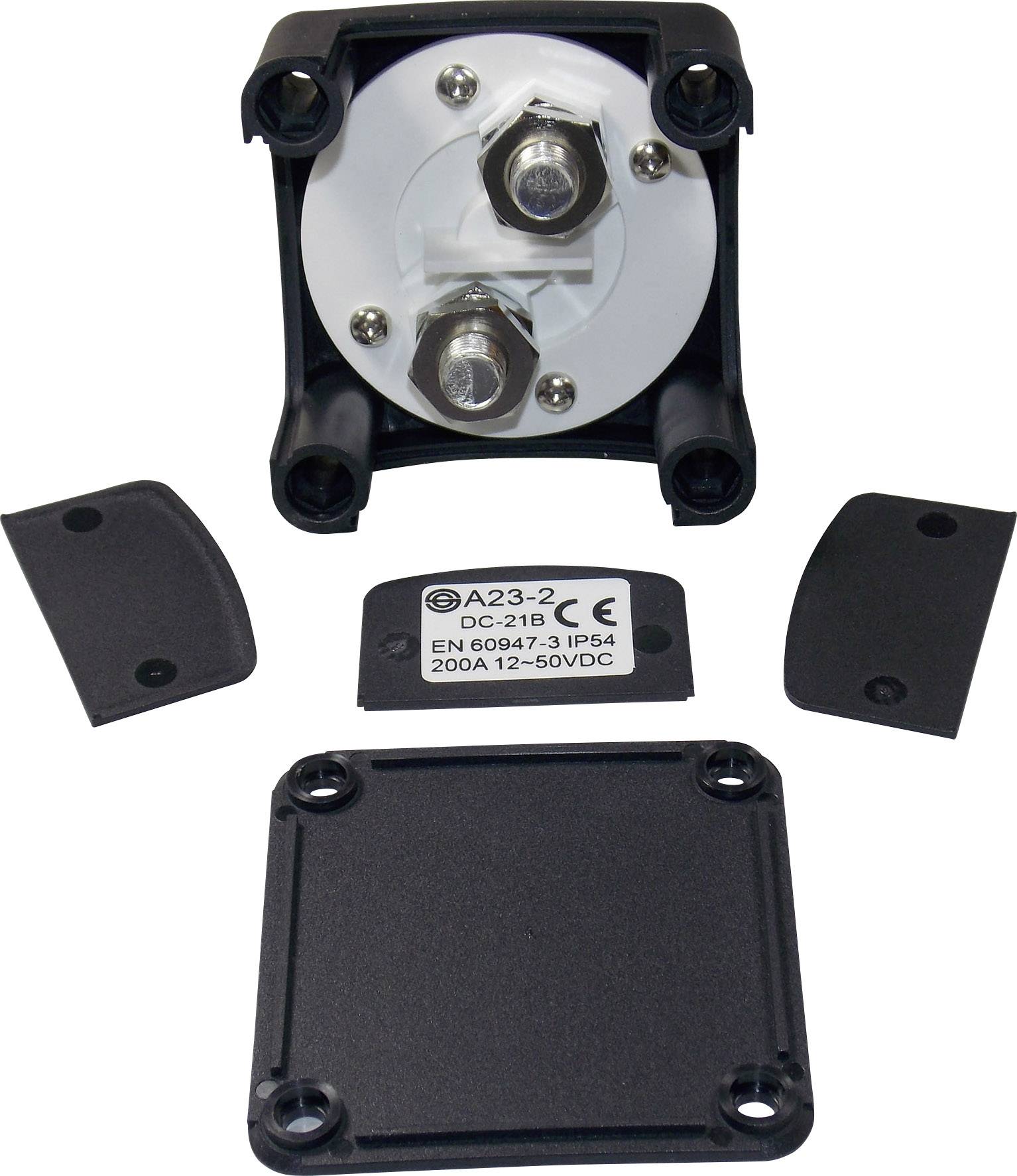

Black electrical component with two screw terminals, type label '200A 12-50VDC', protection class IP54, removable cover.

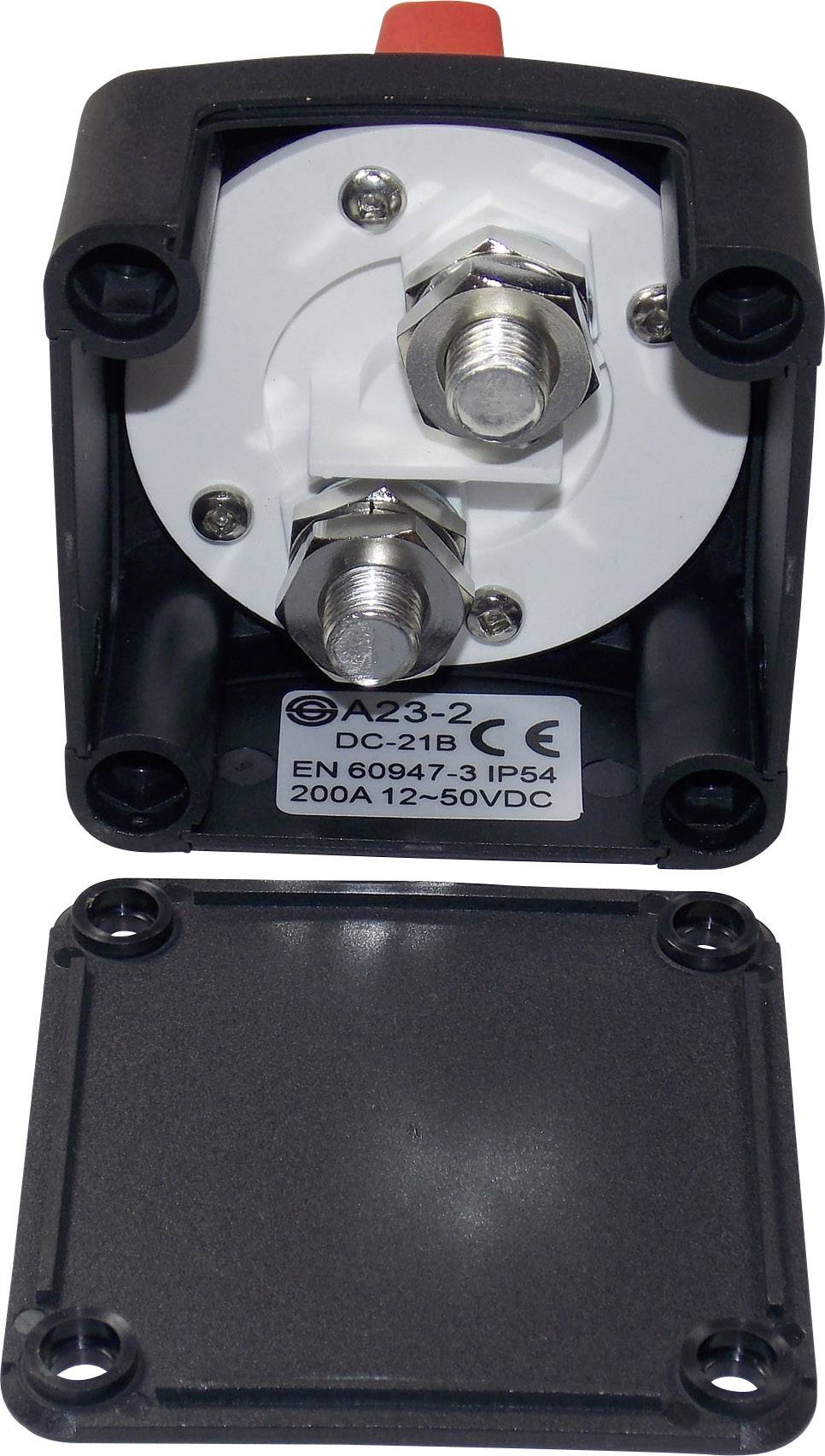

Black electric switch. Technical specifications: Model A23-2, DOC-21B, EN 60947-3 IP54, 200A, 12-50VDC. Mounted and covered.

1/10

Lighting type

None

Print motif

Battery symbol

Switching voltage

12 V DC

50 V DC

Switching current (max.)

200 A

Switch position

1 x Off/On

Datasheet (PDF)

English

TRU COMPONENTS

281 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 16.09 / piece)

€

Report legal concerns

Highlights & Details

Car battery switch 12 V DC, 50 V CD 200 A

Our service for you

Technical specifications

Connection: Screw terminal

Lighting type: None

Print motif: Battery symbol

Factory colour: Red
Black

Switching voltage: 12 V DC
50 V DC

Switching current (max.): 200 A

Number of pins: 1

Switch position: 1 x Off/On

Functions: latch

: IP54

Min. temperature: -20 °C

Max. temperature: +80 °C

Length: 69 mm

Width: 69 mm

Content: 1 pc(s)

Dim: (L x W x H) 69 x 69 x 74 mm

Manufacturer part #: 1588001

RoHS-compliant: Yes

Height: 74 mm

Type: TC-A23-2

Product type: Car battery switch

Documents & Downloads

Datasheet

English

Datasheet 1588001 TRU COMPONENTS TC-A23-2 Car battery switch 12 V DC, 50 V DC 200 A 1 x Off/On latch IP54 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1588001 TRU COMPONENTS TC-A23-2 Car battery switch 12 V DC, 50 V DC 200 A 1 x Off/On latch IP54 1 pc(s)

Description

Hints

Control button can be removed in the "ACTUATOR OUT"
