TRU COMPONENTS TC-KBPC10/15/2506FP Diode bridge KBPC 600 V 25 A 1-phase
EAN:
Part number:
Item no:
Product type
Diode bridge
Enclosure
KBPC
Configuration (diode)
1-phase
U(RRM)
600 V
Forward current I(F)
25 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 2.51 / piece)
€ 6.71
-63 %
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Diode bridge Diotec KBPC10/15/2506FP 600 V 25 A
Our service for you
Technical specifications
- Type
TC-KBPC10/15/2506FP
- Product type
Diode bridge
- Enclosure
KBPC
- Manufacturer
TRU COMPONENTS
- Manuf. code
TRU
- Configuration (diode)
1-phase
- U(RRM)
600 V
- Forward current I(F)
25 A
- Forward voltage U(F)
1.2 V
- Forward voltage reference
12.5 A
- I(FSM) 50Hz
270 A
- I(FSM) 60Hz
300 A
- Reverse leakage current I(r)
10 µA
- Reverse leakage current I(r) reference
600 V
- Operating temperature (min.)
-50 °C
- Operating temperature (max.)
+150 °C
- Mounting type
Enclosure
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1581965 TRU COMPONENTS TC-KBPC10/15/2506FP Diode bridge KBPC 600 V 25 A 1-phase
User & Safety Instructions
User & Safety Instructions 1581965 TRU COMPONENTS TC-KBPC10/15/2506FP Diode bridge KBPC 600 V 25 A 1-phase
Description

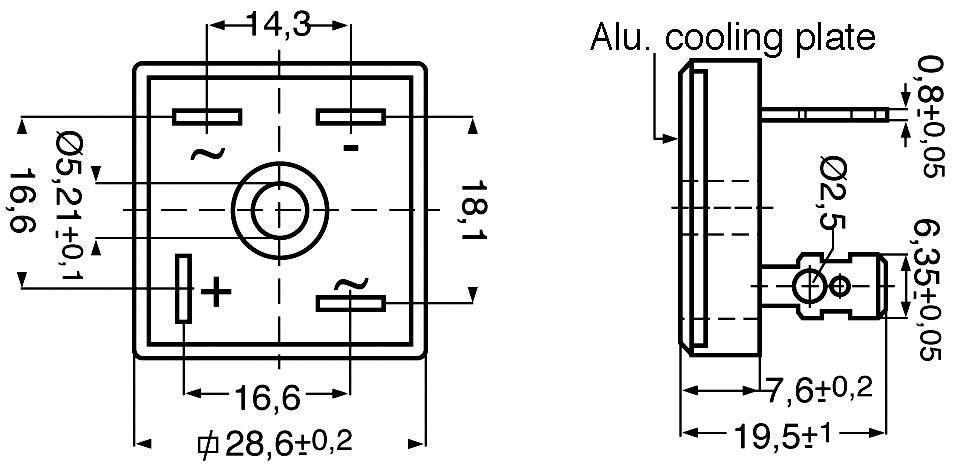

Epoxy housing with aluminium plate.
