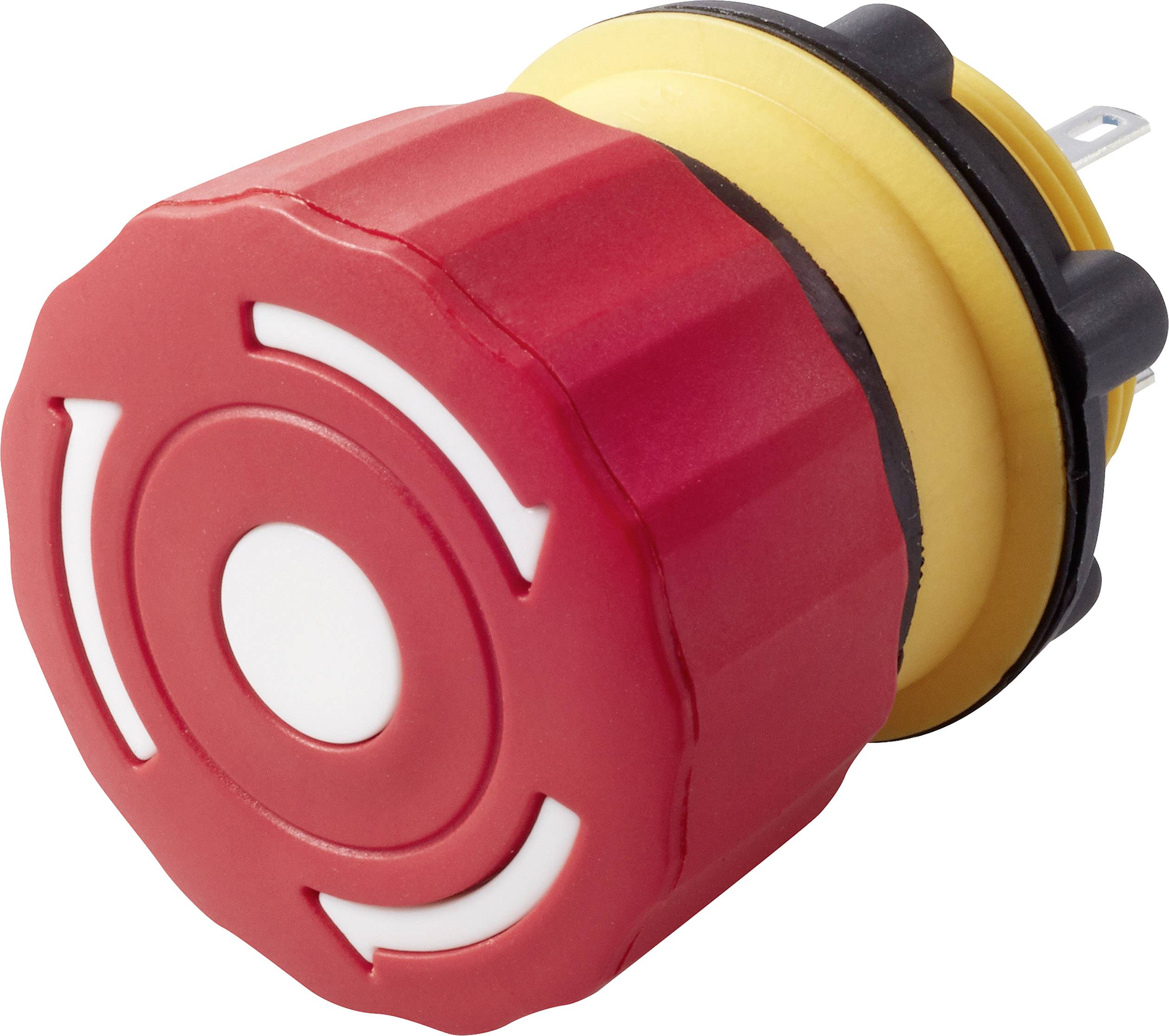

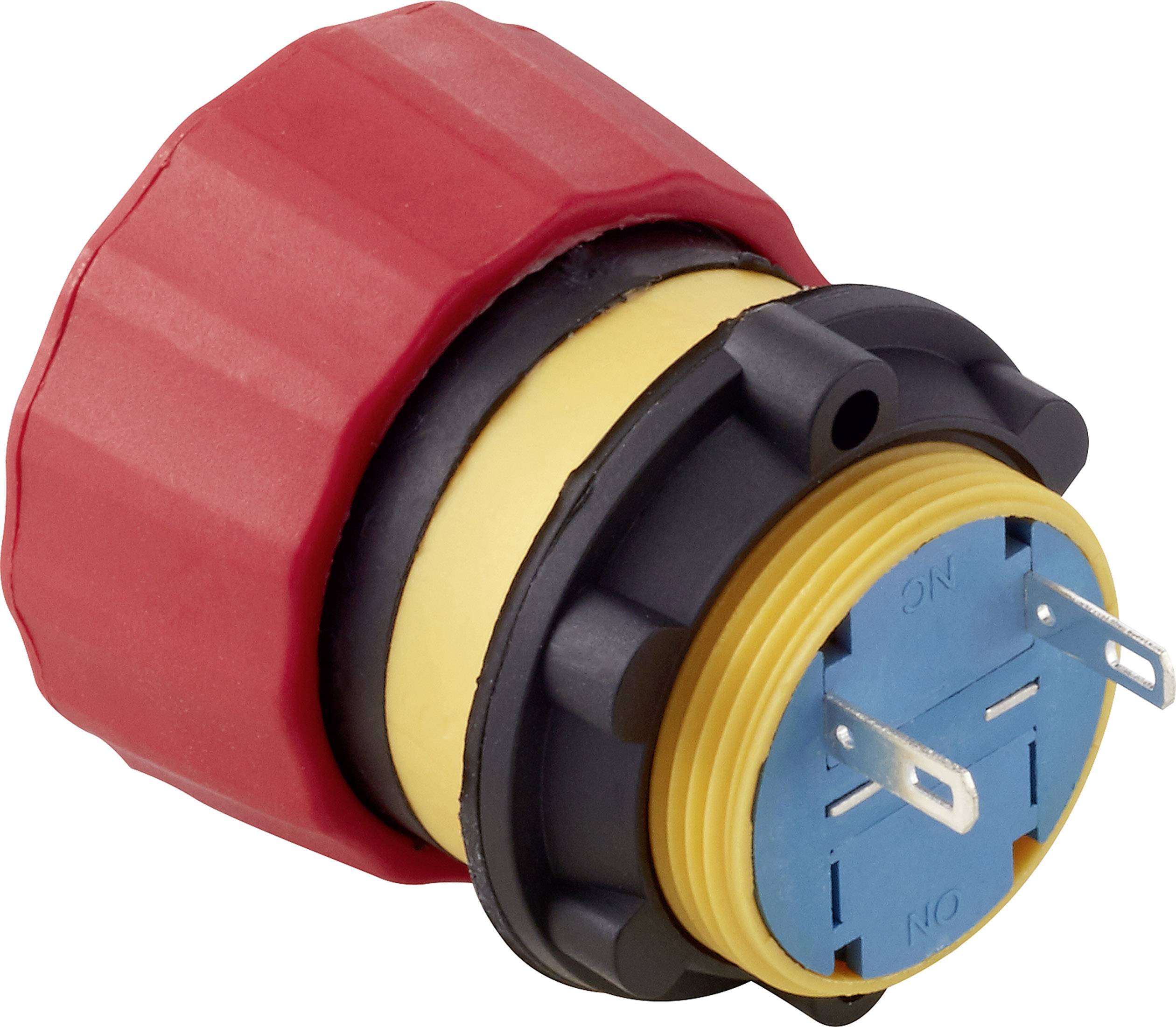

TRU COMPONENTS TC-LAS1-A22Y-01TSB Kill switch 250 V AC 3 A 1 breaker IP65 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.55
3
5% = € 0.74
€ 12.81
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.55 / piece)
€ 13.55
plus VAT.
14-day return policy included
Technical specifications
- Product type
Kill switch
- Unlocking mechanism
Turn
- Print motif
Arrow symbol
- Contact material
Silver alloy
- Contact type
1 breaker
- Factory colour
Red
- Connection
Solder tag
- Recess diameter
22 mm
- Front panel thickness
max. 5 mm
- Functions
latch
- Button Ø
33 mm
- Durability
200000 cycles
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Min. temperature
-25 °C
- Max. temperature
+55 °C
IP65
- Type
TC-LAS1-A22Y-01TSB
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1873612 TRU COMPONENTS TC-LAS1-A22Y-01TSB Kill switch 250 V AC 3 A 1 breaker IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1873612 TRU COMPONENTS TC-LAS1-A22Y-01TSB Kill switch 250 V AC 3 A 1 breaker IP65 1 pc(s)
