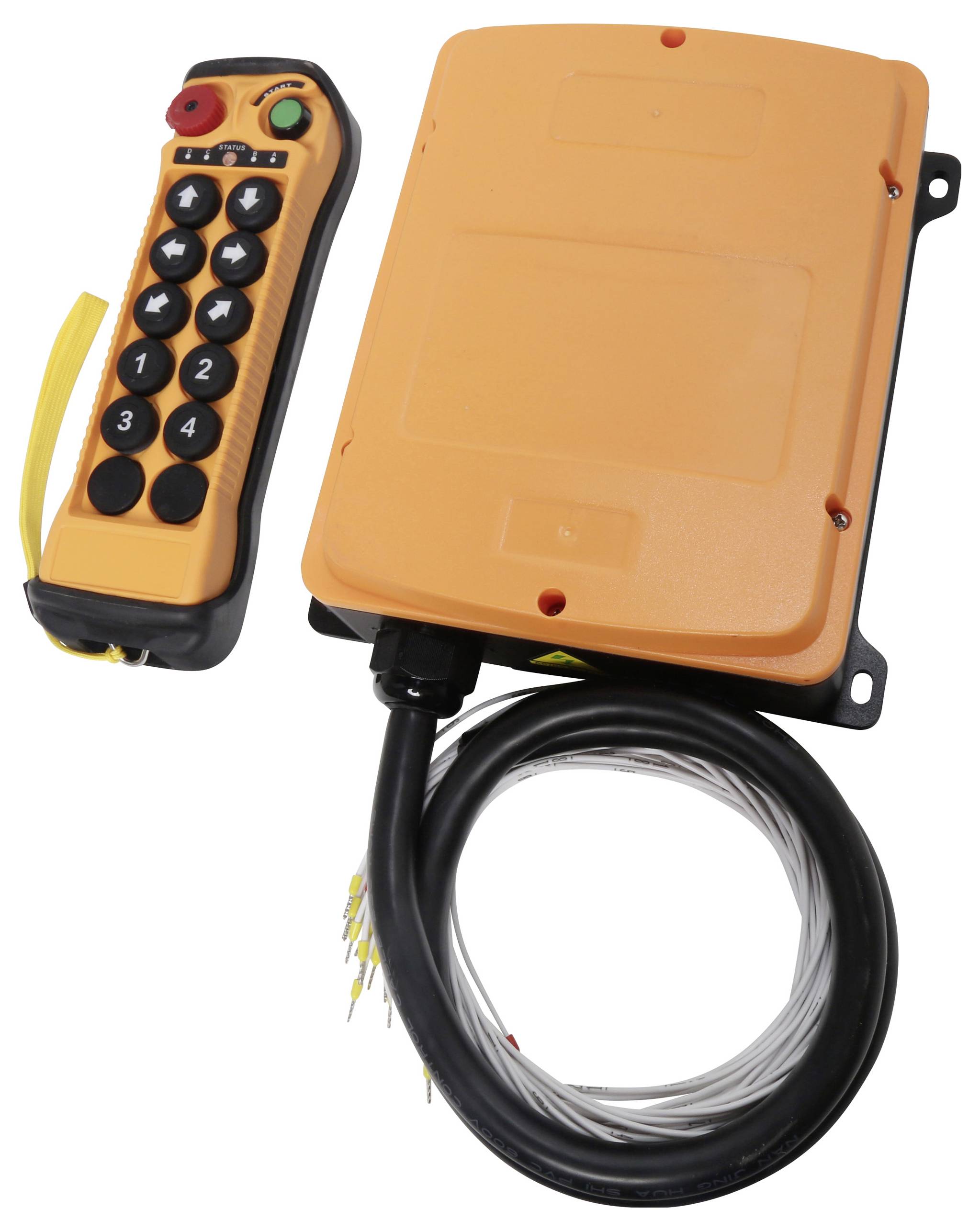

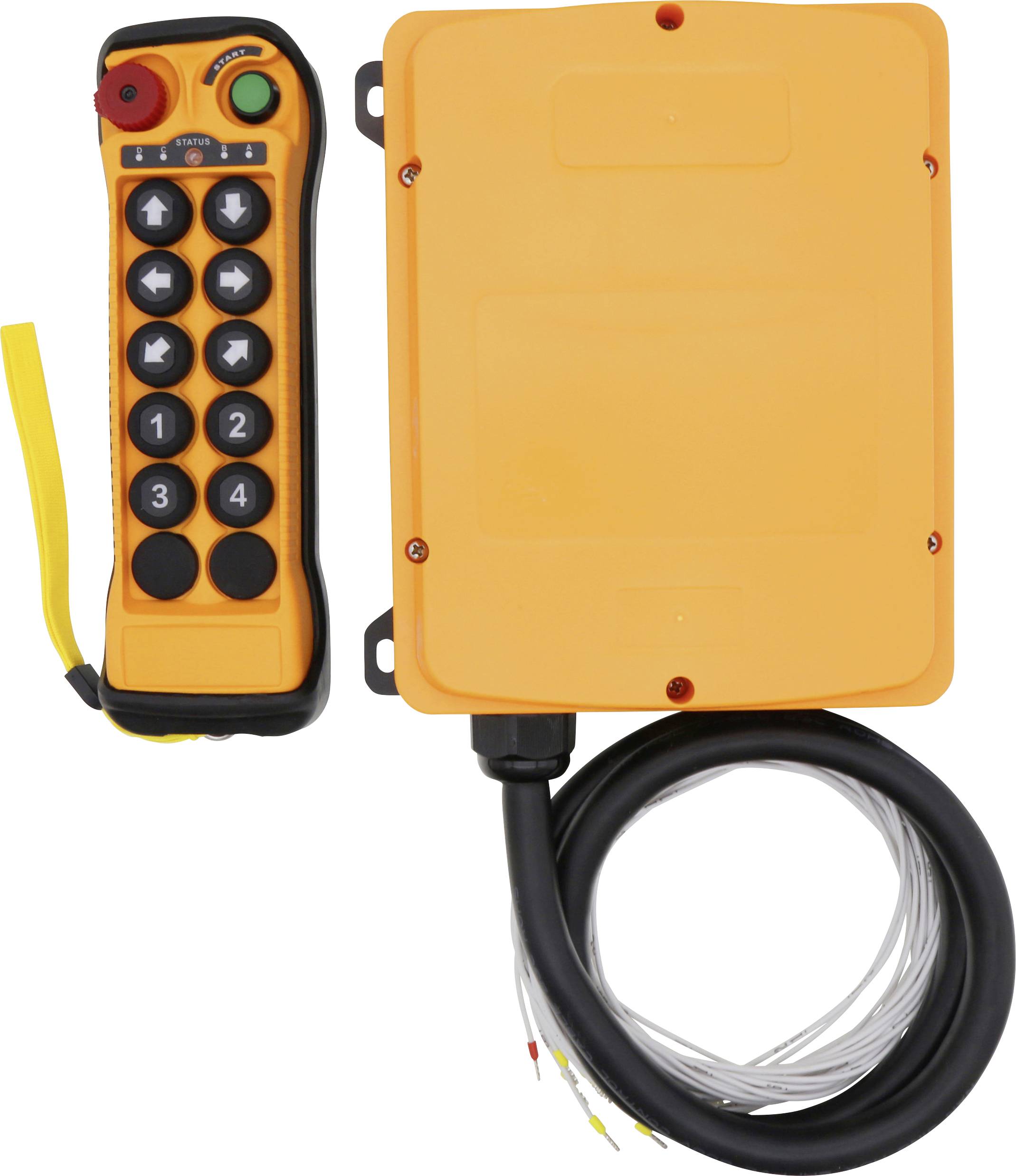

TRU COMPONENTS TC-Q1000 12-24V TC-14232304 Industrial radio control 10-channel, 12-24 V 1 Set
EAN:
Part number:
Item no:
Number
Total (€ 189.07 / piece)
€ 189.07
plus VAT.
14-day return policy included
Highlights & Details
10-channel industrial radio remote control 12-24 V AC/DC
- 10 buttons, 1 speed
- Frequency range: 433.88 - 433.95 MHz
- Range: ≥ 100 meters
- Receiver power supply: AC/DC 12 - 24 V
Technical specifications
- Transmitter parameters:
- Frequency range: 433.88 - 433.95 MHz
- Transmitter RF power: <10 mW
- Remote control range: 100 m
- Power supply: LR6 1.5 V x 2 (DC 3 V)
- Modulation: GFSK
- Frequency control: PLL
- Antenna impedance: 50 Ω
- Command response time: <100 ms
- Stop command response time: <100ms
- Working temperature (regardless of battery temperature): -35 - 75°C
- Weight (with battery): 380 g
- Case material: PA6+30% GF
- Receiver parameters:
- Frequency range: 433.88 - 433.95 MHz
- Receiving sensitivity: -112 dBm
- Remote control range: 100 m
- Power supply AC/DC: 12 - 24 V
- Modulation: GFSK
- Frequency control: PLL
- Antenna impedance: 50 Ω
- Reaction time: 50 - 100 ms
- Power capacity A@AC: 5 A@250 V
- Operating temperature: -35 - 75°C
- Weight: 1420 g
- Case material: PA6+30% GF
- Product type
Industrial radio control 10-channel, 12-24 V
- Type
10-channel 12 - 24 V
- Material
PA 6 GF 30
IP65
- Min. temperature
-35 °C
- Max. temperature
75 °C
- Content
1 Set
- Type
TC-Q1000 12-24V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558076 TRU COMPONENTS TC-Q1000 12-24V TC-14232304 Industrial radio control 10-channel, 12-24 V 1 Set
Description
Features
- Remote control channels can be adjusted
- Receiver has automatic channel search function
- More than 1 million sets of non-repeatable ID codes
- Reinforced fiber plastic case

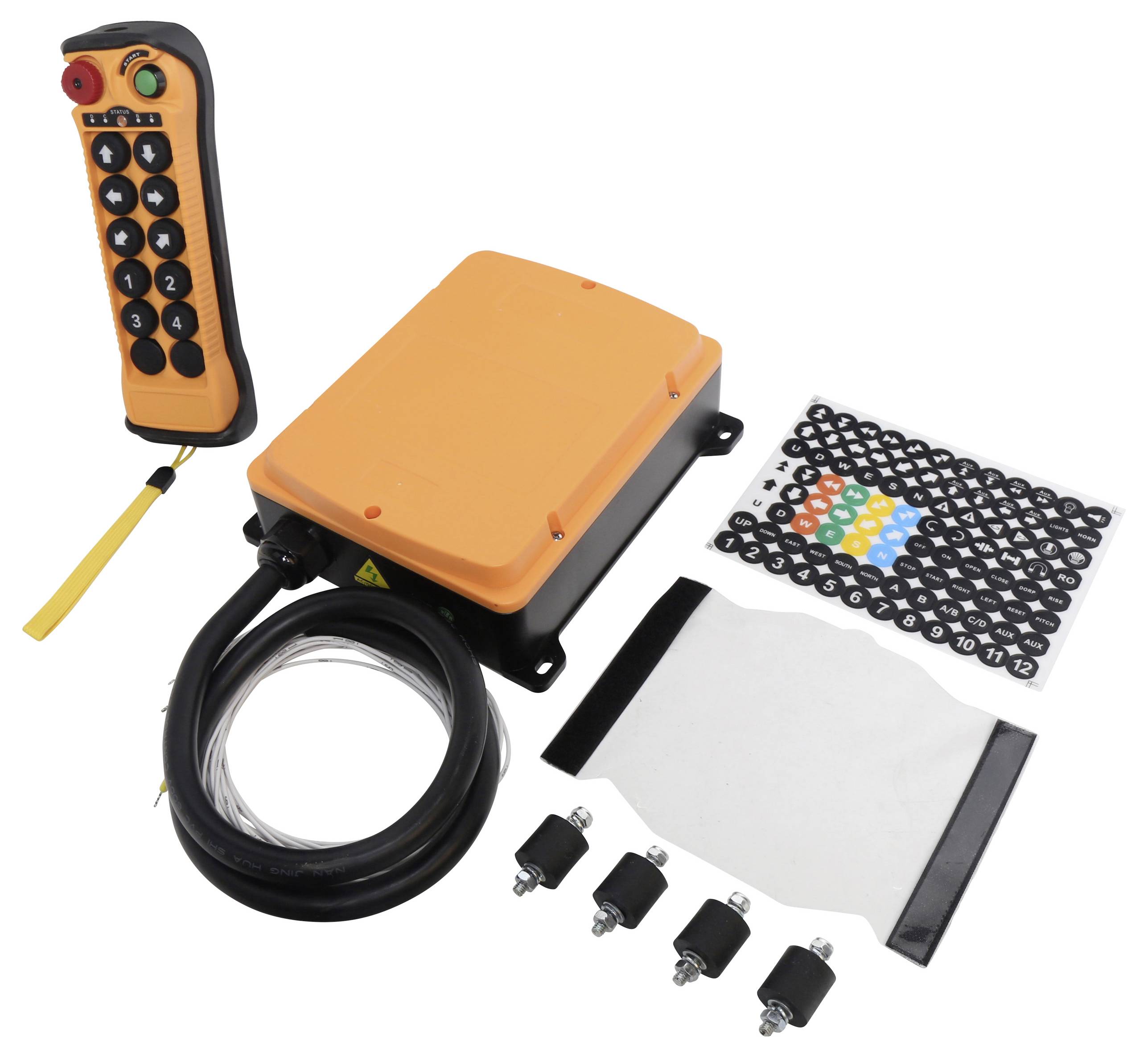

Scope of delivery
- Transmitter
- Receiver
- Dust cover
- Protective soft shell
- 4x screws
- Sticker
- User manual
