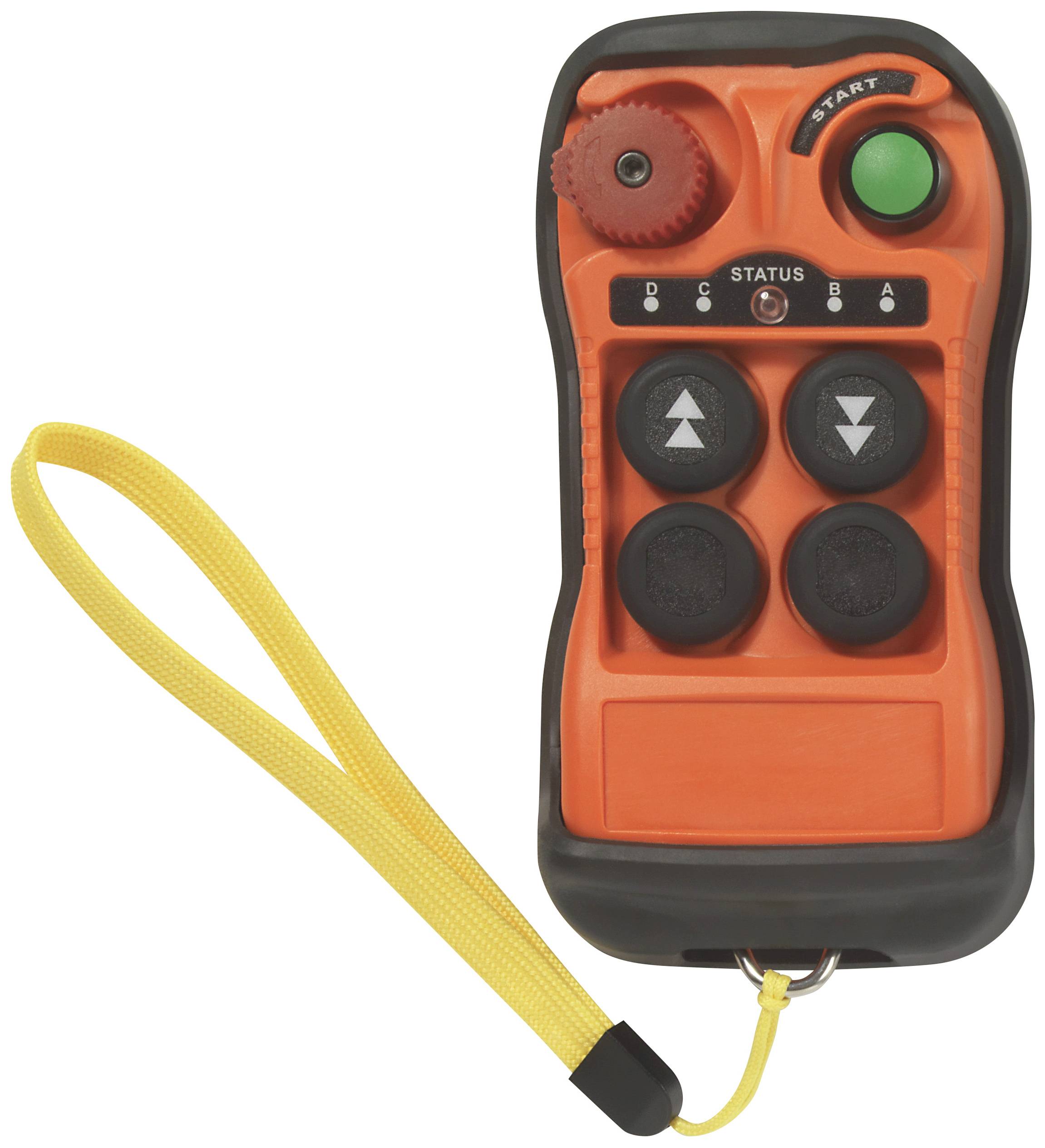

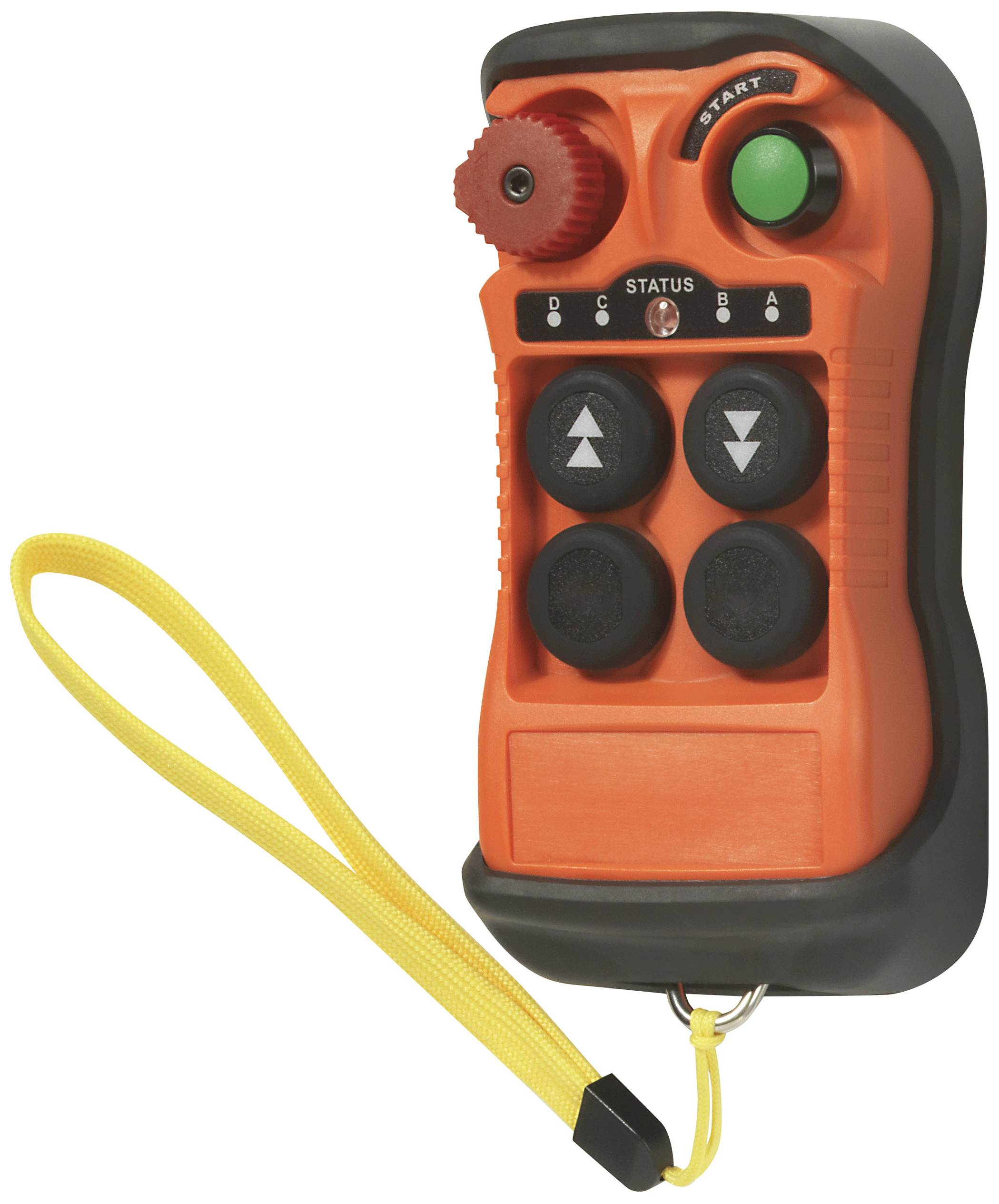

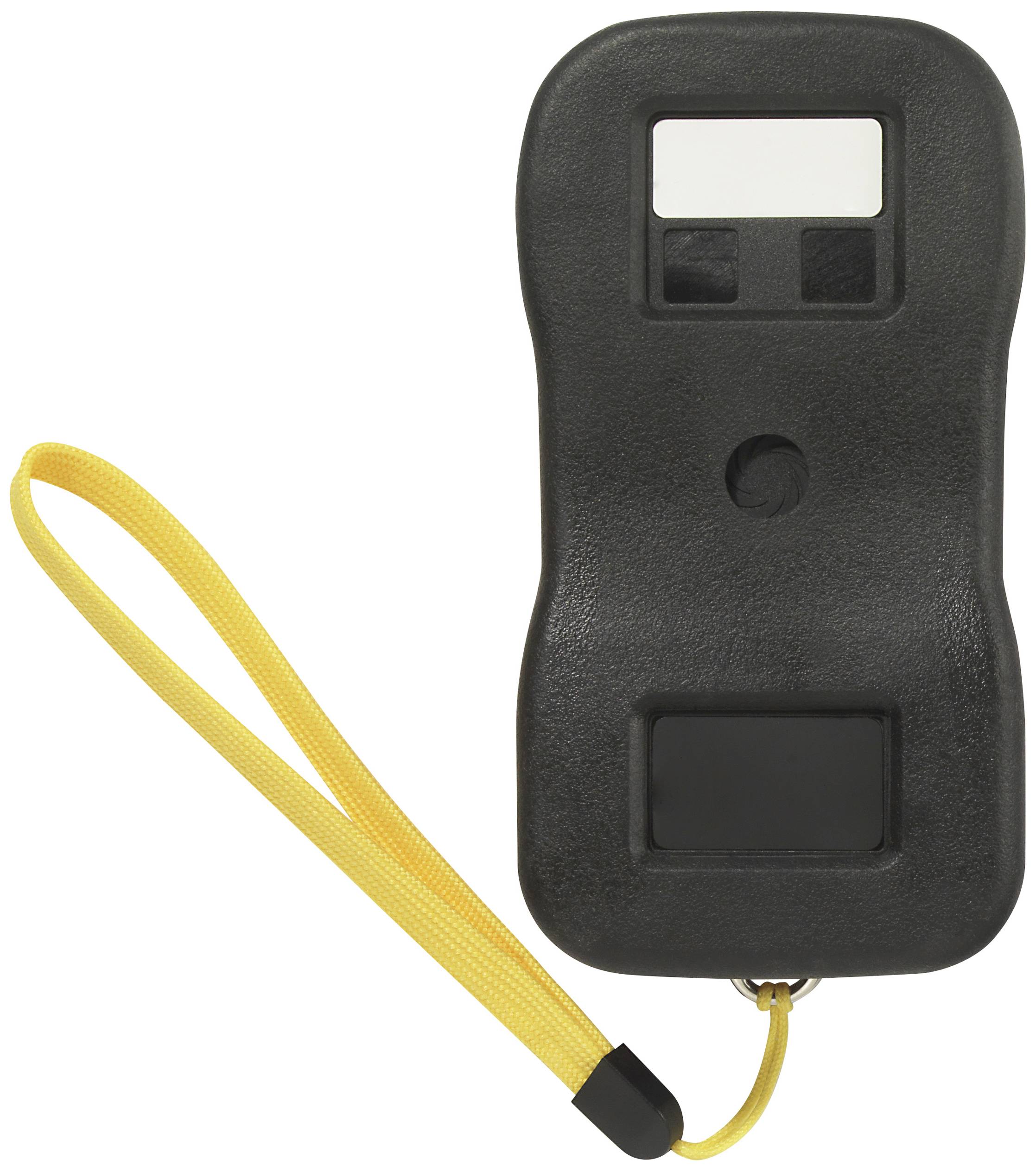

TRU COMPONENTS TC-Q200-T TC-12835200 Industrial radio control, 2-channel, transmitter only 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
2 channel Industrial remote control, Transmitter only
- 2 buttons, 1 speed
- Frequency range: 433.88 - 433.95 MHz
- Range: ≥ 100 meters
Technical specifications
- Transmitter parameters:
- Frequency range: 433.88 - 433.95 MHz
- Transmitter RF power: <10 mW
- Remote control range: 100 m
- Power supply: LR6 1.5 V x 2 (DC 3 V)
- Modulation: GFSK
- Frequency control: PLL
- Antenna impedance: 50 Ω
- Command response time: <100 ms
- Stop command response time: <100ms
- Working temperature (regardless of battery temperature): -35 - 75°C
- Weight (with battery): 220 g
- Case material: PA6+30% GF
- Packaging type
Piece
- Product type
Industrial radio control, 2-channel, transmitter only
- Material
Polyamide 6
- Min. temperature
-35 °C
- Max. temperature
75 °C
- Content
1 pc(s)
- Type
TC-Q200-T
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3208800 TRU COMPONENTS TC-Q200-T TC-12835200 Industrial radio control, 2-channel, transmitter only 1 pc(s)
Description
The 2-channel industrial radio remote control allows the control of motors, vehicles or machines on two different channels. The range is at least 100 m.
This text is machine translated.
This text is machine translated.
Features
- Remote control channels can be adjusted
- More than 1 million sets of non-repeatable ID codes
- Reinforced fiber plastic case

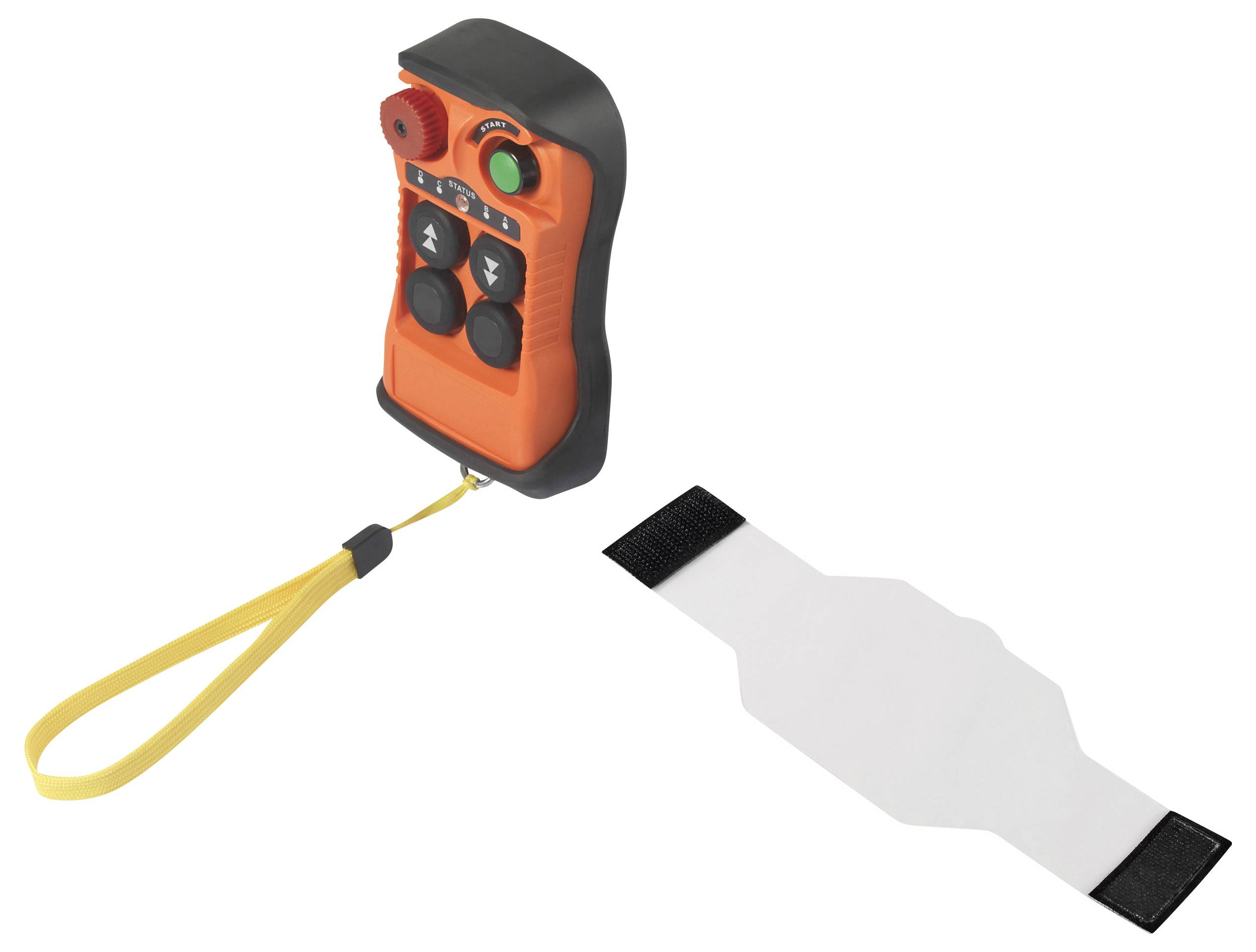

Scope of delivery
- Transmitter
- Dust cover
- Protective soft shell
- User manual
