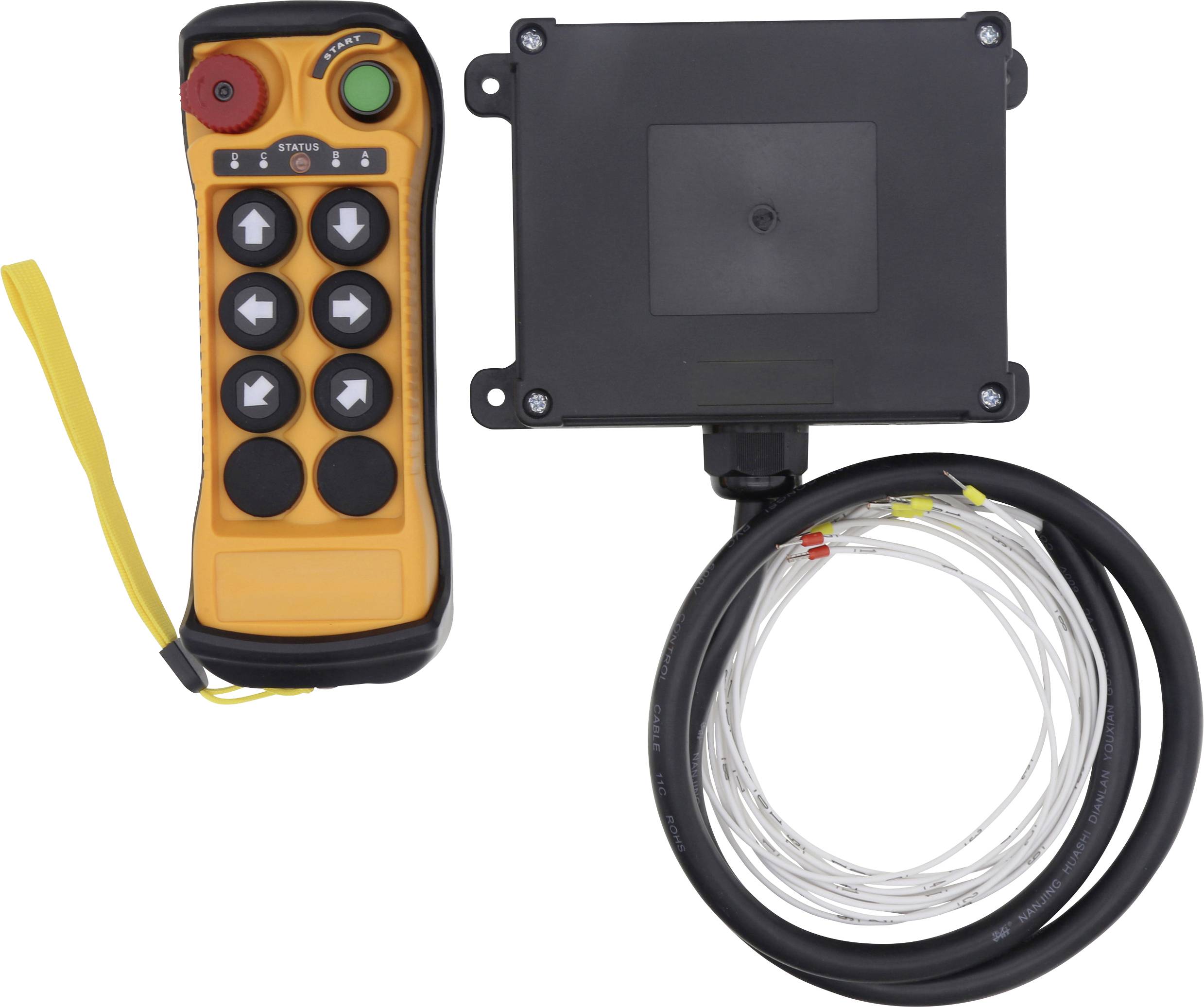

'Orange industrial remote control with directional buttons and status lights next to a black receiver box with cables attached.'

'Orange industrial remote control with directional buttons and status lights next to a black receiver box with cables attached.'

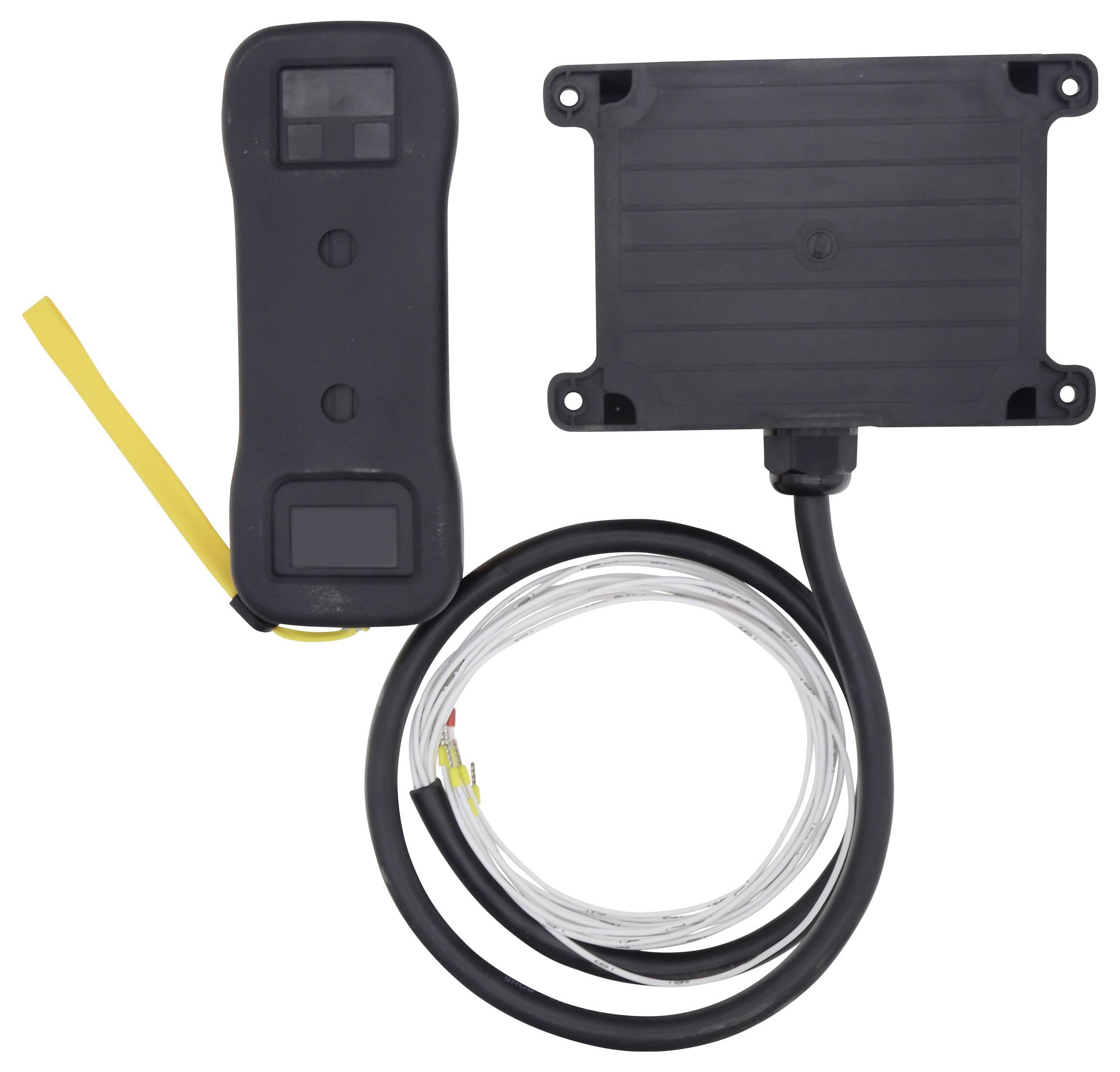

A black rectangular electronic module with a button cable and a coiled wire connected to a black box, likely part of a device or machine.

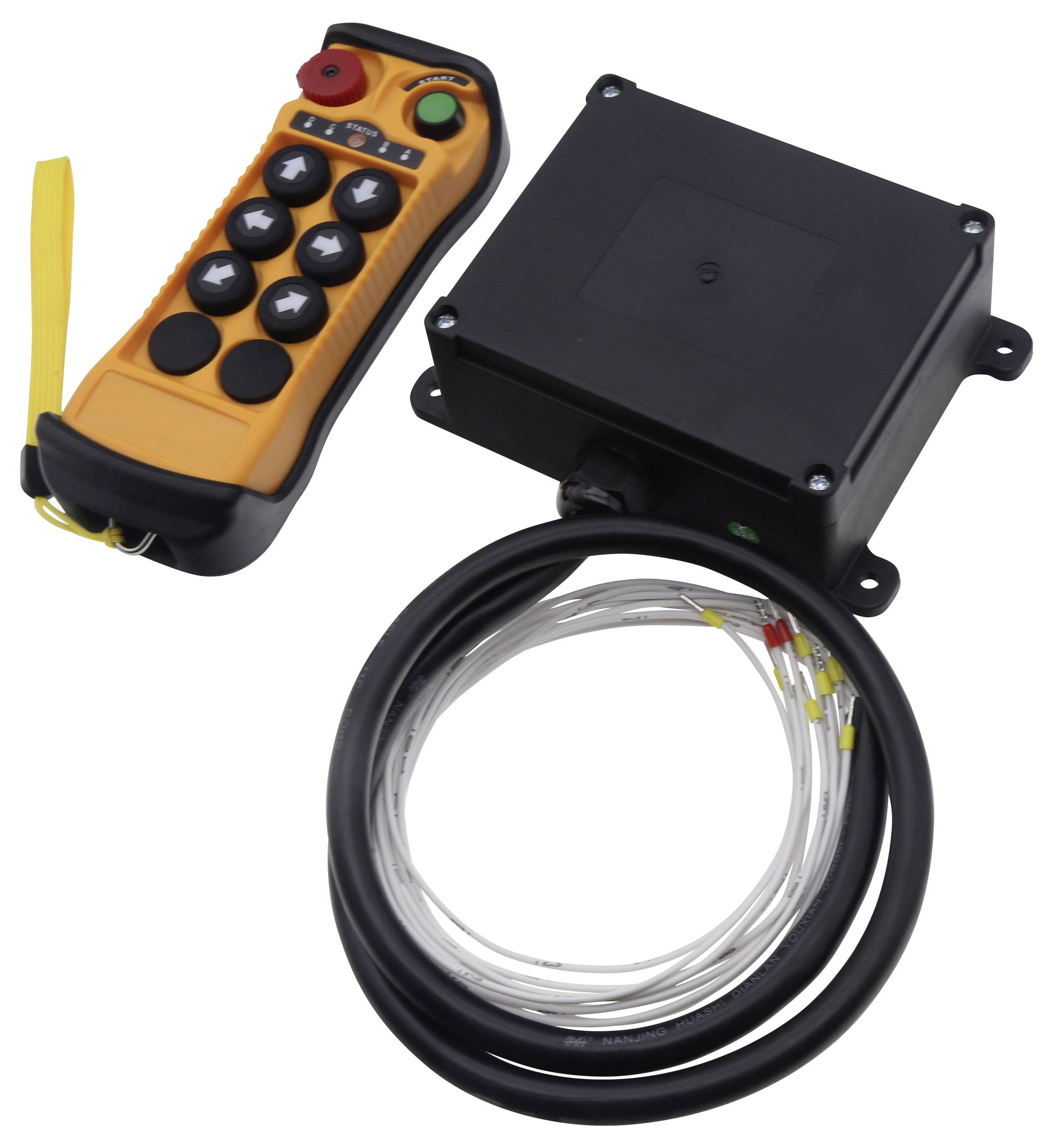

TRU COMPONENTS TC-Q600 36-480V TC-14232272 Industrial radio remote control, 6-channel, 36-480 V 1 Set-2

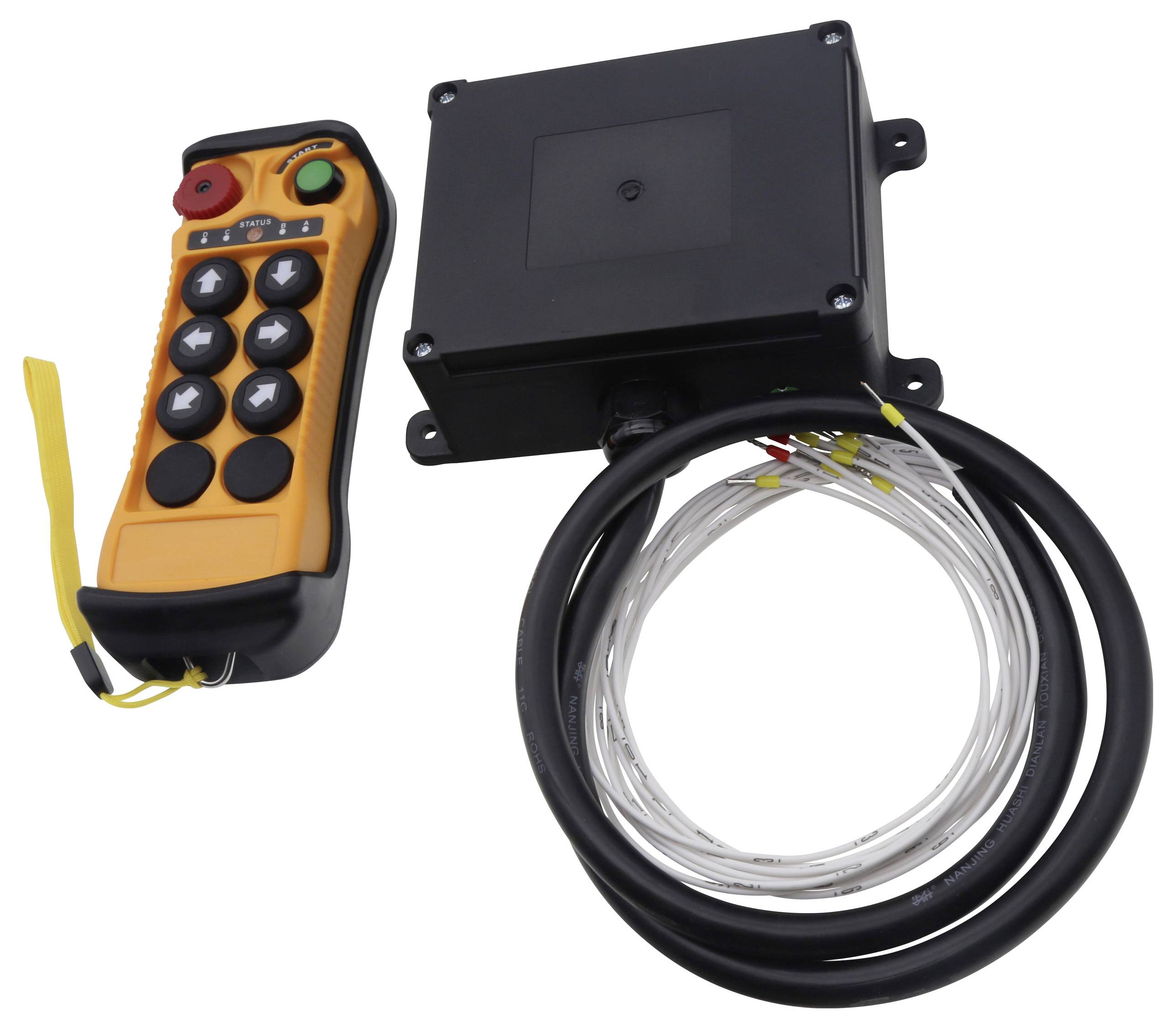

An orange handheld remote with multiple buttons is next to a black control box with attached cables.

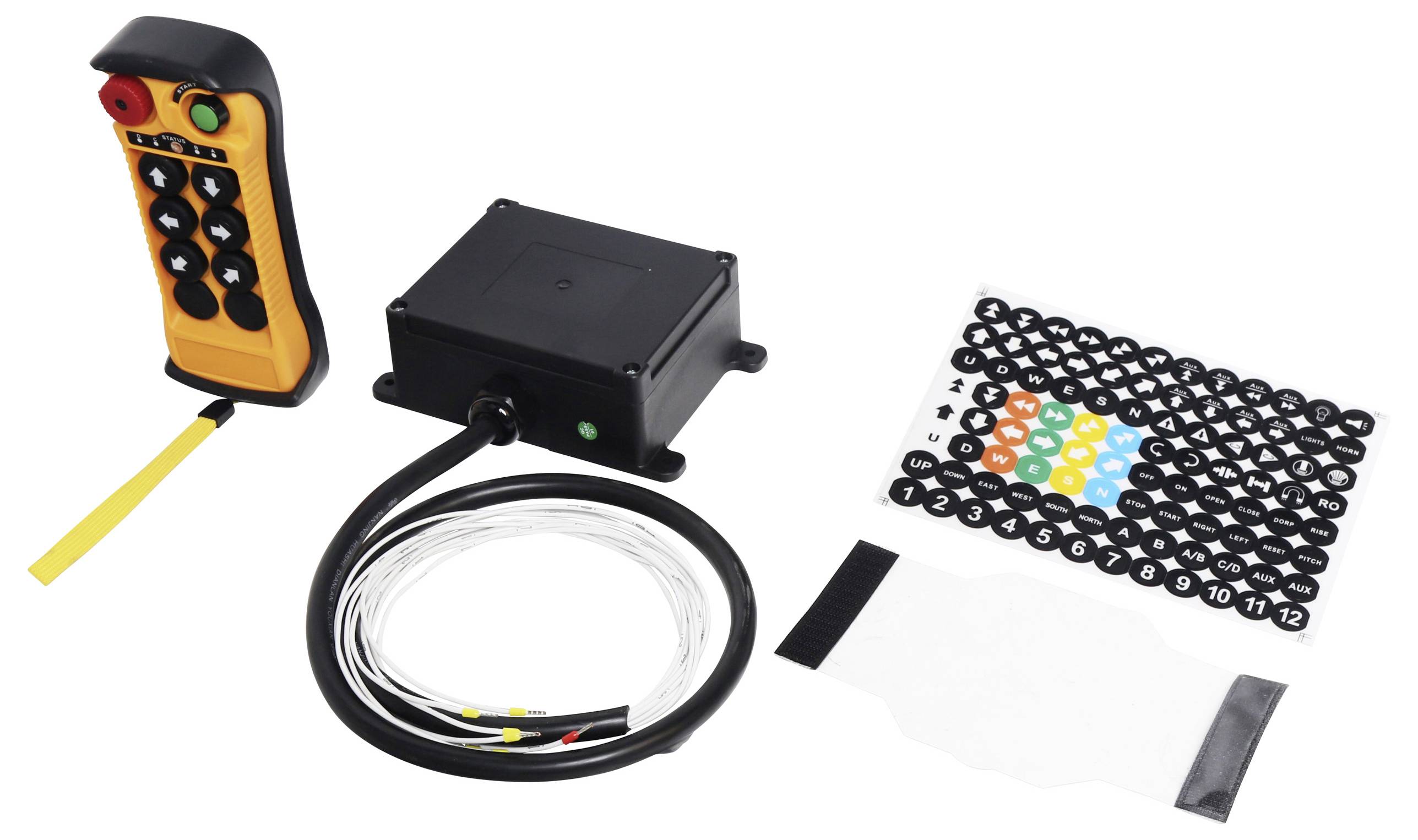

Remote control system with a handheld device featuring buttons, a connecting unit, and various numbered label stickers for customization.

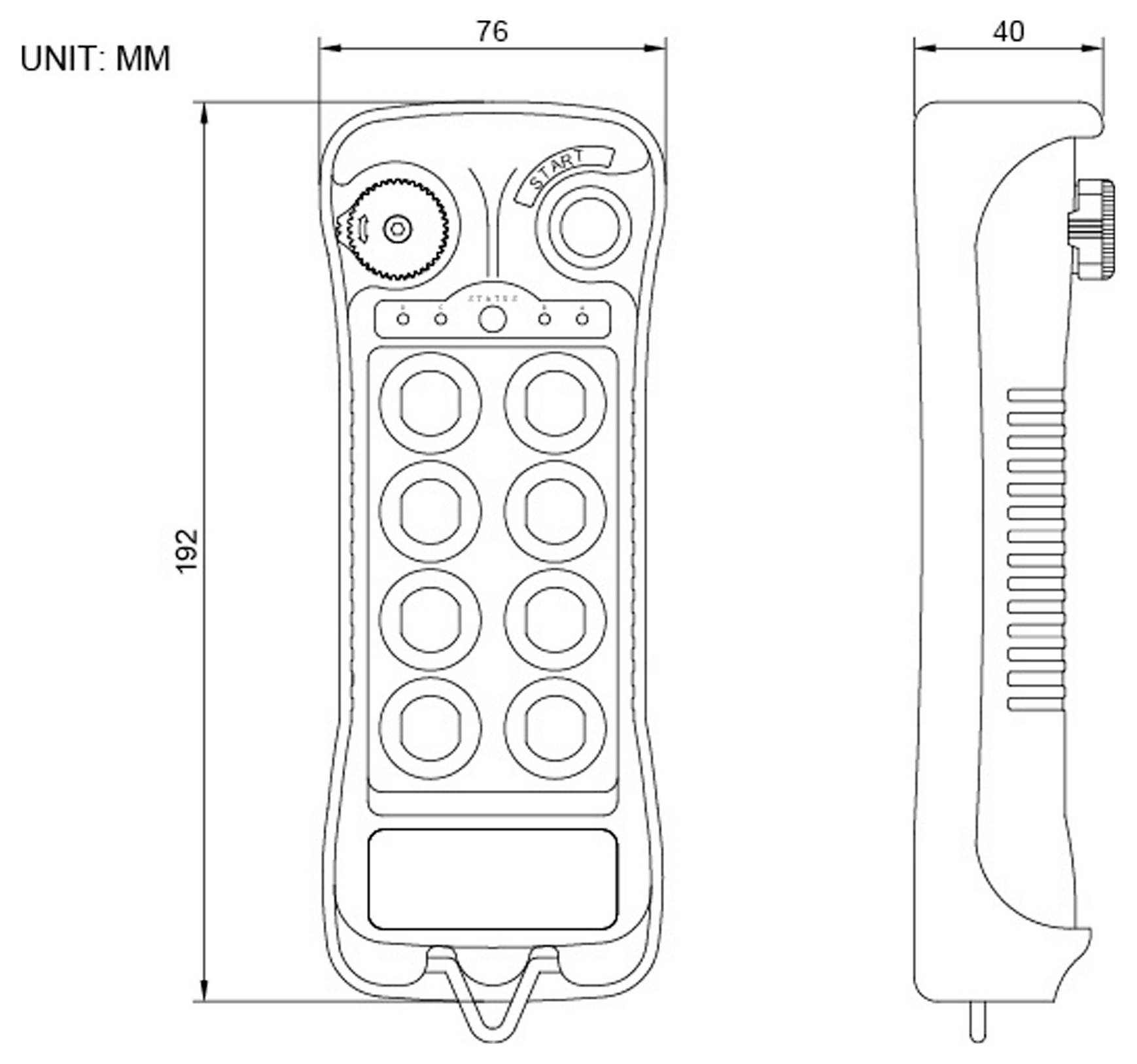

'Technical drawing of a handheld device, dimensions: 192mm x 76mm x 40mm, featuring nine buttons and a rotary control knob.'

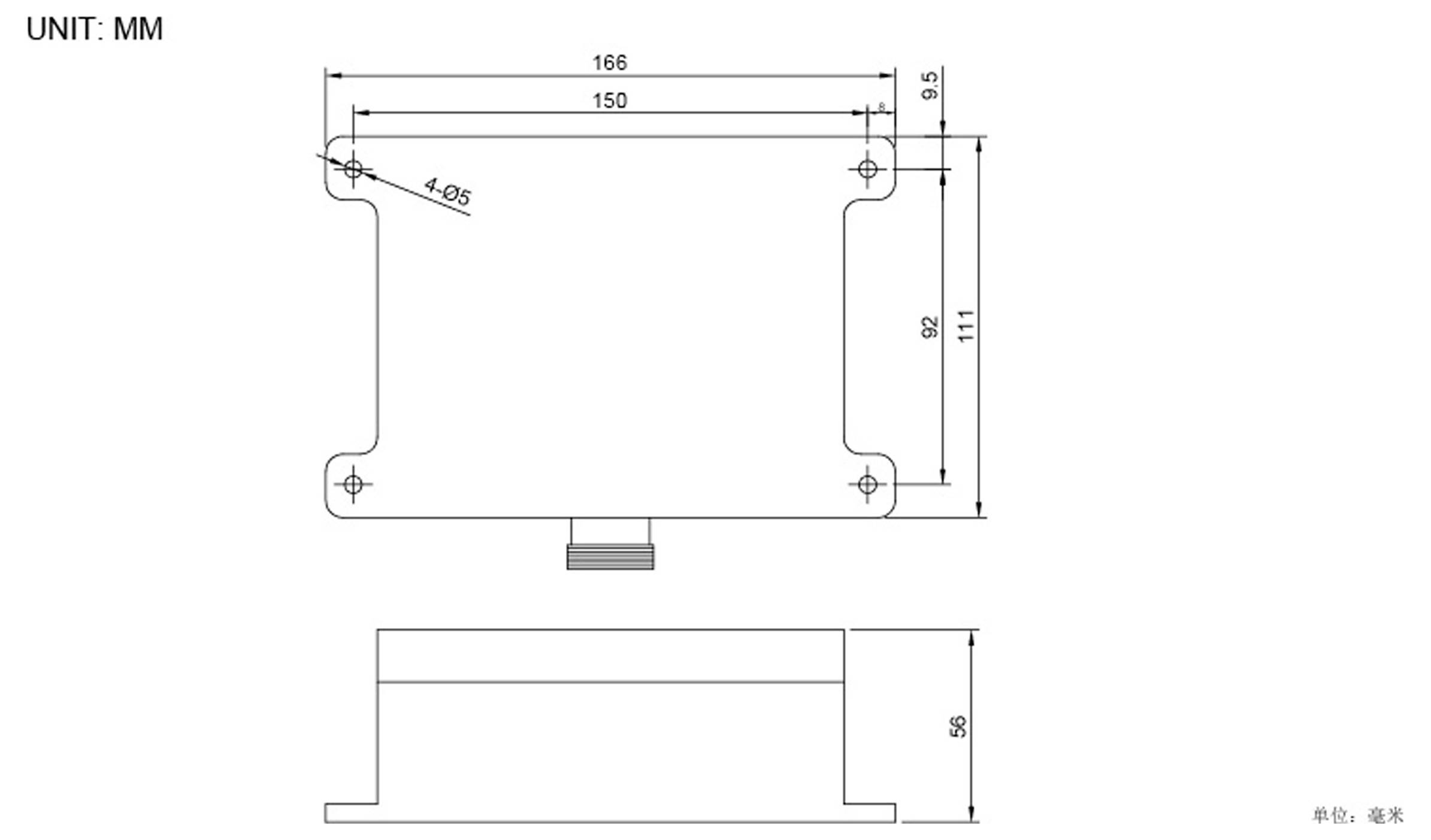

'A technical drawing with dimensions in millimeters. It shows a metal bracket with holes and specified measurements of width, height, and depth.'

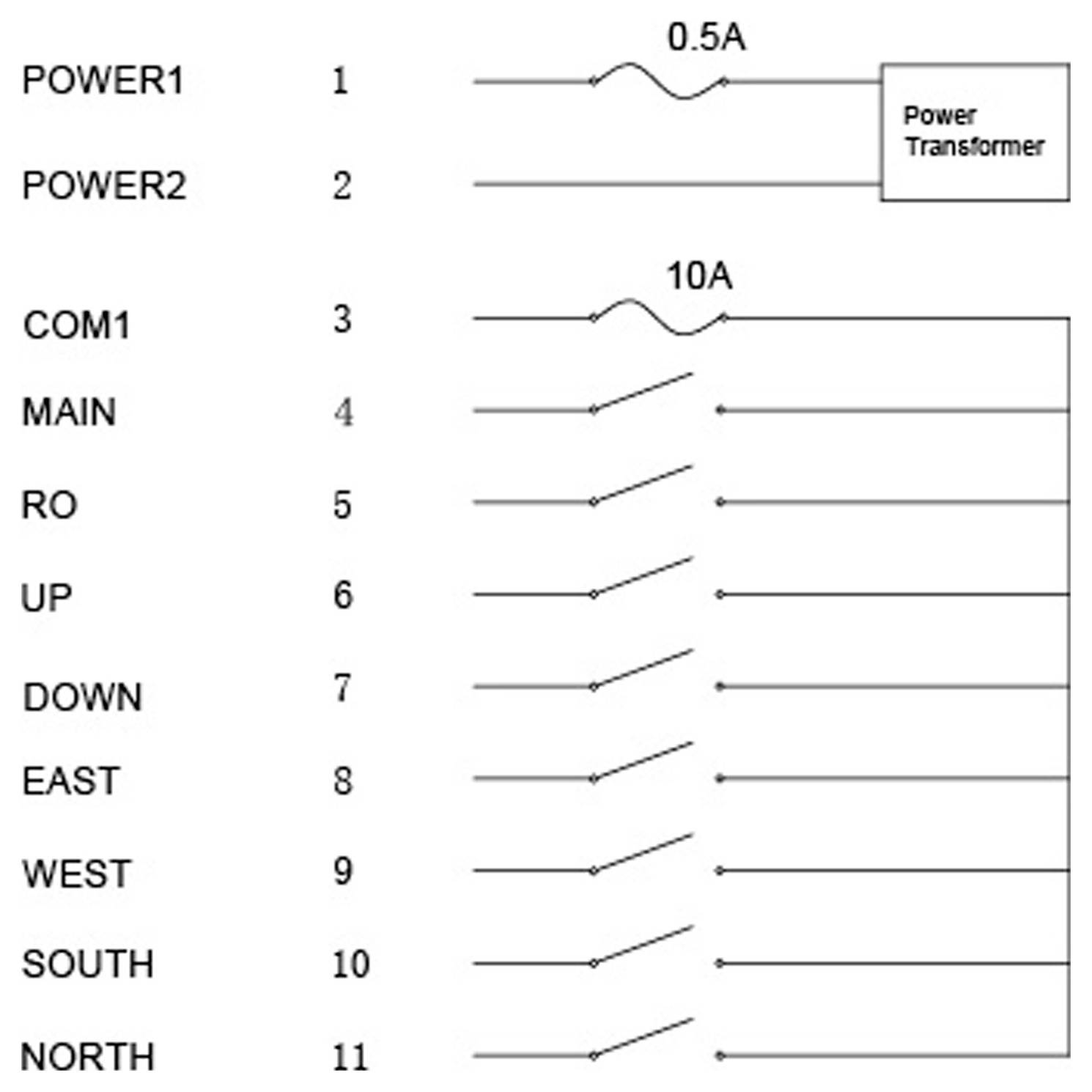

Electrical schematic diagram showing a power transformer rated at 0.5A, with lines connecting power sources (POWER1, POWER2) and switches (COM1 to NORTH), labeled with respective numbers 1 to 11 and current 10A.

1/8

TRU COMPONENTS

Fast track dispatch on Tue, 6 Oct

37 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

6-channel industrial radio remote control 36-480 V AC/DC

6 buttons, 1 speed
Frequency range: 433.88 - 433.95 MHz
Range: ≥ 100 meters
Receiver power supply: AC/DC 36 - 480 V

Technical specifications

Transmitter parameters:
Frequency range: 433.88 - 433.95 MHz
Transmitter RF power: <10 mW
Remote control range: 100 m
Power supply: LR6 1.5 V x 2 (DC 3 V)
Modulation: GFSK
Frequency control: PLL
Antenna impedance: 50 Ω
Command response time: <100 ms
Stop command response time: <100ms
Working temperature (regardless of battery temperature): -35 - 75°C
Weight (with battery): 300 g
Case material: PA6+30% GF
Receiver parameters:
Frequency range: 433.88 - 433.95 MHz
Receiving sensitivity: -112 dBm
Remote control range: 100 m
Power supply AC/DC: 36 - 480 V
Modulation: GFSK
Frequency control: PLL
Antenna impedance: 50 Ω
Reaction time: 50 - 100 ms
Power capacity A@AC: 5 A@250 V
Operating temperature: -35 - 75°C
Weight: 570 g
Case material: PA6+30% GF

Product type: Industrial radio remote control, 6-channel, 36-480 V

Type: 6-channel 36 - 480 V

Material: Plastic (fibreglass reinforced)

: IP65

Min. temperature: -35 °C

Max. temperature: 75 °C

Content: 1 Set

Type: TC-Q600 36-480V

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3558068 TRU COMPONENTS TC-Q600 36-480V TC-14232272 Industrial radio remote control, 6-channel, 36-480 V 1 Set

Description

Features

Remote control channels can be adjusted
Receiver has automatic channel search function
More than 1 million sets of non-repeatable ID codes
Reinforced fiber plastic case

Scope of delivery

Transmitter
Receiver
Dust cover
Protective soft shell
4x screws
Sticker
User manual
