TRU COMPONENTS TC-SFFC200A-230A-FC Fan and filter 230 V AC 16 W (W x H x D) 200 x 200 x 45 mm 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fan and filter
Operating voltage
230 V AC
Power
16 W
Noise emission (max.)
48 dB
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 16.80
3
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Highlights & Details

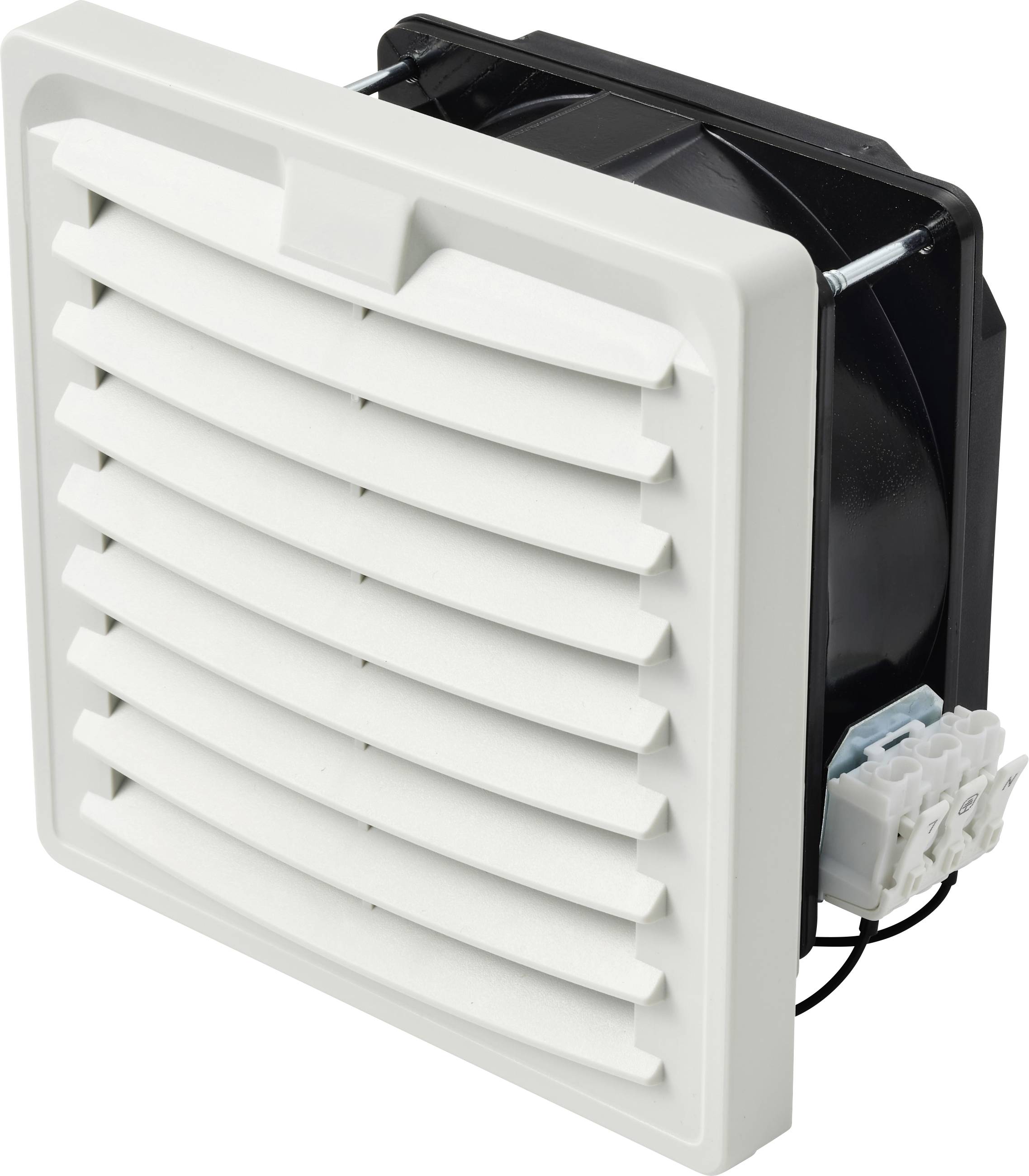

Control cabinet fan 200x200mm, ball bearing, 230V, 162m³/h
- Slide guard for filter mat replacement
- Operating voltage: 230 V/AC
- Dimensions: (W x H x D) 200 x 200 x 45 mm
Our service for you
Technical specifications
- Enclosure cut-out: 177 x 177 mm
- Connection: 3-pole clamp for 2.5 mm², clamping torque 0.8Nm max
- Fan size: 120 x 120 x 38 mm
- Axial fan, ball bearing
- Protection class: I (earthed)
- Packaging type
Piece
- Product type
Fan and filter
- Type
TC-SFFC200A-230A-FC
- Features
incl. filter
- Operating voltage
230 V AC
- Max. current consumption
0.12 A
16 W
- Noise emission (max.)
48 dB
- Air flow rate
162 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Connection
Clamp
- Width
200 mm
- Height
200 mm
- Depth
45 mm
- Dim
(W x H x D) 200 x 200 x 45 mm
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3594060 TRU COMPONENTS TC-SFFC200A-230A-FC Fan and filter 230 V AC 16 W (W x H x D) 200 x 200 x 45 mm 1 pc(s)
