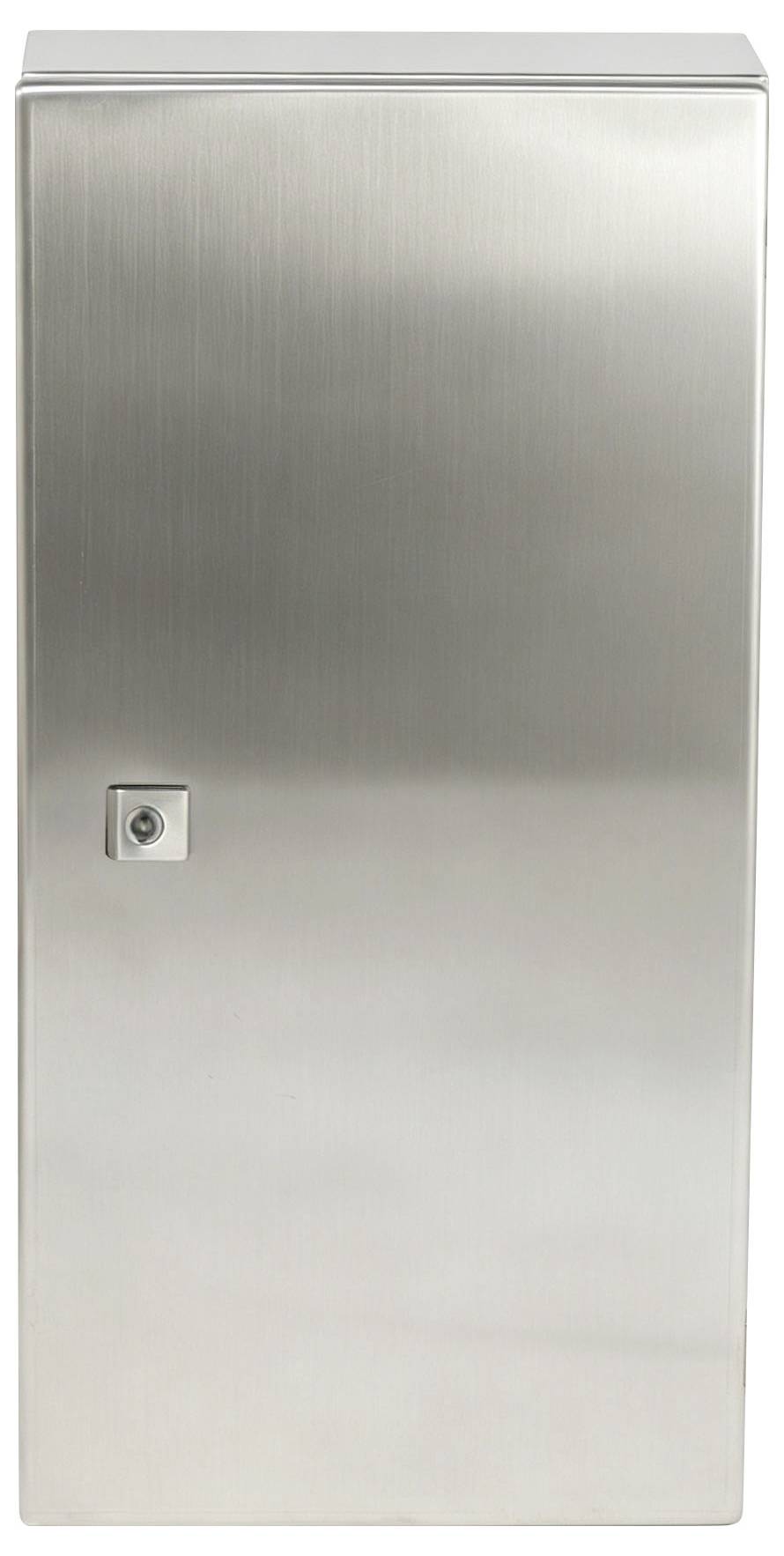

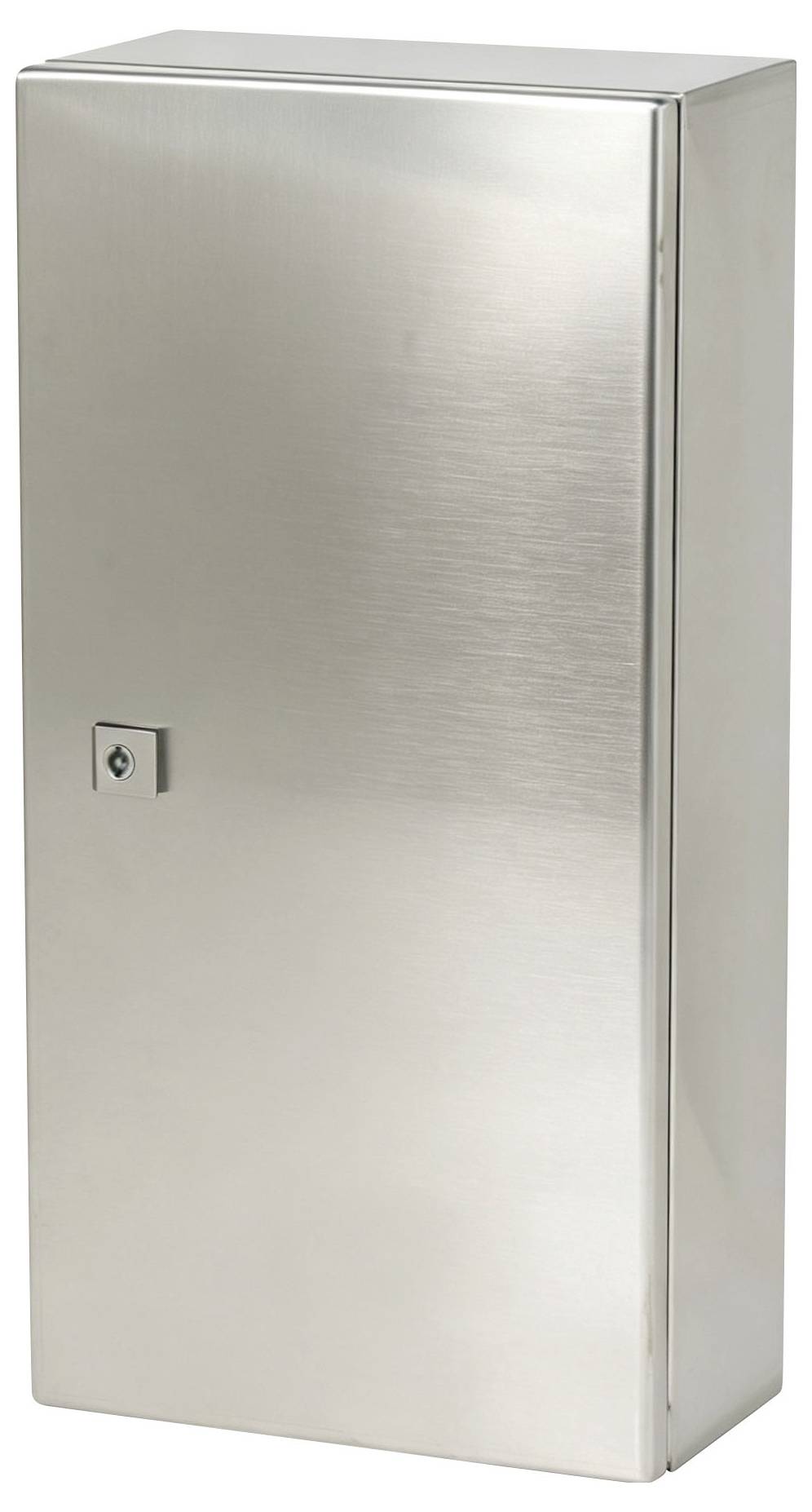

TRU COMPONENTS TC-SS306015 Switchboard cabinet 300 x 600 x 155 Stainless steel Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Material
Stainless steel
IP rating
IP65
Width
300 mm
Height
600 mm
Datasheet (PDF)
Number
Total (€ 126.04 / piece)
€ 126.04
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS TC-SS306015 Stainless Steel Control Cabinet WxHxD 300x600x155 mm IP65
- Made of durable stainless steel sheet (housing 1.2 mm, door 1.5 mm)
- IP65-certified protection against dust and water splashes by circulating foamed PU-sealing
- Equipped with a lockable door, an integrated 2 mm mounting plate and including wall mounting material
Our service for you
Technical specifications
- Housing: Stainless steel sheet
- Door: Stainless steel sheet, all-round foamed PU seal
- Material thickness: Housing: 1.2 mm
- Door: 1.5 mm
- Mounting plate: 2 mm
- Product type
Switchboard cabinet
- Material
Stainless steel
IP65
- Factory colour
Light grey
- Width
300 mm
- Height
600 mm
- Content
1 pc(s)
- Type
TC-SS306015
- Dim
(W x H x D) 300 x 600 x 155 mm
- Manufacturer part #
TC-15066448
- Depth
155 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3766612 TRU COMPONENTS TC-SS306015 Switchboard cabinet 300 x 600 x 155 Stainless steel Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3766612 TRU COMPONENTS TC-SS306015 Switchboard cabinet 300 x 600 x 155 Stainless steel Light grey 1 pc(s)
Description
"The TRU COMPONENTS stainless steel electrical cabinets offer a structured solution for the protected installation of electronic and electrical components. The model series is available in different dimensions and is designed for the professional use in industry and trade.
Robust stainless steel construction
Both the housing and the door are made of stainless steel sheet in the manufacturer's color light gray. With a material thickness of 1.2 mm for the housing and 1.5 mm for the door, the cabinet offers solid mechanical stability for the everyday work.
Protection class IP65
The control cabinets are classified according to protection class IP65. A PU seal is foamed around the door to protect the inner components from dust and jet water penetration, while WAS supports the application in more demanding working environments.

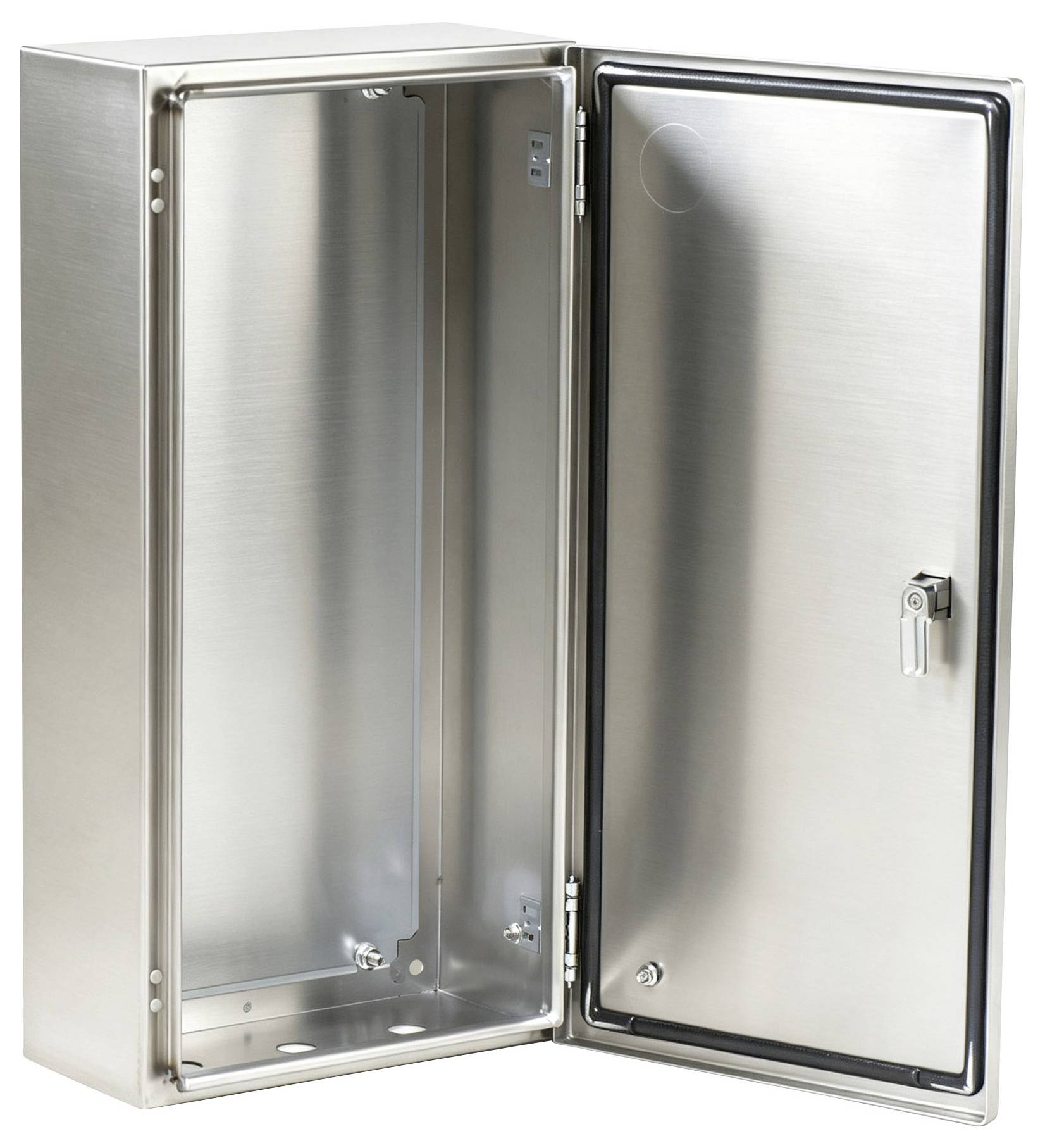

Integrated mounting plate

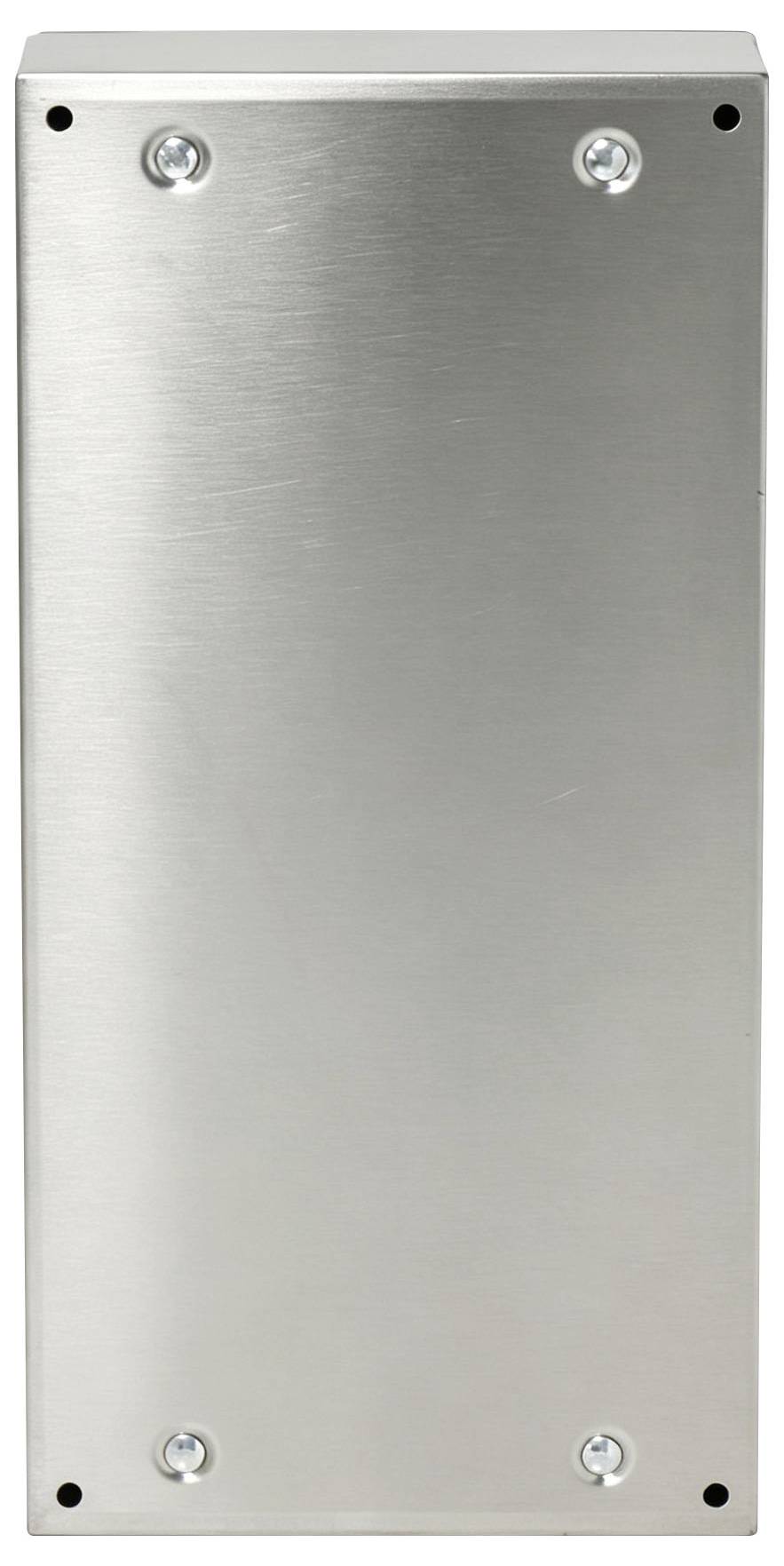

A 2 mm thick mounting plate is installed in the cabinet to professionally install the required electronics. The delivery also includes four mounting brackets including the suitable screws, in order to enable an easy wall mounting.
Lockable door
In order to protect the installed technology from unauthorized access, the control cabinet can be locked. Two suitable keys are included in the delivery."
This text is machine translated.
Robust stainless steel construction
Both the housing and the door are made of stainless steel sheet in the manufacturer's color light gray. With a material thickness of 1.2 mm for the housing and 1.5 mm for the door, the cabinet offers solid mechanical stability for the everyday work.
Protection class IP65
The control cabinets are classified according to protection class IP65. A PU seal is foamed around the door to protect the inner components from dust and jet water penetration, while WAS supports the application in more demanding working environments.
Integrated mounting plate
A 2 mm thick mounting plate is installed in the cabinet to professionally install the required electronics. The delivery also includes four mounting brackets including the suitable screws, in order to enable an easy wall mounting.
Lockable door
In order to protect the installed technology from unauthorized access, the control cabinet can be locked. Two suitable keys are included in the delivery."
This text is machine translated.
Scope of delivery
- Main unit
- 2x Keys
- 4x Mounting bracket and screws
