Buy TRU COMPONENTS TCD45PKP25DBSK 7709272 D-SUB receptacle set 45 ° Number of pins: 25 Solder bucket 1 pc(s)

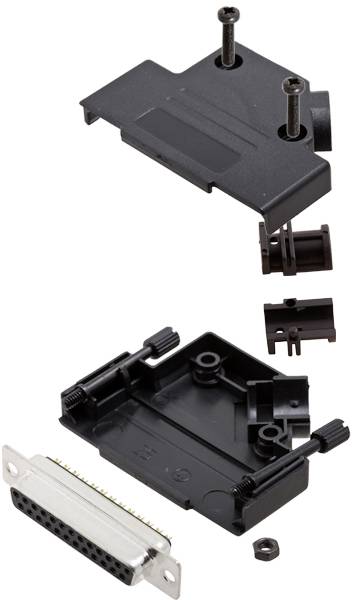

An open socket housing with a D-Sub plug, two screws and plastic components, for mounting cable connections.

Image similar

Product type

D-SUB receptacle set

Connector type

Power strip, straight

Number of pins

Connection

Solder bucket

No. of rows

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

8 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2.34 / piece)

€ 2.34

plus VAT.

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

D-SUB receptacle set
No. of rows: 2
Number of pins: 25

Technical specifications

Product type: D-SUB receptacle set

Connector type: Power strip, straight

Number of pins: 25

Connection: Solder bucket

Connection angle: 45°

No. of rows: 2

Content: 1 pc(s)

Mating cycles: 100

Manufacturer part #: 7709272

Factory colour: Black

Contact type: Punched contacts

Contact material: Copper alloy

Contact surface: Gold plated

Material (details): Plastic

Features: + cable sleeve
+ plastic enclosure
+ knurled head screw lock
Cable exit (lateral)

Temperature range: -55 °C to 105 °C

Type: TCD45PKP25DBSK
