White thermostat with a red adjustment knob, displaying temperature values from 0 to 60 degrees Celsius.

White thermostat with a red adjustment knob, displaying temperature values from 0 to 60 degrees Celsius.

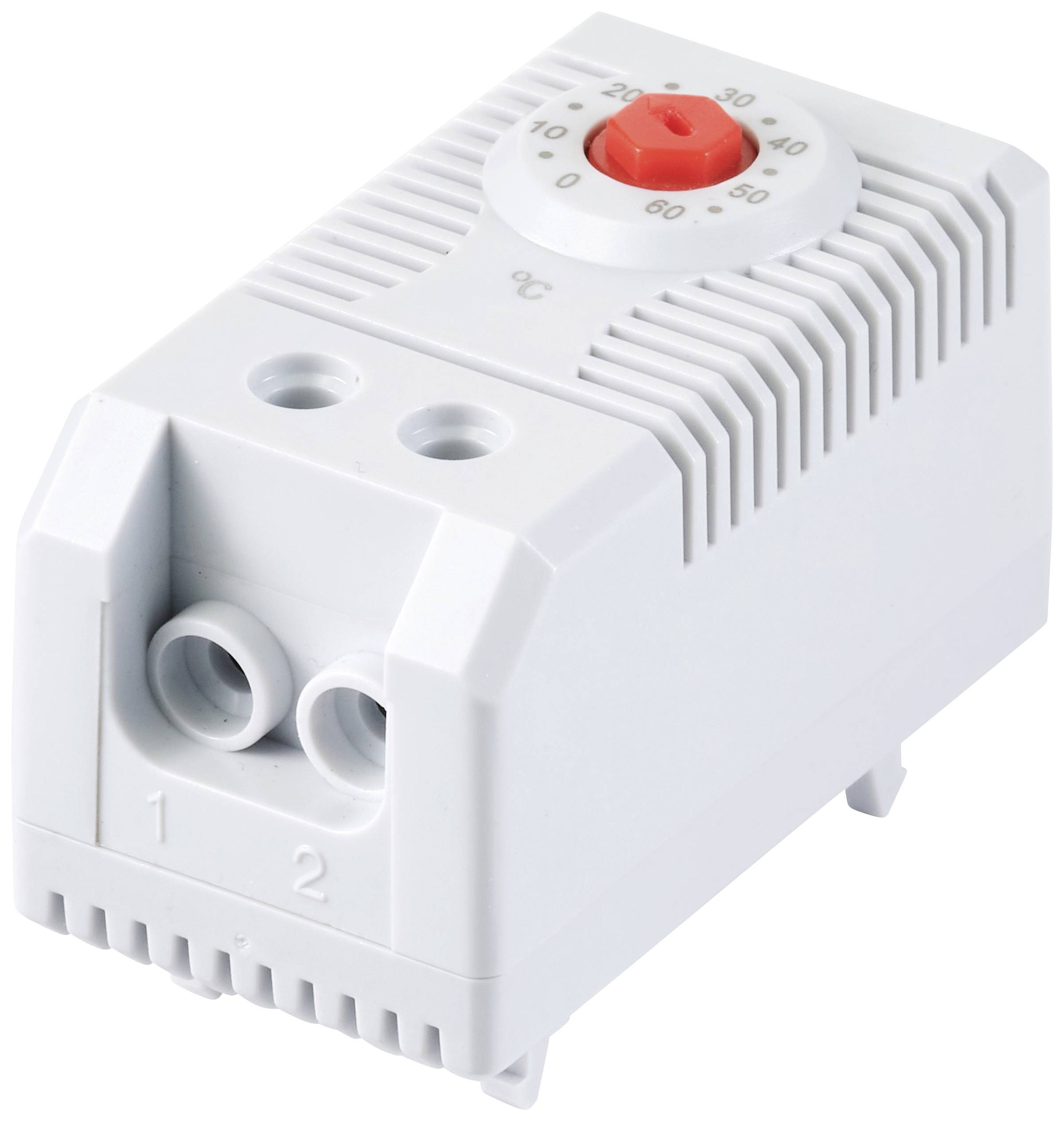

A grey thermostat with a red dial at the top and two numbers '1' and '2' at the front. The dial indicates temperatures from 0 to 60 °C.

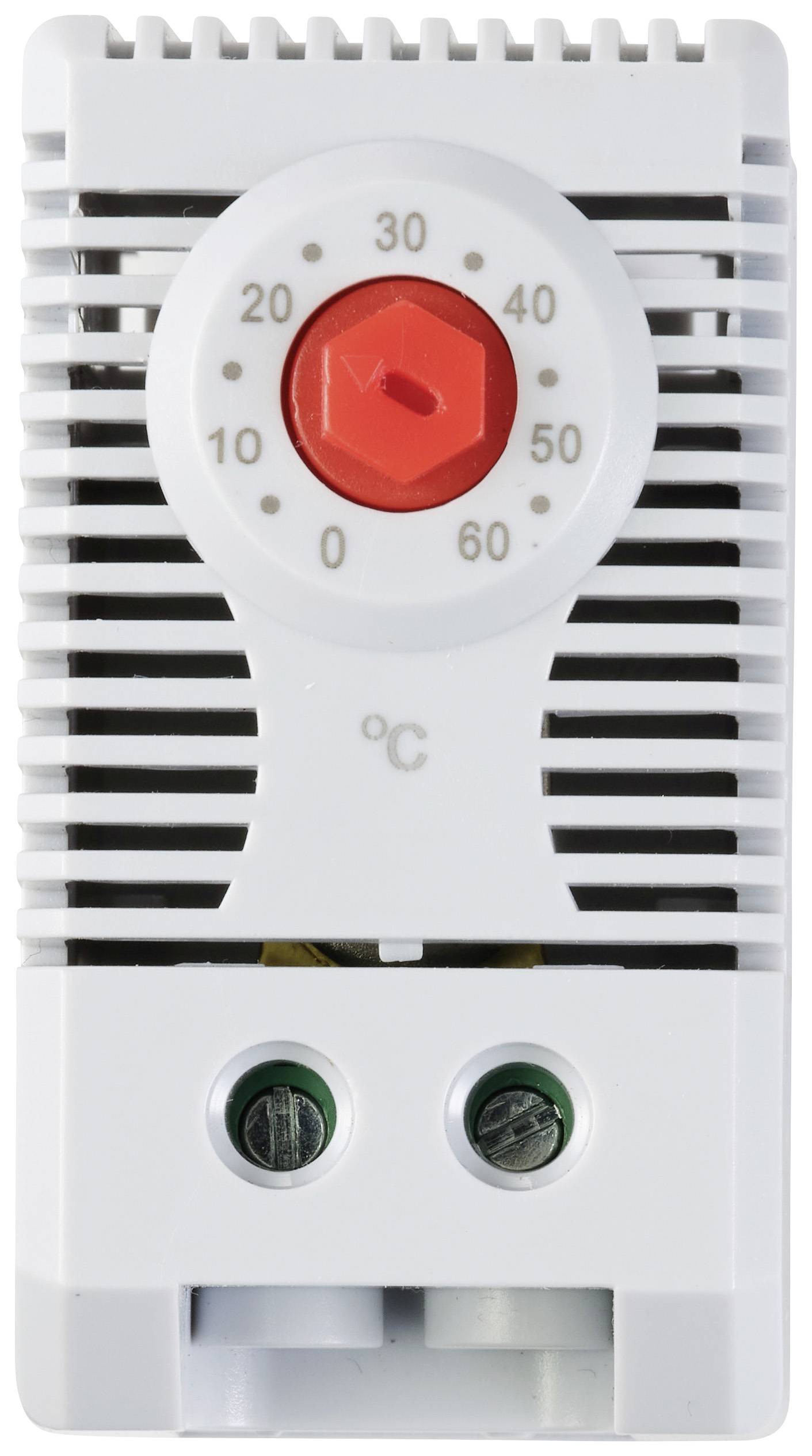

A white thermostat with a red rotary knob, scale ranging from 0 to 60 degrees Celsius. Device for temperature control.

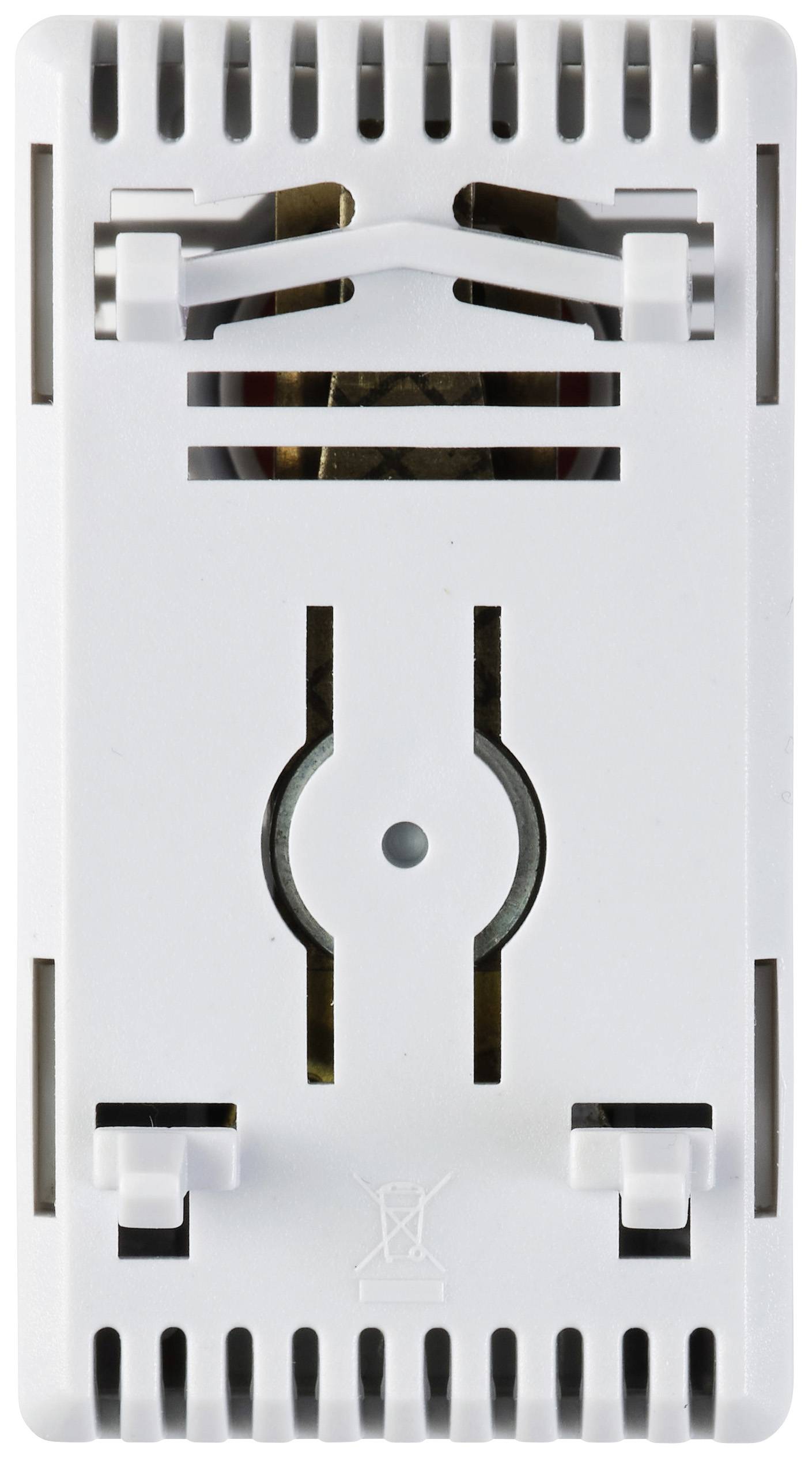

A rectangular, white plastic casing with ventilation slots and a central mounting bracket for wall installation, commonly used for thermostats.

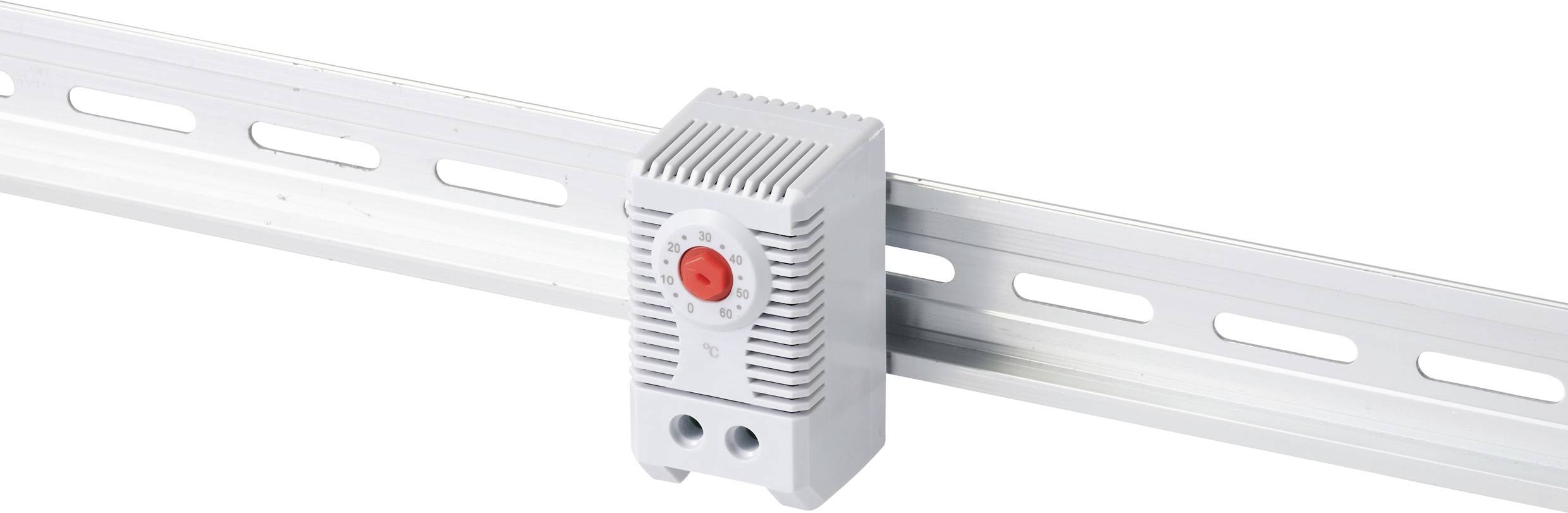

A small, grey electrical connector is mounted on a metal rail. The front has a red button.

1/5

Product type

Thermostat

Connection

Screw terminal

Contact type

1 breaker

Switching voltage (max.)

240 V AC

Switching current (max.)

10 A

TRU COMPONENTS

Fast track dispatch on Thu, 24 Sep

59 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Product type: Thermostat

Type: TC-FKO011NC

Connection: Screw terminal

Adjustment range (min.) (temperature): 0 °C

Temperature adjustment range (max.): 60 °C

Contact type: 1 breaker

Switching voltage (max.): 240 V AC

Switching current (max.): 10 A

Operating temperature (min.): -45 °C

Operating temperature (max.): 80 °C

Length: 60 mm

Width: 33 mm

Height: 43 mm

Dim: (L x W x H) 60 x 33 x 43 mm

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 2632501 TRU COMPONENTS Thermostat TC-FKO011NC 1 breaker (L x W x H) 60 x 33 x 43 mm 1 pc(s)

Description

Control cabinet thermostat has an adjustable range from 0 °C to +60 °C. The switching voltage is max. 250 V/AC.
