TRU COMPONENTS 1587651 Toggle switch TC-R13-223A-01 250 V AC 10 A 1 x Off/On latch 1 pc(s)
EAN:
Part number:
Item no:
Product type
Toggle switch
Casing/button colour
Black
Functions
latch
Lighting type
None
Switch position
1 x Off/On
Datasheet (PDF)
Total (€ 0.80 / piece)
€ 2.40
plus VAT.
14-day return policy included
Highlights & Details
Toggle switch 250 Vac 10 A 1 x Off/On SCI R13-223A-01 latch 1 pc(s)
Our service for you
Technical specifications
- Product type
Toggle switch
- Casing/button colour
Black
- Functions
latch
- Lighting type
None
- Switch position
1 x Off/On
- Print motif
0/I
- Material
Polyamide
- Connection
Type C CEE 7/16 plug 6.3 mm
- Contact resistance
50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
10 A
- Dielectric strength
1500 V/AC 1 minute
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Front panel thickness
4 mm
- Content
1 pc(s)
- Insulation resistance
100 MΩ/500 V DC
- RoHS-compliant
Yes
- Type
TC-R13-223A-01
Documents & Downloads
Datasheet
Datasheet 1587651 TRU COMPONENTS 1587651 Toggle switch TC-R13-223A-01 250 V AC 10 A 1 x Off/On latch 1 pc(s)
Description

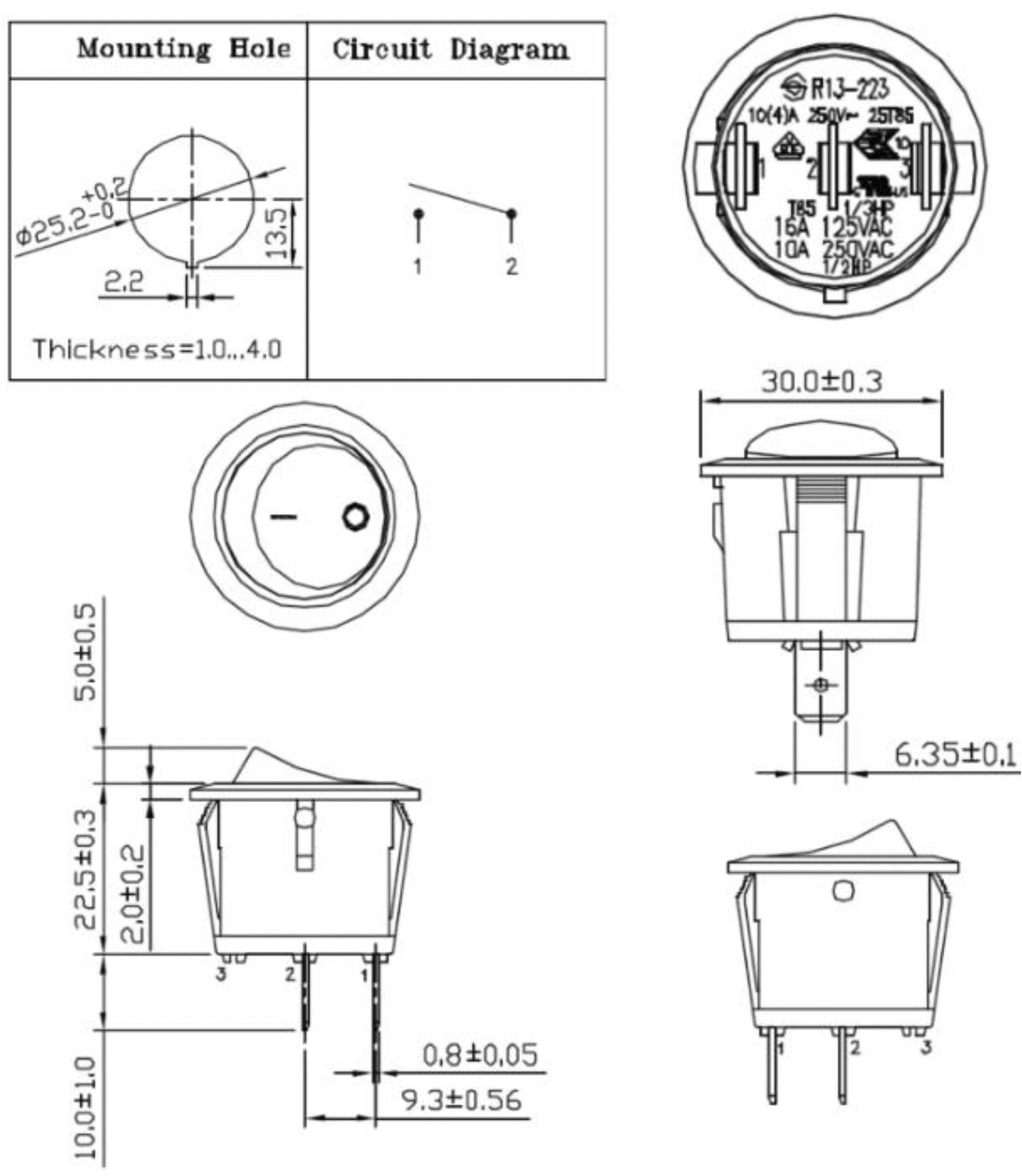

Rocker switch 1-pole for 'snap-in mounting', with guide lug for front panel mounting Approvals: UL.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
