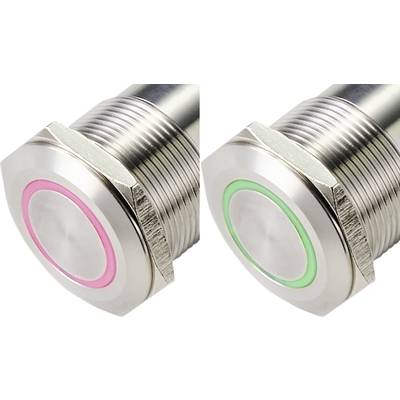

TRU COMPONENTS Touch switch 24 V 0.5 A 1 x Off/On latch Green, Red (Ø) 28 mm IP65 1 pc(s)
EAN:
Part number:
Item no:
Product type
Touch switch
Lighting type
Circular lighting 2.4 mm
Switch position
1 x Off/On
Connection
Open end cable
Switching voltage
24 V
Datasheet (PDF)
Show alternatives
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 23.71
3
4% = € 1.02
€ 22.69
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 23.71 / piece)
€
Technical specifications
- LED Ring: 2.4 mm
- Product type
Touch switch
- Switch/button features
capacitive
- Casing/button colour
Stainless steel
- Functions
latch
- Type
PNP output, LED operating voltage 12 V
- Lighting type
Circular lighting 2.4 mm
- Colour
Green
Red
- Bulb type
LED (monochrome)
- Switch position
1 x Off/On
- Material
Stainless steel
- Connection
Open end cable
- Contact resistance
20 mΩ
- Switching voltage
24 V
- Switching current (max.)
0.5 A
- Min. temperature
-25 °C
- Max. temperature
55 °C
- (Ø)
28 mm
- Button diameter
13.5 mm
- Recess diameter
25 mm
- Electrical lifespan
50,000,000 cycles
- Front panel cut-out
25 mm
IP65
- Actuating force
0 N
- Content
1 pc(s)
- Insulation resistance
600VDC 10 MΩ
- Contact resistance
20 mΩ
- Dim
(Ø) 28 mm
- RoHS-compliant
- Board thickness (max.)
8 mm
- Switching current (inductive)
0.5 A
- Type
TC-9554816
Documents & Downloads
Datasheet
Datasheet 2388704 TRU COMPONENTS Touch switch 24 V 0.5 A 1 x Off/On latch Green, Red (Ø) 28 mm IP65 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2388704 TRU COMPONENTS Touch switch 24 V 0.5 A 1 x Off/On latch Green, Red (Ø) 28 mm IP65 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
