Eco
TSC TE200 Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 112 mm USB, Bluetooth
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 432.77 / piece)
€ 508.40
-15 %
€ 432.77
plus VAT.
Highlights & Details

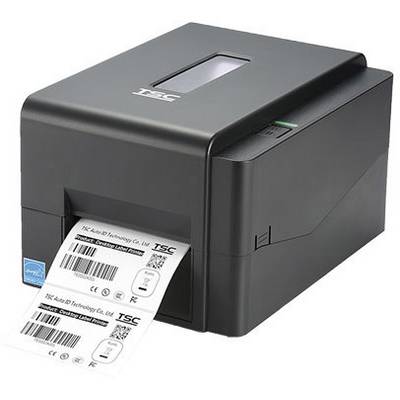

TSC TE200 Label printer
- Direct thermal/thermal transfer label printer in desktop format
- Excellent price - performance ratio.
- Media width (max.) 112 mm, print width (max.) 108 mm
- Roll diameter (max.) 127 mm
- Speicher16 MB SDRAM and 8 MB Flash
- 203 dpi resolution; 152 mm/sec. max speed
- TSPL-EZD firmware emulates the
- Printer languages TPLE, TZIPcode and
- TPLD out of the box
- Internally scalable true-type fonts
- Free Windows® drivers and
- Label software (via download)
Technical specifications
- 1D Barcode: Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2/5, Interleaved 2/5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) extension of position, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China POST, ITF14, Code 11, Telepen, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
- 2D Barcode: GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
- Product type
Label printer
- Type
TE200
- Printing technology
Direct thermal
Thermal transfer
- Functions
Printer
- Type
B/W
- Print resolution
203 x 203 dpi
- Print speed (black/white)
152 mm/s
- Features
Bluetooth
- Interfaces
USB
Bluetooth
- Power supply (LOV)
mains-powered
- Max. label width
112 mm
- Factory colour
Black
- Width
204 mm
- Height
164 mm
- Depth
280 mm
- Dim
(W x H x D) 204 x 164 x 280 mm
- Weight
2.4 kg
- Network
No
- Screen size diagonal (inches)
24 inch
- UKCA
yes
- Eco badge reference
ENERGY STAR
Documents & Downloads
Datasheet
Datasheet 2134003 TSC TE200 Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 112 mm USB, Bluetooth
User & Safety Instructions
User & Safety Instructions 2134003 TSC TE200 Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 112 mm USB, Bluetooth
Description
The TE series of thermal direct/thermal transfer label printers from TSC are ideal for beginners. This compact desktop printer prints labels at 203 dpi resolution and up to 152 mm per second. The TE series supports ink ribbons with a length of up to 300 meters in the optional thermal transfer mode. The complete series stands for easy handling and maintenance: You can easily replace the print head and counter-pressure roller without tools.
This text is machine translated.
This text is machine translated.
Features
- Suitable films: 300 m length, max. outer diameter 67 mm, 25.4 mm (1") core (outer coating), 110 m length, max. outer diameter 40 mm, 12.7 mm (0.5") core (outer coating)
Scope of delivery
- Printer, external universal switched-mode power supply, power cable, USB cable, label printing software (download), quick start guide.
Hints
Application areas: Manufacturing and warehousing (work in progress, article labels, information signs, labels for office supplies; health care (patient identification, pharmacies, sample identification, parcel post, shipping labels, acceptance labels; small business / home office (shipping labels, file identification, product identification; retail trade (price labels, shelf labels, jewelry labels)
)
