Turck Magnetic field detector Magnetic PNP BIM-UNR-AP6X-0,3-PSG3M
EAN:
Part number:
Item no:
Product type
Magnetic field detector
Max. operating voltage
30 V
Outputs
PNP
Model
Magnetic
Type
BIM-UNR-AP6X-0,3-PSG3M
Datasheet (PDF)
Technical specifications
- Product type
Magnetic field detector
- Type
BIM-UNR-AP6X-0,3-PSG3M
- Min. operating voltage
11 V
- Max. operating voltage
30 V
- Operating voltage
11 - 30 V
- Outputs
PNP
- Cable length
0.3 m
- Model
Magnetic
- Enclosure material
Plastic
IP67
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Length
18 mm
- Width
2.90 mm
- Height
4.60 mm

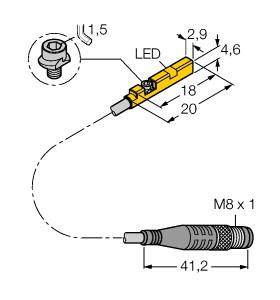

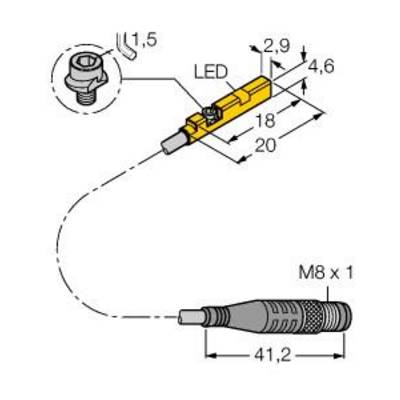

- Dim
(L x W x H) 18 x 2.90 x 4.60 mm
DC
Plastic
-25-70 °C
Cable with connector
PNP
Cuboid
IP67
Magnet
11-30 V
2.9 mm
4.6 mm
18 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2832007 Turck Magnetic field detector Magnetic PNP BIM-UNR-AP6X-0,3-PSG3M
User & Safety Instructions
User & Safety Instructions 2832007 Turck Magnetic field detector Magnetic PNP BIM-UNR-AP6X-0,3-PSG3M
