Image similar
1/2
Image similar
Quantity (meter)
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Technical specifications
- Product type
USB cable
- No. of leads
8 x
- Cross section (each core)
0.08 mm²
- Cross section
8 x 0.08 mm²
- Cable features
Flexible
Shielded
- Outside Ø
5.50 mm
- Factory colour
Blue
- Content
Sold per metre
- Nominal voltage (details)
30 V
- AWG (min.)
28
- AWG max.
28
- Packaged
No
- Sold per metre
Yes
- Halogen-free
No
- Shielded
Yes
- Manufacturer part #
U3Z500
- Insulation material
PVC

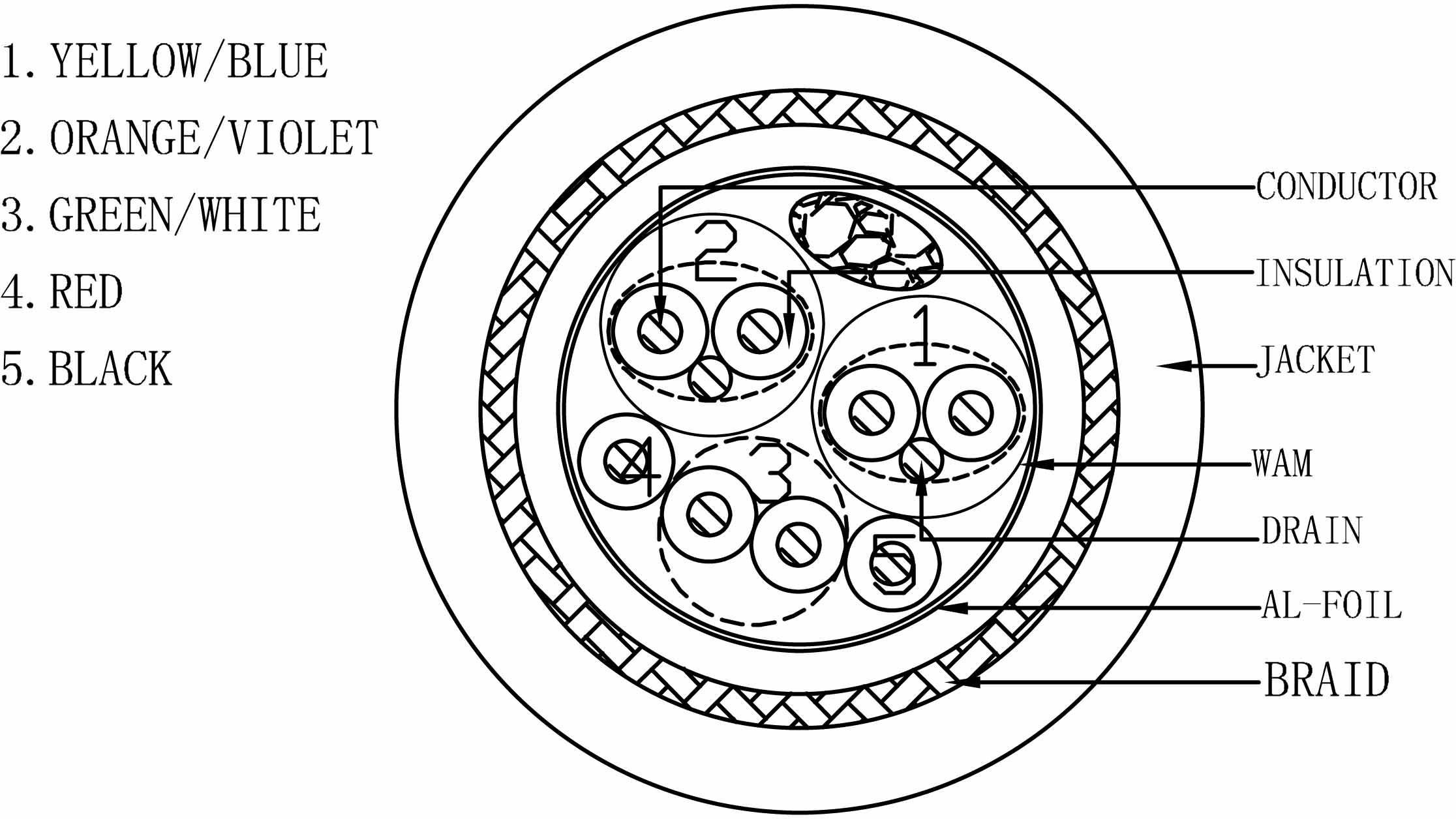

- Core layout
28 AWG * 2 P +28 AWG * 1 P +28 AWG * 2 C
- Min. temperature range (flexible installation)
5 °C
- Max. temperature range (flexible installation)
+80 °C
- Min. temperature range (fixed installation)
-5 °C
- Max. temperature range (fixed installation)
+80 °C
- Peak operating voltage
30 V
- Max. length sold by the metre
500 m
- Type
USB 3.0 Kabel blau
Documents & Downloads
Datasheet
Datasheet 1299047 U3Z500 USB cable 8 x 0.08 mm² Blue Sold per metre
User & Safety Instructions
User & Safety Instructions 1299047 U3Z500 USB cable 8 x 0.08 mm² Blue Sold per metre
Description
Suitable cable for USB 3.0 standard.
This text is machine translated.
This text is machine translated.
