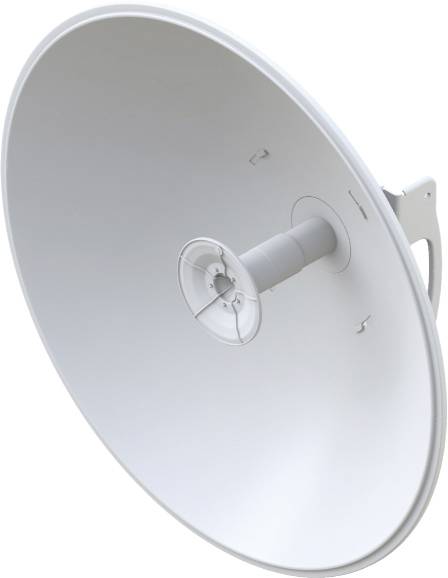

Ubiquiti Networks AF-5G30-S45 AF-5G30-S45 Wi-Fi dish antenna 30 dBi 5 GHz
EAN:
Part number:
Item no:
Datasheet (PDF)
Ubiquiti Networks airFiber Antenna AF-5G30-S45
Highlights & Details
- Powerful performance for long-distance connections
- Robust design and construction for outdoor use
- Seamless integration with airFiber Radio
Technical specifications
- Frequency range 4.9 - 5.9 GHz
- Gain: 26 dBi (4.9 GHz); 30 dBi (5.0 - 5.9 GHz)
- + 45° opening angle: 5.8° (3 dB)
- - 45° aperture angle: 5.8° (3 dB)
- F/B ratio 30 dB
- Max. VSWR: 1.6:1
- Wind load: 790 N at 200 km/h.
- Wind resistance: 200 km/h (125 mph)
- Polarization: Dual-linear
- Cross polarization isolation 35dB min.
- ETSI SPECIFICATION: EN 302 326 DN2
- Monage: Universal mast holder, airfiber X-holder and weather-proof RF-plug connector included in the delivery
- Product type
Wi-Fi dish antenna
- Gain
30 dBi
- Type
Dish antenna
- Wi-Fi frequency band
5 GHz
- Used at
Outdoors
Fixed
- Weight
7.4 kg
- Mounting type
Pole-mount
- Width
650 mm
- Height
650 mm
- Length
386 mm
- Factory colour
White
- Screen size diagonal (inches)
24 inch
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1877229 Ubiquiti Networks AF-5G30-S45 AF-5G30-S45 Wi-Fi dish antenna 30 dBi 5 GHz
User & Safety Instructions
User & Safety Instructions 1877229 Ubiquiti Networks AF-5G30-S45 AF-5G30-S45 Wi-Fi dish antenna 30 dBi 5 GHz
Description
Connect an airfiber(R) X antenna to an airfiber X radio to create the endpoint of a powerful point-to-point (PtP) bridge or network backhaul (airfiber X radio sold separately).
High-performance
The airFiber X is a powerful antenna with dual polarization. The data sheet provides an example of how an airFiber X antenna can be used in combination with an airFiber X radio in a backhaul connection to provide bandwidth from an ISP network to a tower in the vicinity. From there, an AirMax(R) Sector antenna, connected to a Rocket(TM) radio, provides bandwidth to Internet Service Provider (ISP) customers.
Carrier-class design
The airFiber X antennas are characterized by a robust mechanical design that is suitable for outdoor use by the use of industry-standard hardware. The parabolic mirror provides for an excellent directivity of the beam.
Plug-and-play integration
AirFiber X antennas and airFiber X radios are designed to work seamlessly with each other. Each AirFiber X antenna has an integrated holder for airFiber X wireless devices, so no special tools are required during installation. Securely snap the airfiber X radio into place in the mount and mount the antenna, providing the perfect combination of the airfiber X antenna and the airfiber X radio for your PtP application.
Hardware Overview
Innovative mechanical design
· Secure mast mounting: The hardware was designed to secure the antenna to the mast and maintain its alignment even under harsh weather conditions.
· Convenient installation: The integrated spirit level enables an easy alignment.
· Precise regulation of the elevation: Use this new function to set and adjust the elevation quickly and easily.
Weather-proof design
· Protective cover: The contactor cover for cables and connections in front of the elements.
· Assembly hardware: Manufactured from galvanized steel, powder coated for improved corrosion protection.
· Screws: Geomet-coated for improved corrosion resistance.
This text is machine translated.
