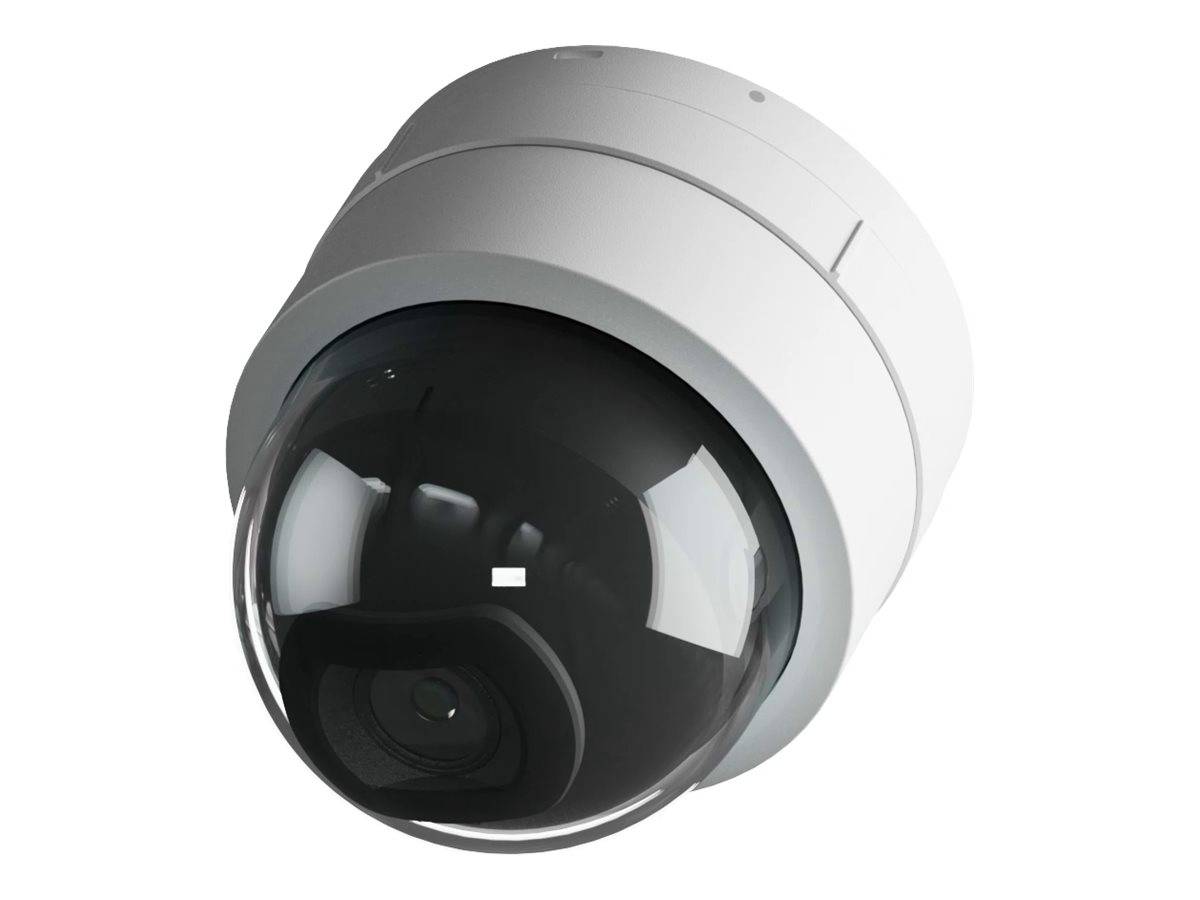

Ubiquiti Networks Netzwerkkamera UVC-G5-DOME-ULTRA Corded IP CCTV camera
EAN:
Part number:
Item no:
Corded IP-Dome camera;Ubiquiti NetworksNetzwerkkamera;UVC-G5-DOME-ULTRAIndoors
Highlights & Details
- 120.6° diagonal field of view for comprehensive monitoring
- 20 m infrared vision for clear monitoring at night
- 2688 x 1512 video resolution with advanced noise reduction
- PoE-support for easy installation and power management
- AI event detection for intelligent, responsive security
Technical specifications
- 4 MP - 2688 x 1512 - 2K - LAN 10/100 - PoE
- Product type
CCTV camera
- CCTV features
IR LEDs
- Camera type
Dome camera
- Power supply
PoE (Power over Ethernet)
- Max. viewing angle hor.
102.4°
- Vertical viewing angle
54.9°
- Vertical viewing angle
120.6°
- Transfer type
Corded
- IR range (max.)
20 m
- Used at
Indoors
- Width
6.36 cm
- Height
68.2 mm
- Depth
6.36 cm
- Dim
(W x H x D) 6.36 x 68.2 x 6.36 cm
- Weight
0.32
- Enclosure material
Aluminium
- Factory colour
Multicolour
- Signal standard
IP
- Bluetooth
No
- Display resolution
2688 x 1512 Pixel
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Power supply (details)
37 - 57 V
- Processor/type
ARM Cortex-A7
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740103 Ubiquiti Networks Netzwerkkamera UVC-G5-DOME-ULTRA Corded IP CCTV camera
Description
With a field of view of up to 120.6° in the diagonal, 102.4° in the horizontal and 54.9° in the vertical, the Ubiquiti Unifi G5 Ultra provides a comprehensive coverage and minimizes dead angles in the monitoring areas. Equipped with infrared LEDs and a range of 20 m, the camera delivers clear, tamper-proof recordings even in total darkness and thus ensures security around the clock. The camera records high-quality recordings with a resolution of 2688 x 1512 pixels, which are supported by digital 2D and 3D noise suppression and deliver pin-sharp and clear videos under different conditions. The Ubiquiti Unifi G5 Ultra is equipped with an aluminum housing and complies with the IK06 standard. It is designed to withstand demanding ambient conditions and is suitable for both indoor and outdoor use. Features such as AI event detection and a powerful ARM Cortex A7 processor enable intelligent monitoring and alerting and improve security operations with automated efficiency.
This text is machine translated.
This text is machine translated.
Features
- Ubiquiti Unifi G5 Ultra – network surveillance camera – dome
- Device type : network surveillance camera - fixed - dome - indoor - tamper-proof
- Dimensions (width x depth x height): 6.36 cm x 6.36 cm x 6.82 cm
- Weight 175 g
- Connection technology : Wired
- Camera : Color - Day & Night
- Max resolution : 2688 x 1512
- Frame rate (max) : 30 frames per second
- Video modes : 2K
- Optical sensor type: 10.6 mm (1/2.4") - 4 MP
- Interfaces : Ethernet 10Base-T/100Base-TX
- Voltage DC 37 - 57 V, PoE
- Features : AI event detection, 102.4° field of view, light sensor, reset button, aluminum alloy/polycarbonate housing, infrared blocking filter, Power over Ethernet, 16:9 aspect ratio, color control, brightness control, sharpness setting, White balance, exposure control, 2D digital noise reduction (DNR), 3D digital noise reduction, masking, text overlay, ARM Cortex A7 processor
- Ambient conditions (operating) : -20 °C - 40 °C; 10 - 90 % (non-condensing) relative humidity
Scope of delivery
- Ubiquiti Unifi G5 Ultra software
