Ubiquiti Networks POE-24-12W-G PoE injector 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)
Ubiquiti Networks POE-24-12W-G Gigabit Ethernet 24V PoE-adapter
Highlights & Details
- Provides grounding and surge protectionProtects against ESD eventsPower supply for Ubiquiti PoE devices
Technical specifications
- Weight: 99.4 gOUTPUT VOLTAGE 24 V DC @ 0.5AGigabit LAN connection, remote reset functionality, reset buttonInput voltage 90 V AC @ 47-63 HzINPUT CURRENT: 0.3A @ 120 V AC; 0.2A @ 240 V ACSwitch-on current<: 30A peak at 120 V AC; <60A peak at 230 V ACEfficiency level 75+%.Output ripple 1% Max.Switching frequency 50 kHzLine control: +/- 1%Load control: +/- 3%4 pair power supply: Pins 4.5 (+) and pins 7.8 (-)Operating temperature 0 to +40°C.Storage temperature -30 to 70 °C.Operating humidity: 35 to 95% non-condensingAC-CONNECTION IEC-320 C6Data IN / POE: RJ45 shielded socketOvervoltage protection: Differential and common modeMaximum over-voltage disconnect 1500A (8/20 μs) current supplyClamp Pulse Current 36A (10/1000 μs) DataIncline-protection capacity< 5 pF dataReaction Time : 1 nsCOMPLIANCE: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC CLASS B.AC power cable with earthing: USA, EU, AR, BR, UL, CCC, Mexico
- Product type
PoE injector
- LAN data transfer rate
1 GBit/s
- Width
44 mm
- Height
87 mm
- Length
29 mm
- Factory colour
Multicolour
- Weight
0.26
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1876770 Ubiquiti Networks POE-24-12W-G PoE injector 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1876770 Ubiquiti Networks POE-24-12W-G PoE injector 1 GBit/s
Description

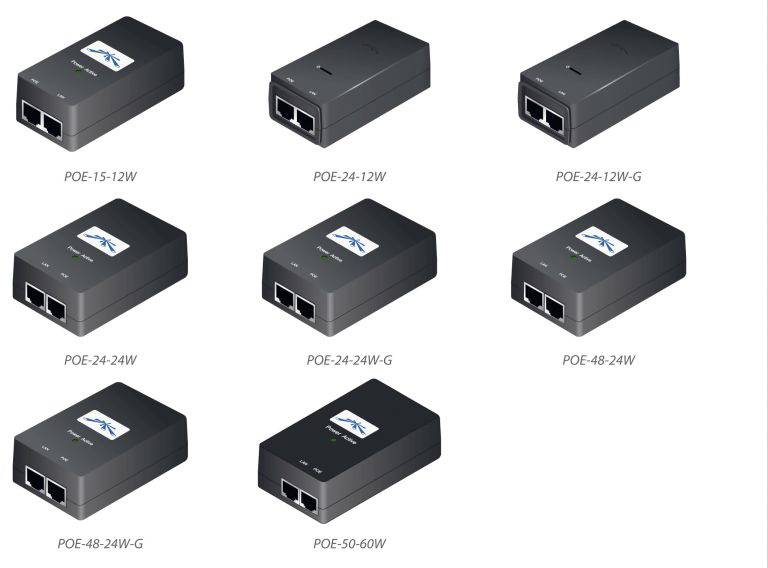

Ubiquiti Networks offers Power over Ethernet (PoE) adapters for operating a variety of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices, including:- AirFiber®- AirMax®- EdgeMAX®- MFI® MFI- Unifi® AP- Unifi Video / AirVision®Ubiquiti PoE adapter compatibility with airGateway™Specific PoE adapter models are designed for use with the airGateway. The airGateway is a compact Consumer Premises Equipment (CPE) gateway with built-in Wi-Fi to connect the customer's local network to the WISP network.The airGateway is available in three versions:- AirGateway: Standard model with internal antenna- AirGateway Pro: Dual-band Wi-Fi model with internal antenna- AirGateway-LR: Long-range Wi-Fi model with external antenna for extended range
