Ubiquiti Networks POE-24-24W-G PoE injector 1 GBit/s
EAN:
Part number:
Item no:
Datasheet (PDF)

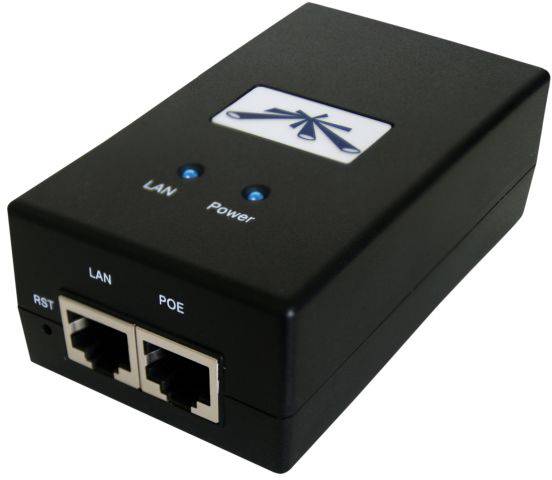

UbiQuiti Networks POE-24-24W-G Gigabit Ethernet 24V PoE Adapter
Highlights & Details
- Provides grounding and surge protection
- Protects against ESD events
- Power supply of Ubiquiti PoE devices
Technical specifications
- Weight: 158.5 g
- OUTPUT VOLTAGE 24 V DC @ 1A
- Gigabit LAN connection, remote reset functionality, reset button
- Input voltage 90-260V AC @ 47-63 Hz
- INPUT CURRENT 0.6A @ 120VAC; 0.4A @ 240VAC
- Inrush current<: 60A peak at 120 VAC;< 120A peak at 230 VAC
- Efficiency 80+%.
- Output ripple: 1% max.
- Switching frequency 65 kHz
- Line regulation: +/- 1%
- Load control: +/- 3%
- 4-pair power supply: Pins 1.2.4.5 (+) and pins 3.6.7.8 (-)
- Operating temperature 0 to 40°C.
- Storage temperature: -30 to 70 °C.
- Operating humidity: 35 to 95% non-condensing
- AC CONNECTION IEC-320 C6
- Data IN / POE: RJ45 shielded socket
- Overvoltage protection: Difference and common mode
- Clamping pulse current: 36A (10/1000 μs) data
- Shunt capacity:< 5 pF data
- Reaction Time : 1 ns
- COMPLIANCE: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010, FCC CLASS B.
- AC power cable with earthing: USA, EU, AR, BR, UL, CCC, Mexico
- Product type
PoE injector
- LAN data transfer rate
1 GBit/s
- Width
57 mm
- Height
88 mm
- Length
33 mm
- Factory colour
Multicolour
- Weight
351.00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1876769 Ubiquiti Networks POE-24-24W-G PoE injector 1 GBit/s
User & Safety Instructions
User & Safety Instructions 1876769 Ubiquiti Networks POE-24-24W-G PoE injector 1 GBit/s
Description
Ubiquiti Networks offers Power over Ethernet (PoE) adapters to power a wide range of Ubiquiti products. The PoE adapters are compatible with most Ubiquiti PoE devices, including:
- airFiber®
- AirMax®
- EdgeMAX®
- MFI® MFI
- Unifi® AP
- Unifi Video / AirVision®
Ubiquiti PoE Adapter compatibility with the airGateway™
Specific PoE adapter models are designed for use with the airGateway. The airGateway is a compact consumer premium equipment (CPE) gateway with built-in Wi-Fi that connects the customer's local network to the WISP network.
The airGateway is available in three versions:
- airGateway: Standard model with internal antenna
- airGateway Pro: Dual-band Wi-Fi model with internal antenna
- airGateway-LR: Long-distance Wi-Fi model with external antenna for extended range
This text is machine translated.
