Ubiquiti Networks POE-24-30W PoE injector 1 GBit/s IEEE802.3at (30 W)
EAN:
Part number:
Item no:
Datasheet (PDF)

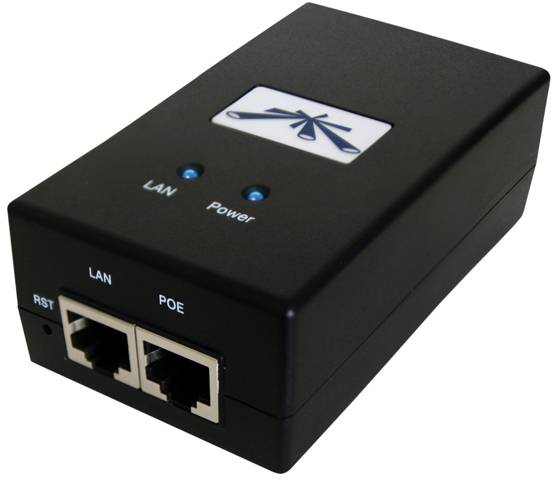

Ubiquiti Networks POE-24-30W - PoE Injector
Technical specifications
- Gigabit LAN connection, remote reset functionality, reset button
- Output voltage: 24VDC @ 1.25A
- Input voltage 100-240AC @ 50/60Hz
- INPUT CURRENT 0.6A @ 120V AC; 0.4A @ 230 V AC
- Inrush current:< 60A peak at 120VAC;< 120A peak at 230VAC
- Efficiency 83+%.
- Output ripple: 1% max.
- Switching frequency 65 kHz
- Line regulation: ± 1% (1%)
- Load control: ± 3%.
- 4-pair power supply: Pins 1, 2, 4, 5 (+) and pins 3, 6, 7, 8 (-)
- Operating temperature 0 to 40° C (32 to 104° F)
- Storage temperature: -30 to 70° C (-22 to 158° F)
- Operating humidity: 35 to 95% non-condensing
- AC CONNECTION IEC-320 C6 C6
- Data IN / POE: RJ45 shielded socket
- Overvoltage protection: Difference and common mode
- Clamp protection: 11V data, 60V power supply
- Max. Surge discharge: 1500A (8/20 μs) power supply
- Peak pulse current: 36A (10/1000 μs) data
- Shunt capacity:< 5 pF data
- Reaction Time : 1 ns
- COMPLIANCE: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010 FCC CLASS B.
- AC power cable with earthing: EU, AR, BR, UL/cUL, CCC, Mexico, RCM
- Product type
PoE injector
- PoE
IEEE802.3at (30 W)
- LAN data transfer rate
1 GBit/s
- Width
60 mm
- Height
94 mm
- Length
33 mm
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1876771 Ubiquiti Networks POE-24-30W PoE injector 1 GBit/s IEEE802.3at (30 W)
User & Safety Instructions
User & Safety Instructions 1876771 Ubiquiti Networks POE-24-30W PoE injector 1 GBit/s IEEE802.3at (30 W)
Description
The PoE injector uses all four pairs for energy and is specially designed for airFiber X products. Do not use with 24 VDC products unless they support PoE with all four pairs.
