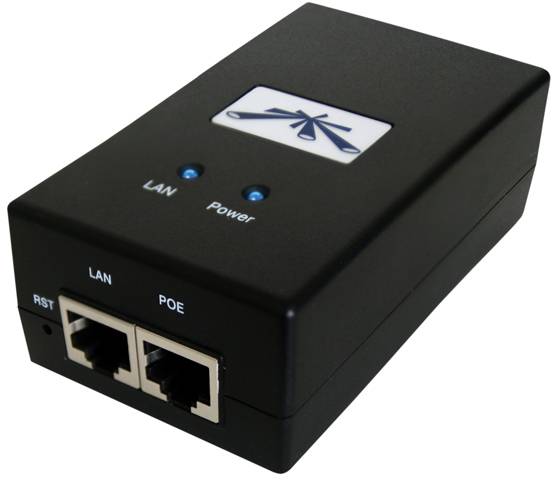

UbiQuiti Networks POE-24-AF5X - PoE Injector

Output voltage 24VDC @ 1.0A
Gigabit LAN connection, remote reset functionality, reset button
Input voltage 90-260VAC @ 47-63 Hz
INPUT CURRENT 0.6A @ 120V AC; 0.4A @ 240V AC
Inrush current:< 60A peak at 120V AC,< 120A peak at 230V AC
Efficiency 80+%.
Output ripple: 1% max.
Switching frequency 65 kHz
Line regulation: ± 1% (1%)
Load control: ± 3%.
4-pair power supply: Pins 1, 2, 4, 5 (+) and pins 3, 6, 7, 8 (-)
Operating temperature 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Operating humidity: 35 to 95% non-condensing
AC CONNECTION IEC-320 C6 C6
Data IN / POE: RJ45 shielded socket
Overvoltage protection: Difference and common mode
Clamp protection: 11V data, 60V power supply
Max. Surge discharge: 1500A (8/20 μs) power supply
Peak pulse current: 36A (10/1000 μs) data
Shunt capacity:< 5 pF data
Reaction Time : 1 ns
COMPLIANCE: IEC 60950-1:2005+A1, UL60950-1, EN55022:2010, EN55024:2010 FCC CLASS B.
AC power cable with earthing: USA, EU, AR, BR, UL, CCC, Mexico
