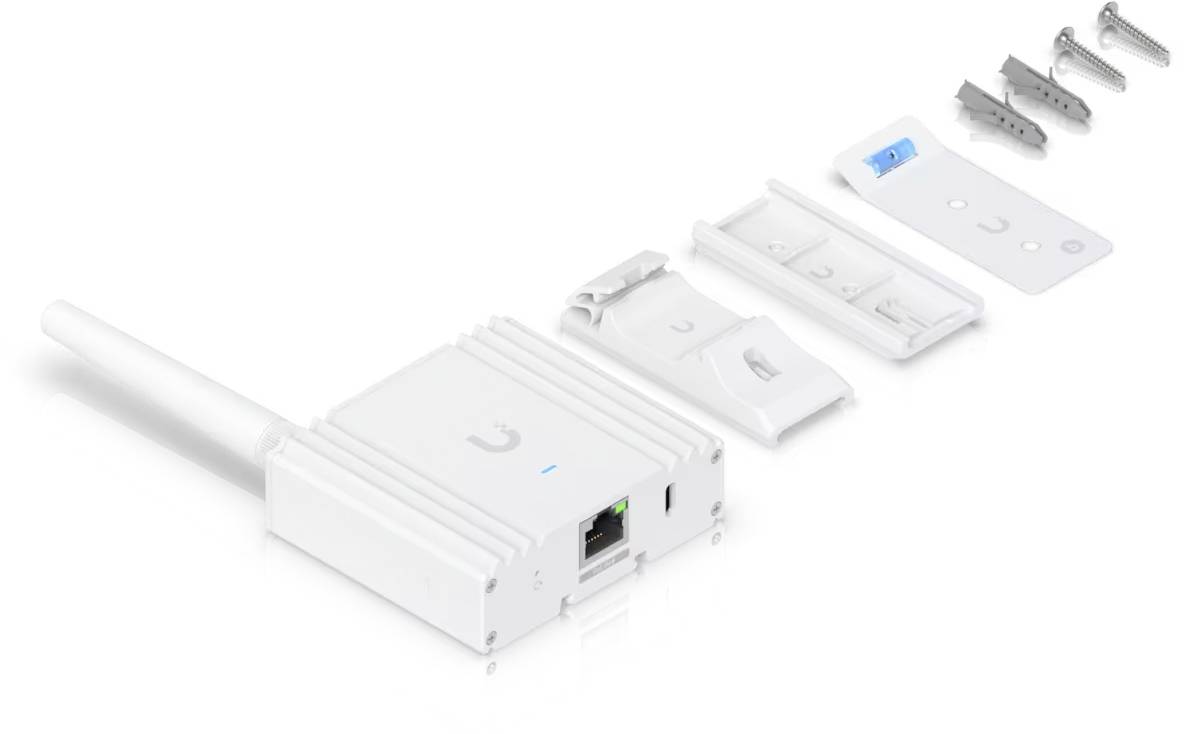

Exploded view of a white wireless network device with detachable parts, showing the housing, ports, internal components, and mounting hardware.

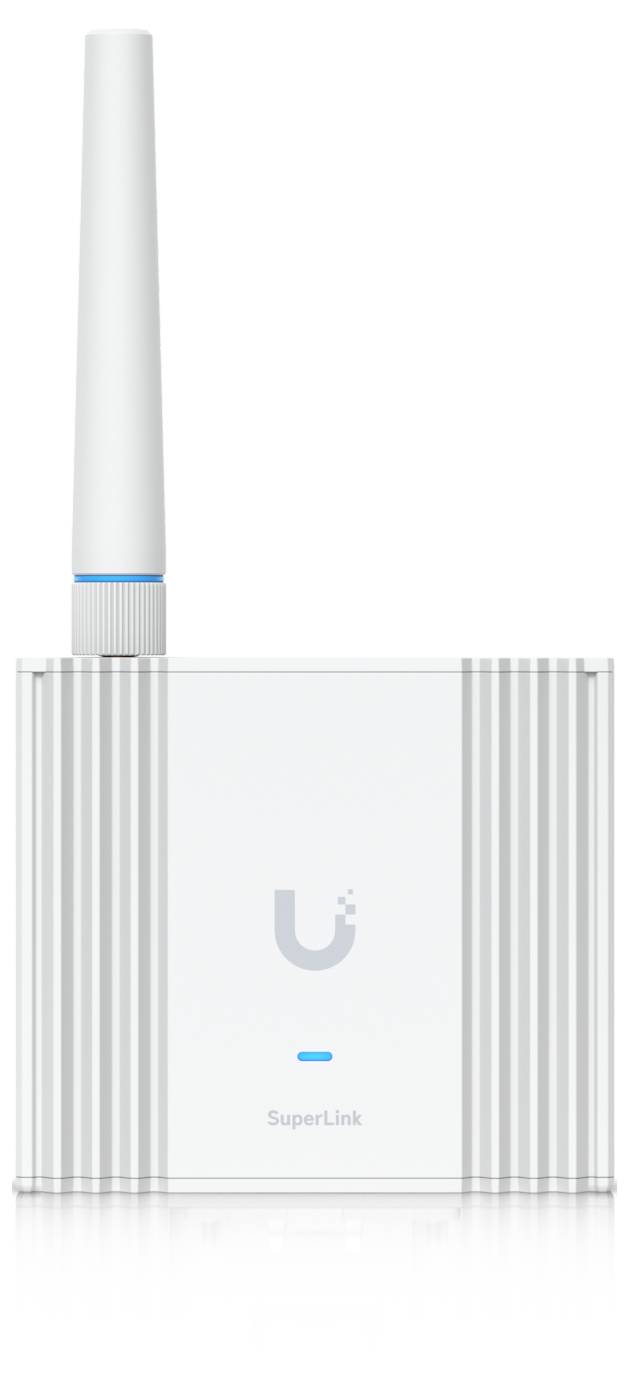

White Ubiquiti SuperLink wireless device with a tall vertical antenna and front status light, shown on a white background.

White Google Nest Wifi router and tall mesh point with small blue status light on a white background.

White rectangular wireless device with a tall tapering antenna and thin blue accent line above the base.

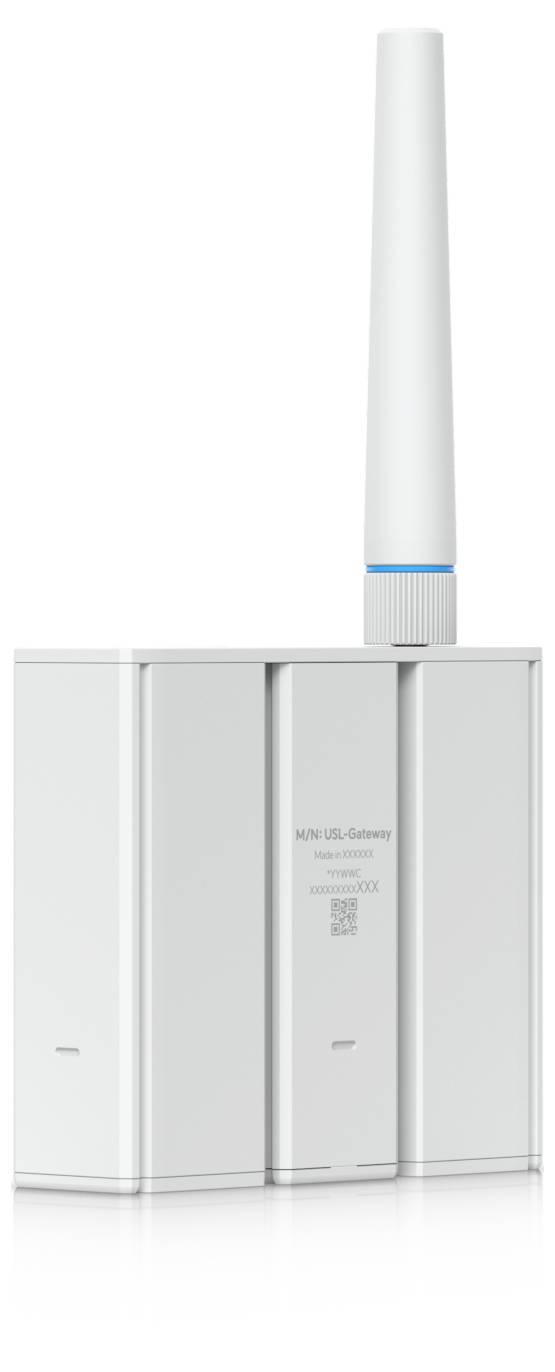

White wall-mounted cellular gateway with tall antenna and three-panel base unit, shown on a plain white background.

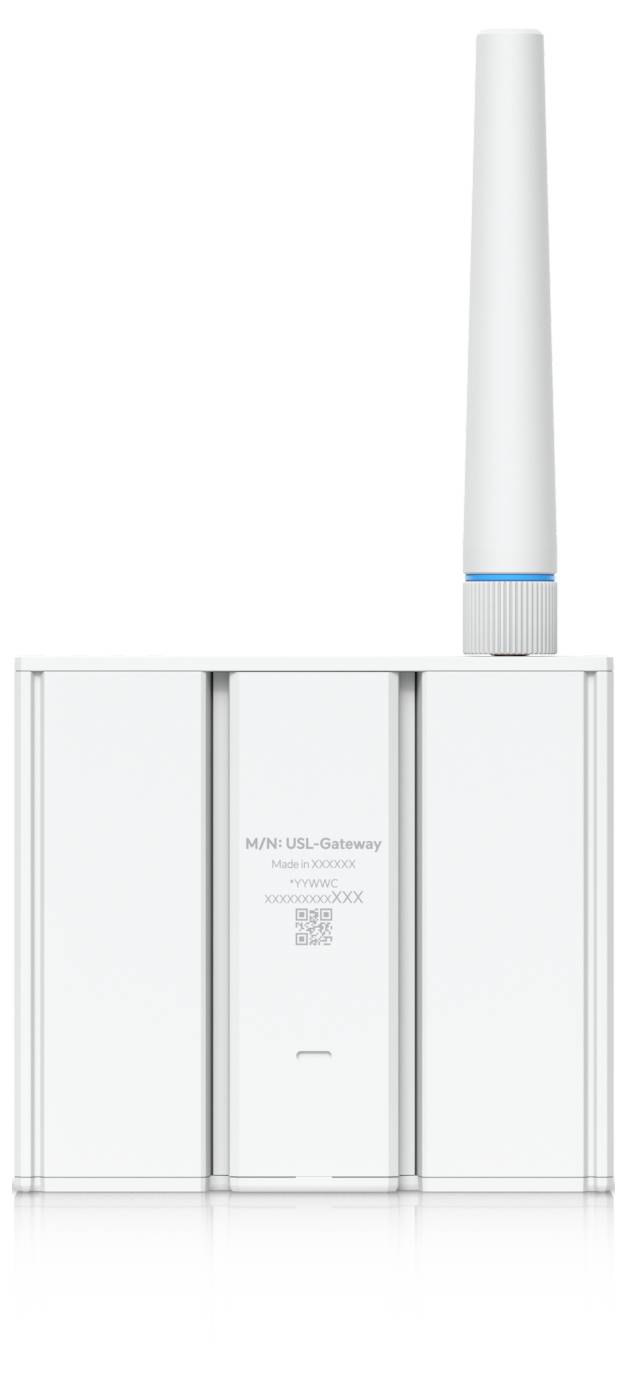

White wireless gateway device with a tall antenna, shown front view on a plain white background.

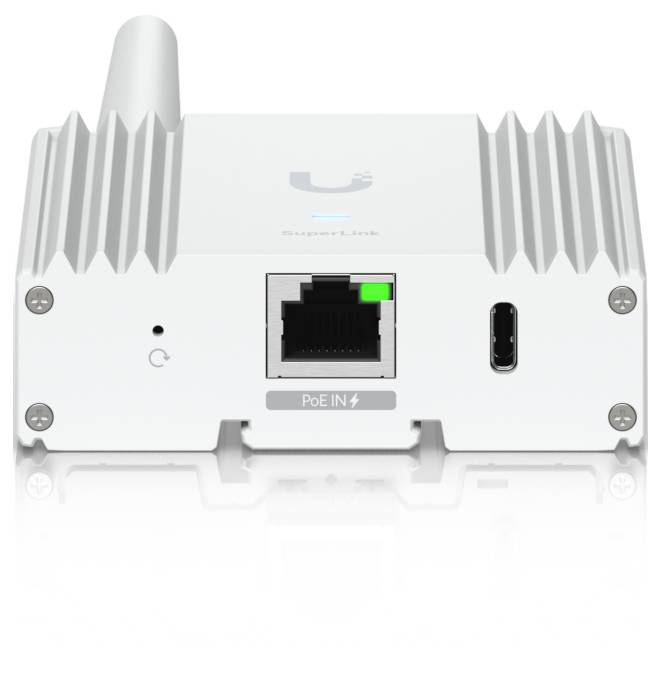

White Ubiquiti network device with Ethernet port labeled 'PoE IN', USB-C port, and status LED, shown front view.

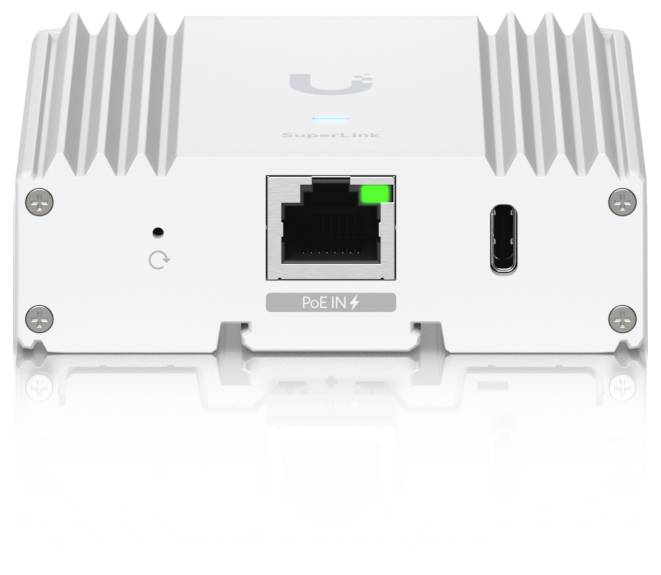

White Ubiquiti network device shown front-on with a central Ethernet port labeled 'PoE IN', status light, and mounting screws.

White wall-mounted appliance with vented top, small status light, and large cylindrical control knob on the right.

1/10

Ubiquiti Networks

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ubiquiti SuperLink Gateway/Controller 10, 100 Mbit/s

Highlights & Details

10.100 Mbit/s
Antenna type: External 3 dBi
Power over Ethernet (PoE)
DIN rail/wall mounting
Housing material: Polycarbonate (PC)

Technical specifications

Maximum range: Up to 100 m for Bluetooth, up to 2 km (1.2 miles) for SuperLink
Maximum number of clients: 7 clients via Bluetooth, 96 clients via SuperLink
Max. Transmission power TX Power): Bluetooth: 10 dBm, SuperLink: 27 dBm
Mounting: Wall and DIN rail mounting
Software requirements: Unifi Protect (web application and iOS/Android APP)

Product type: Gateway

LAN transfer rate: 10 MBit/s
100 MBit/s

Interfaces: RJ45
USB C®

10/100/1000 Mbps ports: 1 x

Power supply (LOV): Power over Ethernet (PoE)
via USB

Wi-Fi frequency band: 2.4 GHz

Bluetooth: 5.2

Bluetooth: Yes

Factory colour: White

Depth: 26 mm

Height: 159.3 mm

Width: 81.9 mm

No. of antennas: 1 x

Gain: 3 dBi

Weight: 179 g

UKCA: yes

Operating temperature (T-T): 0 - 40 °C

Power over Ethernet (PoE): yes

Web-based management: yes

Control display unit: no

Reset button: yes

Operating relative humidity (H-H): 10 - 90 %

Power consumption (max): 3.4 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784687 Ubiquiti Networks SuperLink Gateway Gateway 10 MBit/s, 100 MBit/s

Description

Ultra-wide, low-latency, proprietary wireless gateway for Unifi Protect sensors.
