Buy Ubiquiti Networks UA-G3-INTERCOM Video intercom Corded 13,56 MHz Black

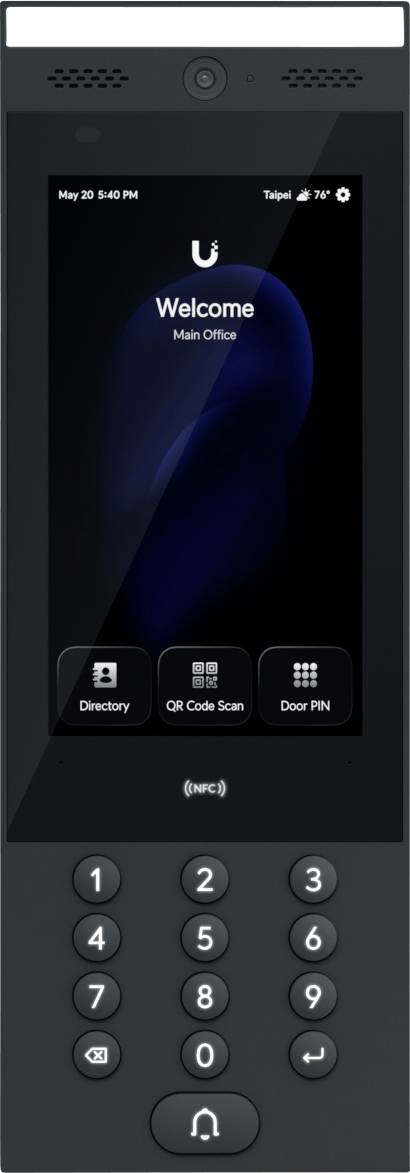

A dark access-control keypad screen shows a welcome message for 'Main Office' with buttons for Directory, QR Code Scan, and Door PIN, above a numeric keypad.

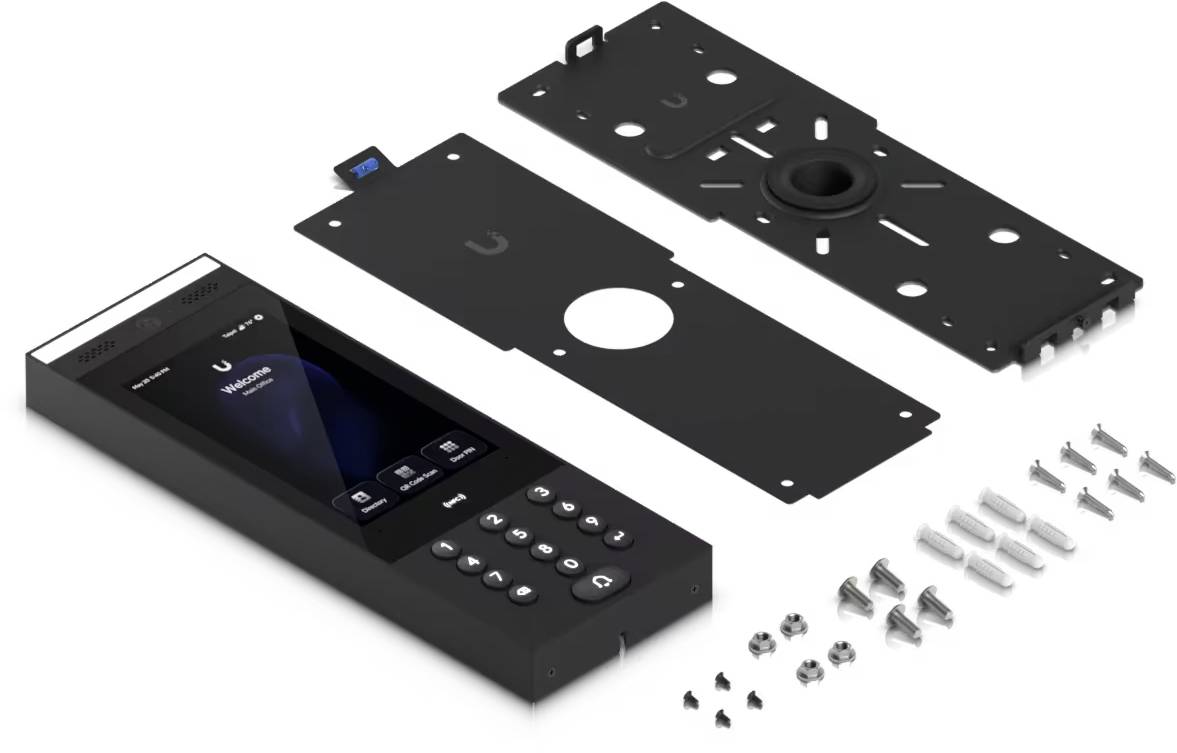

Exploded view of a black intercom or access-control unit, showing the touchscreen keypad device, front and back plates, mounting hardware, and screws.

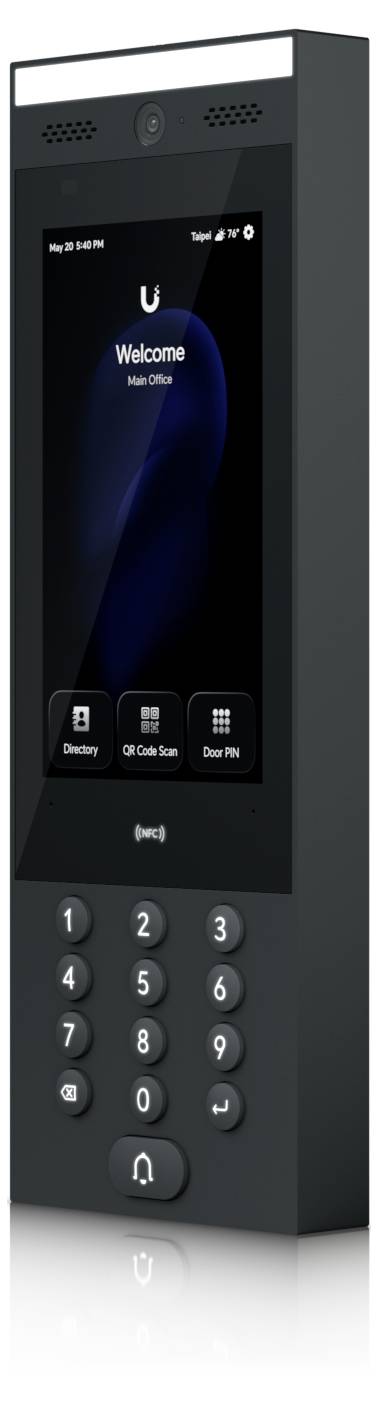

Tall black access control terminal with a touchscreen showing a welcome/login screen and keypad below, used for building entry authentication.

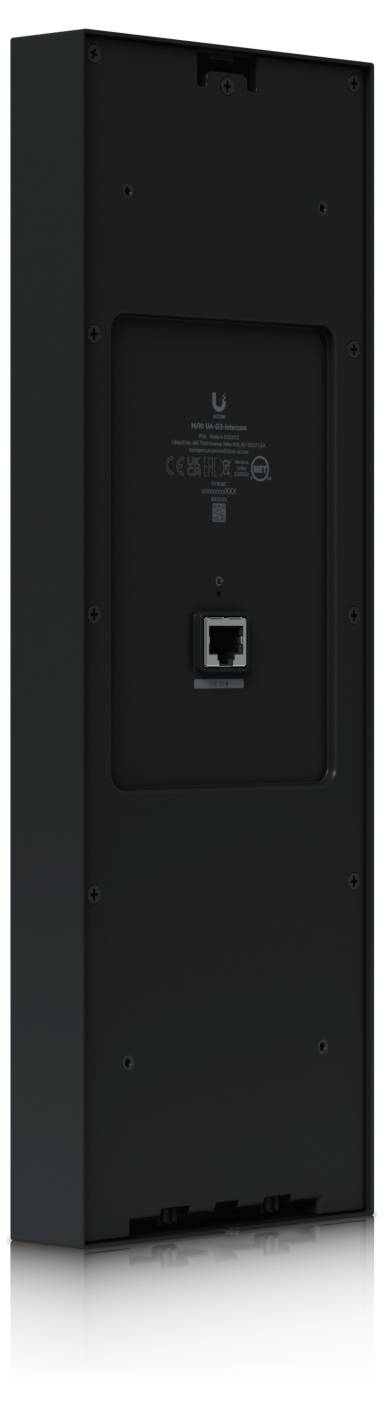

Back view of a black Ubiquiti wall-mounted network device with a centered Ethernet port and mounting panel.

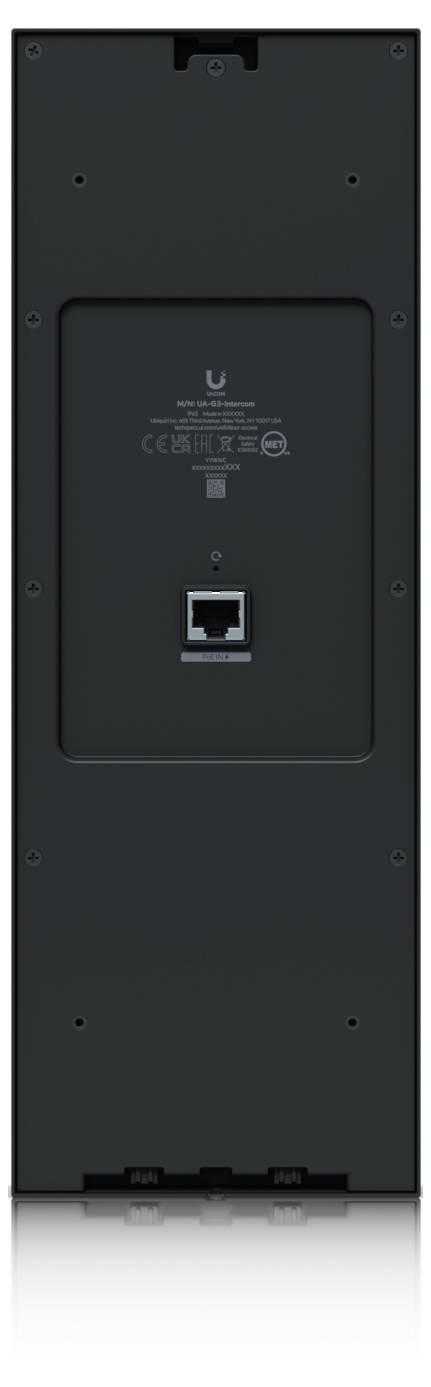

Rear view of a black electronic device panel with a central recessed area and a single Ethernet port near the bottom.

A tall, narrow dark gray vertical bar or pillar with a slight reflection at the bottom.

Dark folded fabric or a black jacket front with two small circular rivet-like details near the shoulders and a centered notch at the bottom.

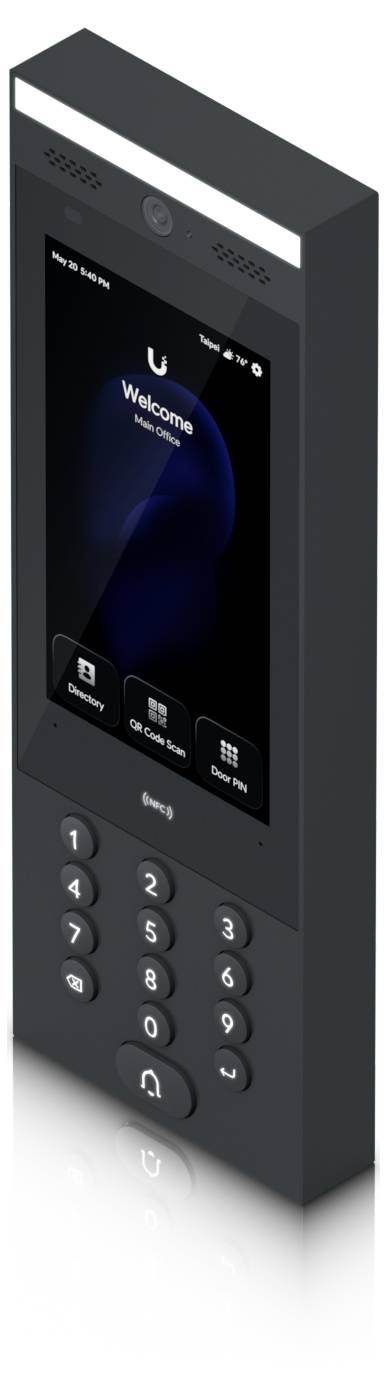

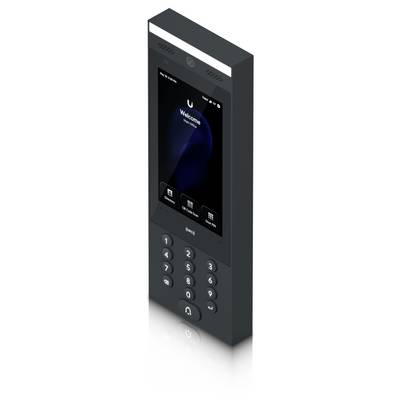

Black smart door access device with touchscreen showing 'Welcome' and a numeric keypad below for entering a code.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Ubiquiti G3 Intercom input control terminal black

Highlights & Details

Input control terminal
Access chip/card, Mobile APP, password, QR code Access code reader Access chip/Card reader
Built-in display 1024 x 600 pixels
NFC (Bluetooth) Power over Ethernet (PoE)

Technical specifications

RFID-reading distance 3 cm
Operating temperature: -30 to 60° C.

Product type: Video intercom

Component: Camera
Loudspeaker

Transfer type: Corded

Transmission frequency: 13,56 MHz

Surface mounting: Yes

Type: Input control terminal

Operating voltage: 48 V DC

Factory colour: Black

Power consumption: 13 W

Display type: Multi-touch

Screen size diagonal (cm): 17.7 cm

Screen size diagonal (inches): 7 inch

Length: 28.3 mm

Width: 113.7 mm

Height: 324.8 mm

Max. viewing angle hor.: 79.4°

Vertical viewing angle: 97.5°

Material (external): Aluminium alloy

Mounting type (outdoor): Wall

Dim: (L x W x H) 28.3 x 113.7 x 324.8 mm

Flush mounting: Yes

Bluetooth: 4.2

Bluetooth: Yes

Cable length: 0 cm

Depth: 28.3 mm

Display resolution: 1024 x 600 Pixel

: IP65

Keyboard layout: German, QWERTZ

Touchscreen (display): Yes

Material (details): Aluminium
Glass
Polycarbonate (PC)

NFC (Near field communication): Yes

10/100/1000 Mbps ports: 1 x

Input voltage: 48 V

Webcam: Yes

Weight: 965 g

UKCA: yes

Access code reader: yes

Access chip/card reader: yes

Operating temperature (T-T): -30 - 60 °C

Built-in speaker(s): yes

Mounting bracket(s) included: yes

Power over Ethernet (PoE): yes

Buzzer: yes

RFID frequency: 13.56 MHz

Operating relative humidity (H-H): 5 - 90 %

Keypad integrated: yes

Built-in display: yes

Power consumption (max): 13 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784709 Ubiquiti Networks UA-G3-INTERCOM Video intercom Corded 13,56 MHz Black

Description

Indoor and outdoor intercom for managing access requests to residential and business buildings with touch pass support.

This text is machine translated.

Scope of delivery

Input control terminal
Mounting and installation material
