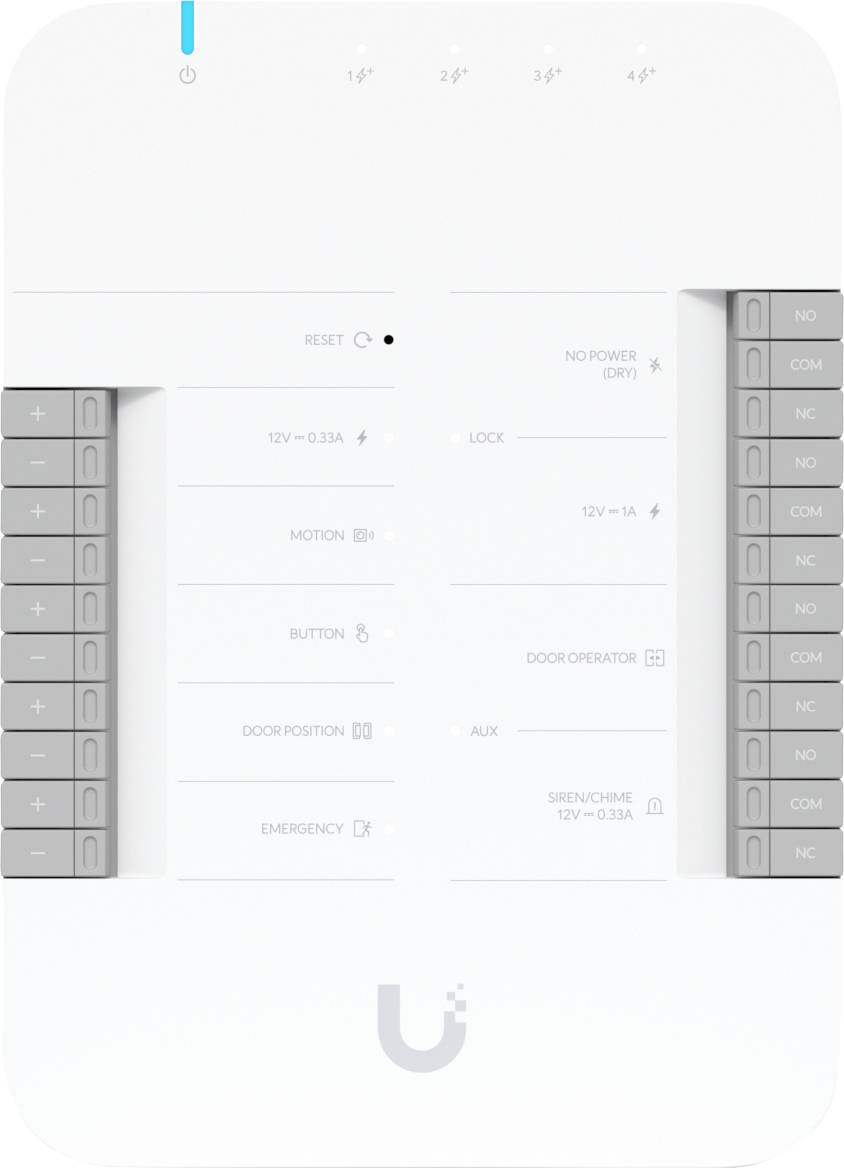

Wall-mounted white smart control panel with indicator lights and labeled buttons for reset, lock, motion, door position, emergency, no power, and auxiliary functions.

Wall-mounted white smart control panel with indicator lights and labeled buttons for reset, lock, motion, door position, emergency, no power, and auxiliary functions.

White modular organizer box with labeled compartments, shown with a dark sliding rail, screws, and wall anchors for mounting accessories.

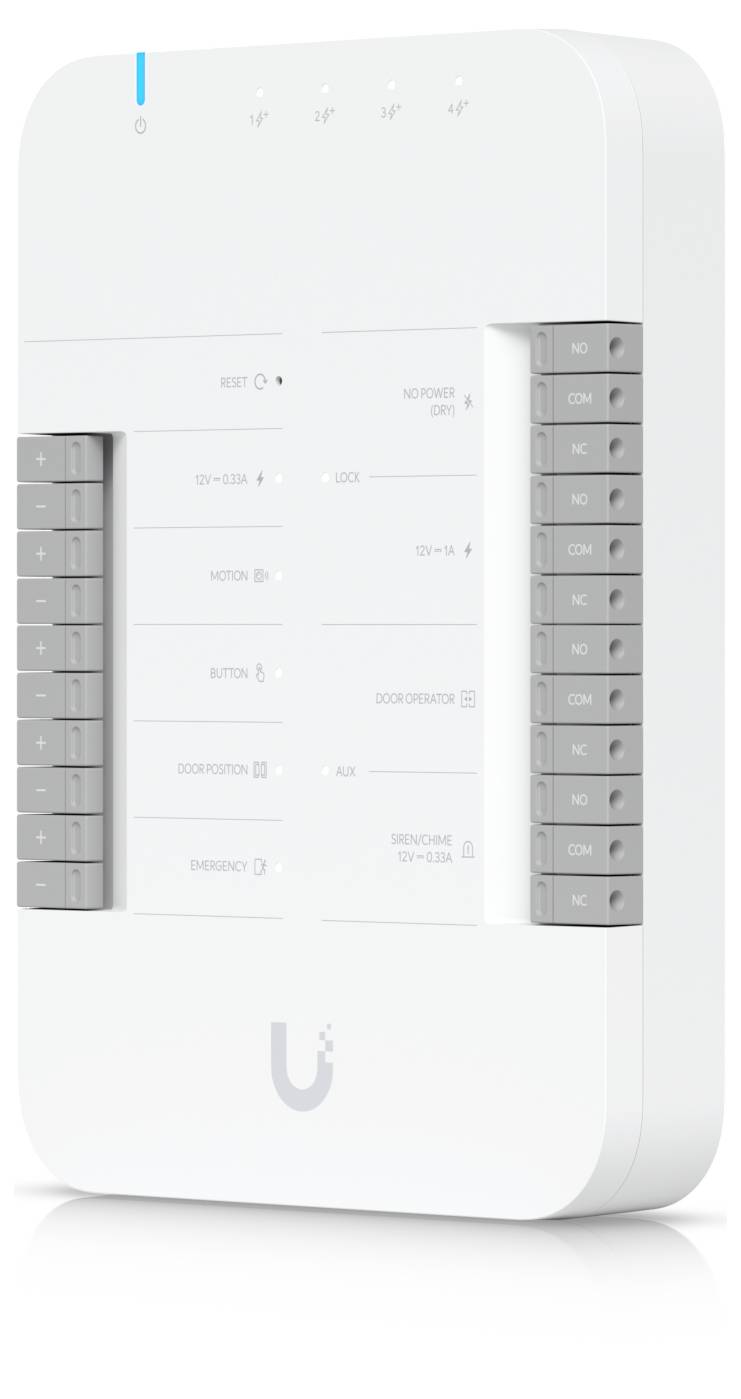

White Ubiquiti network controller with labeled gray side buttons and a blue status light on a wall-mounted device.

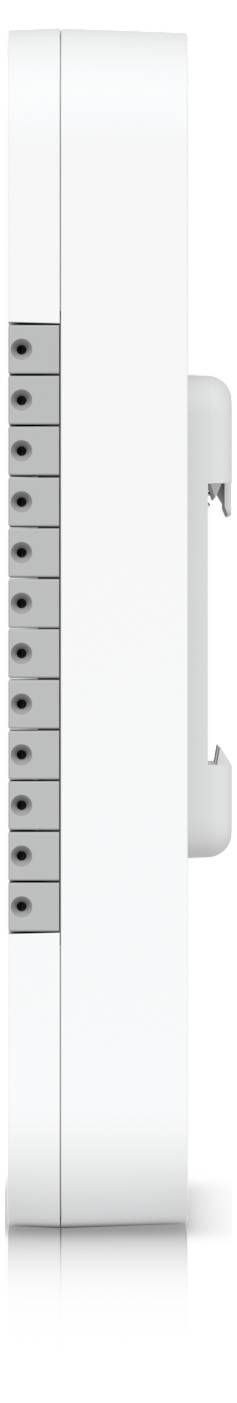

Slim white cabinet with a vertical column of several small gray drawers along the left edge and a side handle on the right.

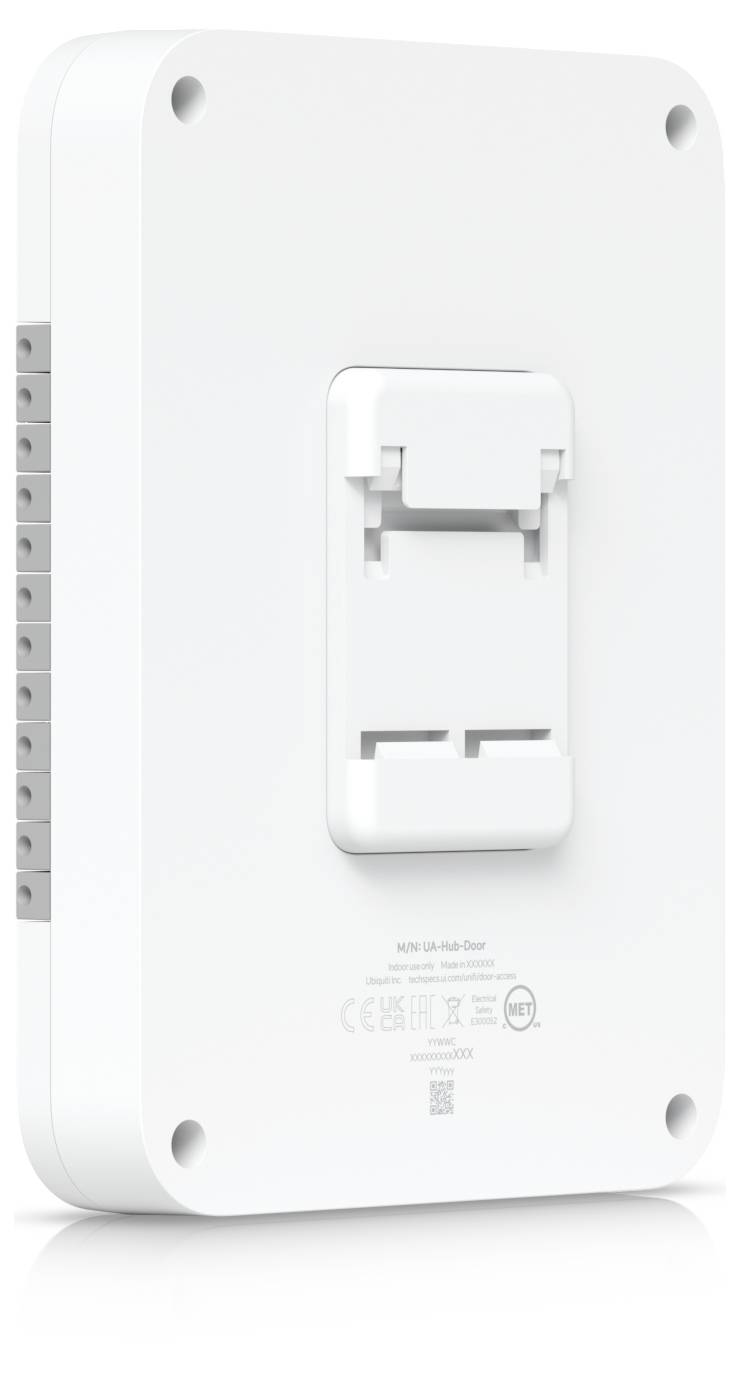

Back view of a white rectangular network device with mounting bracket and cable ports on the side, likely a wall-mounted access point.

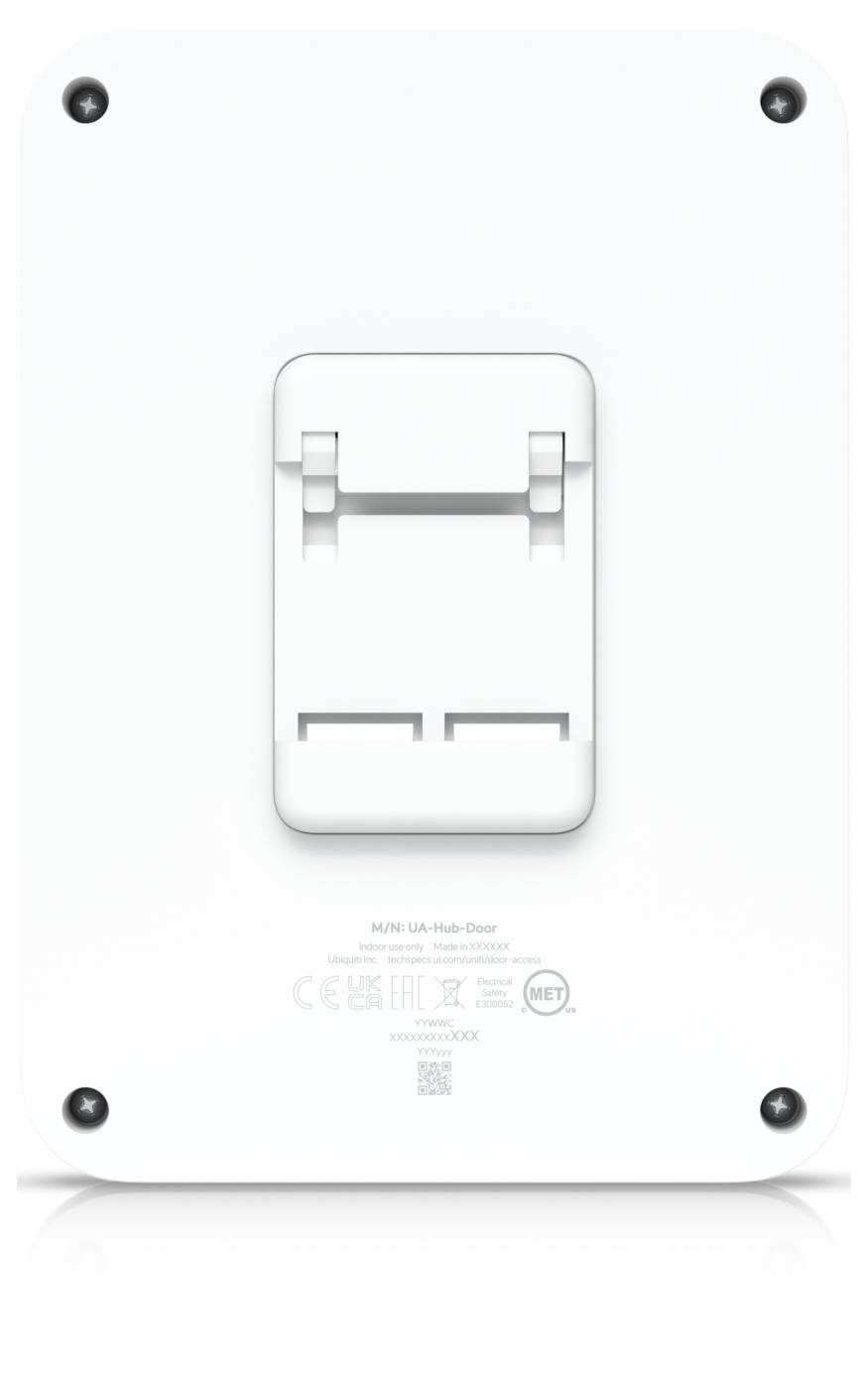

White wall-mounted device back panel with four corner screws and a central latch/bracket, likely a network or access point mounting plate.

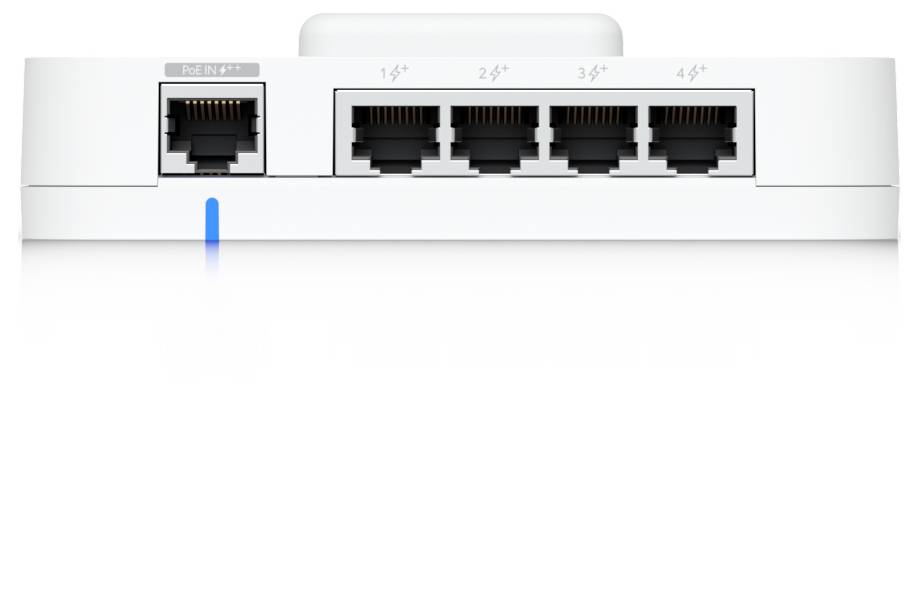

Rear view of a white network device showing one 'PoE IN' Ethernet port and four numbered Ethernet ports labeled 1–4, with a blue status light below.

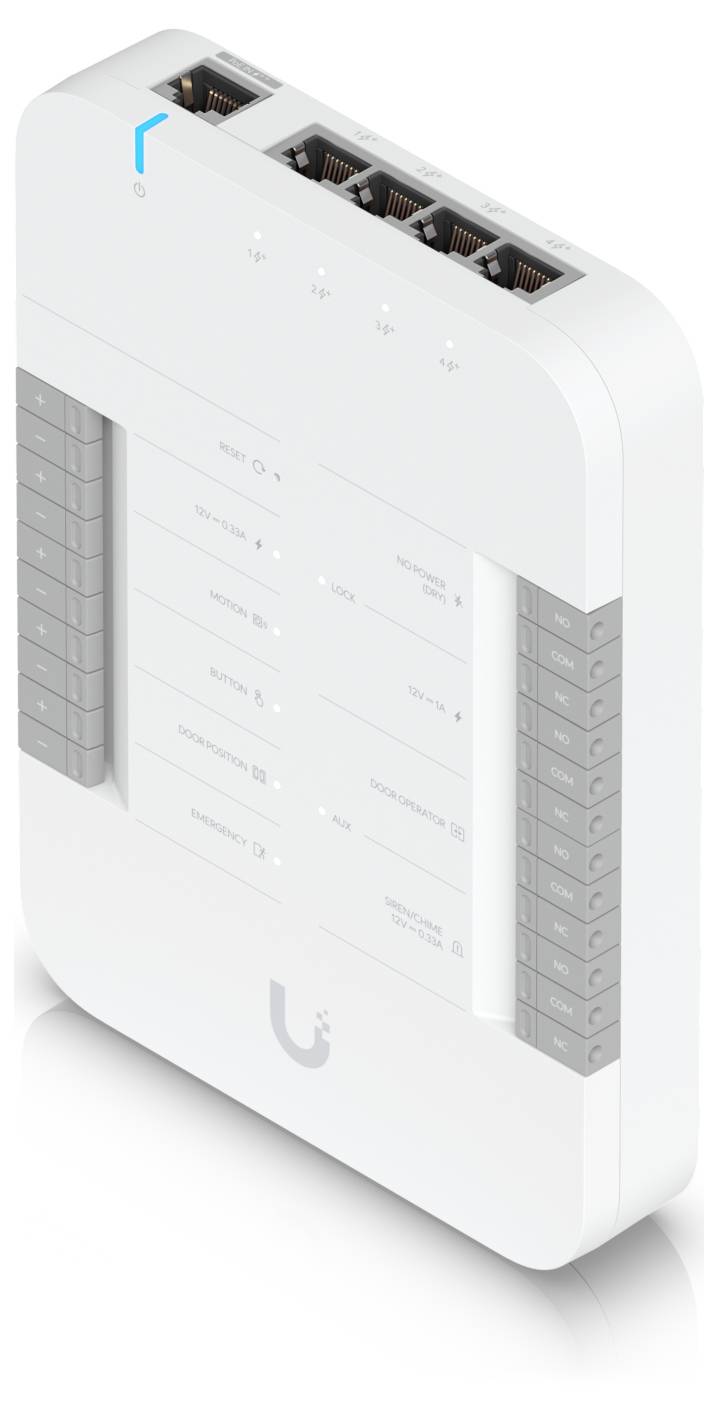

White wall-mounted smart home hub with four Ethernet ports and side connection panels, shown in a clean product render.

1/8

Ubiquiti Networks

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti access door hub security door operation 1 door(s) Ethernet

Maximum Number of doors: 1 door(s)
Interface: Ethernet
Ethernet / LAN
Operating temperature: 0 - 40 °C

Technical specifications

Maximum Number of doors: 1 door(s)
Interface: Ethernet

Product type: Door opener controller

Connections: Network: 5x 10/100/1000 Base-T Gigabit Ethernet ports
PoE: 1x PoE+ input (50 V DC, 1 A) and 4x PoE+ outputs (50 V DC, max. 30 W per port, max. 45 W total combined)
Input terminals (digital): 2x for exit requirement (door exit request), 1x for door position sensor, 1x emergency input (emergency)
Output relay: Dry output (lock & aux) and powered output (lock & 2x Aux)

Contact load capacity: Dry output relay: 30 V DC, 1 A (for both lock and Aux)
Powered output relay: 12 VDC, 1 A for the lock and 12 VDC, 0.33 A for the Aux ports

Weight: 363 g

Dim: (W x H x D) 126 x 174.9 x 32.9 mm

Width: 126 mm

Height: 174.9 mm

Depth: 32.9 mm

10/100/1000 Mbps ports: 5 x

Power consumption (ON): 30 W

UKCA: yes

Exit request: yes

Operating temperature (T-T): 0 - 40 °C

Ethernet LAN: yes

Operating relative humidity (H-H): 5 - 90 %

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784711 Ubiquiti Networks UA-HUB-DOOR Door opener controller

Description

A single door mechanism that provides a complete input and exit control via connected access readers.

This text is machine translated.

Scope of delivery

Door control unit (door access controller)
