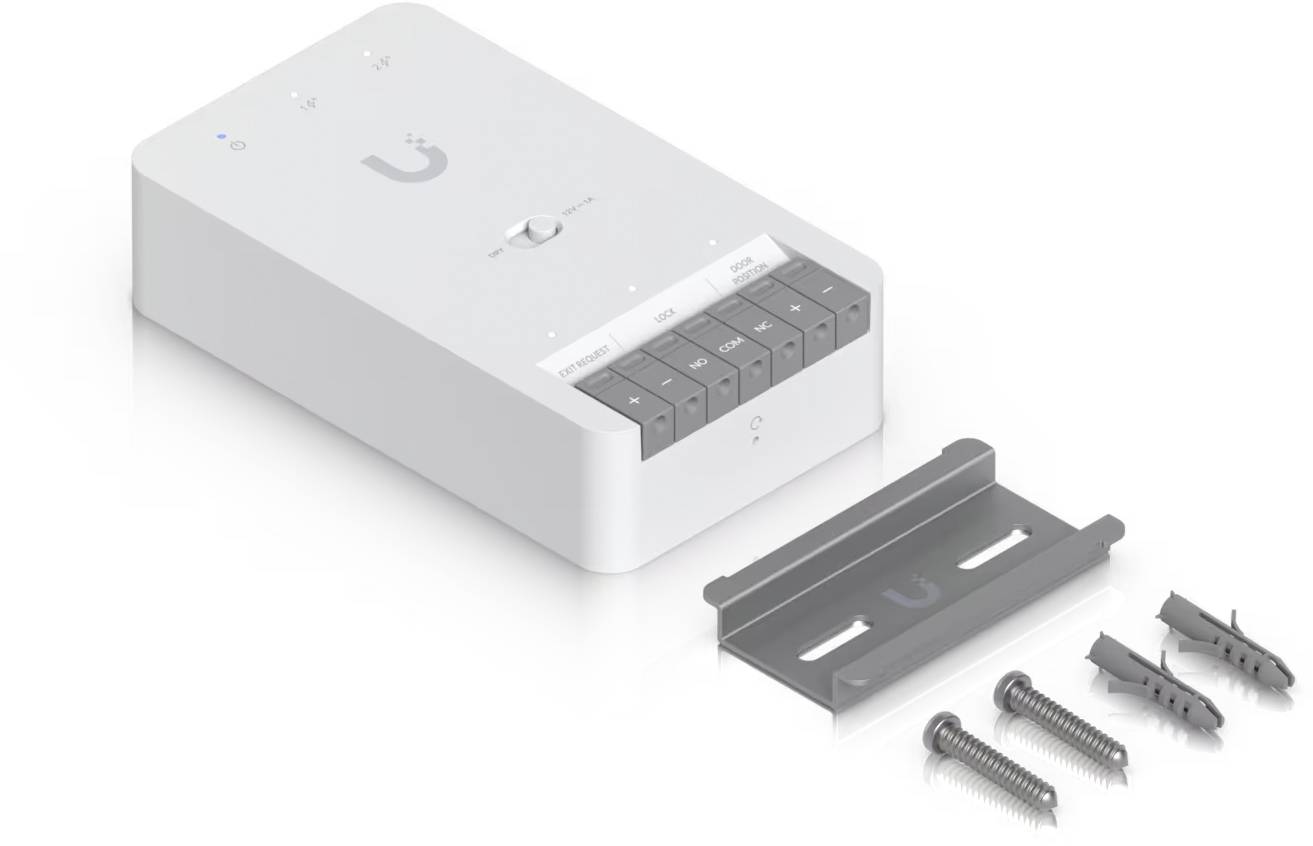

White smart device or projector with mounting bracket, screws, and wall anchors shown as installation kit.

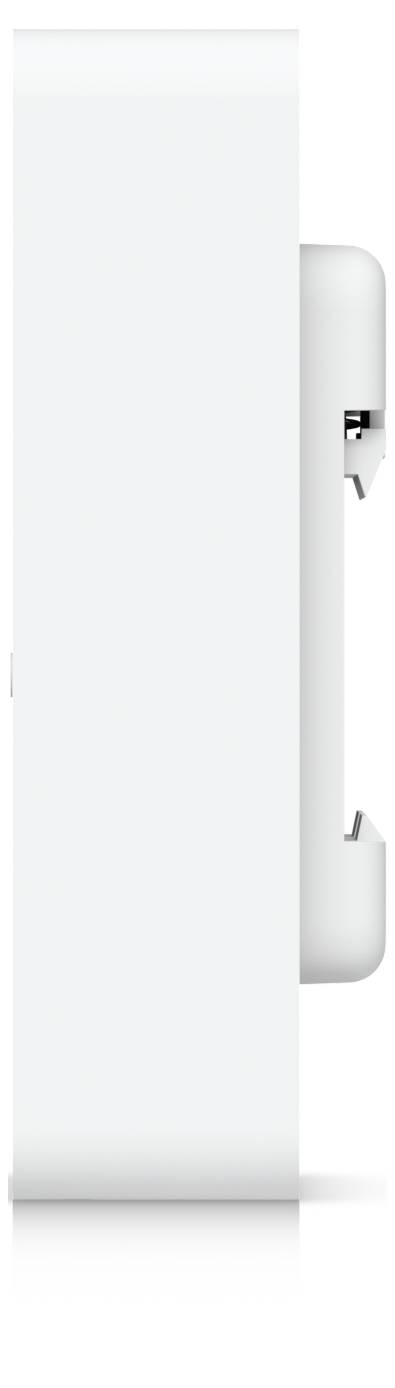

White wall-mounted rectangular device shown in side view, with mounting clips visible on the right and a slight shadow below.

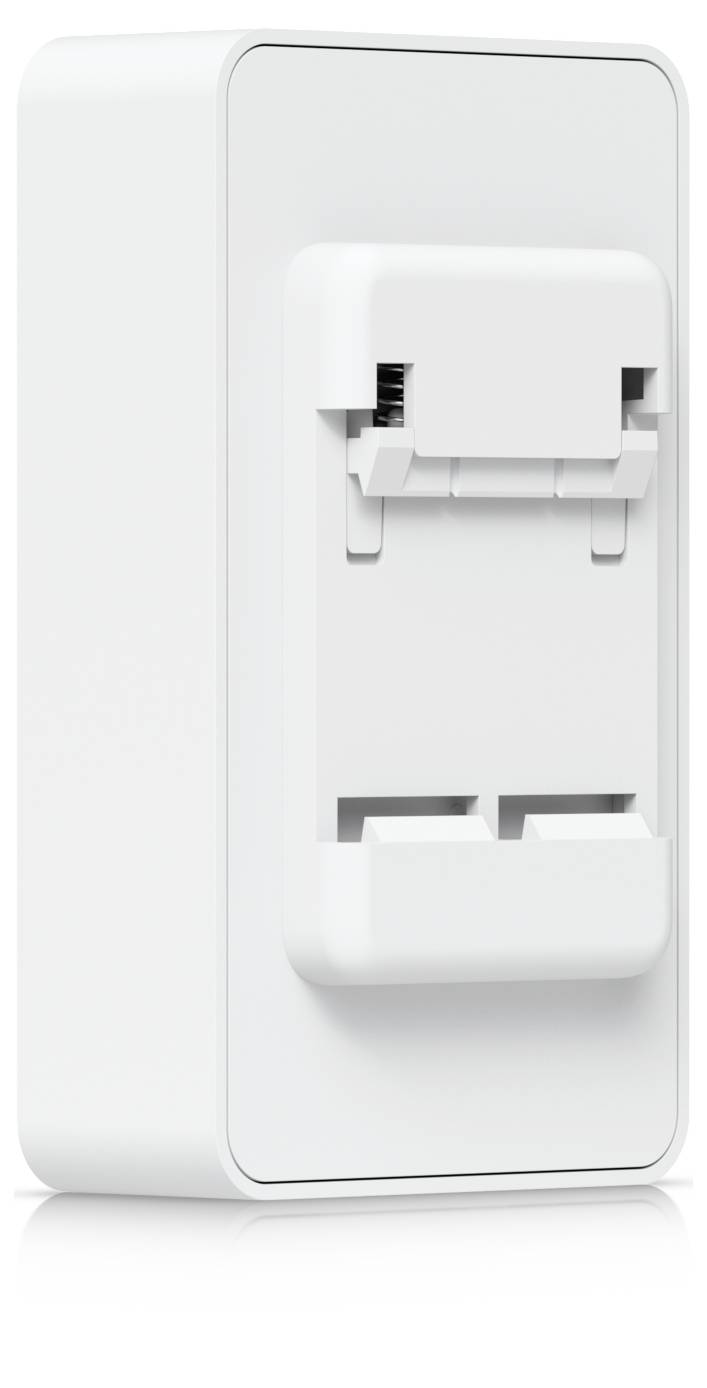

White wall-mounted electrical outlet or switch plate with two stacked receptacle openings and a central cover, shown on a plain background.

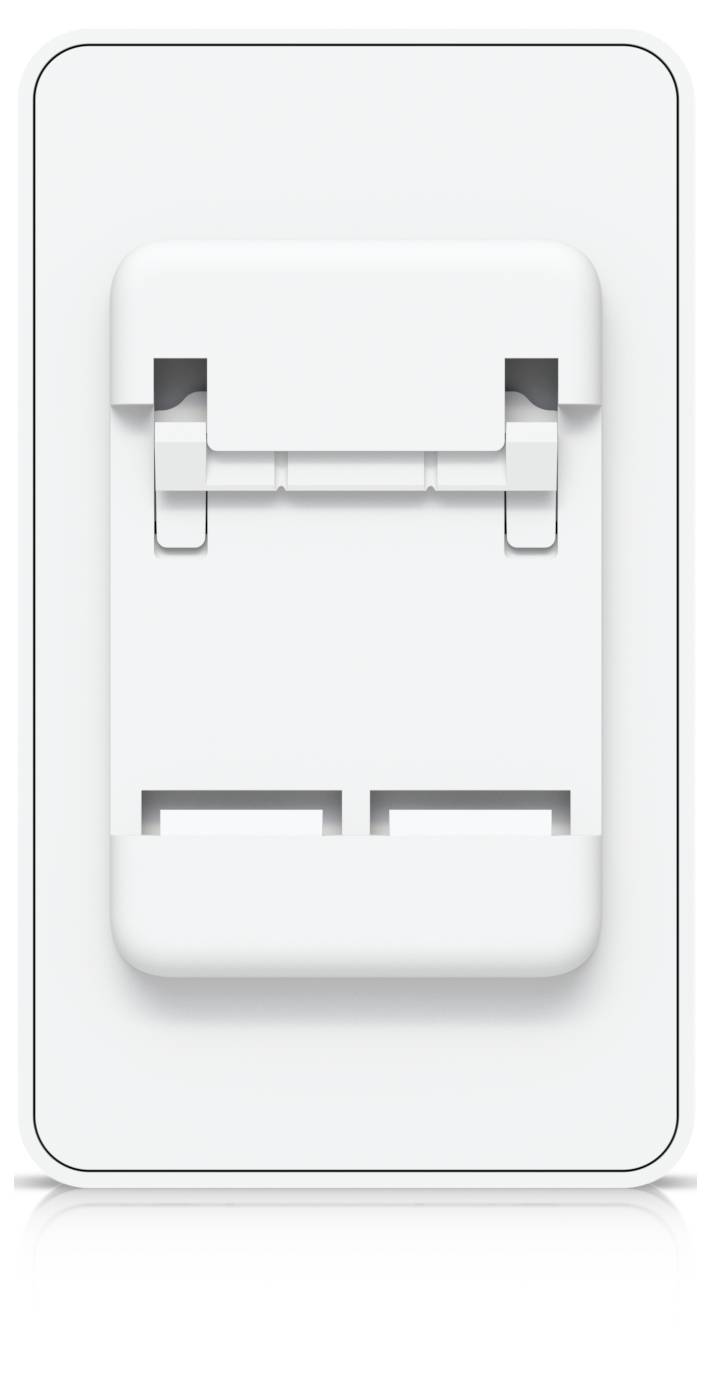

White electrical wall outlet cover with a raised protective panel and two lower openings, shown on a light gray background.

White network adapter or switch panel with three Ethernet ports labeled PoE in and 1, 2 for Power over Ethernet connections.

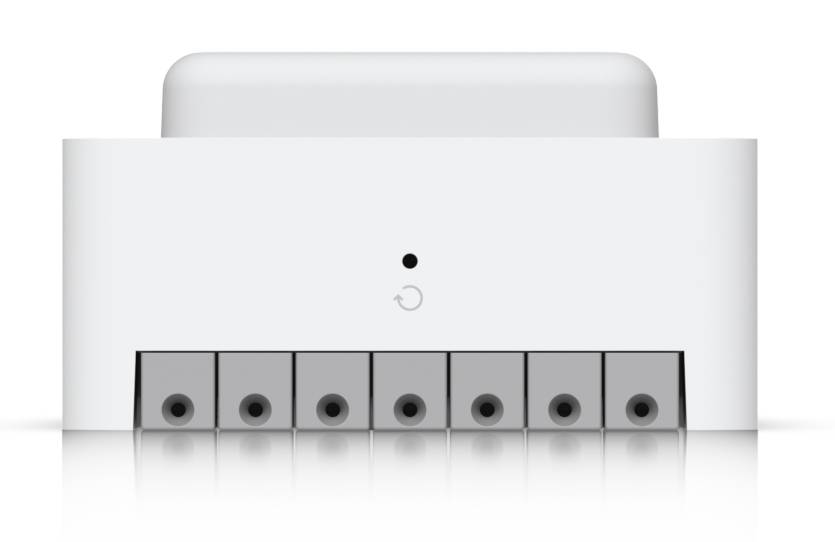

White wall-mounted device with a row of seven circular ports and a small status light on the front.

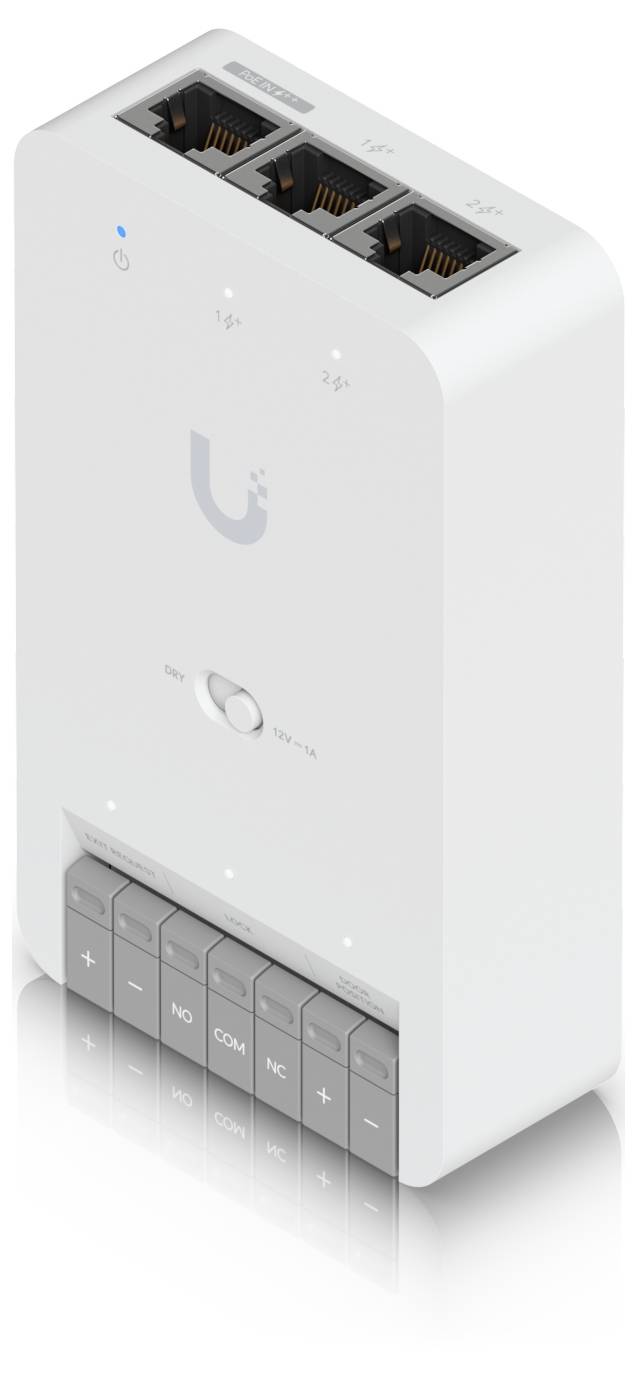

White wireless router with three Ethernet ports, a front power indicator, and integrated gray keypad buttons near the bottom.

1/9

Ubiquiti Networks

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti door hub mini safety-door operation 1 door(s) Ethernet

Maximum Number of doors: 1 door(s)
Interface: Ethernet
Ethernet / LAN
Operating temperature: -10 to + 40 °C.

Technical specifications

Maximum Number of doors: 1 door(s)
Interface: Ethernet

Product type: Door opener controller

Connections: Network: 3x Gigabit Ethernet RJ45 ports (GbE)
PoE: 1x PoE+ input (50 V DC, 1 A) and 2x PoE+ outputs (50 V DC, max. 30 W per port, max. 45 W total combined)

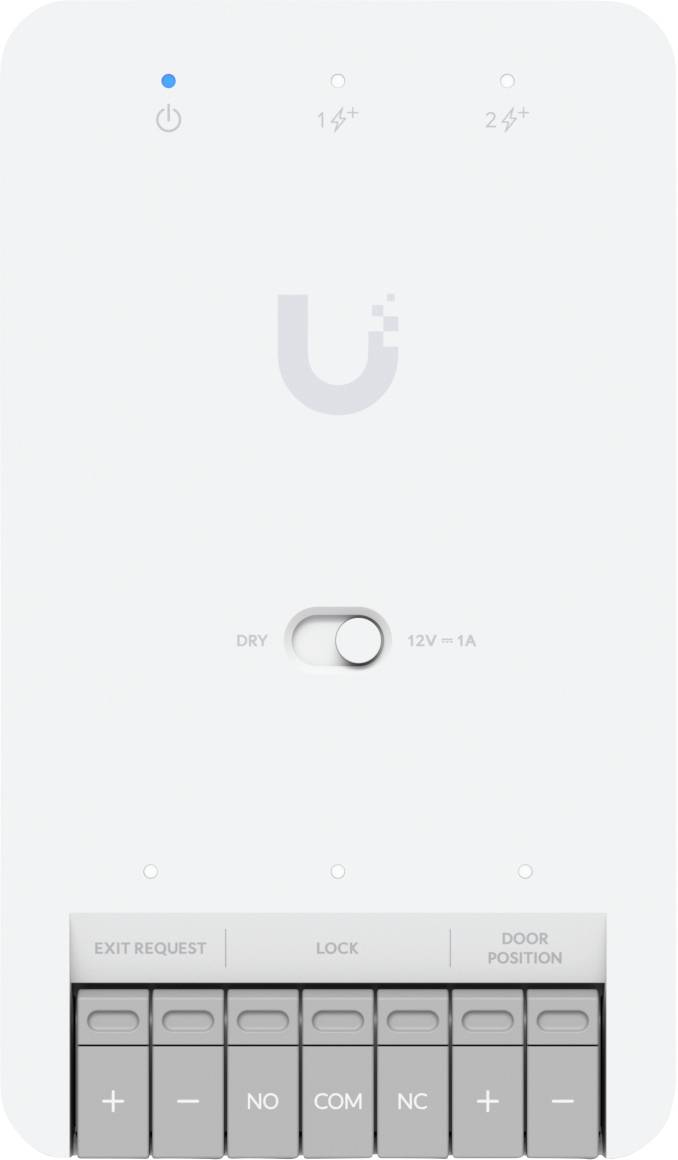

Input terminals (digital): 1x for exit request (door exit request) and 1x for a door position sensor
Output relay: Dry output relay and wet output relay

Contact load capacity: Dry output relay 30 V DC, 1 a
Wet output relay 12 V DC, 1 A

Weight: 190 g

Dim: (W x H x D) 66 x 113 x 27.6 mm

Factory colour: Multicolour

Width: 66 mm

Height: 113 mm

Depth: 27.6 mm

Screen size diagonal (inches): 1 inch

10/100/1000 Mbps ports: 3 x

UKCA: yes

Exit request: yes

Operating temperature (T-T): -10 - 40 °C

Ethernet LAN: yes

Operating relative humidity (H-H): 5 - 90 %

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784712 Ubiquiti Networks UA-HUB-DOOR-MINI Door opener controller

Description

Compact access control hub for a single door.

This text is machine translated.

Scope of delivery

Door control unit Mini
