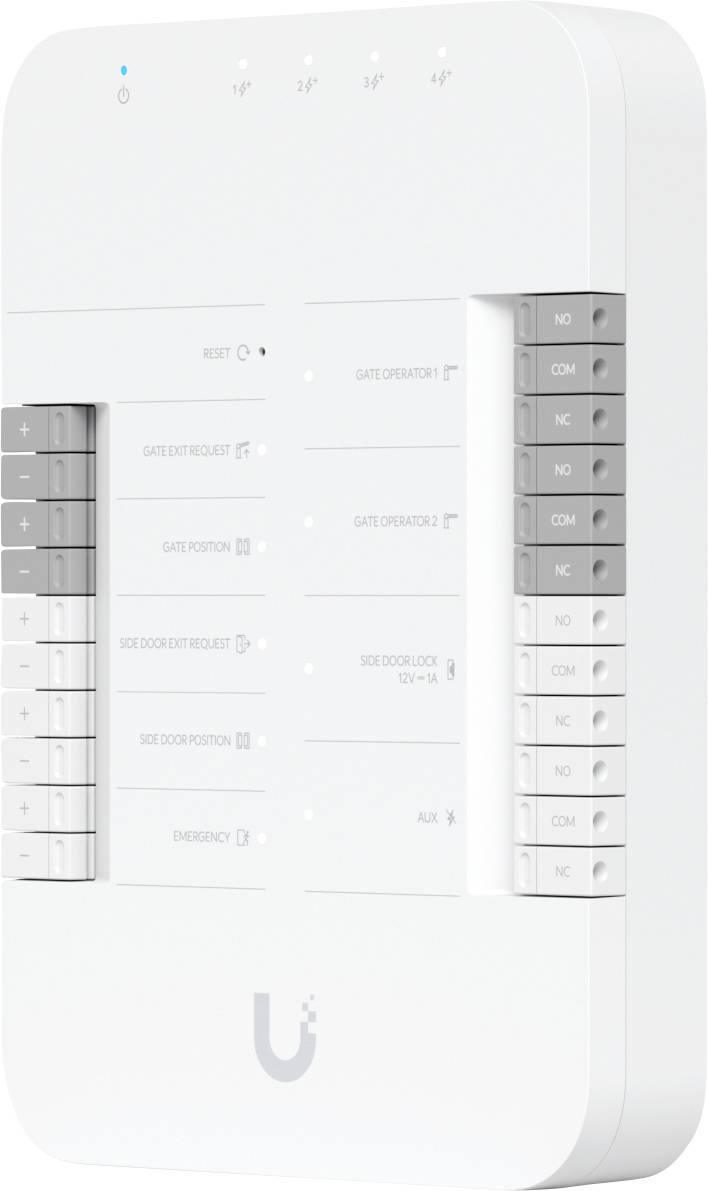

White wall-mounted smart home control panel with touch sliders and labeled buttons for lighting, temperature, and security.

White wall-mounted organizer with sliding gray dividers, shown with a mounting bracket, screws, and wall anchors.

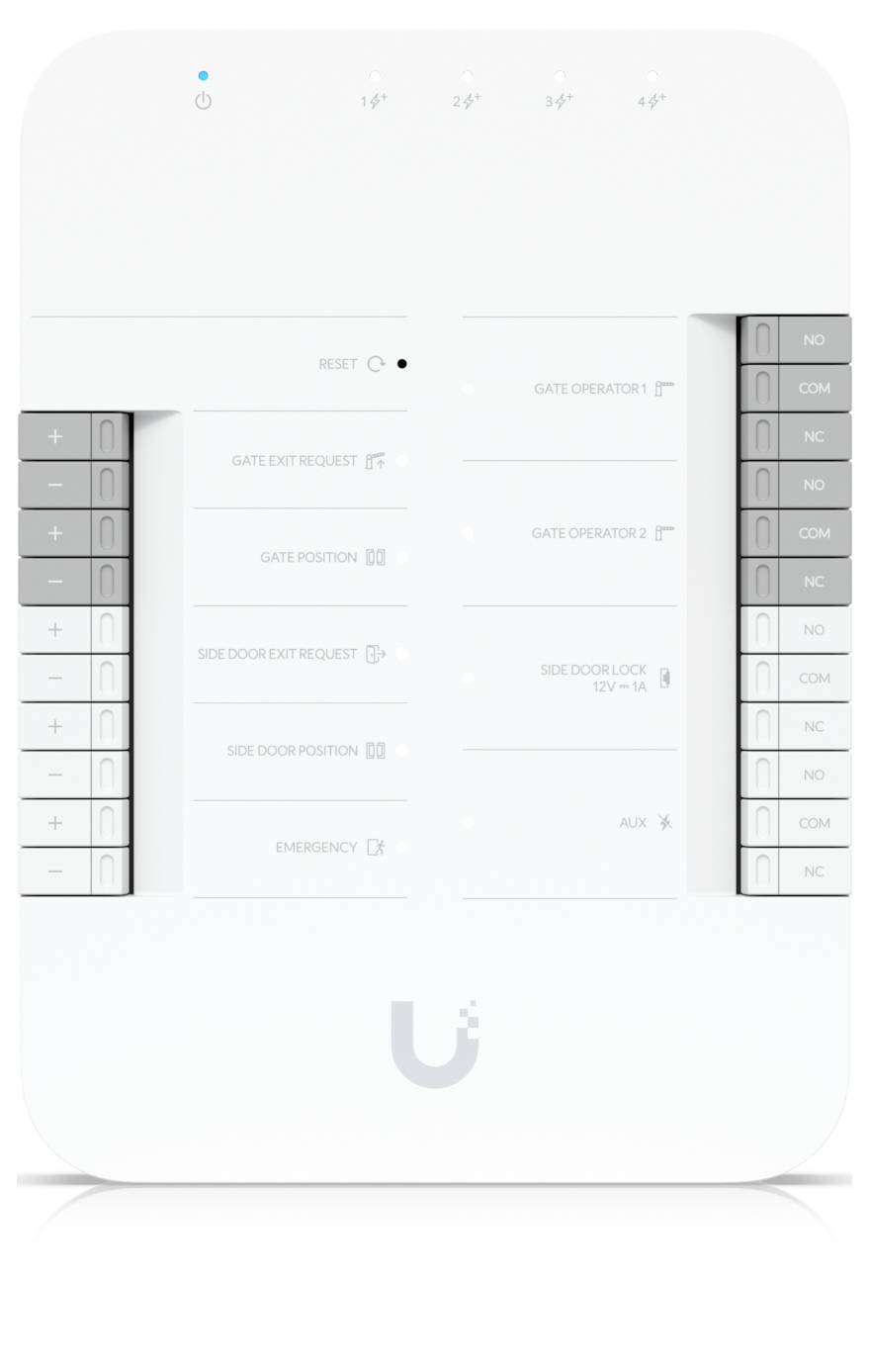

White wall-mounted intercom/access control panel with labeled terminal connectors and status LEDs, including reset, gate, side door, emergency, and auxiliary functions.

Tall white wall-mounted cabinet with a narrow left-side column of stacked drawers, each with a round knob, shown in side view on a plain background.

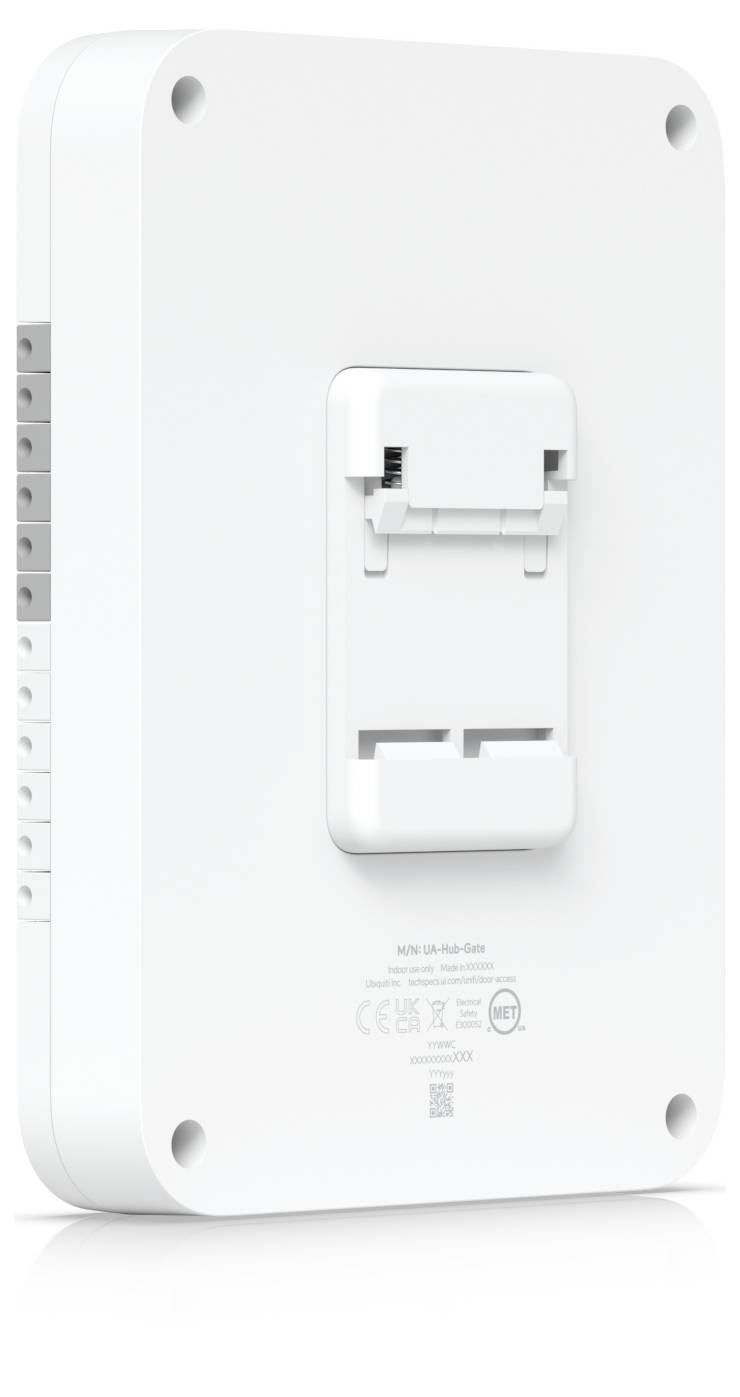

Back of a white rectangular wall device with four corner screw holes, a central mounting clip, and side connection ports.

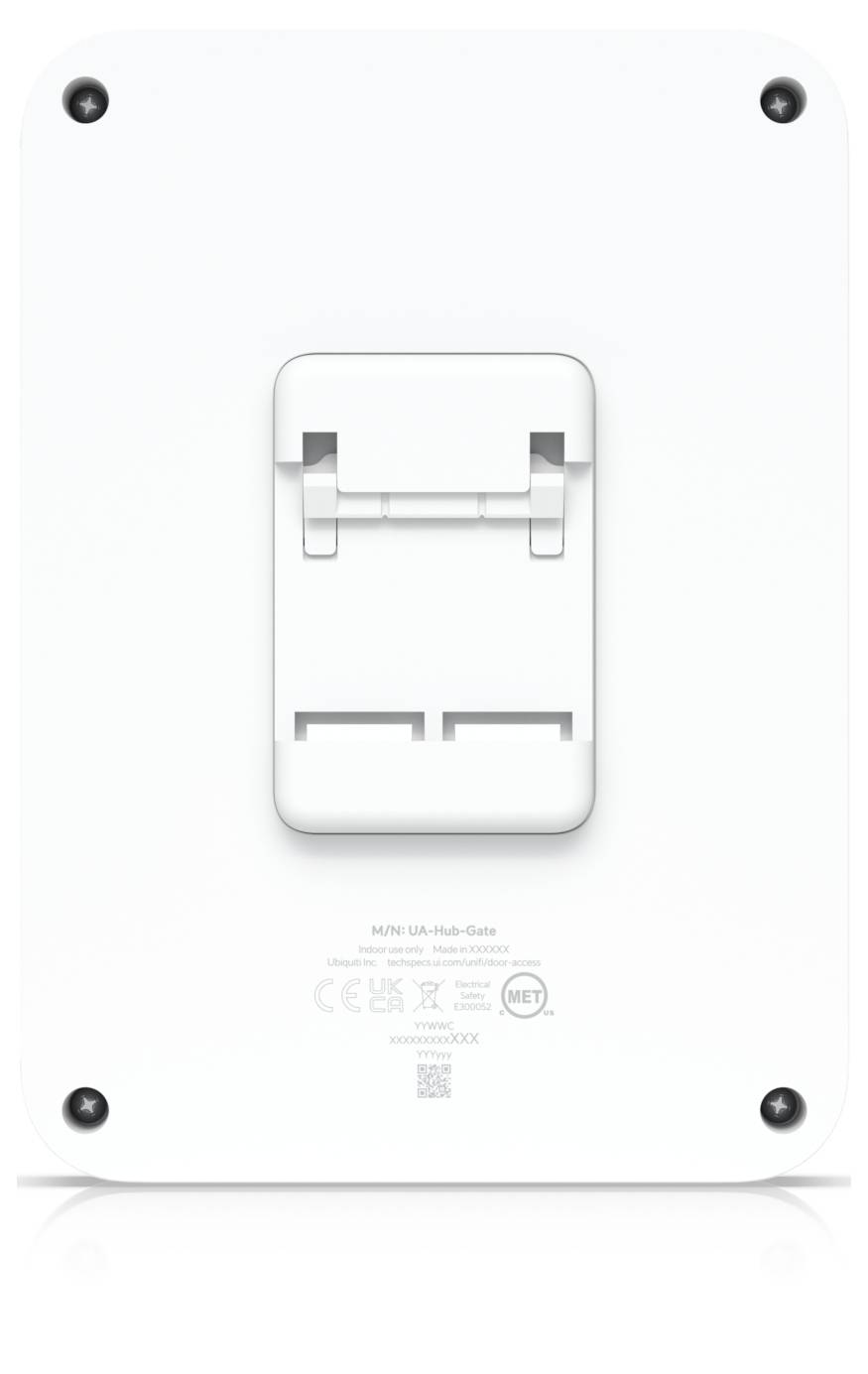

Back view of a white wall-mounted electronic device with a central bracket and four corner screws.<br>

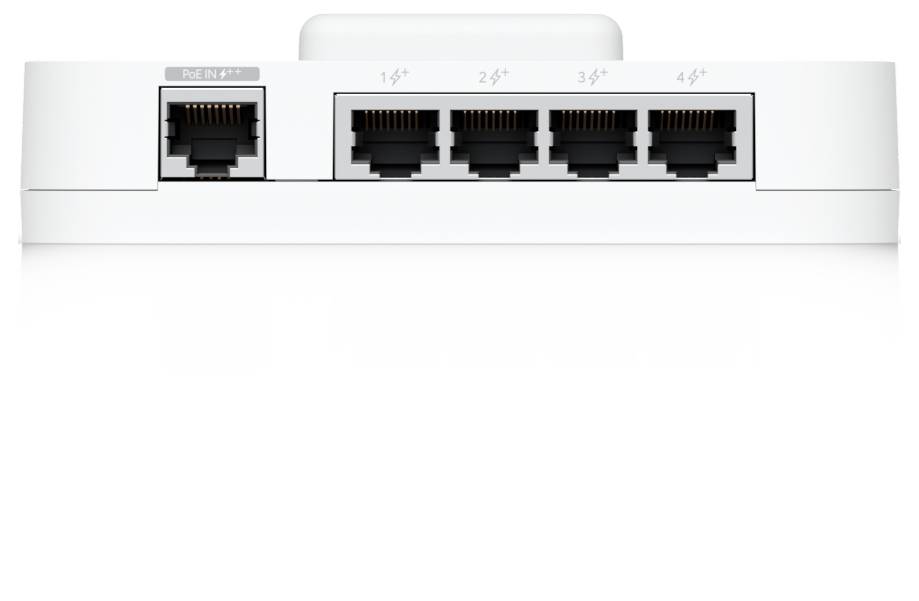

Front view of a network device showing one PoE IN Ethernet port and four numbered Ethernet ports on a white casing.

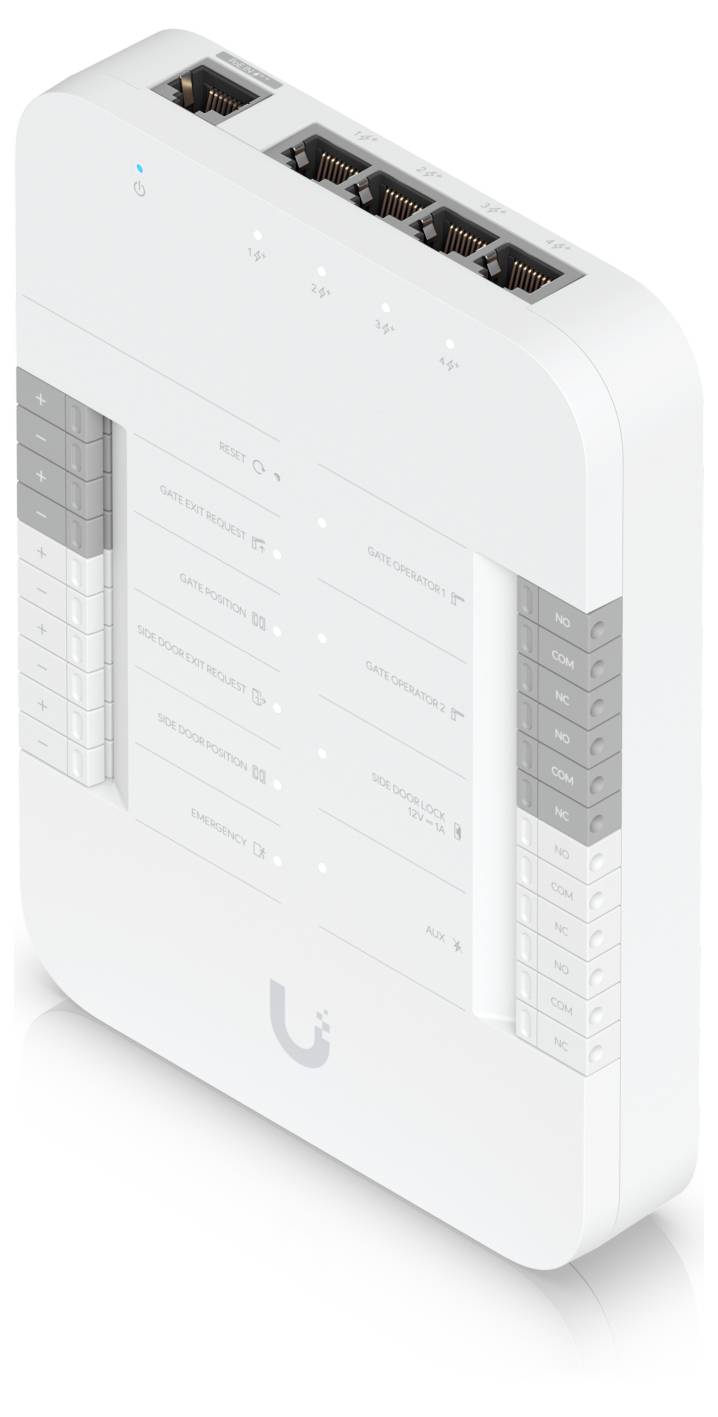

White Ubiquiti network switch with multiple Ethernet ports, shown in angled product view with front status lights and side port indicators.

1/8

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Ubiquiti gate hub security door operation at home Ethernet

Design: Housing
Interface: Ethernet
Ethernet / LAN
Operating temperature 30 °C - 60 °C
PoE++

Technical specifications

Interface: Ethernet

Factory colour: White

Depth: 26 mm

Height: 175 mm

Width: 126 mm

10/100/1000 Mbps ports: 5 x

Connections: Network: 5x 10/100/1000 Base-T Gigabit Ethernet ports
PoE: 1x PoE+ input (50 V DC, 1 A) and 4x PoE+ outputs (50 V DC, max. 30 W per port, max. 55 W total combined)
Input terminals (digital): 1x gate exit request, 1x gate exit position, 1x side door exit request, 1x side door exit request, 1x side door position, 1x emergency input (emergency)
Output relays: Dry output relay (2x for operator, 1x for Aux) and powered output relay (for side door lock)

Contact load capacity: Dry output relays (Operator and Aux): 30 VDC, up to 1 A.
Powered Output Relay (side door lock): 12 VDC, up to 1 A

Weight: 460 g

UKCA: yes

Built-in UPS: no

Exit request: yes

Operating temperature (T-T): -30 - 60 °C

Ethernet LAN: yes

Number of built-in relays: 3

Operating voltage: 50 V

Operating relative humidity (H-H): 5 - 90 %

Operating current: 1 A

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3784713 Ubiquiti Networks UA-HUB-GATE Control unit

Description

An advanced gate hub, which enables a seamless access control to the door via attached access reader or an intercom system.

This text is machine translated.

Scope of delivery

Control unit for access and gate systems
