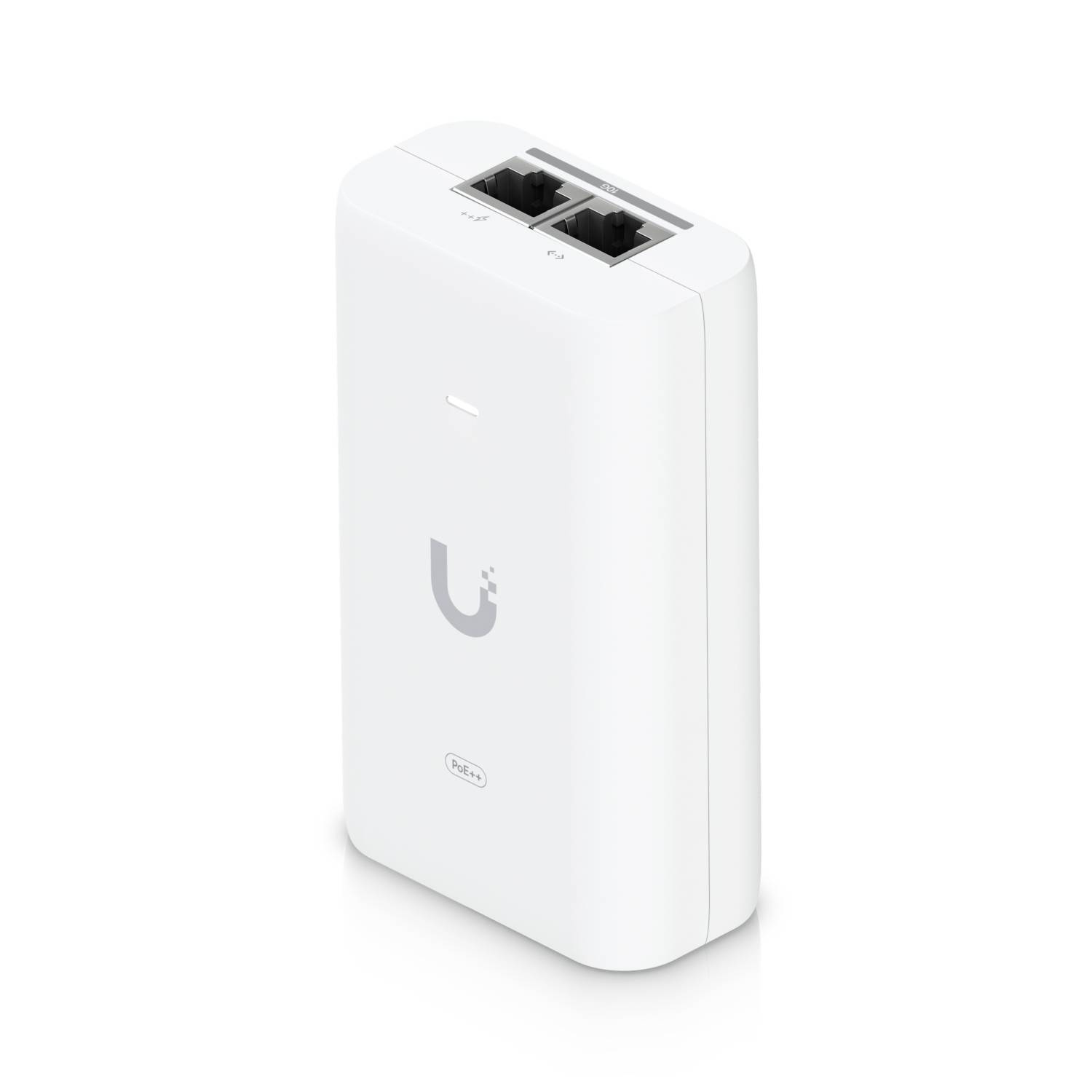

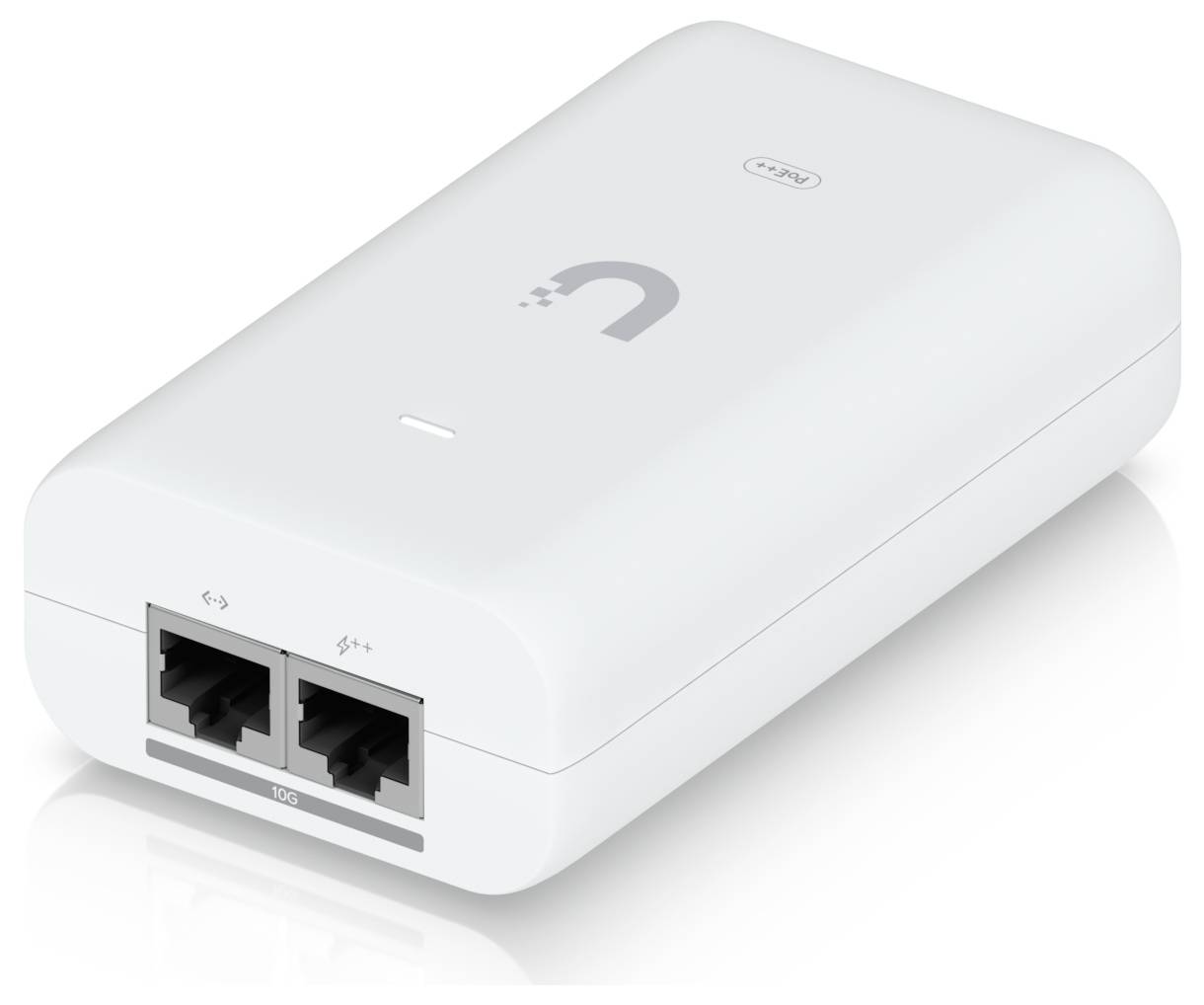

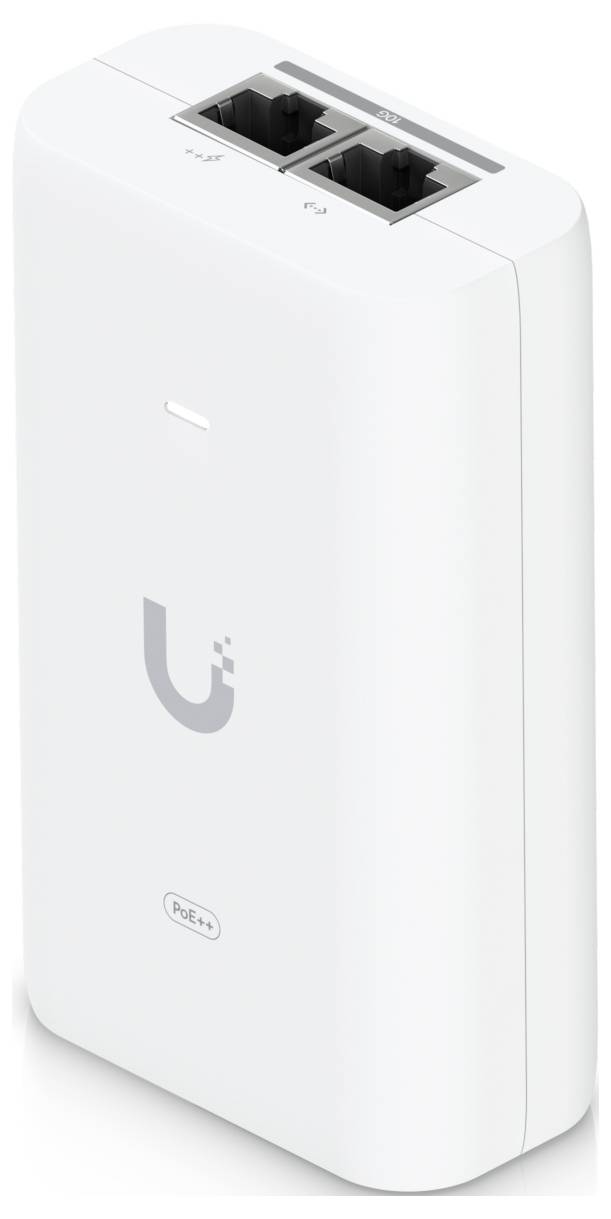

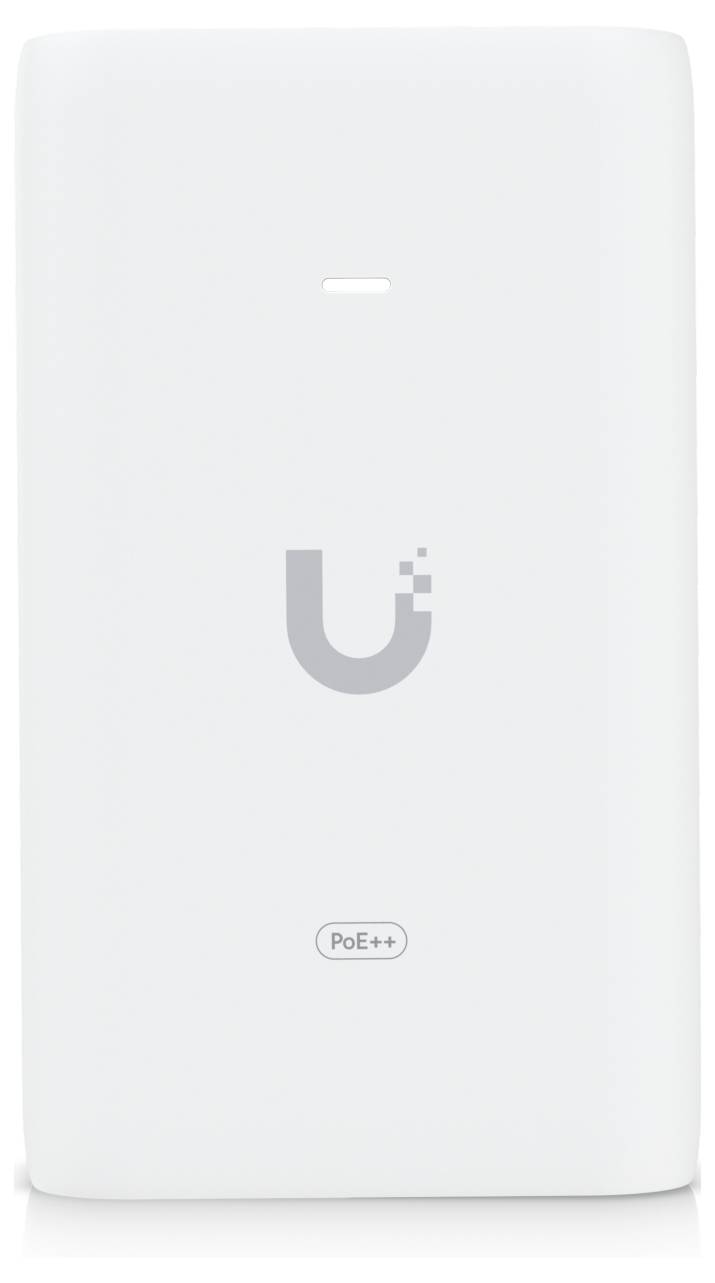

Ubiquiti Networks UACC-PoE++-10G Adapter
EAN:
Part number:
Item no:
Highlights & Details
Ubiquiti UACC-PoE+-10G 10 gigabit Ethernet 54 V
- 10,100,1000,10000 Mbit/s
- Power over Ethernet (PoE)
- White
Technical specifications
- Product type
Adapter
- Width
63 mm
- Height
106 mm
- Length
150 cm
- Depth
34 mm
- Factory colour
White
- Max. output current
1.12 A
- 10/100/1000 Mbps ports
2 x
- Weight
210 g
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- Total Power over Ethernet (PoE) budget
60 W
- Wall mountable
yes
- Operating temperature (T-T)
32 - 104 °F
- Power over Ethernet (PoE)
yes
- Inrush current
150 A
- Power over Ethernet (PoE) voltage
54 V
65 kHz
2 %
5 %
1 ns
- Number of products included
1 Stück(e)
- Efficiency
88 %
- Operating relative humidity (H-H)
10 - 95 %
- Storage temperature (T-T)
-30 - 70 °C
- Surge protection
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730674 Ubiquiti Networks UACC-PoE++-10G Adapter
Description
The Ubiquiti Unifi UACC-POE++-10G is designed to provide Power over Ethernet (PoE++) in a compact external form factor. This PoE injector supports 10 gigabit LAN connections and thus ensures fast data transfer and power supply for devices. With an output power of 60 watt and an efficiency of 88 %, it is in a position to supply several devices with power and at the same time remain energy-efficient. Its rugged design features RJ45 shielded connections that improve network integrity and meet various standards, including UL and FCC.
The unit is designed for reliable operation, works effectively in a temperature range from 0°C to 40°C and can withstand humidity levels from 10 to 95%. In addition, the LED displays provide real-time monitoring of device status, while surge protection protects against current surges. Thus it is a solution for the connection and power supply of different network devices in private as well as commercial environments.
