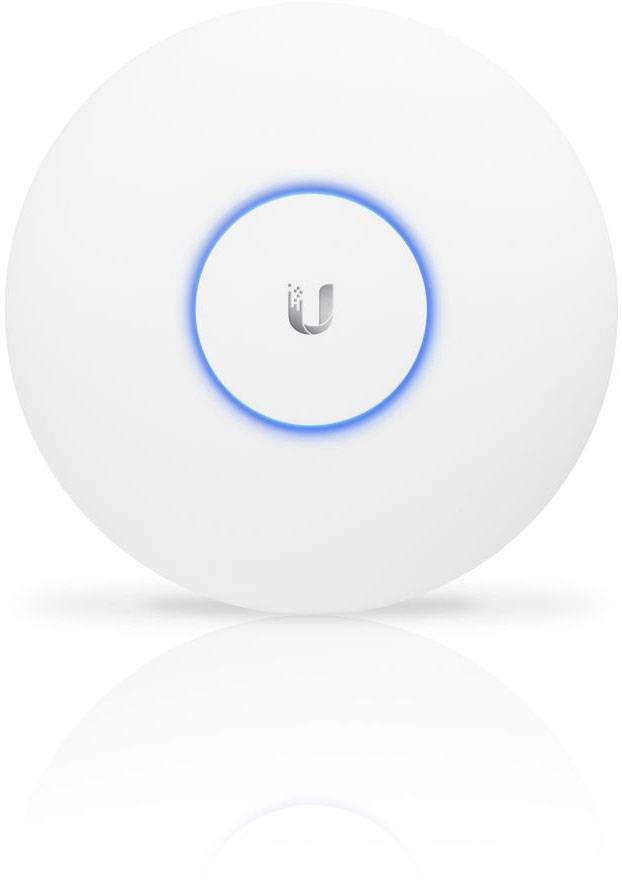

Ubiquiti Networks UAP-AC-SHD UAP-AC-SHD Single case Wi-Fi access point 2.4 GHz, 5 GHz
EAN:
Part number:
Item no:
UbiQuiti Networks UAP-AC-SHD 1000Mbit/s Power over Ethernet (PoE) support White WLAN Access Point
Highlights & Details
- High-density Unifi access point, 4x4 MU-MIMO
- Antennas: 2.4 GHz - (2) antennas, each 3 dBi / 5 GHz - (2) antennas, each 4 dBi
Technical specifications
- Product type
Wi-Fi access point
- Type
UAP-AC-SHD
- Kit
Single case
- Dual Band compatibility
2.4 GHz and 5 GHz
- Wi-Fi standard
IEEE802.11a
IEEE802.11ac
IEEE802.11b
IEEE802.11g
IEEE802.11n
- Wi-Fi frequency band
2.4 GHz
5 GHz
- LAN data transfer rate
1000 MBit/s
- No. of USB type A 3.0 ports
1 x
- No. of USB 3.0 ports
1 x
- Interfaces
USB C®
Wi-Fi 5 (IEEE 802.11ac)
Gigabit LAN (1 Gbps)
- No. of LAN ports
2 x
- No. of Gigabit LANs
2 x
- Power supply (LOV)
Power over Ethernet (PoE)
- Width
220 mm
- Height
220 mm
- Depth
48.1 mm
- PoE
Passive
- Cable length
0 cm
- Keyboard layout
German, QWERTZ
- Weight
1.72
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1880608 Ubiquiti Networks UAP-AC-SHD UAP-AC-SHD Single case Wi-Fi access point 2.4 GHz, 5 GHz
Description
Unifi Wave 2 high density 802.11ac Unifi access point, 4x4 MU-MIMO
POE injector included
Wave 2 802.11ac Unifi High-Density, 4x4 MU-MIMO Access Point with dedicated security radio and BLE to support intrusion detection/prevention, real-time Airtime Alysis and performance optimization, continuous spectrum monitoring & channel customization + customer location estimation & tracking
This text is machine translated.
POE injector included
Wave 2 802.11ac Unifi High-Density, 4x4 MU-MIMO Access Point with dedicated security radio and BLE to support intrusion detection/prevention, real-time Airtime Alysis and performance optimization, continuous spectrum monitoring & channel customization + customer location estimation & tracking
This text is machine translated.
Features
- Dimensions: 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
- Weight: 700 g (1.54 lb)
- Network interface: (2) 10/100/1000 Ethernet ports (can be aggregated)
- Port: (1) USB 3C connection
- Buttons: Reset
- Power method: Passive current via Ethernet (48V), 802.3at is supported / (supported voltage range: 44 to 57VDC) Injector not included
- Power supply: 48V, 0.5A PoE Gigabit adapter*
- Energy saving: Supported
- Maximum power consumption: 17W
- Maximum transmission power: 2.4 GHz - 25 dBm / 5 GHz - 25 dBm
- Antennas: 2.4 GHz - (2) antennas, each 3 dBi / 5 GHz - (2) antennas, each 4 dBi
- Wi-Fi standards: 802.11 a/b/g/n/ac/ac-wave2
- Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: Up to four per radio
- Mounting: Wall/pole/quick mounting (kits included)
- Operating temperature: -30 to 70° C (-22 to 158° F)
- Operating humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC.
