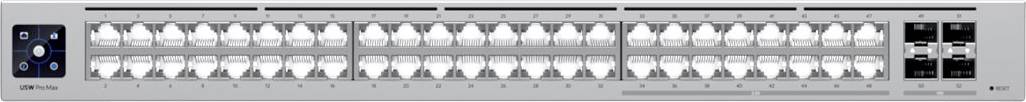

Ubiquiti Networks USW-PRO-MAX-48 UniFi USW Pro Max Network switch 48 + 4 ports
EAN:
Part number:
Item no:
Total (€ 718.49 / piece)
€ 718.49
plus VAT.
14-day return policy included
Ubiquiti Unifi switch Pro Max 48 switch L3
Highlights & Details
- Scalable networking solution for growing businesses
- Reliable switch functionality for efficient data transfer
- Supports a wide range of network hubs and switches
Technical specifications
- Housing type: Desktop, rack mountable 1U
- Performance: Non-blocking switchable throughput: 112 Gbps; switching capacity: 224 Gbps
- Routing protocol: STP, RSTP
- Features: Steel housing, reset button, IGMP snooping, port deactivation, RSTP support, port isolation, storm control, voice VLAN, port mirroring, port aggregation, LACP, multicast/broadcast rate limiting, MAC address authentication, flow control, 802.1x authentication, Jumbo frames support, loop protection, DHCP snooping, DHCP protection, exit rate limitation, LLDP-MED, ACL support, DHCP relay, inter-VLAN routing, static routing, Etherlighting ports, LED status indicator, VLAN support
- Certified IEEE 802.1x
- Display: 1.3" touch-screen display
- Status indicator: RPS (redundant power supply), status, link/activity/speed
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
2500 MBit/s
10000 MBit/s
- Working principle
Managed switch
- Ethernet ports
48
- SFP+ ports
4 x
- Port type
32 x 10/100/1000 base-T RJ-45 + 16 x 2.5GBase-T RJ-45 + 4 x 10GBASE-T SFP+
- Power supply (LOV)
mains-powered
- Weight
4.8 kg
- Width
442 mm
- Height
44 mm
- Depth
325 mm
- Type
UniFi USW Pro Max
- Rack size
483 mm (19")
- Interfaces
RJ45
RJ45 2.5 Gbit (LAN) port
SFP+
- Factory colour
Silver
- Current consumption
Alternating current 100-240 V (50/60 Hz)
- Max. ambient temperature
-5 °C
- Min. ambient temperature
+40 °C
- Port
48 + 4 ports
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3373153 Ubiquiti Networks USW-PRO-MAX-48 UniFi USW Pro Max Network switch 48 + 4 ports
Description
The Ubiquiti Unifi Switch Pro Max 48 offers companies a scalable and reliable solution for their growing network requirements. This switch supports a wide range of network hubs and switches, making it ideal for companies looking to expand their network infrastructure. With its efficient switch functionality the Ubiquiti Unifi Switch Pro Max 48 provides a smooth data transfer between several devices and thus enables a more networked and productive business environment.
Efficient networking
The Ubiquiti Unifi Switch Pro Max 48 was developed to improve your network experience with its reliable switch functionality and to provide a smooth and efficient data transfer between multiple devices.
Scalable connectivity
This model provides scalable connectivity options for growing businesses and supports a wide range of network hubs and switches to meet changing network requirements.
This text is machine translated.
Efficient networking
The Ubiquiti Unifi Switch Pro Max 48 was developed to improve your network experience with its reliable switch functionality and to provide a smooth and efficient data transfer between multiple devices.
Scalable connectivity
This model provides scalable connectivity options for growing businesses and supports a wide range of network hubs and switches to meet changing network requirements.
This text is machine translated.
Scope of delivery
- Rack mounting kit
